SAXSdb — 7ler

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Netrin-1

Gallus gallus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 48 其他Polymer 96	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 48 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 48 2-acetamido-2-deoxy-beta-D-glucopyranose × 96	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NET1_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–437； UniProt 26–458 Author chain B； PDBConstruct 5–437； UniProt 26–458 Author chain C； PDBConstruct 5–437； UniProt 26–458 Author chain D； PDBConstruct 5–437； UniProt 26–458 Author chain E； PDBConstruct 5–437； UniProt 26–458 Author chain F； PDBConstruct 5–437； UniProt 26–458 Author chain G； PDBConstruct 5–437； UniProt 26–458 Author chain H； PDBConstruct 5–437； UniProt 26–458

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7ler
Deposition date deposition_date	2021-01-14
Structure title title	Netrin-1 filament assembly
Keywords keywords	heparin binding protein, filament, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7ler__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

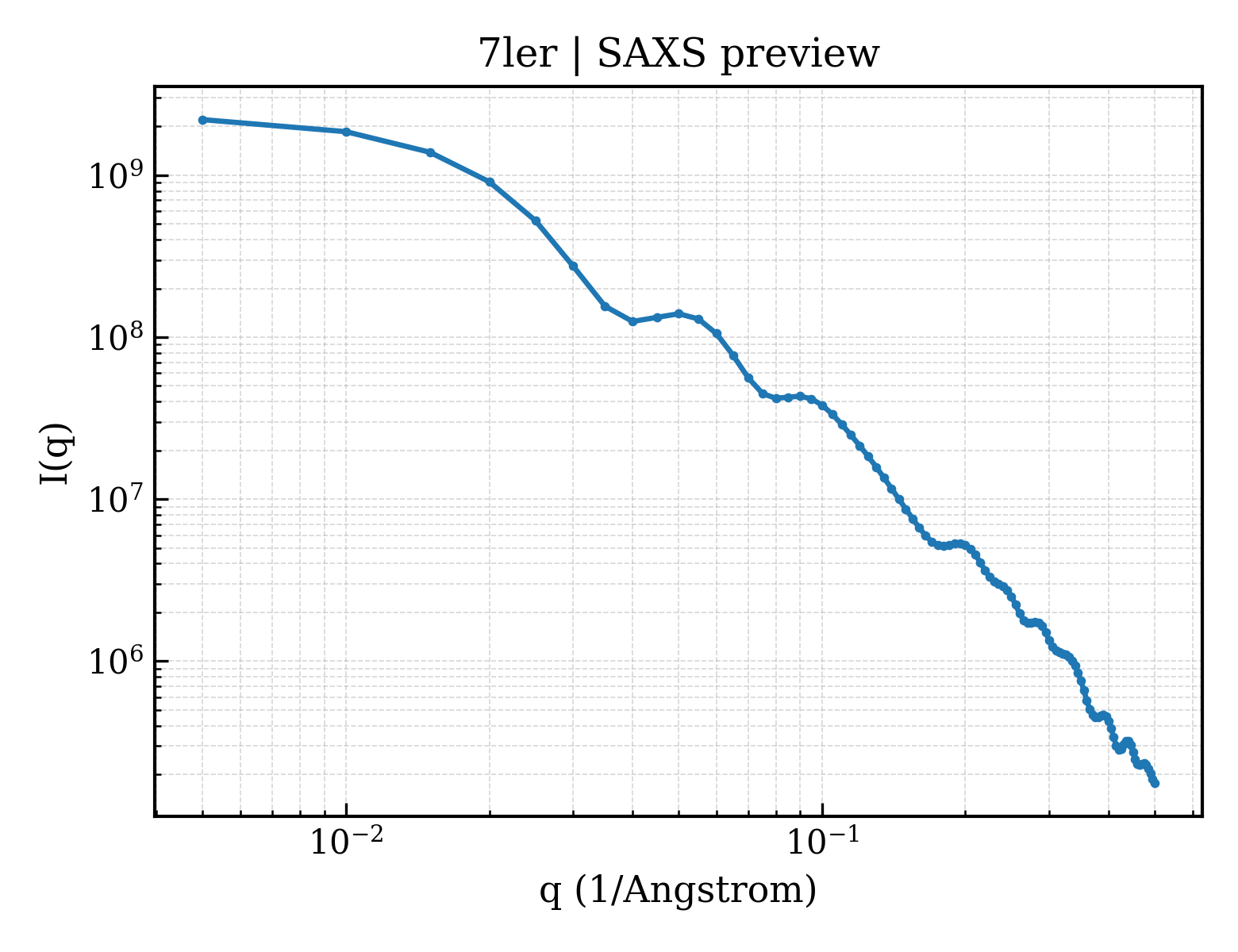

7ler__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

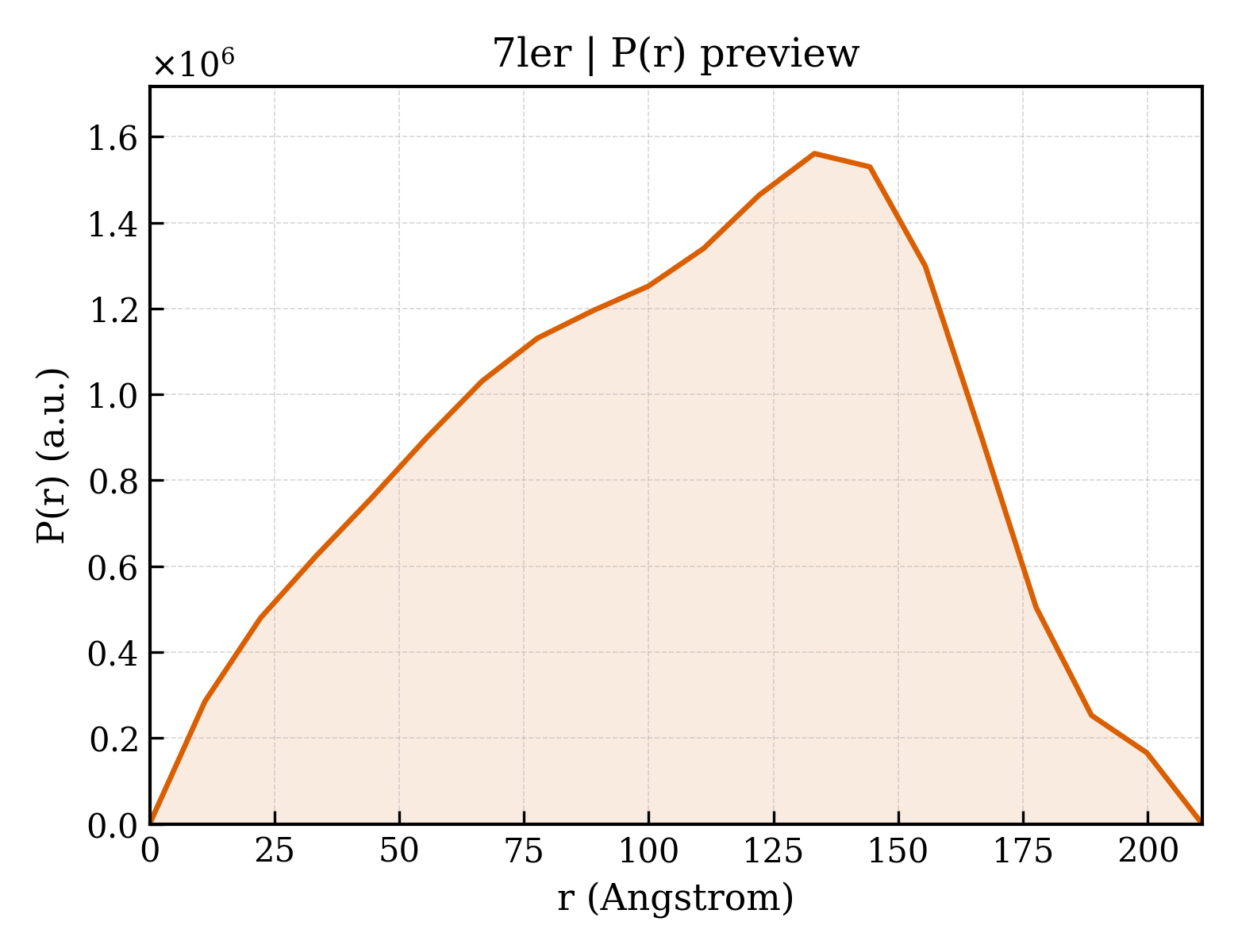

7ler__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	158.80 Å
Total Rg	158.70 Å
Atom count	158430
Residues	19494
Excluded volume	2770000 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7ler__assembly_1__model_1`	48-meric （48）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Netrin-1
Molecular weight formula_weight	49579.9 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,E,D,F,G,H
Atom count atom_count	26405

APLAGYPGLNMFAVQTAQPDPCYDEHGLPRRCIPDFVNSAFGKEVKVSSTCGKPPSRYCVVTEKGEEQVRSCHLCNASDPKRAHPPSFLTDLNNPHNLTCWQSDSYVQYPHNVTLTLSLGKKFEVTYVSLQFCSPRPESMAIYKSMDYGKTWVPFQFYSTQCRKMYNKPSRAAITKQNEQEAICTDSHTDVRPLSGGLIAFSTLDGRPTAHDFDNSPVLQDWVTATDIKVTFSRLHTFGDENEDDSELARDSYFYAVSDLQVGGRCKCNGHASRCVRDRDDNLVCDCKHNTAGPECDRCKPFHYDRPWQRATAREANECVACNCNLHARRCRFNMELYKLSGRKSGGVCLNCRHNTAGRHCHYCKEGFYRDLSKPISHRKACKECDCHPVGAAGQTCNQTTGQCPCKDGVTGITCNRCAKGYQQSRSPIAPCIKIPAGSLVPR

Source Source

Source organism organism	Gallus gallus
Common name common_name	Chicken
NCBI taxonomy ID ncbi_taxonomy_id	9031
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	8

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	16

▶

Unit-cell length a length_a	196.690 Å
Unit-cell length b length_b	196.690 Å
Unit-cell length c length_c	476.330 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	5.990 Å
Low-resolution limit resolution_low	49.170 Å
R factor r_factor	0.3838
R_work r_work	0.3044
R_free r_free	0.3681
