SAXSdb — 7q6c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Complement component C6

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 769–934	Not recorded	CP010 heavy chain × 1 kappa specific nanobody × 1 CP010 light chain × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 6.4；291 K；112 mM calcium acetate, 56 mM sodium cacodylate pH 6.4, 8.5% PEG8000 and 16% glycerol	Resolution 2.29 Å R-free 0.233

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7Q6C	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3T5O Crystal Structure of human Complement Component C6 Deposited 2011-07-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–934（913 aa）	Not recorded	CD CADMIUM ION × 1 FUL beta-L-fucopyranose × 1 MAN alpha-D-mannopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；284 K；5 mM MES, 89 mM Sodium Chloride, 0.01 mM Cadmium Chloride, pH 5.8, EVAPORATION, temperature 284K	Resolution 2.87 Å R-free 0.276
4A5W Crystal structure of C5b6 Deposited 2011-10-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 22–934（913 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 1 FUC alpha-L-fucopyranose × 1 MAN alpha-D-mannopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.8；167 MM HEPES-NAOH PH7.8	Resolution 3.50 Å R-free 0.270
4E0S Crystal Structure of C5b-6 Deposited 2012-03-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 22–934（913 aa）	Not recorded	NA SODIUM ION × 1 CA CALCIUM ION × 1 MAN alpha-D-mannopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.6；298 K；0.08M lithium chloride, 0.01M imidazole-HCl, pH 7.6, SMALL TUBES, temperature 298K	Resolution 4.21 Å R-free 0.278
6H03 OPEN CONFORMATION OF THE MEMBRANE ATTACK COMPLEX Deposited 2018-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 24-meric	Chain B 22–934（913 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 37	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.60 Å
6H04 Closed conformation of the Membrane Attack Complex Deposited 2018-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 24-meric	Chain B 22–934（913 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 38	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.60 Å
7NYC cryoEM structure of 3C9-sMAC Deposited 2021-03-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 9 PDB declaration: nonameric	Chain B 22–934（913 aa）	Not recorded	MAN alpha-D-mannopyranose × 7 CA CALCIUM ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 FUC alpha-L-fucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.54 Å
7NYD cryoEM structure of 2C9-sMAC Deposited 2021-03-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain B 22–934（913 aa）	Not recorded	MAN alpha-D-mannopyranose × 6 CA CALCIUM ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 FUC alpha-L-fucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.27 Å
8B0F CryoEM structure of C5b8-CD59 Deposited 2022-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain B 1–934（934 aa）	Not recorded	CA CALCIUM ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8B0G 2C9, C5b9-CD59 structure Deposited 2022-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain B 1–934（934 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 120 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8B0H 2C9, C5b9-CD59 cryoEM structure Deposited 2022-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain B 1–934（934 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 120 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CO6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–166； UniProt 769–934

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7q6c
Deposition date deposition_date	2021-11-06
Structure title title	complement C6 FIM1-2 bound to CP010 antibody
Keywords keywords	complement antibody terminal pathway, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.18 Å
Radius of gyration Rg (electron density) rg_electron	32.47 Å
Forward intensity I(0) i0	106188000.00
Molecular weight molecular_weight	78805.0 kDa
Excluded volume excluded_volume	97226 Å³
Envelope volume envelope_volume	129880 Å³
Hydration-shell volume shell_volume	34665 Å³
Envelope diameter envelope_diameter	109.1 Å
Shell Rg shell_rg	37.97 Å
Envelope Rg envelope_rg	32.33 Å
Shape Rg shape_rg	32.41 Å
Total Rg total_rg	33.07 Å
Total atoms total_atoms	10815
Residues n_residues	723
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

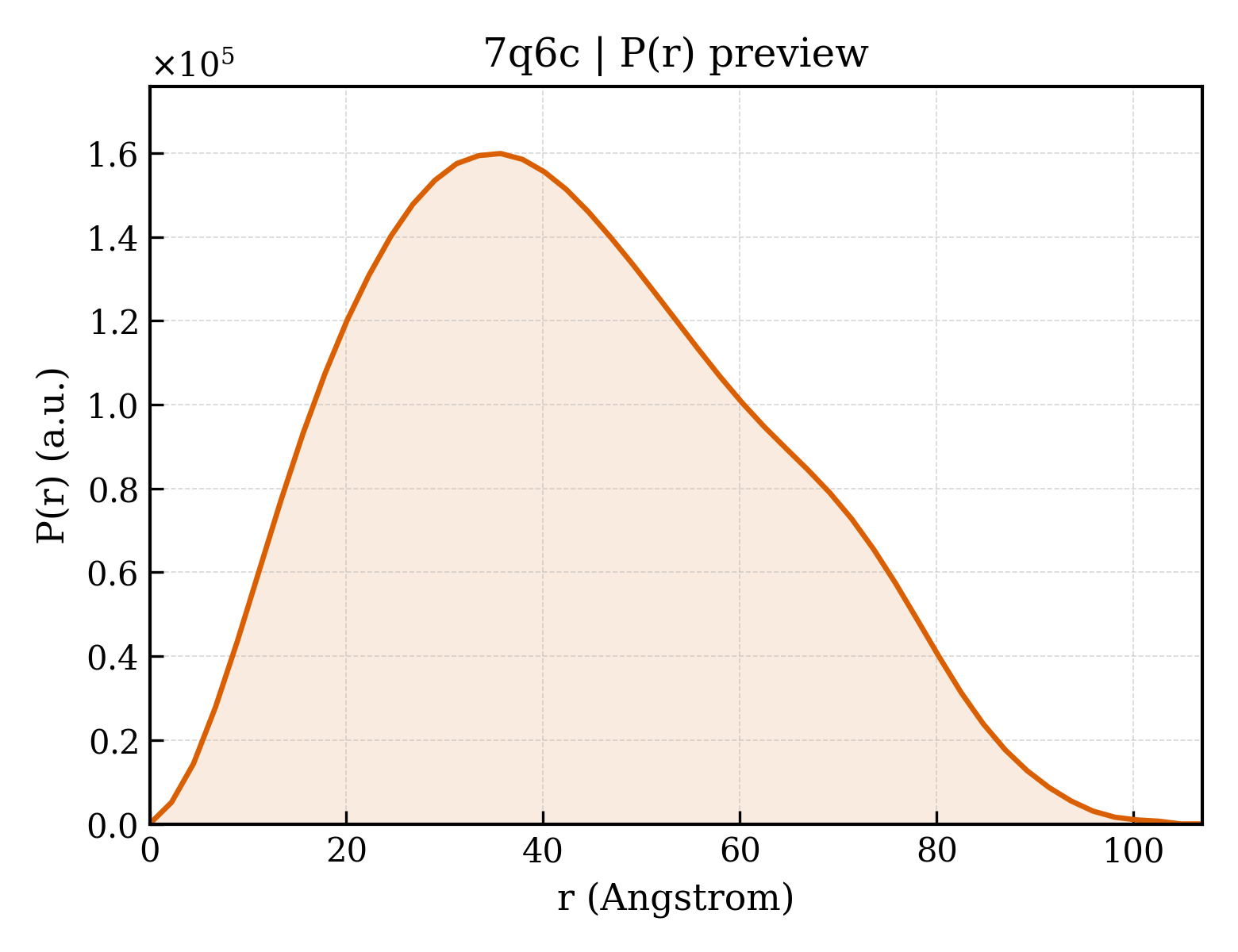

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	107.0 Å
Rg (real space) rg_real	33.26 Å
Rg uncertainty (real space) rg_real_error	1.13 Å
I(0) (real space) i0_real	1.0620e+08
I(0) uncertainty (real space) i0_real_error	1.7190e+06
Rg (reciprocal space) rg_reciprocal	33.23 Å
I(0) (reciprocal space) i0_reciprocal	106200000.0000
Solution quality estimate total_estimate	0.8949
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	35.7 Å
Skewness Skewness skewness	0.302
Kurtosis Kurtosis kurtosis	-0.625
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10730000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.882

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Complement component C6
Molecular weight formula_weight	18478.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10943

LKGHCQLGQKQSGSECICMSPEEDCSHHSEDLCVFDTDSNDYFTSPACKFLAEKCLNNQQLHFLHIGSCQDGRQLEWGLERTRLSSASTKKESCGYDTCYDWEKCSASTSKCVCLLPPQCFKGGNQLYCVKMGSSTSEKTLNICEVGTIRCANRKMEILHPGKCLA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	CP010 heavy chain
Molecular weight formula_weight	23490.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLVESDGGLVQPGGSLKLSCAASGFTFSDYYMAWVRQGPGKGLEWVATINYDGSSTYYRESVKGRFTISRDNAKNTLYLQMNSLRAEDTATYYCARPSTEALFAYWGHGTLVTVSSASTKGPSVFPLAPCSRSTSESTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTKTYTCNVDHKPSNTKVDKRVESS

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	kappa specific nanobody
Molecular weight formula_weight	13375.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

QVQLQESGGGLVQPGGSLRLSCAASGRTISRYAMSWFRQAPGKEREFVAVARRSGDGAFYADSVQGRFTVSRDDAKNTVYLQMNSLKPEDTAVYYCAIDSDTFYSGSYDYWGQGTQVTVSSE

来源 Source

来源生物 organism	Lama glama
NCBI Class编号 ncbi_taxonomy_id	9844
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	CP010 light chain
Molecular weight formula_weight	23851.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DVVLTQTPSTLSVTPGQPASISCRSSQSLLNDVGNTYLYWYLQKPGQSPQLLIYLVSDLGSGVPNRFSGSGSGTDFTLKISRVEAEDVGIYYCMQASHAPYTFGQGTNLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 5 Entity 5 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

7. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id	7q6cH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7q6cH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7q6cK01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7q6cL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7q6cL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	161.057 Å
Unit-cell length b length_b	63.527 Å
Unit-cell length c length_c	128.589 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	128.36 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.293 Å
Low-resolution limit resolution_low	44.450 Å
R factor r_factor	0.2092
R_work r_work	0.2081
R_free r_free	0.2329

fit	/app/data/saxs_computation/q6/7q6c/7q6c.fit
pddf	/app/data/pr_computation/q6/7q6c/7q6c.pr.out
profile	/app/data/saxs_computation/q6/7q6c/7q6c.dat
