SAXSdb — 7r9z

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Microtubule-associated proteins 1A/1B light chain 3A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–120	Not recorded	2LZ (5-fluoro-1H-indol-3-yl)acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.2M Sodium formate, 20% PEG 3350	Resolution 1.72 Å R-free 0.218

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7R9Z	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3ECI Microtubule-associated protein 1 light chain 3 alpha isoform A (MAP1ALC3) Deposited 2008-08-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；32 % PEG 4000, 0.1 M NA ACETATE, PH 4.50, 0.2 M AMMONIUM ACETATE, VAPOR DIFFUSION, HANGING DROP, CRYOPROTECTION 20% GLYCEROL, TEMPERATURE 298K	Resolution 2.65 Å R-free 0.304
3ECI Microtubule-associated protein 1 light chain 3 alpha isoform A (MAP1ALC3) Deposited 2008-08-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；32 % PEG 4000, 0.1 M NA ACETATE, PH 4.50, 0.2 M AMMONIUM ACETATE, VAPOR DIFFUSION, HANGING DROP, CRYOPROTECTION 20% GLYCEROL, TEMPERATURE 298K	Resolution 2.65 Å R-free 0.304
3WAL Crystal structure of human LC3A_2-121 Deposited 2013-05-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–121（120 aa）	Not recorded	MLT D-MALATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；0.2M Sodium malonate, 20% PEG 3350, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.237
3WAN Crystal structure of Atg13 LIR-fused human LC3A_2-121 Deposited 2013-05-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–121（120 aa） Fragment：UNP RESIDUES 436-447, 2-121 Chain B 2–121（120 aa） Fragment：UNP RESIDUES 436-447, 2-121	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；277 K；12% MPD, 0.1M Sodium chloride, 0.1M Sodium acetate trihydrate, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.77 Å R-free 0.227
4ZDV Crystal structure of LC3 in complex with FAM134B LIR Deposited 2015-04-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–120（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；8% Tacsimate (Hampton Research) pH 8.0, 20% Poly ethylene glycol 3350	Resolution 1.80 Å R-free 0.223
5CX3 Crystal structure of FYCO1 LIR in complex with LC3A Deposited 2015-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–121（121 aa） Chain C 1–121（121 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；289 K；1.2 M sodium citrate tribasic dihydrate, 0.1 M HEPES sodium	Resolution 2.30 Å R-free 0.244
5CX3 Crystal structure of FYCO1 LIR in complex with LC3A Deposited 2015-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–121（121 aa） Chain D 1–121（121 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；289 K；1.2 M sodium citrate tribasic dihydrate, 0.1 M HEPES sodium	Resolution 2.30 Å R-free 0.244
5CX3 Crystal structure of FYCO1 LIR in complex with LC3A Deposited 2015-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–121（121 aa） Chain B 1–121（121 aa） Chain C 1–121（121 aa） Chain D 1–121（121 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；289 K；1.2 M sodium citrate tribasic dihydrate, 0.1 M HEPES sodium	Resolution 2.30 Å R-free 0.244
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–121（120 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–121（120 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2–121（120 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 2–121（120 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
6TBE LC3A in complex with (3R,4S,5R,6R)-5-hydroxy-6-((4-hydroxy-3-(4-hydroxy-3-isopentylbenzamido)-8-methyl-2-oxo-2H-chromen-7-yl)oxy)-3-methoxy-2,2-dimethyltetrahydro-2H-pyran-4-yl carbamate Deposited 2019-11-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–119（116 aa）	Not recorded	NOV NOVOBIOCIN × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M ammoniumnitrat and 20% w/v PEG 3350	Resolution 1.67 Å R-free 0.212
7R9W LC3A in complex with Fragment 1-1 Deposited 2021-06-29	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Not recorded	JO4 4-phenoxybenzoic acid × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2M Sodium formate, 20% PEG 3350	Resolution 1.75 Å R-free 0.213
7RA0 LC3A in complex with Fragment 2-10 Deposited 2021-06-29	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Not recorded	2JI (5-ethyl-2-methyl-1H-indol-3-yl)acetic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2M Sodium formate, 20% PEG 3350	Resolution 1.36 Å R-free 0.201
8T2L Crystal structure of LC3A in complex with the LIR of NSs4 Deposited 2023-06-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–121（121 aa） Fragment：GS is the remain of the removed expression tag. The N terminus of Nss has been fused with Q9H492 to facilitate the crystalization.	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG3350, 0.2M Na-citrate, 5% Isopropanol, 0.1M MES buffer PH 6.5	Resolution 2.24 Å R-free 0.276
8T2L Crystal structure of LC3A in complex with the LIR of NSs4 Deposited 2023-06-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–121（121 aa） Fragment：GS is the remain of the removed expression tag. The N terminus of Nss has been fused with Q9H492 to facilitate the crystalization.	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG3350, 0.2M Na-citrate, 5% Isopropanol, 0.1M MES buffer PH 6.5	Resolution 2.24 Å R-free 0.276
8T35 Crystal structure of K51 acetylated LC3A in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–121（121 aa） Chain B 1–121（121 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG4000, 0.1M Na-citrate pH 5.5	Resolution 1.90 Å R-free 0.259
8T36 Crystal structure of K49 acetylated LC3A in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–121（121 aa） Fragment：;GS is the remain of the removed expression tag. TP53INP2 Q8IXH6 peptide is fused to the N- terminal of the Q9H492 to facilitate the crystallization. ;	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；15% PEG3350, 0.1M Na-citrate, 5% isopropanol, 0.1 M HEPES pH 7.5	Resolution 1.85 Å R-free 0.258
8T4T Crystal structure of LC3A in complex with the LIR of TP53INP2/DOR Deposited 2023-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；12.5% PEG3350, 0.2M NH4-citrate, 5% isopropanol, 0.1M MES pH6.5	Resolution 2.36 Å R-free 0.272
8T4T Crystal structure of LC3A in complex with the LIR of TP53INP2/DOR Deposited 2023-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；12.5% PEG3350, 0.2M NH4-citrate, 5% isopropanol, 0.1M MES pH6.5	Resolution 2.36 Å R-free 0.272

13 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MLP3A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–122； UniProt 1–120

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7r9z
Deposition date deposition_date	2021-06-29
Structure title title	LC3A in complex with Fragment 2-3
Keywords keywords	mAtg8, autophagy, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.61 Å
Radius of gyration Rg (electron density) rg_electron	14.08 Å
Forward intensity I(0) i0	3753720.00
Molecular weight molecular_weight	13784.0 kDa
Excluded volume excluded_volume	17344 Å³
Envelope volume envelope_volume	19756 Å³
Hydration-shell volume shell_volume	12070 Å³
Envelope diameter envelope_diameter	49.5 Å
Shell Rg shell_rg	19.58 Å
Envelope Rg envelope_rg	14.28 Å
Shape Rg shape_rg	14.07 Å
Total Rg total_rg	15.28 Å
Total atoms total_atoms	971
Residues n_residues	115
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

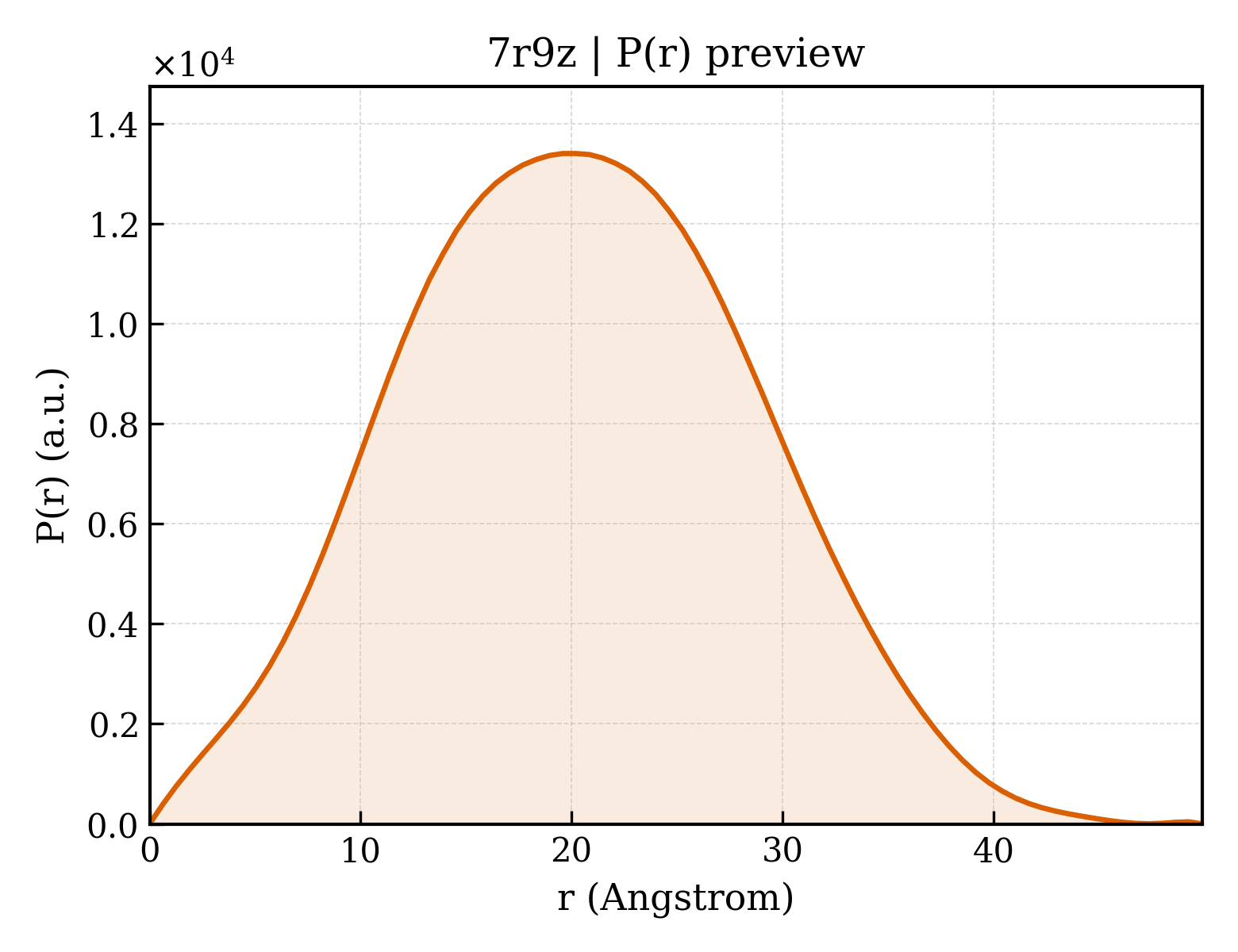

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	49.9 Å
Rg (real space) rg_real	15.51 Å
Rg uncertainty (real space) rg_real_error	0.24 Å
I(0) (real space) i0_real	3.7540e+06
I(0) uncertainty (real space) i0_real_error	3.8210e+04
Rg (reciprocal space) rg_reciprocal	15.52 Å
I(0) (reciprocal space) i0_reciprocal	3754000.0000
Solution quality estimate total_estimate	0.8920
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	49.3 Å
Skewness Skewness skewness	0.106
Kurtosis Kurtosis kurtosis	-0.422
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	662800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.872; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.979

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Microtubule-associated proteins 1A/1B light chain 3A
Molecular weight formula_weight	14290.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1049

GSMPSDRPFKQRRSFADRCKEVQQIRDQHPSKIPVIIERYKGEKQLPVLDKTKFLVPDHVNMSELVKIIRRRLQLNPTQAFFLLVNQHSMVSVSTPIADIYEQEKDEDGFLYMVYASQETFG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	(5-fluoro-1H-indol-3-yl)acetic acid
Molecular weight formula_weight	193.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	69

▶

8. Citations (1)

▶

Unit-cell length a length_a	93.463 Å
Unit-cell length b length_b	93.463 Å
Unit-cell length c length_c	32.322 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 41
Space-group number int_tables_number	80
Crystal system crystal_system	tetragonal

Resolution resolution	1.720 Å
Low-resolution limit resolution_low	46.730 Å
R factor r_factor	0.1950
R_work r_work	0.1924
R_free r_free	0.2185
