SAXSdb — 8t2l

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Non-structural protein S,Microtubule-associated proteins 1A/1B light chain 3A chimera

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 257–265	Fragment：GS is the remain of the removed expression tag. The N terminus of Nss has been fused with Q9H492 to facilitate the crystalization.	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG3350, 0.2M Na-citrate, 5% Isopropanol, 0.1M MES buffer PH 6.5	Resolution 2.24 Å R-free 0.276
2	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 257–265	Fragment：GS is the remain of the removed expression tag. The N terminus of Nss has been fused with Q9H492 to facilitate the crystalization.	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG3350, 0.2M Na-citrate, 5% Isopropanol, 0.1M MES buffer PH 6.5	Resolution 2.24 Å R-free 0.276

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8T2L	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2N0Y NMR structure of the complex between the C-terminal domain of the Rift Valley fever virus protein NSs and the PH domain of the Tfb1 subunit of TFIIH Deposited 2015-03-18	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 247–265（19 aa） Fragment：C-terminal domain residues247-265	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；300 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 1 mM [U-13C; U-15N] RNA polymerase II transcription factor B subunit 1, 2 mM Non-structural protein NS-S, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-13C; U-15N] RNA polymerase II transcription factor B subunit 1, 2 mM Non-structural protein NS-S, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [U-15N] RNA polymerase II transcription factor B subunit 1, 1 mM Non-structural protein NS-S, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM RNA polymerase II transcription factor B subunit 1, 0.5 mM [U-13C; U-15N] Non-structural protein NS-S, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM RNA polymerase II transcription factor B subunit 1, 1 mM [U-13C; U-15N] Non-structural protein NS-S, 100% D2O \| 100% D2O NMR sample composition 0.4 mM RNA polymerase II transcription factor B subunit 1, 0.2 mM [U-15N] Non-structural protein NS-S, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8T2M Crystal structure of GABARAP in complex with the LIR of NSs4 Deposited 2023-06-06	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 257–265（9 aa） Fragment：;GS is the remain of the removed expression tag. The C terminus of Nss 257-265 has been fused with Q9H492 to facilitate the crystalization. The GG is a spacer between Nss and GABARAP protein. ;	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium acetate:HCl, pH 4.6, 8% PEG 4000	Resolution 1.27 Å R-free 0.178
8T2N Crystal structure of GABARAP in complex with the LIR of NSs3 Deposited 2023-06-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 234–255（22 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M Potassium acetate, 20% PEG 3350	Resolution 1.88 Å R-free 0.264
8T2N Crystal structure of GABARAP in complex with the LIR of NSs3 Deposited 2023-06-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 234–255（22 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M Potassium acetate, 20% PEG 3350	Resolution 1.88 Å R-free 0.264

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NSS_RVFVZ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–11； UniProt 257–265 Author chain B； PDBConstruct 3–11； UniProt 257–265

Non-structural protein S,Microtubule-associated proteins 1A/1B light chain 3A chimera

Homo sapiens

UniProt Q9H492

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–121	Fragment：GS is the remain of the removed expression tag. The N terminus of Nss has been fused with Q9H492 to facilitate the crystalization.	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG3350, 0.2M Na-citrate, 5% Isopropanol, 0.1M MES buffer PH 6.5	Resolution 2.24 Å R-free 0.276
2	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–121	Fragment：GS is the remain of the removed expression tag. The N terminus of Nss has been fused with Q9H492 to facilitate the crystalization.	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG3350, 0.2M Na-citrate, 5% Isopropanol, 0.1M MES buffer PH 6.5	Resolution 2.24 Å R-free 0.276

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8T2L	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3ECI Microtubule-associated protein 1 light chain 3 alpha isoform A (MAP1ALC3) Deposited 2008-08-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；32 % PEG 4000, 0.1 M NA ACETATE, PH 4.50, 0.2 M AMMONIUM ACETATE, VAPOR DIFFUSION, HANGING DROP, CRYOPROTECTION 20% GLYCEROL, TEMPERATURE 298K	Resolution 2.65 Å R-free 0.304
3ECI Microtubule-associated protein 1 light chain 3 alpha isoform A (MAP1ALC3) Deposited 2008-08-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；32 % PEG 4000, 0.1 M NA ACETATE, PH 4.50, 0.2 M AMMONIUM ACETATE, VAPOR DIFFUSION, HANGING DROP, CRYOPROTECTION 20% GLYCEROL, TEMPERATURE 298K	Resolution 2.65 Å R-free 0.304
3WAL Crystal structure of human LC3A_2-121 Deposited 2013-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–121（120 aa）	Not recorded	MLT D-MALATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；0.2M Sodium malonate, 20% PEG 3350, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.237
3WAN Crystal structure of Atg13 LIR-fused human LC3A_2-121 Deposited 2013-05-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–121（120 aa） Fragment：UNP RESIDUES 436-447, 2-121 Chain B 2–121（120 aa） Fragment：UNP RESIDUES 436-447, 2-121	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；277 K；12% MPD, 0.1M Sodium chloride, 0.1M Sodium acetate trihydrate, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.77 Å R-free 0.227
4ZDV Crystal structure of LC3 in complex with FAM134B LIR Deposited 2015-04-19	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–120（119 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；8% Tacsimate (Hampton Research) pH 8.0, 20% Poly ethylene glycol 3350	Resolution 1.80 Å R-free 0.223
5CX3 Crystal structure of FYCO1 LIR in complex with LC3A Deposited 2015-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–121（121 aa） Chain C 1–121（121 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；289 K；1.2 M sodium citrate tribasic dihydrate, 0.1 M HEPES sodium	Resolution 2.30 Å R-free 0.244
5CX3 Crystal structure of FYCO1 LIR in complex with LC3A Deposited 2015-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–121（121 aa） Chain D 1–121（121 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；289 K；1.2 M sodium citrate tribasic dihydrate, 0.1 M HEPES sodium	Resolution 2.30 Å R-free 0.244
5CX3 Crystal structure of FYCO1 LIR in complex with LC3A Deposited 2015-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–121（121 aa） Chain B 1–121（121 aa） Chain C 1–121（121 aa） Chain D 1–121（121 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；289 K；1.2 M sodium citrate tribasic dihydrate, 0.1 M HEPES sodium	Resolution 2.30 Å R-free 0.244
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–121（120 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–121（120 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2–121（120 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 2–121（120 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
6TBE LC3A in complex with (3R,4S,5R,6R)-5-hydroxy-6-((4-hydroxy-3-(4-hydroxy-3-isopentylbenzamido)-8-methyl-2-oxo-2H-chromen-7-yl)oxy)-3-methoxy-2,2-dimethyltetrahydro-2H-pyran-4-yl carbamate Deposited 2019-11-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–119（116 aa）	Not recorded	NOV NOVOBIOCIN × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M ammoniumnitrat and 20% w/v PEG 3350	Resolution 1.67 Å R-free 0.212
7R9W LC3A in complex with Fragment 1-1 Deposited 2021-06-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Not recorded	JO4 4-phenoxybenzoic acid × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2M Sodium formate, 20% PEG 3350	Resolution 1.75 Å R-free 0.213
7R9Z LC3A in complex with Fragment 2-3 Deposited 2021-06-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Not recorded	2LZ (5-fluoro-1H-indol-3-yl)acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2M Sodium formate, 20% PEG 3350	Resolution 1.72 Å R-free 0.218
7RA0 LC3A in complex with Fragment 2-10 Deposited 2021-06-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Not recorded	2JI (5-ethyl-2-methyl-1H-indol-3-yl)acetic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2M Sodium formate, 20% PEG 3350	Resolution 1.36 Å R-free 0.201
8T35 Crystal structure of K51 acetylated LC3A in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–121（121 aa） Chain B 1–121（121 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% PEG4000, 0.1M Na-citrate pH 5.5	Resolution 1.90 Å R-free 0.259
8T36 Crystal structure of K49 acetylated LC3A in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–121（121 aa） Fragment：;GS is the remain of the removed expression tag. TP53INP2 Q8IXH6 peptide is fused to the N- terminal of the Q9H492 to facilitate the crystallization. ;	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；15% PEG3350, 0.1M Na-citrate, 5% isopropanol, 0.1 M HEPES pH 7.5	Resolution 1.85 Å R-free 0.258
8T4T Crystal structure of LC3A in complex with the LIR of TP53INP2/DOR Deposited 2023-06-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；12.5% PEG3350, 0.2M NH4-citrate, 5% isopropanol, 0.1M MES pH6.5	Resolution 2.36 Å R-free 0.272
8T4T Crystal structure of LC3A in complex with the LIR of TP53INP2/DOR Deposited 2023-06-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；12.5% PEG3350, 0.2M NH4-citrate, 5% isopropanol, 0.1M MES pH6.5	Resolution 2.36 Å R-free 0.272

13 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MLP3A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 12–132； UniProt 1–121 Author chain B； PDBConstruct 12–132； UniProt 1–121

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8t2l
Deposition date deposition_date	2023-06-06
最后修订 last_revision	2024-04-03
Structure title title	Crystal structure of LC3A in complex with the LIR of NSs4
Keywords keywords	Rift Valley fever virus, autophagy, LC3, GABARAP, LIR, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.05 Å
Radius of gyration Rg (electron density) rg_electron	21.95 Å
Forward intensity I(0) i0	15251700.00
Molecular weight molecular_weight	29624.0 kDa
Excluded volume excluded_volume	37238 Å³
Envelope volume envelope_volume	49193 Å³
Hydration-shell volume shell_volume	19528 Å³
Envelope diameter envelope_diameter	104.9 Å
Shell Rg shell_rg	27.57 Å
Envelope Rg envelope_rg	23.09 Å
Shape Rg shape_rg	21.96 Å
Total Rg total_rg	22.74 Å
Total atoms total_atoms	2086
Residues n_residues	252
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	60.5 Å
Rg (real space) rg_real	21.89 Å
Rg uncertainty (real space) rg_real_error	0.09 Å
I(0) (real space) i0_real	1.4530e+07
I(0) uncertainty (real space) i0_real_error	1.4000e+05
Rg (reciprocal space) rg_reciprocal	23.13 Å
I(0) (reciprocal space) i0_reciprocal	15250000.0000
Solution quality estimate total_estimate	0.6861
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	25.1 Å
Skewness Skewness skewness	0.239
Kurtosis Kurtosis kurtosis	-0.579
Angular range angular_range	— – 0.3450 Å⁻¹
Current regularization parameter α current_alpha	3.2650
Highest regularization parameter α highest_alpha	2049000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.002; Oscil: 0.999; Stabil: 0.975; Sysdev: 0.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Unit-cell length a length_a	36.995 Å
Unit-cell length b length_b	50.267 Å
Unit-cell length c length_c	137.874 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.240 Å
Low-resolution limit resolution_low	32.600 Å
R factor r_factor	0.2354
R_work r_work	0.2308
R_free r_free	0.2762

Description description	Non-structural protein S,Microtubule-associated proteins 1A/1B light chain 3A chimera
Molecular weight formula_weight	15429.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2150

Crystal structure of LC3A in complex with the LIR of NSs4

1. Protein Identity and Related Structures Protein Identity & Related Structures

Non-structural protein S,Microtubule-associated proteins 1A/1B light chain 3A chimera

State in the Current Structure

Other States of the Same Protein in the Database

Non-structural protein S,Microtubule-associated proteins 1A/1B light chain 3A chimera

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

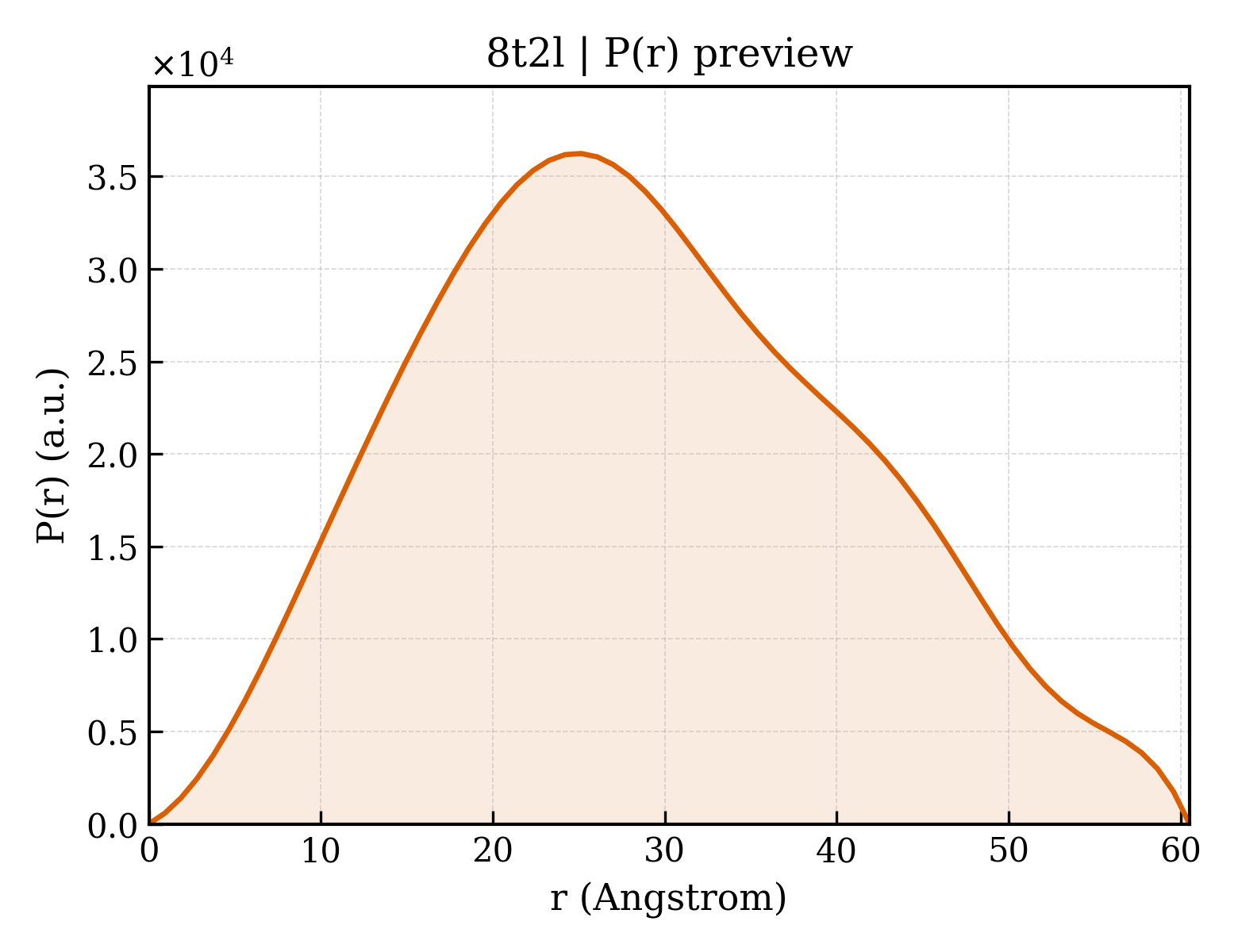

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	56

fit	/app/data/saxs_computation/t2/8t2l/8t2l.fit
pddf	/app/data/pr_computation/t2/8t2l/8t2l.pr.out
profile	/app/data/saxs_computation/t2/8t2l/8t2l.dat
