SAXSdb — 7s58

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Evasin P974

Amblyomma cajennense

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 30–114	Not recorded	C-C motif chemokine 7 × 1 （P80098）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 30–114	Not recorded	C-C motif chemokine 7 × 1 （P80098）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 30–114	Not recorded	C-C motif chemokine 7 × 1 （P80098）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 30–114	Not recorded	C-C motif chemokine 7 × 1 （P80098）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7S58	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7S4N Crystal structure of the tick evasin EVA-P974 complexed to human chemokine CCL17 Deposited 2021-09-09	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 30–114（85 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；291 K；0.1 M Na3 Cit 3.5 pH (Buffer) 3 M NaCl (Precipitant)	Resolution 1.65 Å R-free 0.237
7S4N Crystal structure of the tick evasin EVA-P974 complexed to human chemokine CCL17 Deposited 2021-09-09	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 30–114（85 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；291 K；0.1 M Na3 Cit 3.5 pH (Buffer) 3 M NaCl (Precipitant)	Resolution 1.65 Å R-free 0.237
7S59 Crystal structure of the tick evasin EVA-P974 complexed to a chimera made of human chemokines CCL7 and CCL8 Deposited 2021-09-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain 1 30–114（85 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.1 M TRIS 8.5 pH (Buffer) 2 M (NH4)2SO4 (Precipitant)	Resolution 2.39 Å R-free 0.268
7S59 Crystal structure of the tick evasin EVA-P974 complexed to a chimera made of human chemokines CCL7 and CCL8 Deposited 2021-09-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain 3 30–114（85 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.1 M TRIS 8.5 pH (Buffer) 2 M (NH4)2SO4 (Precipitant)	Resolution 2.39 Å R-free 0.268
7SO0 Crystal Structure of the Engineered Tick Evasin EVA-P974(F31A) Complexed to Human Chemokine CCL2 Deposited 2021-10-28	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 30–114（85 aa）	Mutation：F31A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.5；293 K；0.1 M Na3 Cit 3.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.74 Å R-free 0.202

3 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EV974_AMBCJ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–85； UniProt 30–114 Author chain B； PDBConstruct 1–85； UniProt 30–114 Author chain C； PDBConstruct 1–85； UniProt 30–114 Author chain D； PDBConstruct 1–85； UniProt 30–114

C-C motif chemokine 7

Homo sapiens

UniProt P80098

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 24–99	Not recorded	Evasin P974 × 1 （A0A023FDY8）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 24–99	Not recorded	Evasin P974 × 1 （A0A023FDY8）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain J； UniProt 24–99	Not recorded	Evasin P974 × 1 （A0A023FDY8）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 24–99	Not recorded	Evasin P974 × 1 （A0A023FDY8）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7S58	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BO0 MONOCYTE CHEMOATTRACTANT PROTEIN-3, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1998-08-10	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–99（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.1；303 K	Resolution not provided
1NCV DETERMINATION CC-CHEMOKINE MCP-3, NMR, 7 STRUCTURES Deposited 1997-02-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–99（76 aa） Chain B 24–99（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；290 K	Resolution not provided
4ZKC The chemokine binding protein of orf virus complexed with CCL7 Deposited 2015-04-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–99（76 aa） Fragment：UNP residues 24-99	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；0.2M potassium sodium tartrate tetrahydrate, 0.1M sodium citrate tribasic dihydrate pH5.6, 2.0M ammonium citrate	Resolution 3.15 Å R-free 0.327
7S59 Crystal structure of the tick evasin EVA-P974 complexed to a chimera made of human chemokines CCL7 and CCL8 Deposited 2021-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain 2 39–99（61 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.1 M TRIS 8.5 pH (Buffer) 2 M (NH4)2SO4 (Precipitant)	Resolution 2.39 Å R-free 0.268
7S59 Crystal structure of the tick evasin EVA-P974 complexed to a chimera made of human chemokines CCL7 and CCL8 Deposited 2021-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain 4 39–99（61 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.1 M TRIS 8.5 pH (Buffer) 2 M (NH4)2SO4 (Precipitant)	Resolution 2.39 Å R-free 0.268
7SCU Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL7 Deposited 2021-09-29	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–99（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Na Acet 4.6 pH (Buffer),2 M NaCl (Precipitant)	Resolution 1.86 Å R-free 0.210
8FJ3 Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL7(Y13A) Deposited 2022-12-19	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–99（76 aa）	Mutation：Y13A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M NH2SO4, 0.1 Na acetate, pH 4.8	Resolution 2.07 Å R-free 0.229
8FK6 Crystal Structure of the Tick Evasin EVA-AAM1001(Y44A) Complexed to Human Chemokine CCL7 Deposited 2022-12-20	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–99（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M Ammonium sulfate	Resolution 1.74 Å R-free 0.223
8FK8 Crystal Structure of the Tick Evasin EVA-AAM1001(L39P) Complexed to Human Chemokine CCL7 Deposited 2022-12-20	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–99（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M Ammonium sulfate	Resolution 1.96 Å R-free 0.263
8JPS Structure of Duffy Antigen Receptor for Chemokines (DARC)/ACKR1 in complex with the chemokine, CCL7 (Composite map) Deposited 2023-06-12	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 31–93（63 aa） Chain D 31–93（63 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.65 Å

9 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CCL7_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–76； UniProt 24–99 Author chain F； PDBConstruct 1–76； UniProt 24–99 Author chain H； PDBConstruct 1–76； UniProt 24–99 Author chain J； PDBConstruct 1–76； UniProt 24–99

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7s58
Deposition date deposition_date	2021-09-10
Structure title title	Crystal Structure of the tick evasin EVA-P974 complexed to human chemokine CCL7
Keywords keywords	Inflammation, Chemokine, Evasin, Evasin-chemokine complex, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.99 Å
Radius of gyration Rg (electron density) rg_electron	25.13 Å
Forward intensity I(0) i0	75985900.00
Molecular weight molecular_weight	64406.0 kDa
Excluded volume excluded_volume	78975 Å³
Envelope volume envelope_volume	102940 Å³
Hydration-shell volume shell_volume	33300 Å³
Envelope diameter envelope_diameter	77.0 Å
Shell Rg shell_rg	32.93 Å
Envelope Rg envelope_rg	24.66 Å
Shape Rg shape_rg	25.17 Å
Total Rg total_rg	25.86 Å
Total atoms total_atoms	4498
Residues n_residues	607
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	76.6 Å
Rg (real space) rg_real	25.78 Å
Rg uncertainty (real space) rg_real_error	0.39 Å
I(0) (real space) i0_real	7.5990e+07
I(0) uncertainty (real space) i0_real_error	1.0110e+06
Rg (reciprocal space) rg_reciprocal	25.85 Å
I(0) (reciprocal space) i0_reciprocal	75990000.0000
Solution quality estimate total_estimate	0.9081
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	35.1 Å
Skewness Skewness skewness	0.017
Kurtosis Kurtosis kurtosis	-0.527
Angular range angular_range	— – 0.3050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11130000.0000
Real-space data points n_real_points	62
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.944; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Evasin P974
Molecular weight formula_weight	9702.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4716

DYDYGTDTCPFPVLANKTNKAKFVGCHQKCNGGDQKLTDGTACYVVERKVWDRMTPMLWYECPLGECKNGVCEDLRKKEDCRKGN

来源 Source

来源生物 organism	Amblyomma cajennense
通用名 common_name	Cayenne tick, Acarus cajennensis
NCBI Class编号 ncbi_taxonomy_id	34607
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	C-C motif chemokine 7
Molecular weight formula_weight	8974.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,J,H

QPVGINTSTTCCYRFINKKIPKQRLESYRRTTSSHCPREAVIFKTKLDKEICADPTQKWVQDFMKHLDKKTQTPKL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	217

▶

8. Citations (1)

▶

Unit-cell length a length_a	58.025 Å
Unit-cell length b length_b	64.415 Å
Unit-cell length c length_c	181.432 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	1.820 Å
Low-resolution limit resolution_low	30.770 Å
R factor r_factor	0.2246
R_work r_work	0.2236
R_free r_free	0.2440

fit	/app/data/saxs_computation/s5/7s58/7s58.fit
pddf	/app/data/pr_computation/s5/7s58/7s58.pr.out
profile	/app/data/saxs_computation/s5/7s58/7s58.dat

Crystal Structure of the tick evasin EVA-P974 complexed to human chemokine CCL7

1. Protein Identity and Related Structures Protein Identity & Related Structures

Evasin P974

State in the Current Structure

Other States of the Same Protein in the Database

C-C motif chemokine 7

State in the Current Structure

Other States of the Same Protein in the Database

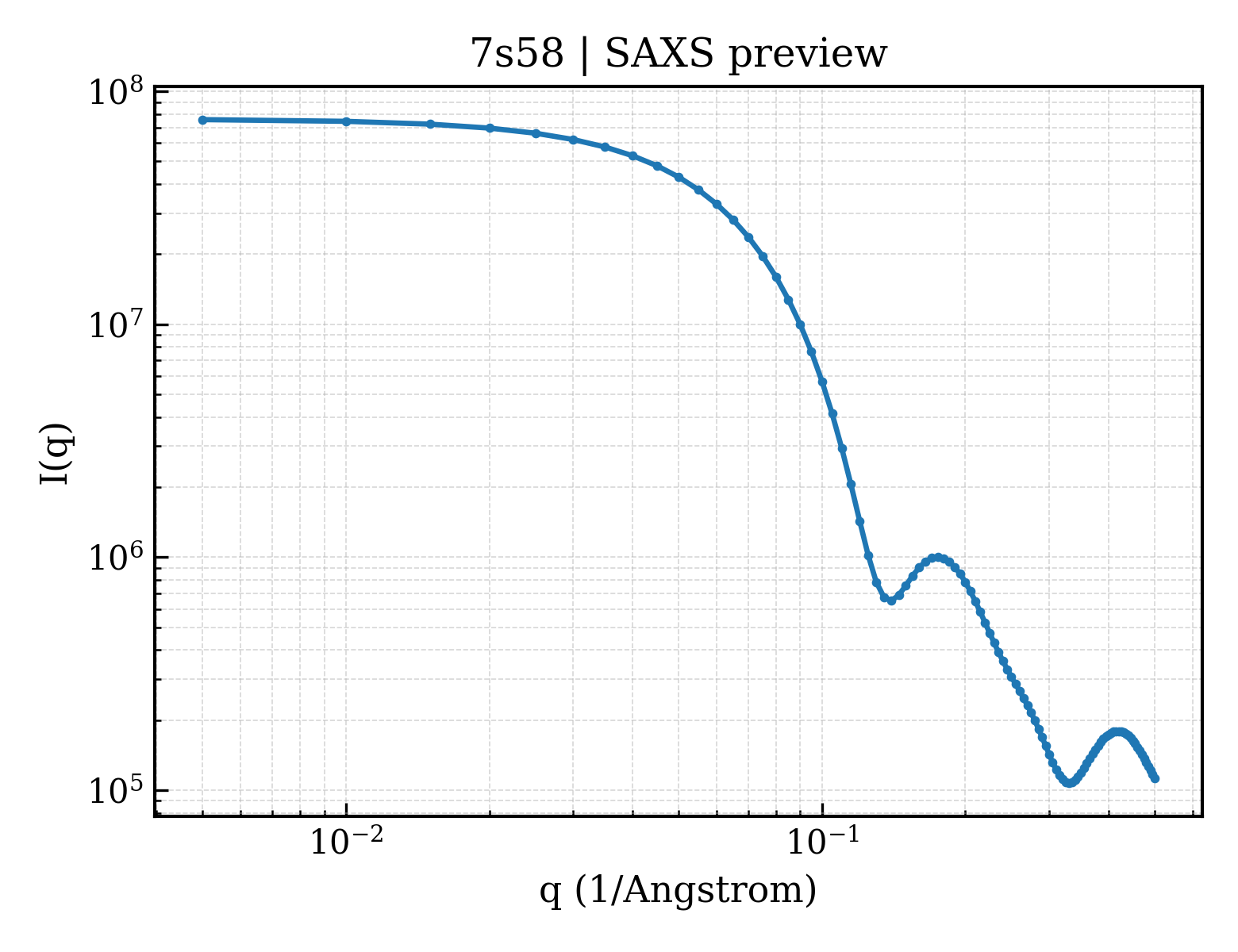

SAXS scattering curve SAXS Profile

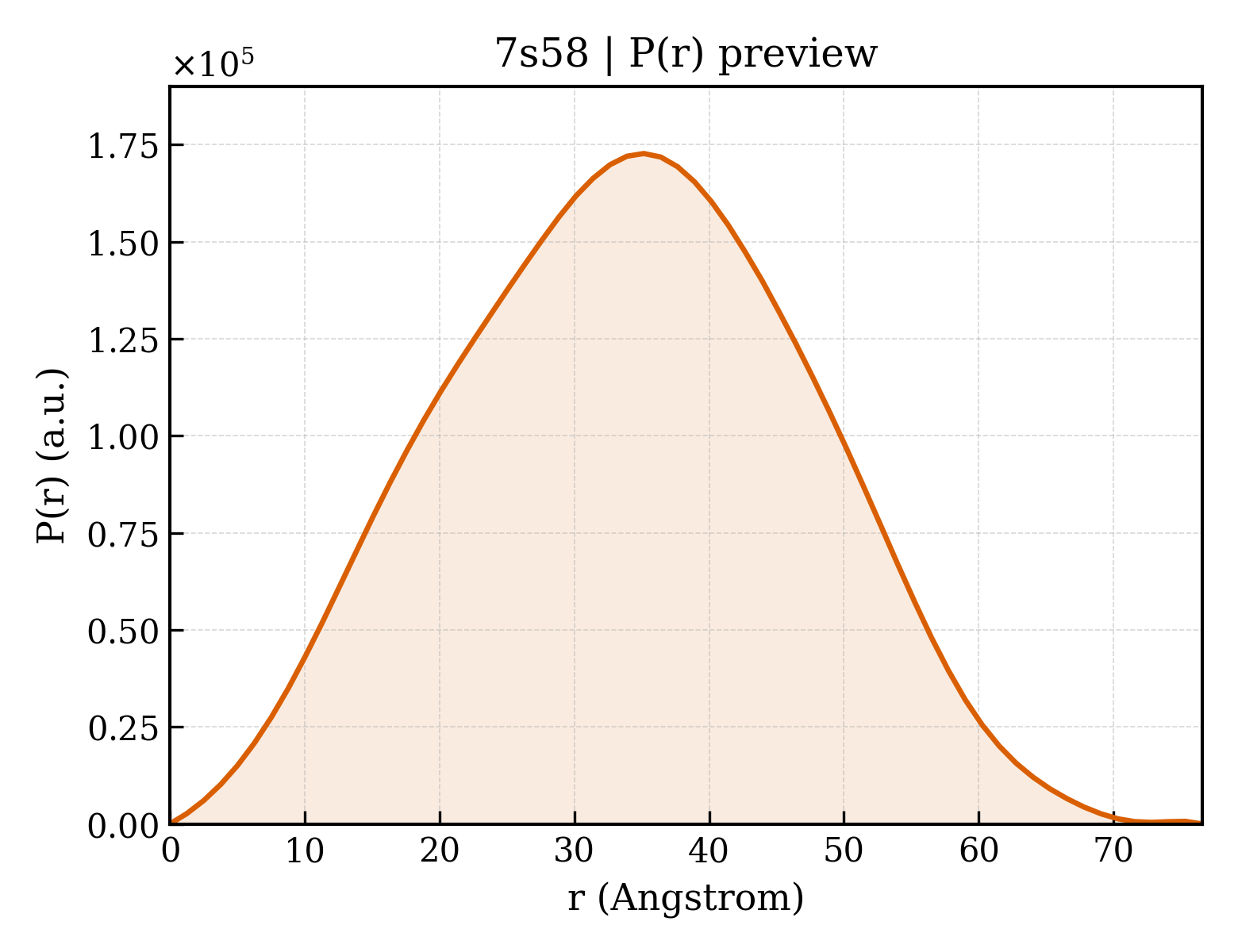

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
