SAXSdb — 8fk8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Evasin P1243

Amblyomma americanum

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 21–123	Mutation：L39P	C-C motif chemokine 7 × 1 （P80098）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；2 M Ammonium sulfate	Resolution 1.96 Å R-free 0.263

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8FK8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7SCS Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL11 Deposited 2021-09-29	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–123（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M BIS-TRIS 6.5 pH (Buffer) , 2 M (NH4)2SO4 (Precipitant)	Resolution 1.51 Å R-free 0.206
7SCT Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL16 Deposited 2021-09-29	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–123（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.26 M (NH4)2SO4 (Precipitant),0.1 M HEPES 7.5 pH (Buffer)	Resolution 1.84 Å R-free 0.210
7SCU Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL7 Deposited 2021-09-29	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–123（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Na Acet 4.6 pH (Buffer),2 M NaCl (Precipitant)	Resolution 1.86 Å R-free 0.210
7SCV Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL17 Deposited 2021-09-29	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–123（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Na Acet 4.6 pH (Buffer),2 M NaCl (Precipitant)	Resolution 2.01 Å R-free 0.251
8FJ0 Crystal Structure of the Tick Evasin EVA-AAM1001(Y44A) Complexed to Human Chemokine CCL2 Deposited 2022-12-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 21–123（103 aa） Chain B 21–123（103 aa） Chain C 21–123（103 aa）	Mutation：Y44A Mutation：Y44A Mutation：Y44A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M NH4SO4, 0.1 M bis-tris, Ph 5.6	Resolution 2.91 Å R-free 0.284
8FJ2 Crystal Structure of the Tick Evasin EVA-AAM1001(C8) Complexed to Human Chemokine CCL17 Deposited 2022-12-19	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–123（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；4.3 M NaCl, 0.1 M HEPES pH 7.4	Resolution 2.07 Å R-free 0.231
8FJ2 Crystal Structure of the Tick Evasin EVA-AAM1001(C8) Complexed to Human Chemokine CCL17 Deposited 2022-12-19	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–123（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；4.3 M NaCl, 0.1 M HEPES pH 7.4	Resolution 2.07 Å R-free 0.231
8FJ3 Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL7(Y13A) Deposited 2022-12-19	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–123（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M NH2SO4, 0.1 Na acetate, pH 4.8	Resolution 2.07 Å R-free 0.229
8FK6 Crystal Structure of the Tick Evasin EVA-AAM1001(Y44A) Complexed to Human Chemokine CCL7 Deposited 2022-12-20	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–123（103 aa）	Mutation：Y44A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M Ammonium sulfate	Resolution 1.74 Å R-free 0.223
8SKK Crystal Structure of the Tick Evasin EVA-AAM1001(L39P) Complexed to Human Chemokine CCL17 Deposited 2023-04-19	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–123（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；2M Ammonium sulfate, 0.1 M HEPES pH 7.0	Resolution 2.10 Å R-free 0.211

9 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	E1243_AMBAM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–103； UniProt 21–123

C-C motif chemokine 7

Homo sapiens

UniProt P80098

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 24–99	Not recorded	Evasin P1243 × 1 （A0A0C9S461）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；2 M Ammonium sulfate	Resolution 1.96 Å R-free 0.263

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8FK8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BO0 MONOCYTE CHEMOATTRACTANT PROTEIN-3, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1998-08-10	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–99（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.1；303 K	Resolution not provided
1NCV DETERMINATION CC-CHEMOKINE MCP-3, NMR, 7 STRUCTURES Deposited 1997-02-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–99（76 aa） Chain B 24–99（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；290 K	Resolution not provided
4ZKC The chemokine binding protein of orf virus complexed with CCL7 Deposited 2015-04-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–99（76 aa） Fragment：UNP residues 24-99	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；0.2M potassium sodium tartrate tetrahydrate, 0.1M sodium citrate tribasic dihydrate pH5.6, 2.0M ammonium citrate	Resolution 3.15 Å R-free 0.327
7S58 Crystal Structure of the tick evasin EVA-P974 complexed to human chemokine CCL7 Deposited 2021-09-10	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 24–99（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244
7S58 Crystal Structure of the tick evasin EVA-P974 complexed to human chemokine CCL7 Deposited 2021-09-10	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 24–99（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244
7S58 Crystal Structure of the tick evasin EVA-P974 complexed to human chemokine CCL7 Deposited 2021-09-10	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 24–99（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244
7S58 Crystal Structure of the tick evasin EVA-P974 complexed to human chemokine CCL7 Deposited 2021-09-10	Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 24–99（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1 M BIS-TRIS 6.5 pH (Buffer) 25 %w/v PEG 3350 (Precipitant)	Resolution 1.82 Å R-free 0.244
7S59 Crystal structure of the tick evasin EVA-P974 complexed to a chimera made of human chemokines CCL7 and CCL8 Deposited 2021-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain 2 39–99（61 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.1 M TRIS 8.5 pH (Buffer) 2 M (NH4)2SO4 (Precipitant)	Resolution 2.39 Å R-free 0.268
7S59 Crystal structure of the tick evasin EVA-P974 complexed to a chimera made of human chemokines CCL7 and CCL8 Deposited 2021-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain 4 39–99（61 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.1 M TRIS 8.5 pH (Buffer) 2 M (NH4)2SO4 (Precipitant)	Resolution 2.39 Å R-free 0.268
7SCU Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL7 Deposited 2021-09-29	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–99（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Na Acet 4.6 pH (Buffer),2 M NaCl (Precipitant)	Resolution 1.86 Å R-free 0.210
8FJ3 Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL7(Y13A) Deposited 2022-12-19	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–99（76 aa）	Mutation：Y13A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M NH2SO4, 0.1 Na acetate, pH 4.8	Resolution 2.07 Å R-free 0.229
8FK6 Crystal Structure of the Tick Evasin EVA-AAM1001(Y44A) Complexed to Human Chemokine CCL7 Deposited 2022-12-20	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–99（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M Ammonium sulfate	Resolution 1.74 Å R-free 0.223
8JPS Structure of Duffy Antigen Receptor for Chemokines (DARC)/ACKR1 in complex with the chemokine, CCL7 (Composite map) Deposited 2023-06-12	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 31–93（63 aa） Chain D 31–93（63 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.65 Å

9 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CCL7_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–76； UniProt 24–99

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8fk8
Deposition date deposition_date	2022-12-20
Structure title title	Crystal Structure of the Tick Evasin EVA-AAM1001(L39P) Complexed to Human Chemokine CCL7
Keywords keywords	Evasin, Chemokine-binding protein, ticks, CYTOKINE; CYTOKINE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.43 Å
Radius of gyration Rg (electron density) rg_electron	15.95 Å
Forward intensity I(0) i0	4673370.00
Molecular weight molecular_weight	14830.0 kDa
Excluded volume excluded_volume	18212 Å³
Envelope volume envelope_volume	21203 Å³
Hydration-shell volume shell_volume	11901 Å³
Envelope diameter envelope_diameter	54.1 Å
Shell Rg shell_rg	20.68 Å
Envelope Rg envelope_rg	16.24 Å
Shape Rg shape_rg	15.97 Å
Total Rg total_rg	16.75 Å
Total atoms total_atoms	1025
Residues n_residues	141
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

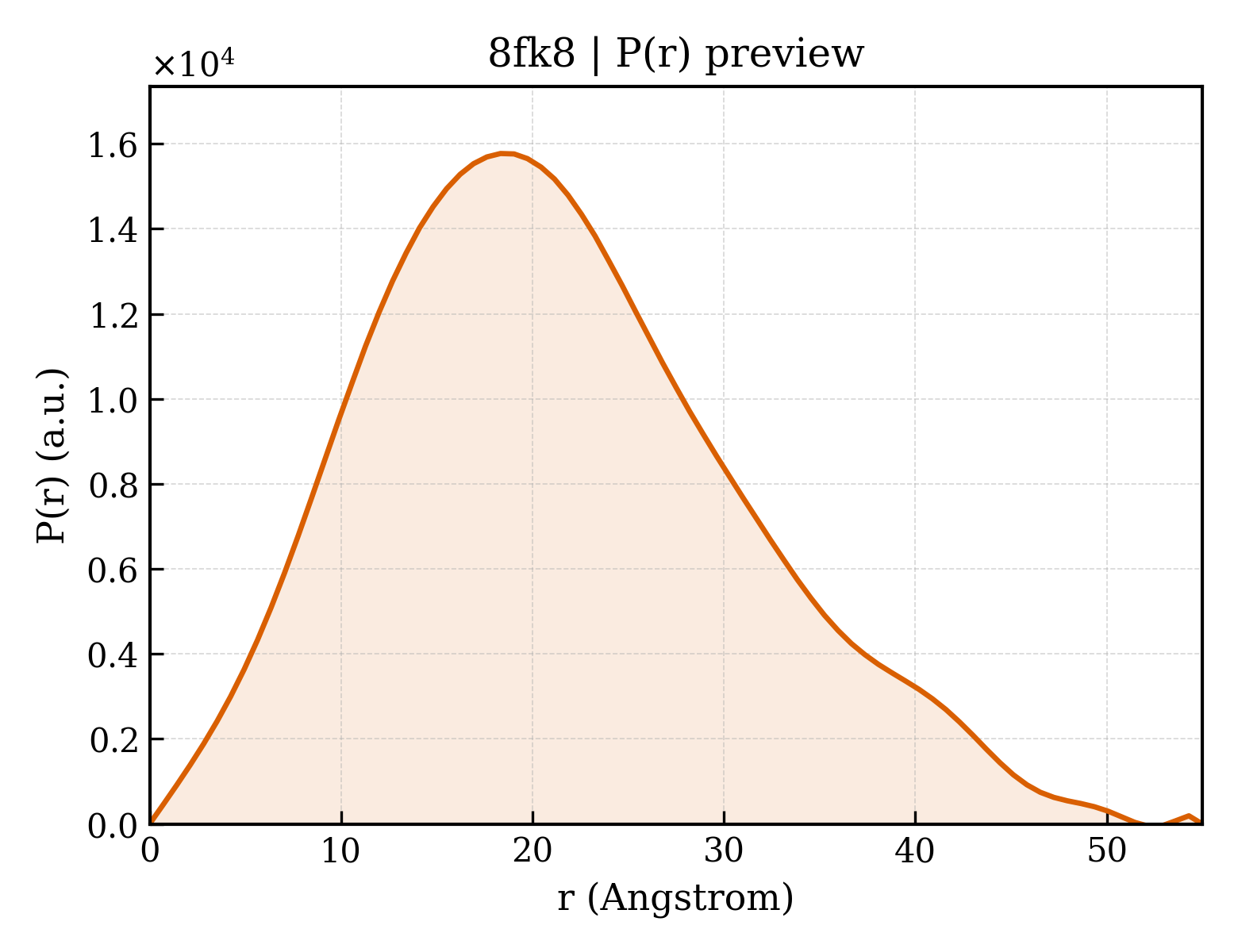

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	55.0 Å
Rg (real space) rg_real	16.47 Å
Rg uncertainty (real space) rg_real_error	0.35 Å
I(0) (real space) i0_real	4.6730e+06
I(0) uncertainty (real space) i0_real_error	5.4090e+04
Rg (reciprocal space) rg_reciprocal	16.47 Å
I(0) (reciprocal space) i0_reciprocal	4673000.0000
Solution quality estimate total_estimate	0.8026
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.3 Å
Skewness Skewness skewness	0.431
Kurtosis Kurtosis kurtosis	-0.219
Angular range angular_range	— – 0.4850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	686400.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.821; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Evasin P1243
Molecular weight formula_weight	11286.6 kDa
Mutation mutation	L39P
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1078

GSTSARNHTEDNSTEYYDYEEARCACPARHLNNTNGTVLKPLGCHYFCNGTLCTAPDGYPCYNLTAQQVRTLTTYPNTSCAVGVCMKGTCVKNGTMEQCFKTP

来源 Source

来源生物 organism	Amblyomma americanum
通用名 common_name	Lone Star tick
NCBI Class编号 ncbi_taxonomy_id	6943
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	C-C motif chemokine 7
Molecular weight formula_weight	8974.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QPVGINTSTTCCYRFINKKIPKQRLESYRRTTSSHCPREAVIFKTKLDKELCADPTQKWVQDFMKHLDKKTQTPKL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	52

▶

8. Citations (1)

▶

Unit-cell length a length_a	72.502 Å
Unit-cell length b length_b	72.502 Å
Unit-cell length c length_c	65.939 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	tetragonal

Resolution resolution	1.960 Å
Low-resolution limit resolution_low	48.780 Å
R factor r_factor	0.2424
R_work r_work	0.2412
R_free r_free	0.2628

fit	/app/data/saxs_computation/fk/8fk8/8fk8.fit
pddf	/app/data/pr_computation/fk/8fk8/8fk8.pr.out
profile	/app/data/saxs_computation/fk/8fk8/8fk8.dat
