1. Protein Identity and Related Structures Protein Identity & Related Structures

Evasin P1243

Amblyomma americanum

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 21–123	Not recorded	C-C motif chemokine 17 × 1 （Q92583）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；2M Ammonium sulfate, 0.1 M HEPES pH 7.0	Resolution 2.10 Å R-free 0.211

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8SKK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7SCS Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL11 Deposited 2021-09-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–123（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M BIS-TRIS 6.5 pH (Buffer) , 2 M (NH4)2SO4 (Precipitant)	Resolution 1.51 Å R-free 0.206
7SCT Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL16 Deposited 2021-09-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–123（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.26 M (NH4)2SO4 (Precipitant),0.1 M HEPES 7.5 pH (Buffer)	Resolution 1.84 Å R-free 0.210
7SCU Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL7 Deposited 2021-09-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–123（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Na Acet 4.6 pH (Buffer),2 M NaCl (Precipitant)	Resolution 1.86 Å R-free 0.210
7SCV Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL17 Deposited 2021-09-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–123（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Na Acet 4.6 pH (Buffer),2 M NaCl (Precipitant)	Resolution 2.01 Å R-free 0.251
8FJ0 Crystal Structure of the Tick Evasin EVA-AAM1001(Y44A) Complexed to Human Chemokine CCL2 Deposited 2022-12-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 21–123（103 aa） Chain B 21–123（103 aa） Chain C 21–123（103 aa）	Mutation：Y44A Mutation：Y44A Mutation：Y44A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M NH4SO4, 0.1 M bis-tris, Ph 5.6	Resolution 2.91 Å R-free 0.284
8FJ2 Crystal Structure of the Tick Evasin EVA-AAM1001(C8) Complexed to Human Chemokine CCL17 Deposited 2022-12-19	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–123（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；4.3 M NaCl, 0.1 M HEPES pH 7.4	Resolution 2.07 Å R-free 0.231
8FJ2 Crystal Structure of the Tick Evasin EVA-AAM1001(C8) Complexed to Human Chemokine CCL17 Deposited 2022-12-19	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–123（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；4.3 M NaCl, 0.1 M HEPES pH 7.4	Resolution 2.07 Å R-free 0.231
8FJ3 Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL7(Y13A) Deposited 2022-12-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–123（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M NH2SO4, 0.1 Na acetate, pH 4.8	Resolution 2.07 Å R-free 0.229
8FK6 Crystal Structure of the Tick Evasin EVA-AAM1001(Y44A) Complexed to Human Chemokine CCL7 Deposited 2022-12-20	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–123（103 aa）	Mutation：Y44A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M Ammonium sulfate	Resolution 1.74 Å R-free 0.223
8FK8 Crystal Structure of the Tick Evasin EVA-AAM1001(L39P) Complexed to Human Chemokine CCL7 Deposited 2022-12-20	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–123（103 aa）	Mutation：L39P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2 M Ammonium sulfate	Resolution 1.96 Å R-free 0.263

9 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	E1243_AMBAM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–103； UniProt 21–123

C-C motif chemokine 17

Homo sapiens

UniProt Q92583

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 24–94	Not recorded	Evasin P1243 × 1 （A0A0C9S461）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；2M Ammonium sulfate, 0.1 M HEPES pH 7.0	Resolution 2.10 Å R-free 0.211

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8SKK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1NR2 High resolution crystal structures of thymus and activation-regulated chemokine Deposited 2003-01-23	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；288 K；0.17M ammonium acetate, 0.085M trisodium citrate, 25.5% PEG 4000, 15% w/v glycerol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 2.18 Å R-free 0.299
1NR2 High resolution crystal structures of thymus and activation-regulated chemokine Deposited 2003-01-23	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；288 K；0.17M ammonium acetate, 0.085M trisodium citrate, 25.5% PEG 4000, 15% w/v glycerol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 2.18 Å R-free 0.299
1NR4 High resolution crystal structures of thymus and activation-regulated chemokine Deposited 2003-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–94（71 aa） Chain B 24–94（71 aa）	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；285 K；0.16M ammonium sulfate, 0.08M Sodium acetate, 20% PEG 4000, 15% glycerol, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 1.72 Å R-free 0.239
1NR4 High resolution crystal structures of thymus and activation-regulated chemokine Deposited 2003-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 24–94（71 aa） Chain D 24–94（71 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；285 K；0.16M ammonium sulfate, 0.08M Sodium acetate, 20% PEG 4000, 15% glycerol, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 1.72 Å R-free 0.239
1NR4 High resolution crystal structures of thymus and activation-regulated chemokine Deposited 2003-01-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 24–94（71 aa） Chain F 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；285 K；0.16M ammonium sulfate, 0.08M Sodium acetate, 20% PEG 4000, 15% glycerol, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 1.72 Å R-free 0.239
1NR4 High resolution crystal structures of thymus and activation-regulated chemokine Deposited 2003-01-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 24–94（71 aa） Chain H 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；285 K；0.16M ammonium sulfate, 0.08M Sodium acetate, 20% PEG 4000, 15% glycerol, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 1.72 Å R-free 0.239
1NR4 High resolution crystal structures of thymus and activation-regulated chemokine Deposited 2003-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 24–94（71 aa） Chain B 24–94（71 aa） Chain C 24–94（71 aa） Chain D 24–94（71 aa） Chain E 24–94（71 aa） Chain F 24–94（71 aa） Chain G 24–94（71 aa） Chain H 24–94（71 aa）	Not recorded	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；285 K；0.16M ammonium sulfate, 0.08M Sodium acetate, 20% PEG 4000, 15% glycerol, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 1.72 Å R-free 0.239
5WK3 CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN CCL17 AND M116 FAB Deposited 2017-07-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 24–94（71 aa） Fragment：UNP residues 24-94	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；15% PEG 3350, 0.2 M POTASSIUM SODIUM TARTRATE	Resolution 1.90 Å R-free 0.231
5WK3 CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN CCL17 AND M116 FAB Deposited 2017-07-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 24–94（71 aa） Fragment：UNP residues 24-94	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；15% PEG 3350, 0.2 M POTASSIUM SODIUM TARTRATE	Resolution 1.90 Å R-free 0.231
5WK3 CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN CCL17 AND M116 FAB Deposited 2017-07-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 24–94（71 aa） Fragment：UNP residues 24-94	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；15% PEG 3350, 0.2 M POTASSIUM SODIUM TARTRATE	Resolution 1.90 Å R-free 0.231
5WK3 CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN CCL17 AND M116 FAB Deposited 2017-07-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 24–94（71 aa） Fragment：UNP residues 24-94	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；15% PEG 3350, 0.2 M POTASSIUM SODIUM TARTRATE	Resolution 1.90 Å R-free 0.231
7S4N Crystal structure of the tick evasin EVA-P974 complexed to human chemokine CCL17 Deposited 2021-09-09	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；291 K；0.1 M Na3 Cit 3.5 pH (Buffer) 3 M NaCl (Precipitant)	Resolution 1.65 Å R-free 0.237
7S4N Crystal structure of the tick evasin EVA-P974 complexed to human chemokine CCL17 Deposited 2021-09-09	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；291 K；0.1 M Na3 Cit 3.5 pH (Buffer) 3 M NaCl (Precipitant)	Resolution 1.65 Å R-free 0.237
7SCV Crystal Structure of the Tick Evasin EVA-AAM1001 Complexed to Human Chemokine CCL17 Deposited 2021-09-29	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Na Acet 4.6 pH (Buffer),2 M NaCl (Precipitant)	Resolution 2.01 Å R-free 0.251
8FJ2 Crystal Structure of the Tick Evasin EVA-AAM1001(C8) Complexed to Human Chemokine CCL17 Deposited 2022-12-19	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；4.3 M NaCl, 0.1 M HEPES pH 7.4	Resolution 2.07 Å R-free 0.231
8FJ2 Crystal Structure of the Tick Evasin EVA-AAM1001(C8) Complexed to Human Chemokine CCL17 Deposited 2022-12-19	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–94（71 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；4.3 M NaCl, 0.1 M HEPES pH 7.4	Resolution 2.07 Å R-free 0.231

6 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CCL17_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–71； UniProt 24–94

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8skk
Deposition date deposition_date	2023-04-19
Structure title title	Crystal Structure of the Tick Evasin EVA-AAM1001(L39P) Complexed to Human Chemokine CCL17
Keywords keywords	Inflammation, Chemokine, Ticks, Evasin, IMMUNE SYSTEM, CYTOKINE; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.47 Å
Radius of gyration Rg (electron density) rg_electron	16.89 Å
Forward intensity I(0) i0	6052500.00
Molecular weight molecular_weight	16889.0 kDa
Excluded volume excluded_volume	20710 Å³
Envelope volume envelope_volume	25532 Å³
Hydration-shell volume shell_volume	13323 Å³
Envelope diameter envelope_diameter	59.5 Å
Shell Rg shell_rg	21.87 Å
Envelope Rg envelope_rg	17.32 Å
Shape Rg shape_rg	16.91 Å
Total Rg total_rg	17.72 Å
Total atoms total_atoms	1176
Residues n_residues	157
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	59.9 Å
Rg (real space) rg_real	17.48 Å
Rg uncertainty (real space) rg_real_error	0.35 Å
I(0) (real space) i0_real	6.0530e+06
I(0) uncertainty (real space) i0_real_error	6.6590e+04
Rg (reciprocal space) rg_reciprocal	17.48 Å
I(0) (reciprocal space) i0_reciprocal	6052000.0000
Solution quality estimate total_estimate	0.8739
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.0 Å
Skewness Skewness skewness	0.354
Kurtosis Kurtosis kurtosis	-0.300
Angular range angular_range	— – 0.4550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	832100.0000
Real-space data points n_real_points	76
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.812; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.939; Smooth: 0.980

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Evasin P1243
Molecular weight formula_weight	11286.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1316

GSTSARNHTEDNSTEYYDYEEARCACPARHLNNTNGTVLKPLGCHYFCNGTLCTAPDGYPCYNLTAQQVRTLTTYPNTSCAVGVCMKGTCVKNGTMEQCFKTP

来源 Source

来源生物 organism	Amblyomma americanum
通用名 common_name	Lone Star tick
NCBI Class编号 ncbi_taxonomy_id	6943
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	C-C motif chemokine 17
Molecular weight formula_weight	8096.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

ARGTNVGRECCLEYFKGAIPLRKLKTWYQTSEDCSRDAIVFVTVQGRAICSDPNNKRVKNAVKYLQSLERS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	140

▶

8. Citations (1)

▶

Unit-cell length a length_a	85.468 Å
Unit-cell length b length_b	85.468 Å
Unit-cell length c length_c	36.317 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	hexagonal

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	42.730 Å
R factor r_factor	0.1833
R_work r_work	0.1818
R_free r_free	0.2106

fit	/app/data/saxs_computation/sk/8skk/8skk.fit
pddf	/app/data/pr_computation/sk/8skk/8skk.pr.out
profile	/app/data/saxs_computation/sk/8skk/8skk.dat

Crystal Structure of the Tick Evasin EVA-AAM1001(L39P) Complexed to Human Chemokine CCL17

1. Protein Identity and Related Structures Protein Identity & Related Structures

Evasin P1243

State in the Current Structure

Other States of the Same Protein in the Database

C-C motif chemokine 17

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

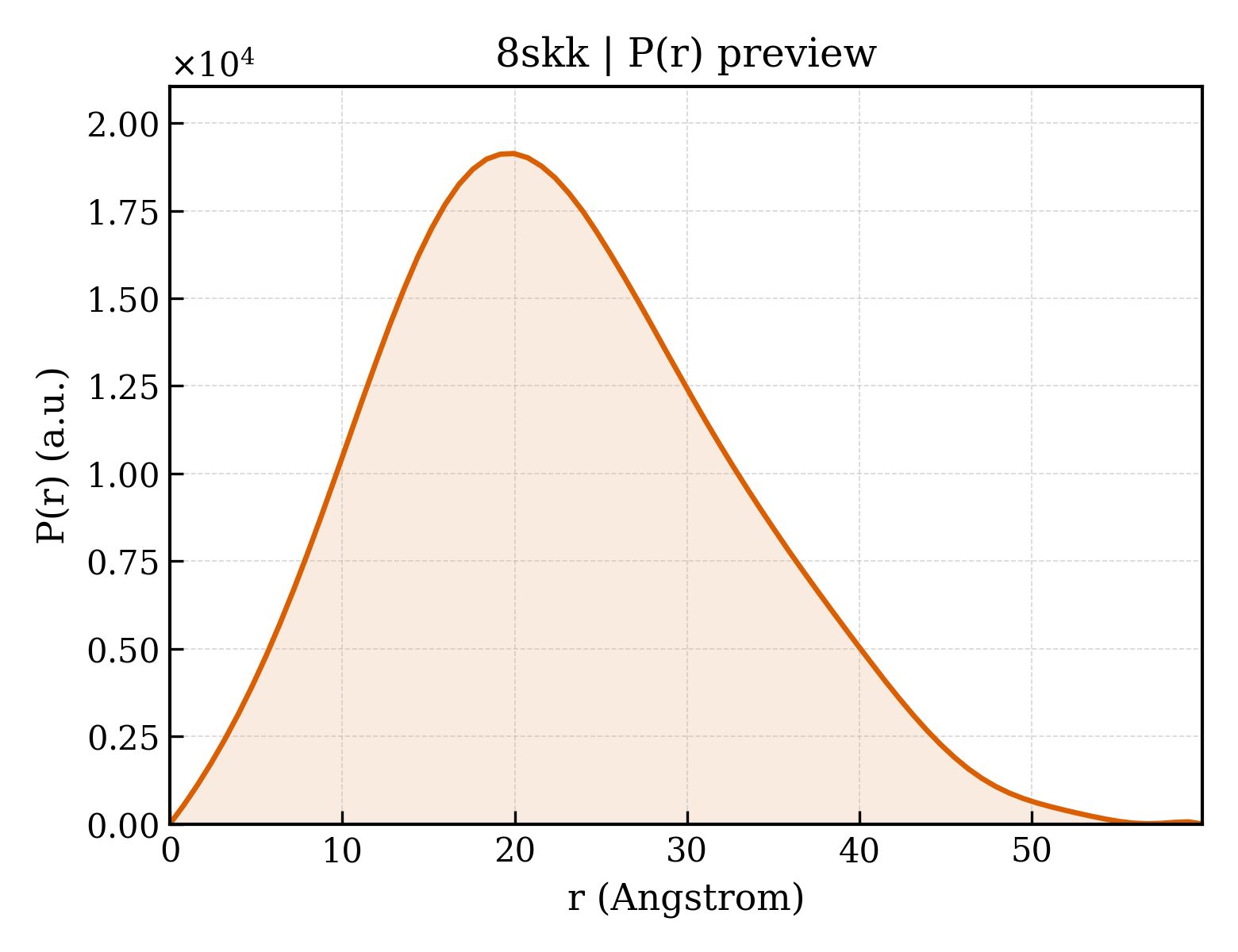

P(r) Distance Distribution P(r) Distribution
