7u22

Mycobacterium tuberculosis RNA polymerase sigma A holoenzyme open promoter complex containing UMN-7

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase subunit alpha

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	DNA-directed RNA polymerase subunit beta × 1 （P9WGY8） ;DNA-directed RNA polymerase subunit beta' ; × 1 （A0A045J9E2） DNA-directed RNA polymerase subunit omega × 1 （A0A045H2R3） RNA polymerase sigma factor SigA × 1 （A0A045HD00） T DNA × 1 NT DNA × 1 ;(9S,14S,15R,16S,17R,18R,19R,20S,21S,25R)-5,6,18,20-tetrahydroxy-14-methoxy-7,9,15,17,19,21,25-heptamethyl-1'-(2-methylpropyl)-10,26-dioxo-1,3,9,10-tetrahydrospiro[9,4-(epoxypentadecanoimino)furo[2',3':7,8]naphtho[1,2-d]imidazole-2,4'-piperidin]-16-yl benzoate ; × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOA_MYCTA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–347； UniProt 1–347 Author chain B； PDBConstruct 1–347； UniProt 1–347

DNA-directed RNA polymerase subunit beta

Mycobacterium tuberculosis

UniProt P9WGY8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	DNA-directed RNA polymerase subunit alpha × 2 （A5U8D3） ;DNA-directed RNA polymerase subunit beta' ; × 1 （A0A045J9E2） DNA-directed RNA polymerase subunit omega × 1 （A0A045H2R3） RNA polymerase sigma factor SigA × 1 （A0A045HD00） T DNA × 1 NT DNA × 1 ;(9S,14S,15R,16S,17R,18R,19R,20S,21S,25R)-5,6,18,20-tetrahydroxy-14-methoxy-7,9,15,17,19,21,25-heptamethyl-1'-(2-methylpropyl)-10,26-dioxo-1,3,9,10-tetrahydrospiro[9,4-(epoxypentadecanoimino)furo[2',3':7,8]naphtho[1,2-d]imidazole-2,4'-piperidin]-16-yl benzoate ; × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOB_MYCTO
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–1178； UniProt 1–1178

;DNA-directed RNA polymerase subunit beta' ;

Mycobacterium tuberculosis

UniProt A0A045J9E2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	DNA-directed RNA polymerase subunit alpha × 2 （A5U8D3） DNA-directed RNA polymerase subunit beta × 1 （P9WGY8） DNA-directed RNA polymerase subunit omega × 1 （A0A045H2R3） RNA polymerase sigma factor SigA × 1 （A0A045HD00） T DNA × 1 NT DNA × 1 ;(9S,14S,15R,16S,17R,18R,19R,20S,21S,25R)-5,6,18,20-tetrahydroxy-14-methoxy-7,9,15,17,19,21,25-heptamethyl-1'-(2-methylpropyl)-10,26-dioxo-1,3,9,10-tetrahydrospiro[9,4-(epoxypentadecanoimino)furo[2',3':7,8]naphtho[1,2-d]imidazole-2,4'-piperidin]-16-yl benzoate ; × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A045J9E2_MYCTX
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–1316； UniProt 1–1316

DNA-directed RNA polymerase subunit omega

Mycobacterium tuberculosis

UniProt A0A045H2R3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	DNA-directed RNA polymerase subunit alpha × 2 （A5U8D3） DNA-directed RNA polymerase subunit beta × 1 （P9WGY8） ;DNA-directed RNA polymerase subunit beta' ; × 1 （A0A045J9E2） RNA polymerase sigma factor SigA × 1 （A0A045HD00） T DNA × 1 NT DNA × 1 ;(9S,14S,15R,16S,17R,18R,19R,20S,21S,25R)-5,6,18,20-tetrahydroxy-14-methoxy-7,9,15,17,19,21,25-heptamethyl-1'-(2-methylpropyl)-10,26-dioxo-1,3,9,10-tetrahydrospiro[9,4-(epoxypentadecanoimino)furo[2',3':7,8]naphtho[1,2-d]imidazole-2,4'-piperidin]-16-yl benzoate ; × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A045H2R3_MYCTX
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–110； UniProt 1–110

RNA polymerase sigma factor SigA

Mycobacterium tuberculosis

UniProt A0A045HD00

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 6 DNA 2	DNA-directed RNA polymerase subunit alpha × 2 （A5U8D3） DNA-directed RNA polymerase subunit beta × 1 （P9WGY8） ;DNA-directed RNA polymerase subunit beta' ; × 1 （A0A045J9E2） DNA-directed RNA polymerase subunit omega × 1 （A0A045H2R3） T DNA × 1 NT DNA × 1 ;(9S,14S,15R,16S,17R,18R,19R,20S,21S,25R)-5,6,18,20-tetrahydroxy-14-methoxy-7,9,15,17,19,21,25-heptamethyl-1'-(2-methylpropyl)-10,26-dioxo-1,3,9,10-tetrahydrospiro[9,4-(epoxypentadecanoimino)furo[2',3':7,8]naphtho[1,2-d]imidazole-2,4'-piperidin]-16-yl benzoate ; × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A045HD00_MYCTX
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain F； PDBConstruct 1–528； UniProt 1–528

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7u22
Deposition date deposition_date	2022-02-22
Structure title title	Mycobacterium tuberculosis RNA polymerase sigma A holoenzyme open promoter complex containing UMN-7
Keywords keywords	;Transcription, inhibitor, rifabutin, transcription initiation, tuberculosis, MTB, Mycobacterium tuberculosis, Mycobacterium smegmatis, ANTIBIOTIC ;; ANTIBIOTIC
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7u22__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

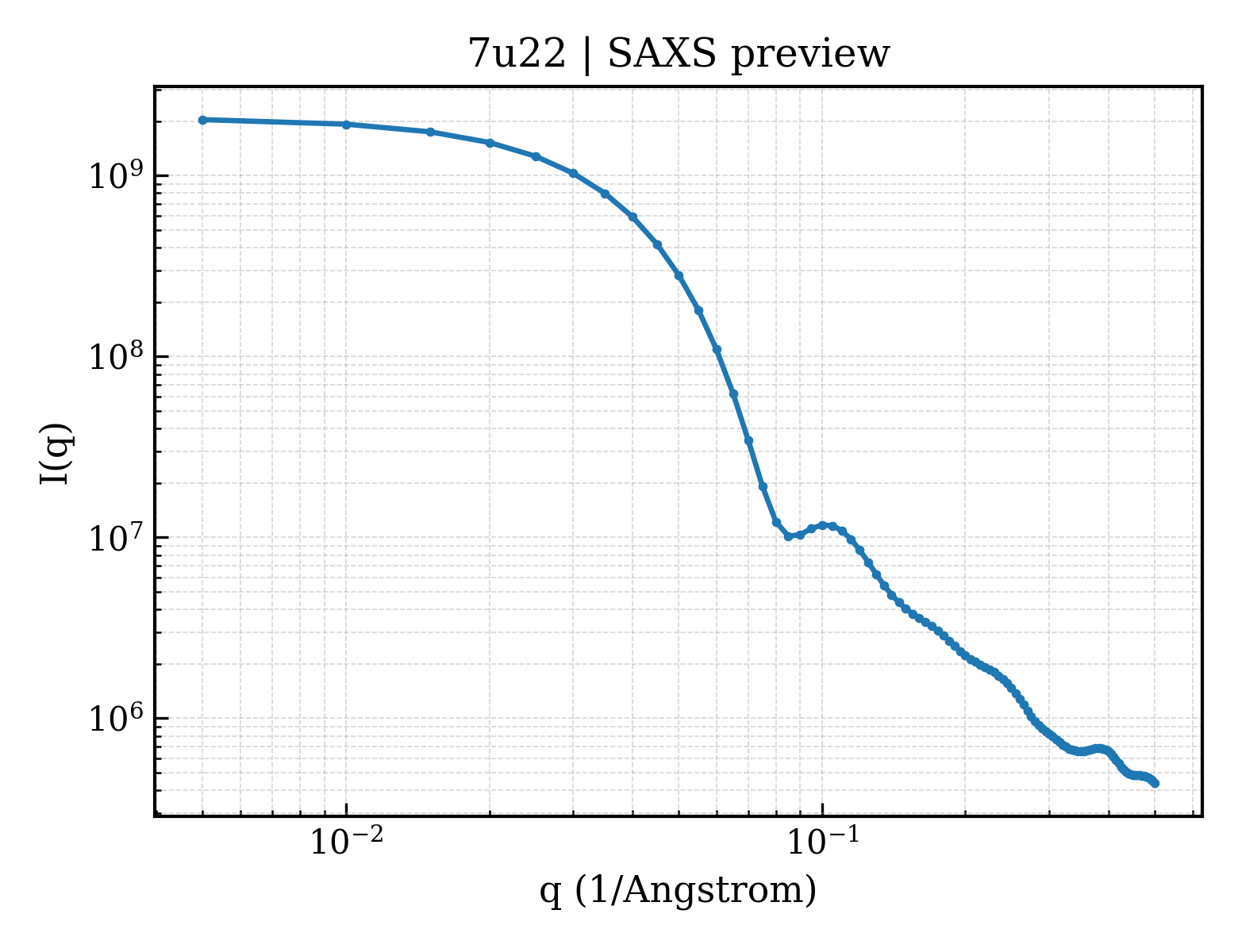

7u22__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

7u22__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.17 Å
Rg (electron density)	47.69 Å
Total Rg	47.92 Å
Atom count	25925
Residues	3275
Excluded volume	458480 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7u22__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	DNA-directed RNA polymerase subunit alpha
Molecular weight formula_weight	37745.3 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	25925

MLISQRPTLSEDVLTDNRSQFVIEPLEPGFGYTLGNSLRRTLLSSIPGAAVTSIRIDGVLHEFTTVPGVKEDVTEIILNLKSLVVSSEEDEPVTMYLRKQGPGEVTAGDIVPPAGVTVHNPGMHIATLNDKGKLEVELVVERGRGYVPAVQNRASGAEIGRIPVDSIYSPVLKVTYKVDATRVEQRTDFDKLILDVETKNSISPRDALASAGKTLVELFGLARELNVEAEGIEIGPSPAEADHIASFALPIDDLDLTVRSYNCLKREGVHTVGELVARTESDLLDIRNFGQKSIDEVKIKLHQLGLSLKDSPPSFDPSEVAGYDVATGTWSTEGAYDEQDYAETEQL

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Mycobacterium tuberculosis

Entity 2 Entity 2 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	130018.8 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MLEGCILADSRQSKTAASPSPSRPQSSSNNSVPGAPNRVSFAKLREPLEVPGLLDVQTDSFEWLIGSPRWRESAAERGDVNPVGGLEEVLYELSPIEDFSGSMSLSFSDPRFDDVKAPVDECKDKDMTYAAPLFVTAEFINNNTGEIKSQTVFMGDFPMMTEKGTFIINGTERVVVSQLVRSPGVYFDETIDKSTDKTLHSVKVIPSRGAWLEFDVDKRDTVGVRIDRKRRQPVTVLLKALGWTSEQIVERFGFSEIMRSTLEKDNTVGTDEALLDIYRKLRPGEPPTKESAQTLLENLFFKEKRYDLARVGRYKVNKKLGLHVGEPITSSTLTEEDVVATIEYLVRLHEGQTTMTVPGGVEVPVETDDIDHFGNRRLRTVGELIQNQIRVGMSRMERVVRERMTTQDVEAITPQTLINIRPVVAAIKEFFGTSQLSQFMDQNNPLSGLTHKRRLSALGPGGLSRERAGLEVRDVHPSHYGRMCPIETPEGPNIGLIGSLSVYARVNPFGFIETPYRKVVDGVVSDEIVYLTADEEDRHVVAQANSPIDADGRFVEPRVLVRRKAGEVEYVPSSEVDYMDVSPRQMVSVATAMIPFLEHDDANRALMGANMQRQAVPLVRSEAPLVGTGMELRAAIDAGDVVVAEESGVIEEVSADYITVMHDNGTRRTYRMRKFARSNHGTCANQCPIVDAGDRVEAGQVIADGPCTDDGEMALGKNLLVAIMPWEGHNYEDAIILSNRLVEEDVLTSIHIEEHEIDARDTKLGAEEITRDIPNISDEVLADLDERGIVRIGAEVRDGDILVGKVTPKGETELTPEERLLRAIFGEKAREVRDTSLKVPHGESGKVIGIRVFSREDEDELPAGVNELVRVYVAQKRKISDGDKLAGRHGNKGVIGKILPVEDMPFLADGTPVDIILNTHGVPRRMNIGQILETHLGWCAHSGWKVDAAKGVPDWAARLPDELLEAQPNAIVSTPVFDGAQEAELQGLLSCTLPNRDGDVLVDADGKAMLFDGRSGEPFPYPVTVGYMYIMKLHHLVDDKIHARSTGPYSMITQQPLGGKAQFGGQRFGEMECWAMQAYGAAYTLQELLTIKSDDTVGRVKVYEAIVKGENIPEPGIPESFKVLLKELQSLCLNVEVLSSDGAAIELREGEDEDLERAAANLGINLSRNESASVEDLA

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Mycobacterium tuberculosis

Entity 3 Entity 3 polymer

Description description	;DNA-directed RNA polymerase subunit beta' ;
Molecular weight formula_weight	146969.0 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MLDVNFFDELRIGLATAEDIRQWSYGEVKKPETINYRTLKPEKDGLFCEKIFGPTRDWECYCGKYKRVRFKGIICERCGVEVTRAKVRRERMGHIELAAPVTHIWYFKGVPSRLGYLLDLAPKDLEKIIYFAAYVITSVDEEMRHNELSTLEAEMAVERKAVEDQRDGELEARAQKLEADLAELEAEGAKADARRKVRDGGEREMRQIRDRAQRELDRLEDIWSTFTKLAPKQLIVDENLYRELVDRYGEYFTGAMGAESIQKLIENFDIDAEAESLRDVIRNGKGQKKLRALKRLKVVAAFQQSGNSPMGMVLDAVPVIPPELRPMVQLDGGRFATSDLNDLYRRVINRNNRLKRLIDLGAPEIIVNNEKRMLQESVDALFDNGRRGRPVTGPGNRPLKSLSDLLKGKQGRFRQNLLGKRVDYSGRSVIVVGPQLKLHQCGLPKLMALELFKPFVMKRLVDLNHAQNIKSAKRMVERQRPQVWDVLEEVIAEHPVLLNRAPTLHRLGIQAFEPMLVEGKAIQLHPLVCEAFNADFDGDQMAVHLPLSAEAQAEARILMLSSNNILSPASGRPLAMPRLDMVTGLYYLTTEVPGDTGEYQPASGDHPETGVYSSPAEAIMAADRGVLSVRAKIKVRLTQLRPPVEIEAELFGHSGWQPGDAWMAETTLGRVMFNELLPLGYPFVNKQMHKKVQAAIINDLAERYPMIVVAQTVDKLKDAGFYWATRSGVTVSMADVLVPPRKKEILDHYEERADKVEKQFQRGALNHDERNEALVEIWKEATDEVGQALREHYPDDNPIITIVDSGATGNFTQTRTLAGMKGLVTNPKGEFIPRPVKSSFREGLTVLEYFINTHGARKGLADTALRTADSGYLTRRLVDVSQDVIVREHDCQTERGIVVELAERAPDGTLIRDPYIETSAYARTLGTDAVDEAGNVIVERGQDLGDPEIDALLAAGITQVKVRSVLTCATSTGVCATCYGRSMATGKLVDIGEAVGIVAAQSIGEPGTQLTMRTFHQGGVGEDITGGLPRVQELFEARVPRGKAPIADVTGRVRLEDGERFYKITIVPDDGGEEVVYDKISKRQRLRVFKHEDGSERVLSDGDHVEVGQQLMEGSADPHEVLRVQGPREVQIHLVREVQEVYRAQGVSIHDKHIEVIVRQMLRRVTIIDSGSTEFLPGSLIDRAEFEAENRRVVAEGGEPAAGRPVLMGITKASLATDSWLSAASFQETTRVLTDAAINCRSDKLNGLKENVIIGKLIPAGTGINRYRNIAVQPTEEARAAAYTIPSYEDQYYSPDFGAATGAAVPLDDYGYSDYR

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Mycobacterium tuberculosis

Entity 4 Entity 4 polymer

Description description	DNA-directed RNA polymerase subunit omega
Molecular weight formula_weight	11851.1 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MSISQSDASLAAVPAVDQFDPSSGASGGYDTPLGITNPPIDELLDRVSSKYALVIYAAKRARQINDYYNQLGEGILEYVGPLVEPGLQEKPLSIALREIHADLLEHTEGE

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Mycobacterium tuberculosis

Entity 5 Entity 5 polymer

Description description	RNA polymerase sigma factor SigA
Molecular weight formula_weight	57877.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MAATKASTATDEPVKRTATKSPAASASGAKTGAKRTAAKSASGSPPAKRATKPAARSVKPASAPQDTTTSTIPKRKTRAAAKSAAAKAPSARGHATKPRAPKDAQHEAATDPEDALDSVEELDAEPDLDVEPGEDLDLDAADLNLDDLEDDVAPDADDDLDSGDDEDHEDLEAEAAVAPGQTADDDEEIAEPTEKDKASGDFVWDEDESEALRQARKDAELTASADSVRAYLKQIGKVALLNAEEEVELAKRIEAGLYATQLMTELSERGEKLPAAQRRDMMWICRDGDRAKNHLLEANLRLVVSLAKRYTGRGMAFLDLIQEGNLGLIRAVEKFDYTKGYKFSTYATWWIRQAITRAMADQARTIRIPVHMVEVINKLGRIQRELLQDLGREPTPEELAKEMDITPEKVLEIQQYAREPISLDQTIGDEGDSQLGDFIEDSEAVVAVDAVSFTLLQDQLQSVLDTLSEREAGVVRLRFGLTDGQPRTLDEIGQVYGVTRERIRQIESKTMSKLRHPSRSQVLRDYLD

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Mycobacterium tuberculosis

Entity 6 Entity 6 polymer

Description description	T DNA
Molecular weight formula_weight	4939.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	G

CATCCGTGAGTCGAGG

Entity 7 Entity 7 polymer

Description description	NT DNA
Molecular weight formula_weight	7160.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	H

TATAATGGGAGCTGTCACGGATG

Entity 8 Entity 8 non-polymer

Description description	;(9S,14S,15R,16S,17R,18R,19R,20S,21S,25R)-5,6,18,20-tetrahydroxy-14-methoxy-7,9,15,17,19,21,25-heptamethyl-1'-(2-methylpropyl)-10,26-dioxo-1,3,9,10-tetrahydrospiro[9,4-(epoxypentadecanoimino)furo[2',3':7,8]naphtho[1,2-d]imidazole-2,4'-piperidin]-16-yl benzoate ;
Molecular weight formula_weight	917.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 10 Entity 10 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	7u22B01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	7u22D01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	274 — Enzyme I; Chain A, domain 2
Homologous superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

Domain ID domain_id	7u22D02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	132 — Topoisomerase I; Chain A, domain 4
Homologous superfamily homologous superfamily	30 — RNA polymerase Rpb1 funnel domain

▶

Unit-cell length a length_a	149.482 Å
Unit-cell length b length_b	161.445 Å
Unit-cell length c length_c	196.603 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	3.870 Å
Low-resolution limit resolution_low	48.300 Å
R factor r_factor	0.2417
R_work r_work	0.2400
R_free r_free	0.2781
