7x3u

cryo-EM structure of human TRiC-ADP

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-complex protein 1 subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） ADENOSINE-5'-DIPHOSPHATE × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–556； UniProt 1–556 Author chain a； PDBConstruct 1–556； UniProt 1–556

T-complex protein 1 subunit beta

Homo sapiens

UniProt P78371

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） ADENOSINE-5'-DIPHOSPHATE × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPB_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–535； UniProt 1–535 Author chain b； PDBConstruct 1–535； UniProt 1–535

T-complex protein 1 subunit delta

Homo sapiens

UniProt P50991

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） ADENOSINE-5'-DIPHOSPHATE × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPD_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–539； UniProt 1–539 Author chain d； PDBConstruct 1–539； UniProt 1–539

T-complex protein 1 subunit epsilon

Homo sapiens

UniProt P48643

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） ADENOSINE-5'-DIPHOSPHATE × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPE_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–539； UniProt 3–541 Author chain e； PDBConstruct 1–539； UniProt 3–541

T-complex protein 1 subunit gamma

Homo sapiens

UniProt P49368

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） ADENOSINE-5'-DIPHOSPHATE × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPG_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain G； PDBConstruct 1–545； UniProt 1–545 Author chain g； PDBConstruct 1–545； UniProt 1–545

T-complex protein 1 subunit eta

Homo sapiens

UniProt Q99832

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） ADENOSINE-5'-DIPHOSPHATE × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPH_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain H； PDBConstruct 1–543； UniProt 1–543 Author chain h； PDBConstruct 1–543； UniProt 1–543

T-complex protein 1 subunit theta

Homo sapiens

UniProt P50990

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit zeta × 2 （P40227） ADENOSINE-5'-DIPHOSPHATE × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPQ_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain Q； PDBConstruct 1–548； UniProt 1–548 Author chain q； PDBConstruct 1–548； UniProt 1–548

T-complex protein 1 subunit zeta

Homo sapiens

UniProt P40227

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） ADENOSINE-5'-DIPHOSPHATE × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPZ_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain Z； PDBConstruct 1–531； UniProt 1–531 Author chain z； PDBConstruct 1–531； UniProt 1–531

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7x3u
Deposition date deposition_date	2022-03-01
Structure title title	cryo-EM structure of human TRiC-ADP
Keywords keywords	STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7x3u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

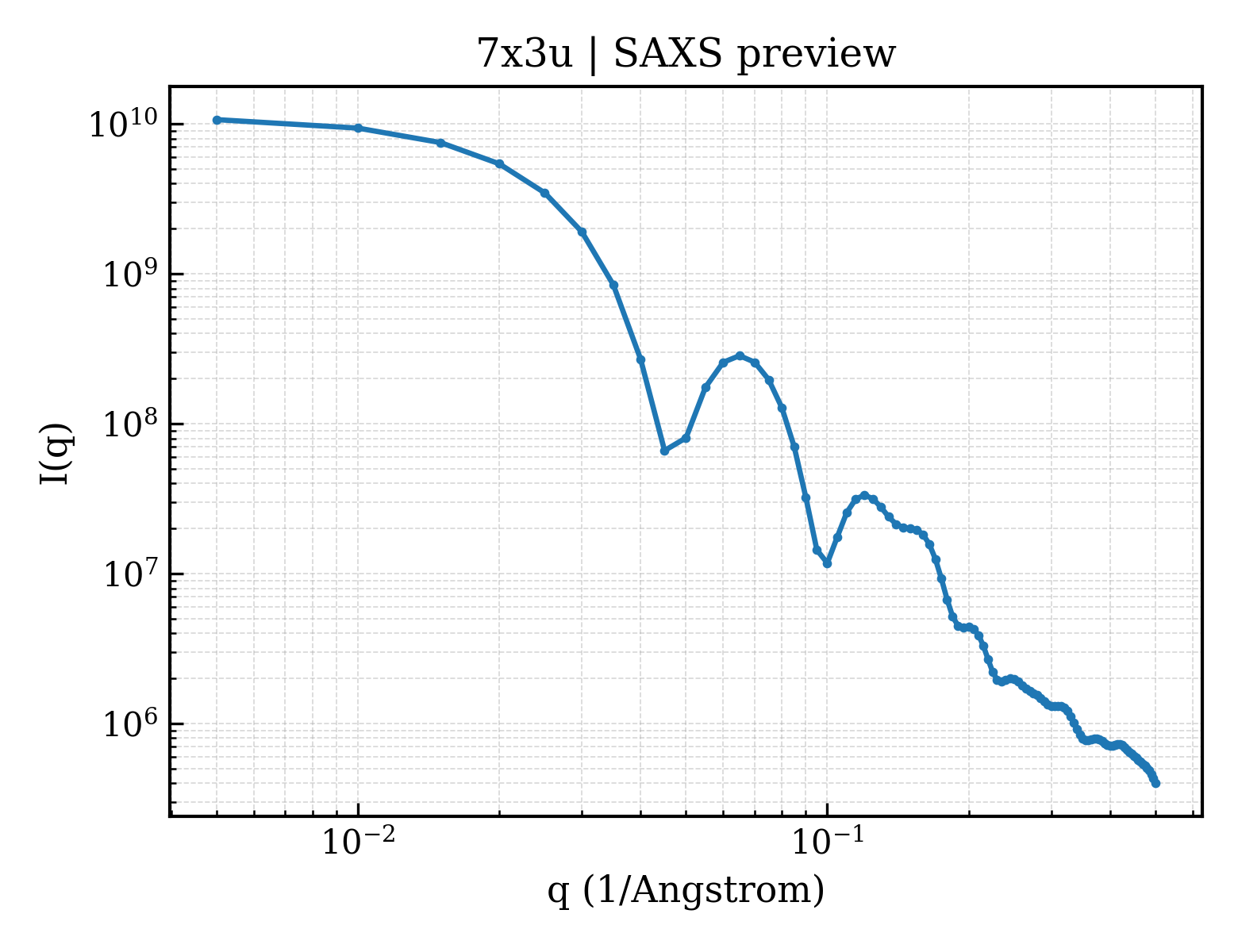

7x3u__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

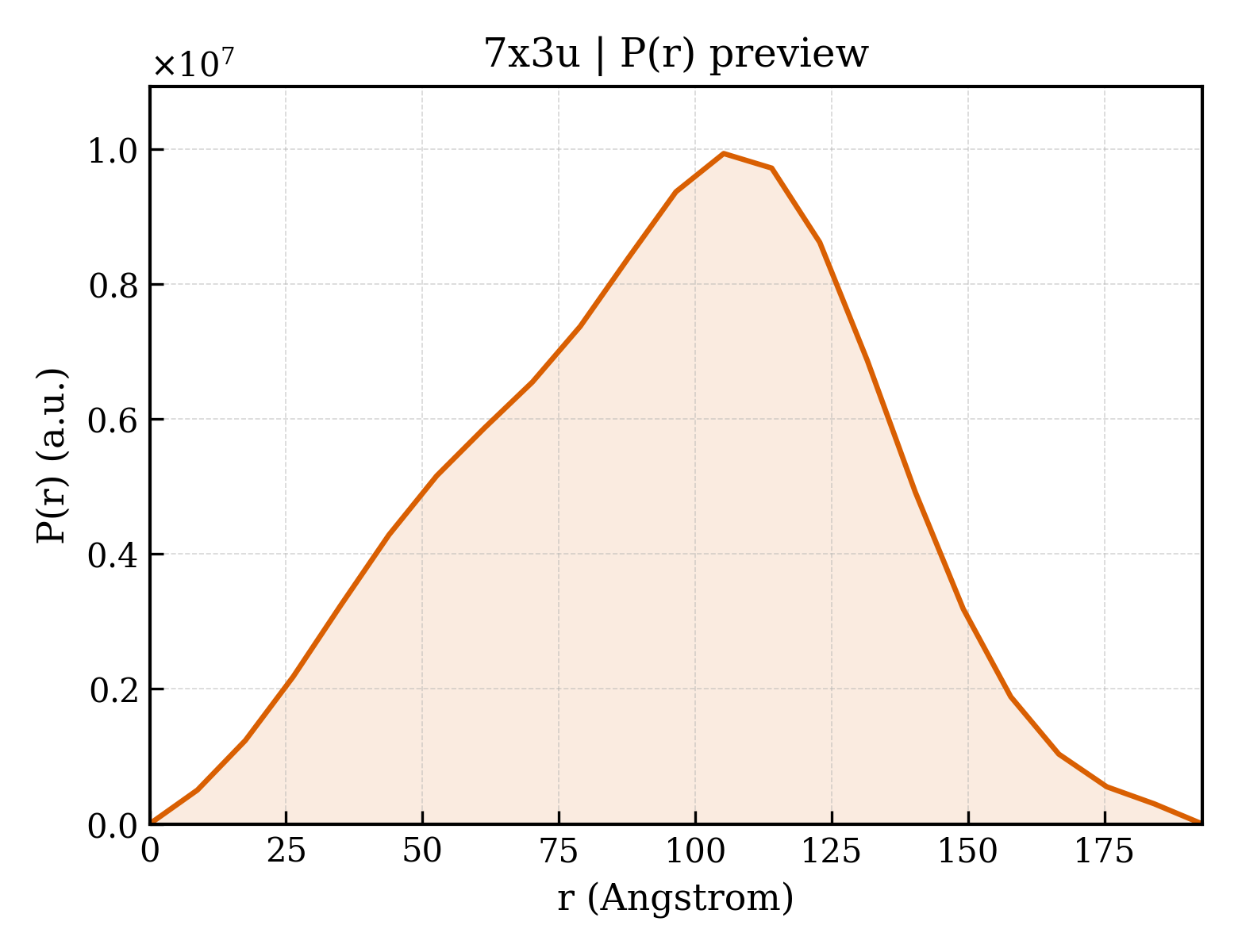

7x3u__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	72.02 Å
Rg (electron density)	71.47 Å
Total Rg	71.58 Å
Atom count	62495
Residues	8121
Excluded volume	1120300 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7x3u__assembly_1__model_1`	hexadecameric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	T-complex protein 1 subunit alpha
Molecular weight formula_weight	60418.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	a,A
Atom count atom_count	62495

MEGPLSVFGDRSTGETIRSQNVMAAASIANIVKSSLGPVGLDKMLVDDIGDVTITNDGATILKLLEVEHPAAKVLCELADLQDKEVGDGTTSVVIIAAELLKNADELVKQKIHPTSVISGYRLACKEAVRYINENLIVNTDELGRDCLINAAKTSMSSKIIGINGDFFANMVVDAVLAIKYTDIRGQPRYPVNSVNILKAHGRSQMESMLISGYALNCVVGSQGMPKRIVNAKIACLDFSLQKTKMKLGVQVVITDPEKLDQIRQRESDITKERIQKILATGANVILTTGGIDDMCLKYFVEAGAMAVRRVLKRDLKRIAKASGATILSTLANLEGEETFEAAMLGQAEEVVQERICDDELILIKNTKARTSASIILRGANDFMCDEMERSLHDALCVVKRVLESKSVVPGGGAVEAALSIYLENYATSMGSREQLAIAEFARSLLVIPNTLAVNAAQDSTDLVAKLRAFHNEAQVNPERKNLKWIGLDLSNGKPRDNKQAGVFEPTIVKVKSLKFATEAAITILRIDDLIKLHPESKDDKHGSYEDAVHSGALND

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	T-complex protein 1 subunit beta
Molecular weight formula_weight	57567.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	b,B

MASLSLAPVNIFKAGADEERAETARLTSFIGAIAIGDLVKSTLGPKGMDKILLSSGRDASLMVTNDGATILKNIGVDNPAAKVLVDMSRVQDDEVGDGTTSVTVLAAELLREAESLIAKKIHPQTIIAGWREATKAAREALLSSAVDHGSDEVKFRQDLMNIAGTTLSSKLLTHHKDHFTKLAVEAVLRLKGSGNLEAIHIIKKLGGSLADSYLDEGFLLDKKIGVNQPKRIENAKILIANTGMDTDKIKIFGSRVRVDSTAKVAEIEHAEKEKMKEKVERILKHGINCFINRQLIYNYPEQLFGAAGVMAIEHADFAGVERLALVTGGEIASTFDHPELVKLGSCKLIEEVMIGEDKLIHFSGVALGEACTIVLRGATQQILDEAERSLHDALCVLAQTVKDSRTVYGGGCSEMLMAHAVTQLANRTPGKEAVAMESYAKALRMLPTIIADNAGYDSADLVAQLRAAHSEGNTTAGLDMREGTIGDMAILGITESFQVKRQVLLSAAEAAEVILRVDNIIKAAPRKRVPDHHPC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	T-complex protein 1 subunit delta
Molecular weight formula_weight	57996.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,d

MPENVAPRSGATAGAAGGRGKGAYQDRDKPAQIRFSNISAAKAVADAIRTSLGPKGMDKMIQDGKGDVTITNDGATILKQMQVLHPAARMLVELSKAQDIEAGDGTTSVVIIAGSLLDSCTKLLQKGIHPTIISESFQKALEKGIEILTDMSRPVELSDRETLLNSATTSLNSKVVSQYSSLLSPMSVNAVMKVIDPATATSVDLRDIKIVKKLGGTIDDCELVEGLVLTQKVSNSGITRVEKAKIGLIQFCLSAPKTDMDNQIVVSDYAQMDRVLREERAYILNLVKQIKKTGCNVLLIQKSILRDALSDLALHFLNKMKIMVIKDIEREDIEFICKTIGTKPVAHIDQFTADMLGSAELAEEVNLNGSGKLLKITGCASPGKTVTIVVRGSNKLVIEEAERSIHDALCVIRCLVKKRALIAGGGAPEIELALRLTEYSRTLSGMESYCVRAFADAMEVIPSTLAENAGLNPISTVTELRNRHAQGEKTAGINVRKGGISNILEELVVQPLLVSVSALTLATETVRSILKIDDVVNTR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	T-complex protein 1 subunit epsilon
Molecular weight formula_weight	59547.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,e

SMGTLAFDEYGRPFLIIKDQDRKSRLMGLEALKSHIMAAKAVANTMRTSLGPNGLDKMMVDKDGDVTVTNDGATILSMMDVDHQIAKLMVELSKSQDDEIGDGTTGVVVLAGALLEEAEQLLDRGIHPIRIADGYEQAARVAIEHLDKISDSVLVDIKDTEPLIQTAKTTLGSKVVNSCHRQMAEIAVNAVLTVADMERRDVDFELIKVEGKVGGRLEDTKLIKGVIVDKDFSHPQMPKKVEDAKIAILTCPFEPPKPKTKHKLDVTSVEDYKALQKYEKEKFEEMIQQIKETGANLAICQWGFDDEANHLLLQNNLPAVRWVGGPEIELIAIATGGRIVPRFSELTAEKLGFAGLVQEISFGTTKDKMLVIEQCKNSRAVTIFIRGGNKMIIEEAKRSLHDALCVIRNLIRDNRVVYGGGAAEISCALAVSQEADKCPTLEQYAMRAFADALEVIPMALSENSGMNPIQTMTEVRARQVKEMNPALGIDCLHKGTNDMKQQHVIETLIGKKQQISLATQMVRMILKIDDIRKPGESEE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	T-complex protein 1 subunit gamma
Molecular weight formula_weight	60613.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	g,G

MMGHRPVLVLSQNTKRESGRKVQSGNINAAKTIADIIRTCLGPKSMMKMLLDPMGGIVMTNDGNAILREIQVQHPAAKSMIEISRTQDEEVGDGTTSVIILAGEMLSVAEHFLEQQMHPTVVISAYRKALDDMISTLKKISIPVDISDSDMMLNIINSSITTKAISRWSSLACNIALDAVKMVQFEENGRKEIDIKKYARVEKIPGGIIEDSCVLRGVMINKDVTHPRMRRYIKNPRIVLLDSSLEYKKGESQTDIEITREEDFTRILQMEEEYIQQLCEDIIQLKPDVVITEKGISDLAQHYLMRANITAIRRVRKTDNNRIARACGARIVSRPEELREDDVGTGAGLLEIKKIGDEYFTFITDCKDPKACTILLRGASKEILSEVERNLQDAMQVCRNVLLDPQLVPGGGASEMAVAHALTEKSKAMTGVEQWPYRAVAQALEVIPRTLIQNCGASTIRLLTSLRAKHTQENCETWGVNGETGTLVDMKELGIWEPLAVKLQTYKTAVETAVLLLRIDDIVSGHKKKGDDQSRQGGAPDAGQE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	T-complex protein 1 subunit eta
Molecular weight formula_weight	59417.5 kDa
Mutation mutation	L290S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	h,H

MMPTPVILLKEGTDSSQGIPQLVSNISACQVIAEAVRTTLGPRGMDKLIVDGRGKATISNDGATILKLLDVVHPAAKTLVDIAKSQDAEVGDGTTSVTLLAAEFLKQVKPYVEEGLHPQIIIRAFRTATQLAVNKIKEIAVTVKKADKVEQRKLLEKCAMTALSSKLISQQKAFFAKMVVDAVMMLDDLLQLKMIGIKKVQGGALEDSQLVAGVAFKKTFSYAGFEMQPKKYHNPKIALLNVELELKAEKDNAEIRVHTVEDYQAIVDAEWNILYDKLEKIHHSGAKVVSSKLPIGDVATQYFADRDMFCAGRVPEEDLKRTMMACGGSIQTSVNALSADVLGRCQVFEETQIGGERYNFFTGCPKAKTCTFILRGGAEQFMEETERSLHDAIMIVRRAIKNDSVVAGGGAIEMELSKYLRDYSRTIPGKQQLLIGAYAKALEIIPRQLCDNAGFDATNILNKLRARHAQGGTWYGVDINNEDIADNFEAFVWEPAMVRINALTAASEAACLIVSVDETIKNPRSTVDAPTAAGRGRGRGRPH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 7 Entity 7 polymer

Description description	T-complex protein 1 subunit theta
Molecular weight formula_weight	59691.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q,q

MALHVPKAPGFAQMLKEGAKHFSGLEEAVYRNIQACKELAQTTRTAYGPNGMNKMVINHLEKLFVTNDAATILRELEVQHPAAKMIVMASHMQEQEVGDGTNFVLVFAGALLELAEELLRIGLSVSEVIEGYEIACRKAHEILPNLVCCSAKNLRDIDEVSSLLRTSIMSKQYGNEVFLAKLIAQACVSIFPDSGHFNVDNIRVCKILGSGISSSSVLHGMVFKKETEGDVTSVKDAKIAVYSCPFDGMITETKGTVLIKTAEELMNFSKGEENLMDAQVKAIADTGANVVVTGGKVADMALHYANKYNIMLVRLNSKWDLRRLCKTVGATALPRLTPPVLEEMGHCDSVYLSEVGDTQVVVFKHEKEDGAISTIVLRGSTDNLMDDIERAVDDGVNTFKVLTRDKRLVPGGGATEIELAKQITSYGETCPGLEQYAIKKFAEAFEAIPRALAENSGVKANEVISKLYAVHQEGNKNVGLDIEAEVPAVKDMLEAGILDTYLGKYWAIKLATNAAVTVLRVDQIIMAKPAGGPKPPSGKKDWDDDQND

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 8 Entity 8 polymer

Description description	T-complex protein 1 subunit zeta
Molecular weight formula_weight	58106.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Z,z

MAAVKTLNPKAEVARAQAALAVNISAARGLQDVLRTNLGPKGTMKMLVSGAGDIKLTKDGNVLLHEMQIQHPTASLIAKVATAQDDITGDGTTSNVLIIGELLKQADLYISEGLHPRIITEGFEAAKEKALQFLEEVKVSREMDRETLIDVARTSLRTKVHAELADVLTEAVVDSILAIKKQDEPIDLFMIEIMEMKHKSETDTSLIRGLVLDHGARHPDMKKRVEDAYILTCNVSLEYEKTEVNSGFFYKSAEEREKLVKAERKFIEDRVKKIIELKRKVCGDSDKGFVVINQKGIDPFSLDALSKEGIVALRRAKRRNMERLTLACGGVALNSFDDLSPDCLGHAGLVYEYTLGEEKFTFIEKCNNPRSVTLLIKGPNKHTLTQIKDAVRDGLRAVKNAIDDGCVVPGAGAVEVAMAEALIKHKPSVKGRAQLGVQAFADALLIIPKVLAQNSGFDLQETLVKIQAEHSESGQLVGVDLNTGEPMVAAEVGVWDNYCVKKQLLHSCTVIATNILLVDEIMRAGMSSLKG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 9 Entity 9 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	16

▼

6. Fold Classification (SCOP + CATH) 7 domains

CATH v4.4 (7 domains)

Domain ID domain_id	7x3uB01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	7x3uH01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	7x3uQ01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	7x3ua01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	7x3ub01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	7x3uh01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	7x3uq01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	239315

cryo-EM structure of human TRiC-ADP

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-complex protein 1 subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit delta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit epsilon

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit gamma

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit eta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit theta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit zeta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

7x3u__assembly_1__model_1

7x3u__assembly_1__model_1 | I(q)

7x3u__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer
