5uyx

Structure of Human T-complex protein 1 subunit epsilon (CCT5)

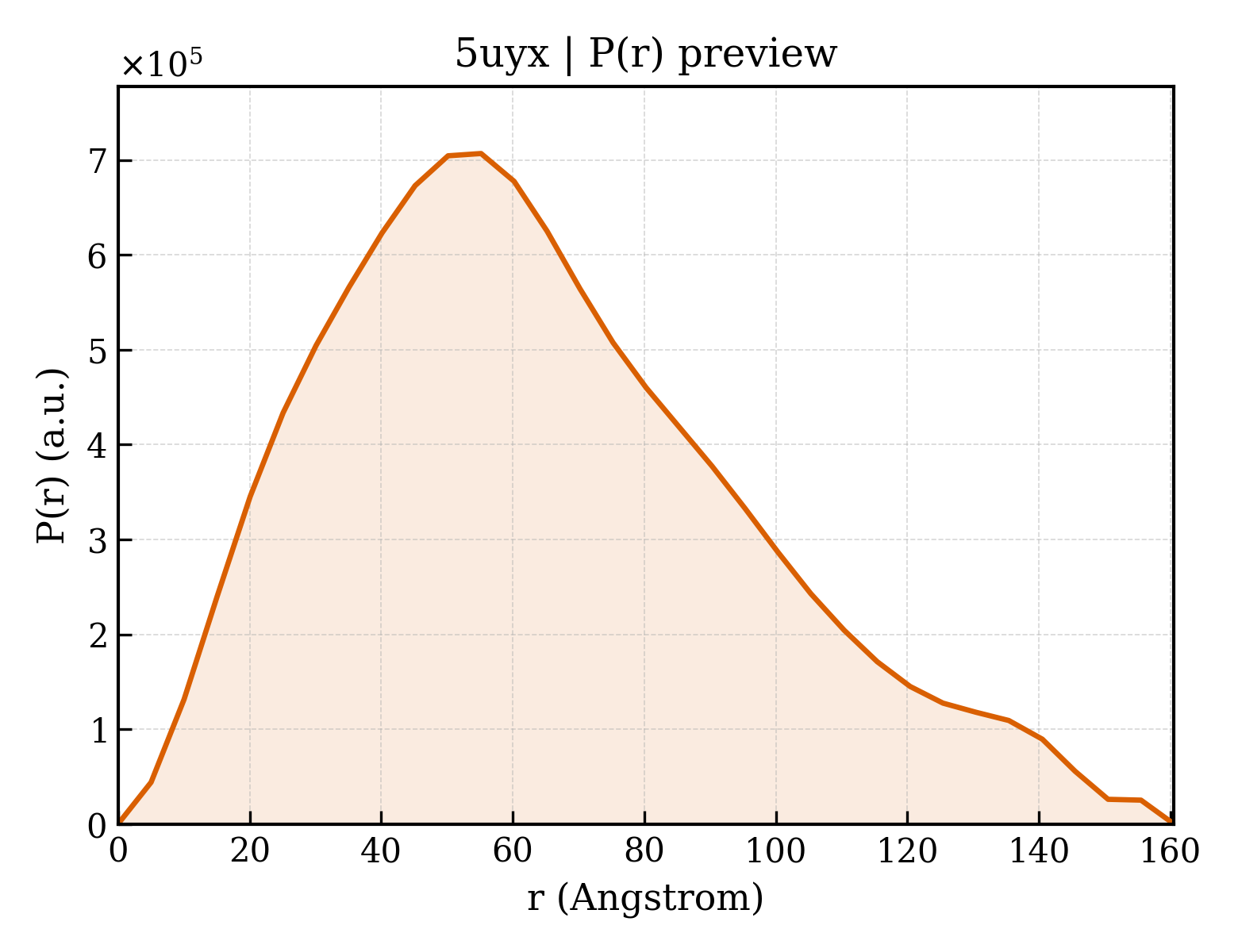

Method: X-RAY DIFFRACTION Dmax: 160.5 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-complex protein 1 subunit epsilon

Homo sapiens

UniProt P48643

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 16 PDB declaration: hexadecameric（16） Consistent with protein copy count Chain A； UniProt 1–541 Chain B； UniProt 1–541 Chain C； UniProt 1–541 Chain D； UniProt 1–541 Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.4；298 K；0.1 M Sodium acetate, 0.04 Mcitric acid, 0.06 MBis-tris propane pH 6.4, 25 %PEG400 Resolution 3.50 Å R-free 0.318

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5UYX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5UYZ Structure of Human T-complex protein 1 subunit epsilon (CCT5) mutant His147Arg Deposited 2017-02-24 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 16 PDB declaration: hexadecameric
Chain A 1–541（541 aa）
Chain B 1–541（541 aa）
Chain C 1–541（541 aa）
Chain D 1–541（541 aa）
Mutation：H147R Mutation：H147R Mutation：H147R Mutation：H147R ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 MSodium acetate, 0.04 M citric acid, 0.06 M Bis-Tris propane pH 6.4, and 25% PEG 400
Resolution 3.60 Å R-free 0.324
6NR8 hTRiC-hPFD Class6 Deposited 2019-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 25–541（517 aa）
Chain M 25–541（517 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.80 Å
6NR9 hTRiC-hPFD Class5 Deposited 2019-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 25–541（517 aa）
Chain M 25–541（517 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.50 Å
6NRA hTRiC-hPFD Class1 (No PFD) Deposited 2019-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 25–541（517 aa）
Chain M 25–541（517 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.70 Å
6NRB hTRiC-hPFD Class2 Deposited 2019-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 25–541（517 aa）
Chain M 25–541（517 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.70 Å
6NRC hTRiC-hPFD Class3 Deposited 2019-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 25–541（517 aa）
Chain M 25–541（517 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.30 Å
6NRD hTRiC-hPFD Class4 Deposited 2019-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 25–541（517 aa）
Chain M 25–541（517 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.20 Å
6QB8 Human CCT:mLST8 complex Deposited 2018-12-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.97 Å
7LUM Human TRiC in ATP/AlFx closed state Deposited 2021-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain D 1–541（541 aa）
Chain L 1–541（541 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
7LUP Human TRiC/CCT complex with reovirus outer capsid protein sigma-3 Deposited 2021-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain D 1–541（541 aa）
Chain L 1–541（541 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.20 Å
7NVL Human TRiC complex in closed state with nanobody bound (Consensus Map) Deposited 2021-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
7NVM Human TRiC complex in closed state with nanobody Nb18, actin and PhLP2A bound Deposited 2021-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7NVN Human TRiC complex in closed state with nanobody and tubulin bound Deposited 2021-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7NVO Human TRiC complex in open state with nanobody bound Deposited 2021-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 AF3 ALUMINUM FLUORIDE × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7TRG The beta-tubulin folding intermediate I Deposited 2022-01-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 1–541（541 aa）
Not recorded MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 8 AF3 ALUMINUM FLUORIDE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7TTN The beta-tubulin folding intermediate II Deposited 2022-02-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 1–541（541 aa）
Not recorded AF3 ALUMINUM FLUORIDE × 8 MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7TTT The beta-tubulin folding intermediate III Deposited 2022-02-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 1–541（541 aa）
Not recorded MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 8 AF3 ALUMINUM FLUORIDE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7TUB The beta-tubulin folding intermediate IV Deposited 2022-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 1–541（541 aa）
Not recorded MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 8 AF3 ALUMINUM FLUORIDE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7WU7 Prefoldin-tubulin-TRiC complex Deposited 2022-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 1–541（541 aa）
Chain M 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.85 Å
7WZ3 Cryo-EM structure of human TRiC-tubulin-S1 state Deposited 2022-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 3–541（539 aa）
Chain e 3–541（539 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7X0A Cryo-EM structure of human TRiC-NPP state Deposited 2022-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 3–541（539 aa）
Chain e 3–541（539 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7X0S Human TRiC-tubulin-S3 Deposited 2022-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain E 3–541（539 aa）
Chain e 3–541（539 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7X0V cryo-EM structure of human TRiC-ADP-AlFx Deposited 2022-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 3–541（539 aa）
Chain e 3–541（539 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7X3J Cryo-EM structure of human TRiC-tubulin-S2 Deposited 2022-03-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 3–541（539 aa）
Chain e 3–541（539 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
7X3U cryo-EM structure of human TRiC-ADP Deposited 2022-03-01 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 3–541（539 aa）
Chain e 3–541（539 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7X6Q cryo-EM structure of human TRiC-ATP-closed state Deposited 2022-03-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 3–541（539 aa）
Chain e 3–541（539 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
7X7Y Cryo-EM structure of Human TRiC-ATP-open state Deposited 2022-03-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 3–541（539 aa）
Chain e 3–541（539 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8AJM Structure of human DDB1-DCAF12 in complex with the C-terminus of CCT5 Deposited 2022-07-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–541（541 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
8AJO Negative-stain electron microscopy structure of DDB1-DCAF12-CCT5 Deposited 2022-07-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–541（541 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
Resolution 30.60 Å
8HKI Human TRiC open state Deposited 2022-11-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 3–541（539 aa）
Chain e 3–541（539 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8I1U Human TRiC-PhLP2A complex in the closed state Deposited 2023-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 1–541（541 aa）
Chain M 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
8I9U Human TRiC-PhLP2A complex in the open state Deposited 2023-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 1–541（541 aa）
Chain M 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8IB8 Human TRiC-PhLP2A-actin complex in the closed state Deposited 2023-02-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 1–541（541 aa）
Chain M 1–541（541 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.42 Å
8SFE Open state CCT-G beta 5 complex Deposited 2023-04-10 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
8SFF CCT G beta 5 complex closed state 0 Deposited 2023-04-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8SG8 CCT G beta 5 complex closed state 1 Deposited 2023-04-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8SG9 CCT G beta 5 complex closed state 3 Deposited 2023-04-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8SGC CCT G beta 5 complex closed state 2 Deposited 2023-04-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8SGL CCT G beta 5 complex closed state 15 Deposited 2023-04-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8SGQ CCT G beta 5 complex intermediate state Deposited 2023-04-12 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8SH9 CCT G beta 5 complex best PhLP1 class Deposited 2023-04-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
8SHA CCT-G beta 5 complex closed state 4 Deposited 2023-04-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8SHD CCT G beta 5 complex closed state 10 Deposited 2023-04-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8SHE CCT-G beta 5 complex closed state 8 Deposited 2023-04-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8SHF CCT-G beta 5 complex closed state 7 Deposited 2023-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8SHG CCT G beta 5 complex closed state 9 Deposited 2023-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8SHL CCT G beta 5 complex closed state 5 Deposited 2023-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8SHN CCT-G beta 5 complex closed state 6 Deposited 2023-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8SHO CCT G beta 5 complex close state 11 Deposited 2023-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8SHP CCT G beta 5 complex closed state 13 Deposited 2023-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8SHQ CCT G beta 5 complex closed state 12 Deposited 2023-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8SHT CCT G beta 5 complex closed state 14 Deposited 2023-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 2–541（540 aa）
Chain e 2–541（540 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9E2S Apo TRiC in closed conformation Deposited 2024-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric
Chain D 1–541（541 aa）
Chain d 1–541（541 aa）
Not recorded MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9NOC CCT G beta 5 S123L complex state 3 Deposited 2025-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: 18-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
9NOO CCT G beta 5 S123L complex state 2 Deposited 2025-03-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: 17-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9NOP CCT G beta 5 S123L complex state 1 Deposited 2025-03-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: 18-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9NOQ CCT G beta 5 R269E complex state 5 Deposited 2025-03-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: 18-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9NPW CCT G beta 5 R269E complex state 2 Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: 18-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9NQ1 CCT G beta 5 R269E complex state 1 Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: 17-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9NQ6 CCT G beta 5 G257E complex state 4 Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: 18-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9NR1 CCT G beta 5 G257E complex state 1 Deposited 2025-03-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: 17-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9NR4 CCT G beta 5 G257E complex state 3 Deposited 2025-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: 17-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9NRD CCT G beta 5 G257E complex state 2 Deposited 2025-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: 17-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9NRE CCT G beta 5 G257E complex state 5 Deposited 2025-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: 17-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9NRF CCT G beta 5 G257E complex state 6 Deposited 2025-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: 18-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9NRG CCT G beta 5 R269E complex state 3 Deposited 2025-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: 17-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9NRH CCT G beta 5 R269E complex state 4 Deposited 2025-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: 18-meric
Chain E 1–541（541 aa）
Chain e 1–541（541 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 AF3 ALUMINUM FLUORIDE × 16 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9UMT TRiC_HDAC1_close_state Deposited 2025-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 7–537（531 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 8 MG MAGNESIUM ION × 8 AF3 ALUMINUM FLUORIDE × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.64 Å

68 other PDB entries and 68 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TCPE_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–541； UniProt 1–541 Author chain B； PDBConstruct 1–541； UniProt 1–541 Author chain C； PDBConstruct 1–541； UniProt 1–541 Author chain D； PDBConstruct 1–541； UniProt 1–541

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 5uyx

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 5uyx
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id5uyx
Deposition date deposition_date2017-02-24
Structure title titleStructure of Human T-complex protein 1 subunit epsilon (CCT5)
Keywords keywordschaperonin Hexadecameric complex ATP-dependent CCT5 gene, CHAPERONE; CHAPERONE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier49.81 Å
Radius of gyration Rg (electron density) rg_electron50.88 Å
Forward intensity I(0) i0664156000.00
Molecular weight molecular_weight211180.0 kDa
Excluded volume excluded_volume264250 ų
Envelope volume envelope_volume419960 ų
Hydration-shell volume shell_volume70700 ų
Envelope diameter envelope_diameter170.4 Å
Shell Rg shell_rg51.23 Å
Envelope Rg envelope_rg50.70 Å
Shape Rg shape_rg50.97 Å
Total Rg total_rg50.59 Å
Total atoms total_atoms14749
Residues n_residues1901
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax160.5 Å
Rg (real space) rg_real50.34 Å
Rg uncertainty (real space) rg_real_error1.58 Å
I(0) (real space) i0_real6.6420e+08
I(0) uncertainty (real space) i0_real_error1.3370e+07
Rg (reciprocal space) rg_reciprocal49.82 Å
I(0) (reciprocal space) i0_reciprocal663700000.0000
Solution quality estimate total_estimate0.6108
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary55.2 Å
Skewness Skewness skewness0.541
Kurtosis Kurtosis kurtosis-0.220
Angular range angular_range— – 0.1600 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha30130000.0000
Real-space data points n_real_points33
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.887; Stabil: 0.999; Sysdev: 0.087; Positv: 1.000; Valcen: 0.967; Smooth: 0.047
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id5uyxA01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology560 — GROEL; domain 1
Homologous superfamily homologous superfamily10 — GroEL-like equatorial domain
Domain ID domain_id5uyxB01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology560 — GROEL; domain 1
Homologous superfamily homologous superfamily10 — GroEL-like equatorial domain
Domain ID domain_id5uyxB02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology260 — GROEL; domain 2
Homologous superfamily homologous superfamily10 — TCP-1-like chaperonin intermediate domain
Domain ID domain_id5uyxC01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology560 — GROEL; domain 1
Homologous superfamily homologous superfamily10 — GroEL-like equatorial domain
Domain ID domain_id5uyxD01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology560 — GROEL; domain 1
Homologous superfamily homologous superfamily10 — GroEL-like equatorial domain
▶

8. Citations (1)

▶

9. Files and Curves (10)
