9nrd

CCT G beta 5 G257E complex state 2

Method: ELECTRON MICROSCOPY D_max: 162.8 Å Quality: REASONABLE

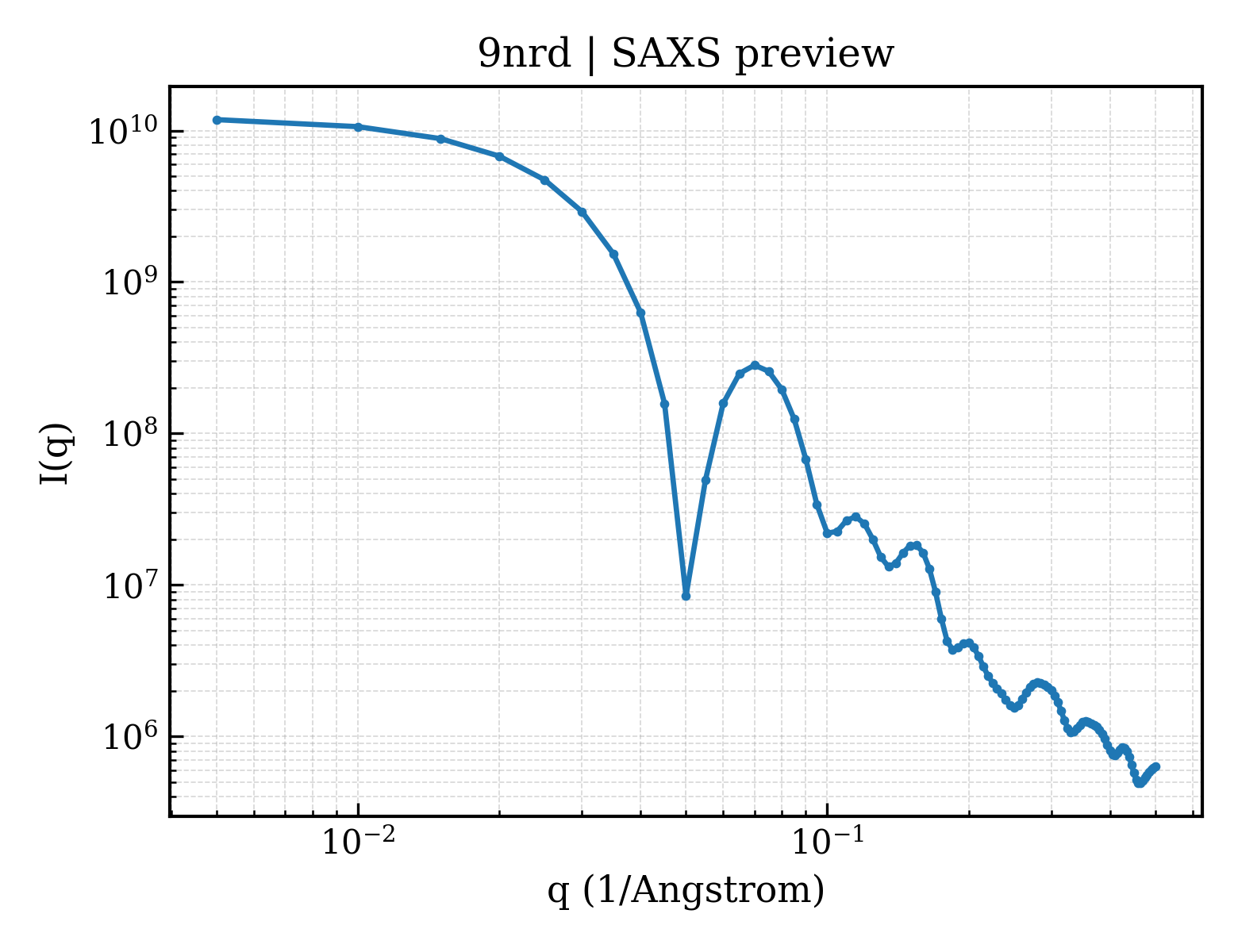

SAXS 散射曲线 SAXS Profile

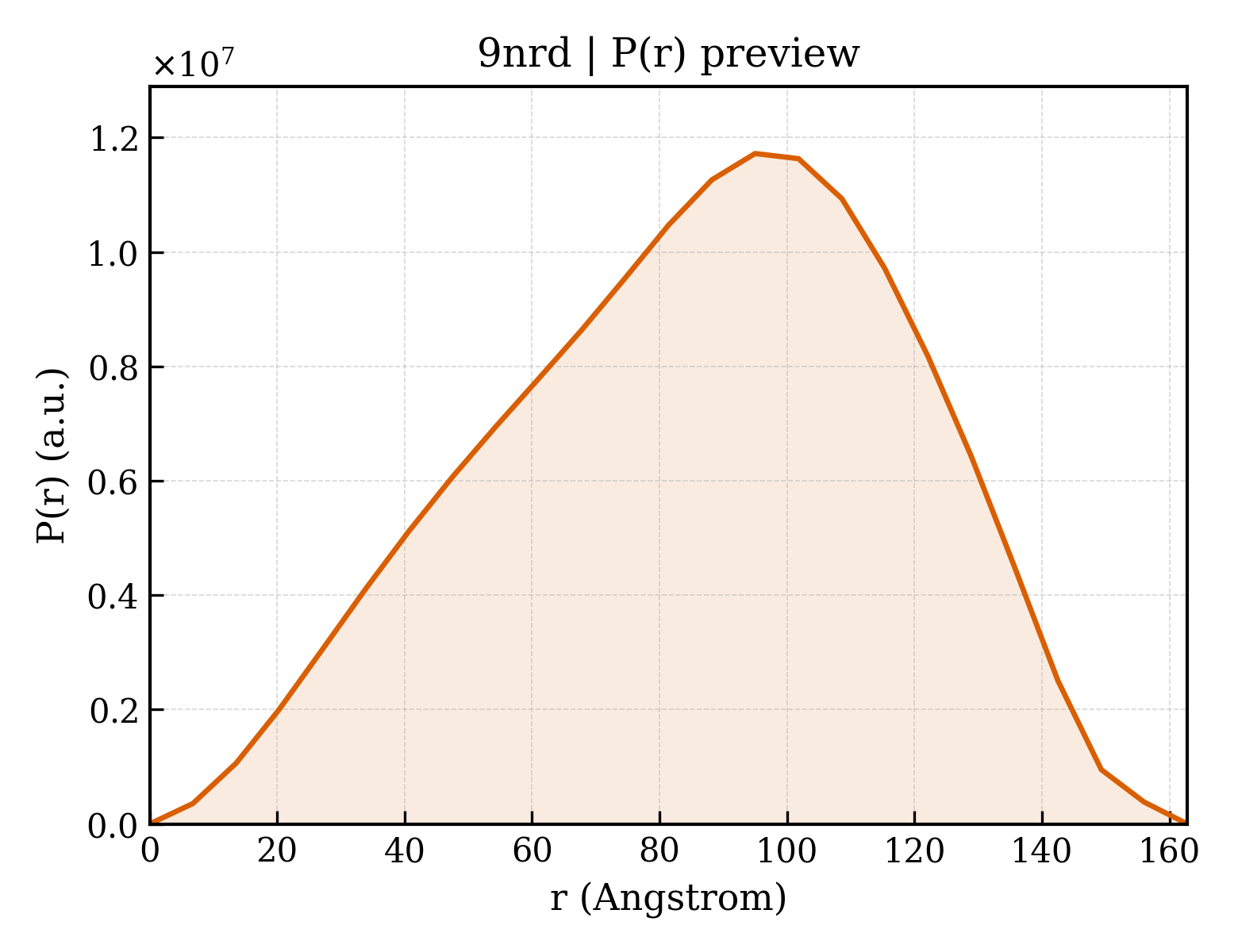

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nrd
沉积日期 deposition_date	2025-03-14
结构标题 title	CCT G beta 5 G257E complex state 2
关键词 keywords	CCT, TRiC, protein folding, G beta 5, CHAPERONE; CHAPERONE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	65.76 Å
回转半径 Rg (电子) rg_electron	64.64 Å
零角强度 I(0) i0	12222000000.00
分子量 molecular_weight	933400.0 kDa
排除体积 excluded_volume	1169100 Å³
包络体积 envelope_volume	1858700 Å³
水化壳体积 shell_volume	226480 Å³
包络直径 envelope_diameter	176.8 Å
壳层 Rg shell_rg	78.53 Å
包络 Rg envelope_rg	60.01 Å
形状 Rg shape_rg	64.66 Å
总 Rg total_rg	64.77 Å
总原子数 total_atoms	65227
残基数 n_residues	8480
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	162.8 Å
Rg (实空间) rg_real	64.87 Å
Rg 误差 (实空间) rg_real_error	0.54 Å
I(0) (实空间) i0_real	1.2220e+10
I(0) 误差 (实空间) i0_real_error	2.2810e+08
Rg (倒空间) rg_reciprocal	66.50 Å
I(0) (倒空间) i0_reciprocal	12260000000.0000
解质量估计 total_estimate	0.6154
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	95.0 Å
偏度 Skewness skewness	-0.235
峰度 Kurtosis kurtosis	-0.633
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6499000000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.990; Stabil: 1.000; Sysdev: 0.013; Positv: 1.000; Valcen: 0.988; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (13)

Entity 1 polymer

描述 description	Guanine nucleotide-binding protein subunit beta-5
分子量 formula_weight	48407.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N
原子数 atom_count	65279

MWSHPQFEKGGGSGGGSGGSSAWSHPQFEKAAMCDQTFLVNVFGSCDKCFKQRALRPVFKKSQQLSYCSTCAEIMATEGLHENETLASLKSEAESLKGKLEEERAKLHDVELHQVAERVEALGQFVMKTRRTLKGHGNKVLCMDWCKDKRRIVSSSQDGKVIVWDSFTTNKEHAVTMPCTWVMACAYAPSGCAIACGGLDNKCSVYPLTFDKNENMAAKKKSVAMHTNYLSACSFTNSDMQILTASGDGTCALWDVESGQLLQSFHGHGADVLCLDLAPSETGNTFVSEGCDKKAMVWDMRSGQCVQAFETHESDINSVRYYPSGDAFASGSDDATCRLYDLRADREVAIYSKESIIFGASSVDFSLSGRLLFAGYNDYTINVWDVLKGSRVSILFGHENRVSTLRVSPDGTAFCSGSWDHTLRVWAGGEDQVDPRLIDGK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	T-complex protein 1 subunit alpha
分子量 formula_weight	60418.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,a

MEGPLSVFGDRSTGETIRSQNVMAAASIANIVKSSLGPVGLDKMLVDDIGDVTITNDGATILKLLEVEHPAAKVLCELADLQDKEVGDGTTSVVIIAAELLKNADELVKQKIHPTSVISGYRLACKEAVRYINENLIVNTDELGRDCLINAAKTSMSSKIIGINGDFFANMVVDAVLAIKYTDIRGQPRYPVNSVNILKAHGRSQMESMLISGYALNCVVGSQGMPKRIVNAKIACLDFSLQKTKMKLGVQVVITDPEKLDQIRQRESDITKERIQKILATGANVILTTGGIDDMCLKYFVEAGAMAVRRVLKRDLKRIAKASGATILSTLANLEGEETFEAAMLGQAEEVVQERICDDELILIKNTKARTSASIILRGANDFMCDEMERSLHDALCVVKRVLESKSVVPGGGAVEAALSIYLENYATSMGSREQLAIAEFARSLLVIPNTLAVNAAQDSTDLVAKLRAFHNEAQVNPERKNLKWIGLDLSNGKPRDNKQAGVFEPTIVKVKSLKFATEAAITILRIDDLIKLHPESKDDKHGSYEDAVHSGALND

Entity 3 polymer

描述 description	T-complex protein 1 subunit beta
分子量 formula_weight	57567.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,b

MASLSLAPVNIFKAGADEERAETARLTSFIGAIAIGDLVKSTLGPKGMDKILLSSGRDASLMVTNDGATILKNIGVDNPAAKVLVDMSRVQDDEVGDGTTSVTVLAAELLREAESLIAKKIHPQTIIAGWREATKAAREALLSSAVDHGSDEVKFRQDLMNIAGTTLSSKLLTHHKDHFTKLAVEAVLRLKGSGNLEAIHIIKKLGGSLADSYLDEGFLLDKKIGVNQPKRIENAKILIANTGMDTDKIKIFGSRVRVDSTAKVAEIEHAEKEKMKEKVERILKHGINCFINRQLIYNYPEQLFGAAGVMAIEHADFAGVERLALVTGGEIASTFDHPELVKLGSCKLIEEVMIGEDKLIHFSGVALGEACTIVLRGATQQILDEAERSLHDALCVLAQTVKDSRTVYGGGCSEMLMAHAVTQLANRTPGKEAVAMESYAKALRMLPTIIADNAGYDSADLVAQLRAAHSEGNTTAGLDMREGTIGDMAILGITESFQVKRQVLLSAAEAAEVILRVDNIIKAAPRKRVPDHHPC

Entity 4 polymer

描述 description	T-complex protein 1 subunit delta
分子量 formula_weight	57996.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,d

MPENVAPRSGATAGAAGGRGKGAYQDRDKPAQIRFSNISAAKAVADAIRTSLGPKGMDKMIQDGKGDVTITNDGATILKQMQVLHPAARMLVELSKAQDIEAGDGTTSVVIIAGSLLDSCTKLLQKGIHPTIISESFQKALEKGIEILTDMSRPVELSDRETLLNSATTSLNSKVVSQYSSLLSPMSVNAVMKVIDPATATSVDLRDIKIVKKLGGTIDDCELVEGLVLTQKVSNSGITRVEKAKIGLIQFCLSAPKTDMDNQIVVSDYAQMDRVLREERAYILNLVKQIKKTGCNVLLIQKSILRDALSDLALHFLNKMKIMVIKDIEREDIEFICKTIGTKPVAHIDQFTADMLGSAELAEEVNLNGSGKLLKITGCASPGKTVTIVVRGSNKLVIEEAERSIHDALCVIRCLVKKRALIAGGGAPEIELALRLTEYSRTLSGMESYCVRAFADAMEVIPSTLAENAGLNPISTVTELRNRHAQGEKTAGINVRKGGISNILEELVVQPLLVSVSALTLATETVRSILKIDDVVNTR

Entity 5 polymer

描述 description	T-complex protein 1 subunit epsilon
分子量 formula_weight	59750.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,e

MASMGTLAFDEYGRPFLIIKDQDRKSRLMGLEALKSHIMAAKAVANTMRTSLGPNGLDKMMVDKDGDVTVTNDGATILSMMDVDHQIAKLMVELSKSQDDEIGDGTTGVVVLAGALLEEAEQLLDRGIHPIRIADGYEQAARVAIEHLDKISDSVLVDIKDTEPLIQTAKTTLGSKVVNSCHRQMAEIAVNAVLTVADMERRDVDFELIKVEGKVGGRLEDTKLIKGVIVDKDFSHPQMPKKVEDAKIAILTCPFEPPKPKTKHKLDVTSVEDYKALQKYEKEKFEEMIQQIKETGANLAICQWGFDDEANHLLLQNNLPAVRWVGGPEIELIAIATGGRIVPRFSELTAEKLGFAGLVQEISFGTTKDKMLVIEQCKNSRAVTIFIRGGNKMIIEEAKRSLHDALCVIRNLIRDNRVVYGGGAAEISCALAVSQEADKCPTLEQYAMRAFADALEVIPMALSENSGMNPIQTMTEVRARQVKEMNPALGIDCLHKGTNDMKQQHVIETLIGKKQQISLATQMVRMILKIDDIRKPGESEE

Entity 6 polymer

描述 description	T-complex protein 1 subunit gamma
分子量 formula_weight	60613.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,g

MMGHRPVLVLSQNTKRESGRKVQSGNINAAKTIADIIRTCLGPKSMMKMLLDPMGGIVMTNDGNAILREIQVQHPAAKSMIEISRTQDEEVGDGTTSVIILAGEMLSVAEHFLEQQMHPTVVISAYRKALDDMISTLKKISIPVDISDSDMMLNIINSSITTKAISRWSSLACNIALDAVKMVQFEENGRKEIDIKKYARVEKIPGGIIEDSCVLRGVMINKDVTHPRMRRYIKNPRIVLLDSSLEYKKGESQTDIEITREEDFTRILQMEEEYIQQLCEDIIQLKPDVVITEKGISDLAQHYLMRANITAIRRVRKTDNNRIARACGARIVSRPEELREDDVGTGAGLLEIKKIGDEYFTFITDCKDPKACTILLRGASKEILSEVERNLQDAMQVCRNVLLDPQLVPGGGASEMAVAHALTEKSKAMTGVEQWPYRAVAQALEVIPRTLIQNCGASTIRLLTSLRAKHTQENCETWGVNGETGTLVDMKELGIWEPLAVKLQTYKTAVETAVLLLRIDDIVSGHKKKGDDQSRQGGAPDAGQE

Entity 7 polymer

描述 description	T-complex protein 1 subunit eta
分子量 formula_weight	59443.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,h

MMPTPVILLKEGTDSSQGIPQLVSNISACQVIAEAVRTTLGPRGMDKLIVDGRGKATISNDGATILKLLDVVHPAAKTLVDIAKSQDAEVGDGTTSVTLLAAEFLKQVKPYVEEGLHPQIIIRAFRTATQLAVNKIKEIAVTVKKADKVEQRKLLEKCAMTALSSKLISQQKAFFAKMVVDAVMMLDDLLQLKMIGIKKVQGGALEDSQLVAGVAFKKTFSYAGFEMQPKKYHNPKIALLNVELELKAEKDNAEIRVHTVEDYQAIVDAEWNILYDKLEKIHHSGAKVVLSKLPIGDVATQYFADRDMFCAGRVPEEDLKRTMMACGGSIQTSVNALSADVLGRCQVFEETQIGGERYNFFTGCPKAKTCTFILRGGAEQFMEETERSLHDAIMIVRRAIKNDSVVAGGGAIEMELSKYLRDYSRTIPGKQQLLIGAYAKALEIIPRQLCDNAGFDATNILNKLRARHAQGGTWYGVDINNEDIADNFEAFVWEPAMVRINALTAASEAACLIVSVDETIKNPRSTVDAPTAAGRGRGRGRPH

Entity 8 polymer

描述 description	T-complex protein 1 subunit theta
分子量 formula_weight	59691.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q,q

MALHVPKAPGFAQMLKEGAKHFSGLEEAVYRNIQACKELAQTTRTAYGPNGMNKMVINHLEKLFVTNDAATILRELEVQHPAAKMIVMASHMQEQEVGDGTNFVLVFAGALLELAEELLRIGLSVSEVIEGYEIACRKAHEILPNLVCCSAKNLRDIDEVSSLLRTSIMSKQYGNEVFLAKLIAQACVSIFPDSGHFNVDNIRVCKILGSGISSSSVLHGMVFKKETEGDVTSVKDAKIAVYSCPFDGMITETKGTVLIKTAEELMNFSKGEENLMDAQVKAIADTGANVVVTGGKVADMALHYANKYNIMLVRLNSKWDLRRLCKTVGATALPRLTPPVLEEMGHCDSVYLSEVGDTQVVVFKHEKEDGAISTIVLRGSTDNLMDDIERAVDDGVNTFKVLTRDKRLVPGGGATEIELAKQITSYGETCPGLEQYAIKKFAEAFEAIPRALAENSGVKANEVISKLYAVHQEGNKNVGLDIEAEVPAVKDMLEAGILDTYLGKYWAIKLATNAAVTVLRVDQIIMAKPAGGPKPPSGKKDWDDDQND

Entity 9 polymer

描述 description	T-complex protein 1 subunit zeta
分子量 formula_weight	58106.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z,z

MAAVKTLNPKAEVARAQAALAVNISAARGLQDVLRTNLGPKGTMKMLVSGAGDIKLTKDGNVLLHEMQIQHPTASLIAKVATAQDDITGDGTTSNVLIIGELLKQADLYISEGLHPRIITEGFEAAKEKALQFLEEVKVSREMDRETLIDVARTSLRTKVHAELADVLTEAVVDSILAIKKQDEPIDLFMIEIMEMKHKSETDTSLIRGLVLDHGARHPDMKKRVEDAYILTCNVSLEYEKTEVNSGFFYKSAEEREKLVKAERKFIEDRVKKIIELKRKVCGDSDKGFVVINQKGIDPFSLDALSKEGIVALRRAKRRNMERLTLACGGVALNSFDDLSPDCLGHAGLVYEYTLGEEKFTFIEKCNNPRSVTLLIKGPNKHTLTQIKDAVRDGLRAVKNAIDDGCVVPGAGAVEVAMAEALIKHKPSVKGRAQLGVQAFADALLIIPKVLAQNSGFDLQETLVKIQAEHSESGQLVGVDLNTGEPMVAAEVGVWDNYCVKKQLLHSCTVIATNILLVDEIMRAGMSSLKG

Entity 10 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 11 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 12 non-polymer

描述 description	ALUMINUM FLUORIDE
分子量 formula_weight	84.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 13 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	19

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	65690

fit	/app/data/saxs_computation/nr/9nrd/9nrd.fit
pddf	/app/data/pr_computation/nr/9nrd/9nrd.pr.out
profile	/app/data/saxs_computation/nr/9nrd/9nrd.dat
