7lup

Human TRiC/CCT complex with reovirus outer capsid protein sigma-3

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-complex protein 1 subunit epsilon

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 17	T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） T-complex protein 1 subunit alpha × 2 （P17987） Outer capsid protein sigma-3 × 1 （P03527） ZINC ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPE_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 1–541； UniProt 1–541 Author chain L； PDBConstruct 1–541； UniProt 1–541

T-complex protein 1 subunit beta

Homo sapiens

UniProt P78371

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 17	T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） T-complex protein 1 subunit alpha × 2 （P17987） Outer capsid protein sigma-3 × 1 （P03527） ZINC ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPB_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–535； UniProt 1–535 Author chain M； PDBConstruct 1–535； UniProt 1–535

T-complex protein 1 subunit delta

Homo sapiens

UniProt P50991

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 17	T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） T-complex protein 1 subunit alpha × 2 （P17987） Outer capsid protein sigma-3 × 1 （P03527） ZINC ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPD_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–539； UniProt 1–539 Author chain N； PDBConstruct 1–539； UniProt 1–539

T-complex protein 1 subunit gamma

Homo sapiens

UniProt P49368

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 17	T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） T-complex protein 1 subunit alpha × 2 （P17987） Outer capsid protein sigma-3 × 1 （P03527） ZINC ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPG_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–545； UniProt 1–545 Author chain P； PDBConstruct 1–545； UniProt 1–545

T-complex protein 1 subunit eta

Homo sapiens

UniProt Q99832

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 17	T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） T-complex protein 1 subunit alpha × 2 （P17987） Outer capsid protein sigma-3 × 1 （P03527） ZINC ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPH_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain C； PDBConstruct 1–543； UniProt 1–543 Author chain K； PDBConstruct 1–543； UniProt 1–543

T-complex protein 1 subunit theta

Homo sapiens

UniProt P50990

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 17	T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit zeta × 2 （P40227） T-complex protein 1 subunit alpha × 2 （P17987） Outer capsid protein sigma-3 × 1 （P03527） ZINC ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPQ_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain B； PDBConstruct 1–548； UniProt 1–548 Author chain J； PDBConstruct 1–548； UniProt 1–548

T-complex protein 1 subunit zeta

Homo sapiens

UniProt P40227

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 17	T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit alpha × 2 （P17987） Outer capsid protein sigma-3 × 1 （P03527） ZINC ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPZ_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain A； PDBConstruct 1–531； UniProt 1–531 Author chain I； PDBConstruct 1–531； UniProt 1–531

T-complex protein 1 subunit alpha

Homo sapiens

UniProt P17987

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 17	T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） Outer capsid protein sigma-3 × 1 （P03527） ZINC ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPA_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain G； PDBConstruct 1–556； UniProt 1–556 Author chain O； PDBConstruct 1–556； UniProt 1–556

Outer capsid protein sigma-3

Reovirus type 3 (strain Dearing)

UniProt P03527

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 17	T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） T-complex protein 1 subunit alpha × 2 （P17987） ZINC ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SIGM3_REOVD
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain Q； PDBConstruct 1–365； UniProt 1–365

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7lup
Deposition date deposition_date	2021-02-22
Structure title title	Human TRiC/CCT complex with reovirus outer capsid protein sigma-3
Keywords keywords	tric, cct, reovirus capsid, sigma 3, CHAPERONE; CHAPERONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7lup__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

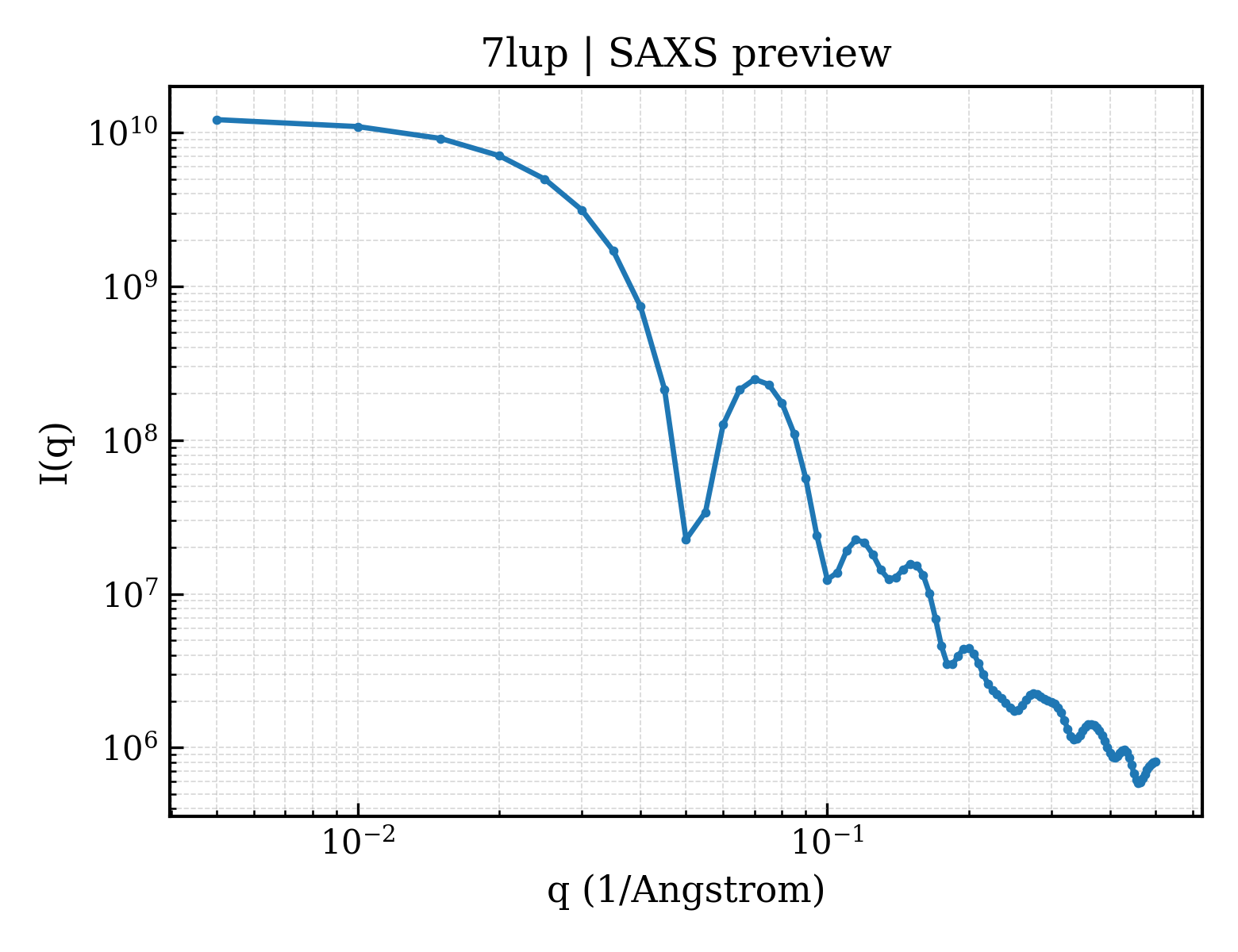

7lup__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

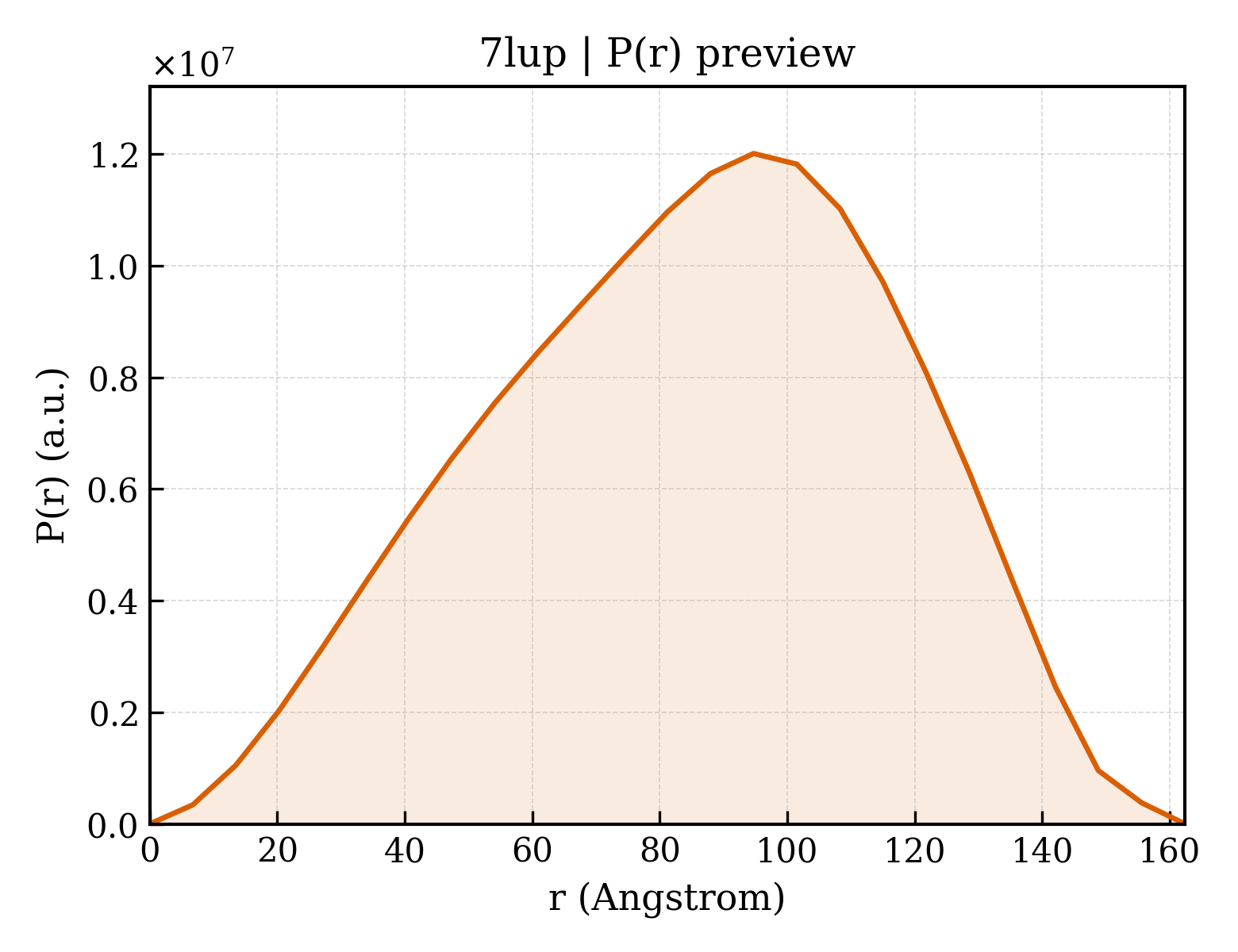

7lup__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	64.95 Å
Rg (electron density)	63.86 Å
Total Rg	64.03 Å
Atom count	66861
Residues	8739
Excluded volume	1200000 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7lup__assembly_1__model_1`	heptadecameric （17）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	T-complex protein 1 subunit epsilon
Molecular weight formula_weight	59750.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,D
Atom count atom_count	67281

MASMGTLAFDEYGRPFLIIKDQDRKSRLMGLEALKSHIMAAKAVANTMRTSLGPNGLDKMMVDKDGDVTVTNDGATILSMMDVDHQIAKLMVELSKSQDDEIGDGTTGVVVLAGALLEEAEQLLDRGIHPIRIADGYEQAARVAIEHLDKISDSVLVDIKDTEPLIQTAKTTLGSKVVNSCHRQMAEIAVNAVLTVADMERRDVDFELIKVEGKVGGRLEDTKLIKGVIVDKDFSHPQMPKKVEDAKIAILTCPFEPPKPKTKHKLDVTSVEDYKALQKYEKEKFEEMIQQIKETGANLAICQWGFDDEANHLLLQNNLPAVRWVGGPEIELIAIATGGRIVPRFSELTAEKLGFAGLVQEISFGTTKDKMLVIEQCKNSRAVTIFIRGGNKMIIEEAKRSLHDALCVIRNLIRDNRVVYGGGAAEISCALAVSQEADKCPTLEQYAMRAFADALEVIPMALSENSGMNPIQTMTEVRARQVKEMNPALGIDCLHKGTNDMKQQHVIETLIGKKQQISLATQMVRMILKIDDIRKPGESEE

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 2 Entity 2 polymer

Description description	T-complex protein 1 subunit beta
Molecular weight formula_weight	57567.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,E

MASLSLAPVNIFKAGADEERAETARLTSFIGAIAIGDLVKSTLGPKGMDKILLSSGRDASLMVTNDGATILKNIGVDNPAAKVLVDMSRVQDDEVGDGTTSVTVLAAELLREAESLIAKKIHPQTIIAGWREATKAAREALLSSAVDHGSDEVKFRQDLMNIAGTTLSSKLLTHHKDHFTKLAVEAVLRLKGSGNLEAIHIIKKLGGSLADSYLDEGFLLDKKIGVNQPKRIENAKILIANTGMDTDKIKIFGSRVRVDSTAKVAEIEHAEKEKMKEKVERILKHGINCFINRQLIYNYPEQLFGAAGVMAIEHADFAGVERLALVTGGEIASTFDHPELVKLGSCKLIEEVMIGEDKLIHFSGVALGEACTIVLRGATQQILDEAERSLHDALCVLAQTVKDSRTVYGGGCSEMLMAHAVTQLANRTPGKEAVAMESYAKALRMLPTIIADNAGYDSADLVAQLRAAHSEGNTTAGLDMREGTIGDMAILGITESFQVKRQVLLSAAEAAEVILRVDNIIKAAPRKRVPDHHPC

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 3 Entity 3 polymer

Description description	T-complex protein 1 subunit delta
Molecular weight formula_weight	57996.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N,F

MPENVAPRSGATAGAAGGRGKGAYQDRDKPAQIRFSNISAAKAVADAIRTSLGPKGMDKMIQDGKGDVTITNDGATILKQMQVLHPAARMLVELSKAQDIEAGDGTTSVVIIAGSLLDSCTKLLQKGIHPTIISESFQKALEKGIEILTDMSRPVELSDRETLLNSATTSLNSKVVSQYSSLLSPMSVNAVMKVIDPATATSVDLRDIKIVKKLGGTIDDCELVEGLVLTQKVSNSGITRVEKAKIGLIQFCLSAPKTDMDNQIVVSDYAQMDRVLREERAYILNLVKQIKKTGCNVLLIQKSILRDALSDLALHFLNKMKIMVIKDIEREDIEFICKTIGTKPVAHIDQFTADMLGSAELAEEVNLNGSGKLLKITGCASPGKTVTIVVRGSNKLVIEEAERSIHDALCVIRCLVKKRALIAGGGAPEIELALRLTEYSRTLSGMESYCVRAFADAMEVIPSTLAENAGLNPISTVTELRNRHAQGEKTAGINVRKGGISNILEELVVQPLLVSVSALTLATETVRSILKIDDVVNTR

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 4 Entity 4 polymer

Description description	T-complex protein 1 subunit gamma
Molecular weight formula_weight	60613.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,P

MMGHRPVLVLSQNTKRESGRKVQSGNINAAKTIADIIRTCLGPKSMMKMLLDPMGGIVMTNDGNAILREIQVQHPAAKSMIEISRTQDEEVGDGTTSVIILAGEMLSVAEHFLEQQMHPTVVISAYRKALDDMISTLKKISIPVDISDSDMMLNIINSSITTKAISRWSSLACNIALDAVKMVQFEENGRKEIDIKKYARVEKIPGGIIEDSCVLRGVMINKDVTHPRMRRYIKNPRIVLLDSSLEYKKGESQTDIEITREEDFTRILQMEEEYIQQLCEDIIQLKPDVVITEKGISDLAQHYLMRANITAIRRVRKTDNNRIARACGARIVSRPEELREDDVGTGAGLLEIKKIGDEYFTFITDCKDPKACTILLRGASKEILSEVERNLQDAMQVCRNVLLDPQLVPGGGASEMAVAHALTEKSKAMTGVEQWPYRAVAQALEVIPRTLIQNCGASTIRLLTSLRAKHTQENCETWGVNGETGTLVDMKELGIWEPLAVKLQTYKTAVETAVLLLRIDDIVSGHKKKGDDQSRQGGAPDAGQE

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 5 Entity 5 polymer

Description description	T-complex protein 1 subunit eta
Molecular weight formula_weight	59443.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,C

MMPTPVILLKEGTDSSQGIPQLVSNISACQVIAEAVRTTLGPRGMDKLIVDGRGKATISNDGATILKLLDVVHPAAKTLVDIAKSQDAEVGDGTTSVTLLAAEFLKQVKPYVEEGLHPQIIIRAFRTATQLAVNKIKEIAVTVKKADKVEQRKLLEKCAMTALSSKLISQQKAFFAKMVVDAVMMLDDLLQLKMIGIKKVQGGALEDSQLVAGVAFKKTFSYAGFEMQPKKYHNPKIALLNVELELKAEKDNAEIRVHTVEDYQAIVDAEWNILYDKLEKIHHSGAKVVLSKLPIGDVATQYFADRDMFCAGRVPEEDLKRTMMACGGSIQTSVNALSADVLGRCQVFEETQIGGERYNFFTGCPKAKTCTFILRGGAEQFMEETERSLHDAIMIVRRAIKNDSVVAGGGAIEMELSKYLRDYSRTIPGKQQLLIGAYAKALEIIPRQLCDNAGFDATNILNKLRARHAQGGTWYGVDINNEDIADNFEAFVWEPAMVRINALTAASEAACLIVSVDETIKNPRSTVDAPTAAGRGRGRGRPH

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 6 Entity 6 polymer

Description description	T-complex protein 1 subunit theta
Molecular weight formula_weight	59691.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,B

MALHVPKAPGFAQMLKEGAKHFSGLEEAVYRNIQACKELAQTTRTAYGPNGMNKMVINHLEKLFVTNDAATILRELEVQHPAAKMIVMASHMQEQEVGDGTNFVLVFAGALLELAEELLRIGLSVSEVIEGYEIACRKAHEILPNLVCCSAKNLRDIDEVSSLLRTSIMSKQYGNEVFLAKLIAQACVSIFPDSGHFNVDNIRVCKILGSGISSSSVLHGMVFKKETEGDVTSVKDAKIAVYSCPFDGMITETKGTVLIKTAEELMNFSKGEENLMDAQVKAIADTGANVVVTGGKVADMALHYANKYNIMLVRLNSKWDLRRLCKTVGATALPRLTPPVLEEMGHCDSVYLSEVGDTQVVVFKHEKEDGAISTIVLRGSTDNLMDDIERAVDDGVNTFKVLTRDKRLVPGGGATEIELAKQITSYGETCPGLEQYAIKKFAEAFEAIPRALAENSGVKANEVISKLYAVHQEGNKNVGLDIEAEVPAVKDMLEAGILDTYLGKYWAIKLATNAAVTVLRVDQIIMAKPAGGPKPPSGKKDWDDDQND

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 7 Entity 7 polymer

Description description	T-complex protein 1 subunit zeta
Molecular weight formula_weight	58106.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,A

MAAVKTLNPKAEVARAQAALAVNISAARGLQDVLRTNLGPKGTMKMLVSGAGDIKLTKDGNVLLHEMQIQHPTASLIAKVATAQDDITGDGTTSNVLIIGELLKQADLYISEGLHPRIITEGFEAAKEKALQFLEEVKVSREMDRETLIDVARTSLRTKVHAELADVLTEAVVDSILAIKKQDEPIDLFMIEIMEMKHKSETDTSLIRGLVLDHGARHPDMKKRVEDAYILTCNVSLEYEKTEVNSGFFYKSAEEREKLVKAERKFIEDRVKKIIELKRKVCGDSDKGFVVINQKGIDPFSLDALSKEGIVALRRAKRRNMERLTLACGGVALNSFDDLSPDCLGHAGLVYEYTLGEEKFTFIEKCNNPRSVTLLIKGPNKHTLTQIKDAVRDGLRAVKNAIDDGCVVPGAGAVEVAMAEALIKHKPSVKGRAQLGVQAFADALLIIPKVLAQNSGFDLQETLVKIQAEHSESGQLVGVDLNTGEPMVAAEVGVWDNYCVKKQLLHSCTVIATNILLVDEIMRAGMSSLKG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 8 Entity 8 polymer

Description description	T-complex protein 1 subunit alpha
Molecular weight formula_weight	60418.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O,G

MEGPLSVFGDRSTGETIRSQNVMAAASIANIVKSSLGPVGLDKMLVDDIGDVTITNDGATILKLLEVEHPAAKVLCELADLQDKEVGDGTTSVVIIAAELLKNADELVKQKIHPTSVISGYRLACKEAVRYINENLIVNTDELGRDCLINAAKTSMSSKIIGINGDFFANMVVDAVLAIKYTDIRGQPRYPVNSVNILKAHGRSQMESMLISGYALNCVVGSQGMPKRIVNAKIACLDFSLQKTKMKLGVQVVITDPEKLDQIRQRESDITKERIQKILATGANVILTTGGIDDMCLKYFVEAGAMAVRRVLKRDLKRIAKASGATILSTLANLEGEETFEAAMLGQAEEVVQERICDDELILIKNTKARTSASIILRGANDFMCDEMERSLHDALCVVKRVLESKSVVPGGGAVEAALSIYLENYATSMGSREQLAIAEFARSLLVIPNTLAVNAAQDSTDLVAKLRAFHNEAQVNPERKNLKWIGLDLSNGKPRDNKQAGVFEPTIVKVKSLKFATEAAITILRIDDLIKLHPESKDDKHGSYEDAVHSGALND

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 9 Entity 9 polymer

Description description	Outer capsid protein sigma-3
Molecular weight formula_weight	41168.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

MEVCLPNGHQVVDLINNAFEGRVSIYSAQEGWDKTISAQPDMMVCGGAVVCMHCLGVVGSLQRKLKHLPHHRCNQQIRHQDYVDVQFADRVTAHWKRGMLSFVAQMHEMMNDVSPDDLDRVRTEGGSLVELNWLQVDPNSMFRSIHSSWTDPLQVVDDLDTKLDQYWTALNLMIDSSDLIPNFMMRDPSHAFNGVKLGGDARQTQFSRTFDSRSSLEWGVMVYDYSELEHDPSKGRAYRKELVTPARDFGHFGLSHYSRATTPILGKMPAVFSGMLTGNCKMYPFIKGTAKLKTVRKLVEAVNHAWGVEKIRYALGPGGMTGWYNRTMQQAPIVLTPAALTMFPDTIKFGDLNYPVMIGDPMILG

Source Source

Source organism organism	Reovirus type 3 (strain Dearing)
Common name common_name	T3D, Mammalian orthoreovirus 3
NCBI taxonomy ID ncbi_taxonomy_id	10886
Host organism host_organism	Insect cell expression vector pTIE1

Entity 10 Entity 10 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 11 Entity 11 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	420

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	6.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	26000

Human TRiC/CCT complex with reovirus outer capsid protein sigma-3

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-complex protein 1 subunit epsilon

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit delta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit gamma

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit eta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit theta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit zeta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Outer capsid protein sigma-3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

7lup__assembly_1__model_1

7lup__assembly_1__model_1 | I(q)

7lup__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment
