8sh9

CCT G beta 5 complex best PhLP1 class

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein subunit beta-5

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta, N-terminally processed × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） Phosducin-like protein × 1 （Q13371） ADENOSINE-5'-DIPHOSPHATE × 16 MAGNESIUM ION × 16 ALUMINUM FLUORIDE × 16 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNB5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain N； PDBConstruct 1–395； UniProt 1–395

T-complex protein 1 subunit alpha

OrganismNot specified

UniProt P17987

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Guanine nucleotide-binding protein subunit beta-5 × 1 （O14775） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta, N-terminally processed × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） Phosducin-like protein × 1 （Q13371） ADENOSINE-5'-DIPHOSPHATE × 16 MAGNESIUM ION × 16 ALUMINUM FLUORIDE × 16 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPA_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–536； UniProt 2–537 Author chain a； PDBConstruct 1–536； UniProt 2–537

T-complex protein 1 subunit beta

OrganismNot specified

UniProt P78371

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Guanine nucleotide-binding protein subunit beta-5 × 1 （O14775） T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta, N-terminally processed × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） Phosducin-like protein × 1 （Q13371） ADENOSINE-5'-DIPHOSPHATE × 16 MAGNESIUM ION × 16 ALUMINUM FLUORIDE × 16 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPB_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–526； UniProt 2–527 Author chain b； PDBConstruct 1–526； UniProt 2–527

T-complex protein 1 subunit delta

OrganismNot specified

UniProt P50991

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Guanine nucleotide-binding protein subunit beta-5 × 1 （O14775） T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta, N-terminally processed × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） Phosducin-like protein × 1 （Q13371） ADENOSINE-5'-DIPHOSPHATE × 16 MAGNESIUM ION × 16 ALUMINUM FLUORIDE × 16 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPD_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–520； UniProt 19–538 Author chain d； PDBConstruct 1–520； UniProt 19–538

T-complex protein 1 subunit epsilon

OrganismNot specified

UniProt P48643

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Guanine nucleotide-binding protein subunit beta-5 × 1 （O14775） T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta, N-terminally processed × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） Phosducin-like protein × 1 （Q13371） ADENOSINE-5'-DIPHOSPHATE × 16 MAGNESIUM ION × 16 ALUMINUM FLUORIDE × 16 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPE_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–540； UniProt 2–541 Author chain e； PDBConstruct 1–540； UniProt 2–541

T-complex protein 1 subunit gamma

OrganismNot specified

UniProt P49368

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Guanine nucleotide-binding protein subunit beta-5 × 1 （O14775） T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit eta, N-terminally processed × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） Phosducin-like protein × 1 （Q13371） ADENOSINE-5'-DIPHOSPHATE × 16 MAGNESIUM ION × 16 ALUMINUM FLUORIDE × 16 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPG_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain G； PDBConstruct 1–528； UniProt 3–530 Author chain g； PDBConstruct 1–528； UniProt 3–530

T-complex protein 1 subunit eta, N-terminally processed

OrganismNot specified

UniProt Q99832

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Guanine nucleotide-binding protein subunit beta-5 × 1 （O14775） T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） Phosducin-like protein × 1 （Q13371） ADENOSINE-5'-DIPHOSPHATE × 16 MAGNESIUM ION × 16 ALUMINUM FLUORIDE × 16 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPH_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain H； PDBConstruct 1–528； UniProt 1–528 Author chain h； PDBConstruct 1–528； UniProt 1–528

T-complex protein 1 subunit theta

OrganismNot specified

UniProt P50990

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Guanine nucleotide-binding protein subunit beta-5 × 1 （O14775） T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta, N-terminally processed × 2 （Q99832） T-complex protein 1 subunit zeta × 2 （P40227） Phosducin-like protein × 1 （Q13371） ADENOSINE-5'-DIPHOSPHATE × 16 MAGNESIUM ION × 16 ALUMINUM FLUORIDE × 16 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPQ_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain Q； PDBConstruct 1–538； UniProt 2–539 Author chain q； PDBConstruct 1–538； UniProt 2–539

T-complex protein 1 subunit zeta

OrganismNot specified

UniProt P40227

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Guanine nucleotide-binding protein subunit beta-5 × 1 （O14775） T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta, N-terminally processed × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） Phosducin-like protein × 1 （Q13371） ADENOSINE-5'-DIPHOSPHATE × 16 MAGNESIUM ION × 16 ALUMINUM FLUORIDE × 16 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TCPZ_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain Z； PDBConstruct 1–527； UniProt 1–527 Author chain z； PDBConstruct 1–527； UniProt 1–527

Phosducin-like protein

OrganismNot specified

UniProt Q13371

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	Guanine nucleotide-binding protein subunit beta-5 × 1 （O14775） T-complex protein 1 subunit alpha × 2 （P17987） T-complex protein 1 subunit beta × 2 （P78371） T-complex protein 1 subunit delta × 2 （P50991） T-complex protein 1 subunit epsilon × 2 （P48643） T-complex protein 1 subunit gamma × 2 （P49368） T-complex protein 1 subunit eta, N-terminally processed × 2 （Q99832） T-complex protein 1 subunit theta × 2 （P50990） T-complex protein 1 subunit zeta × 2 （P40227） ADENOSINE-5'-DIPHOSPHATE × 16 MAGNESIUM ION × 16 ALUMINUM FLUORIDE × 16 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHLP_HUMAN
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain P； PDBConstruct 1–284； UniProt 18–301

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8sh9
Deposition date deposition_date	2023-04-13
Structure title title	CCT G beta 5 complex best PhLP1 class
Keywords keywords	CCT, Gb5, complex, open, CHAPERONE; CHAPERONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8sh9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

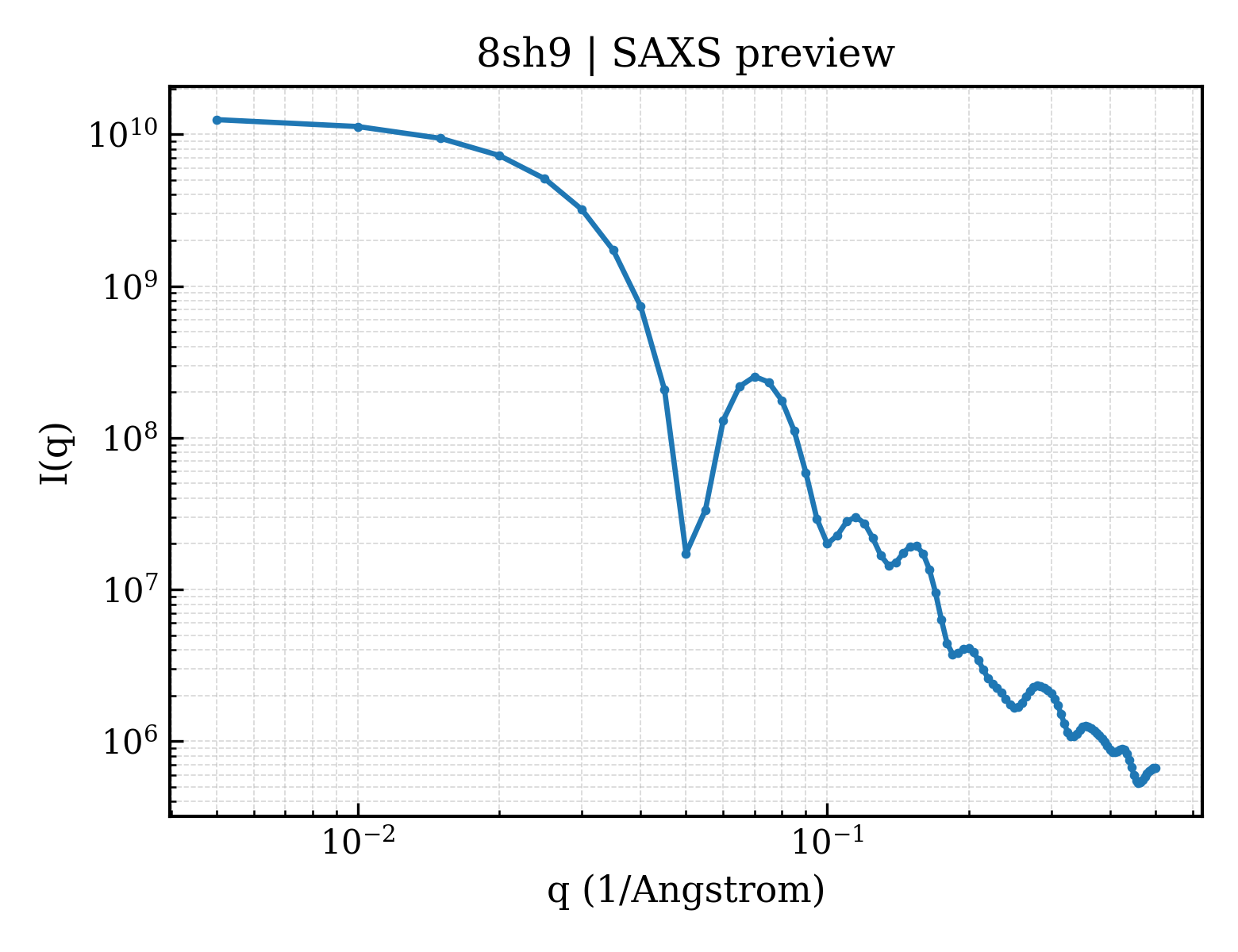

8sh9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

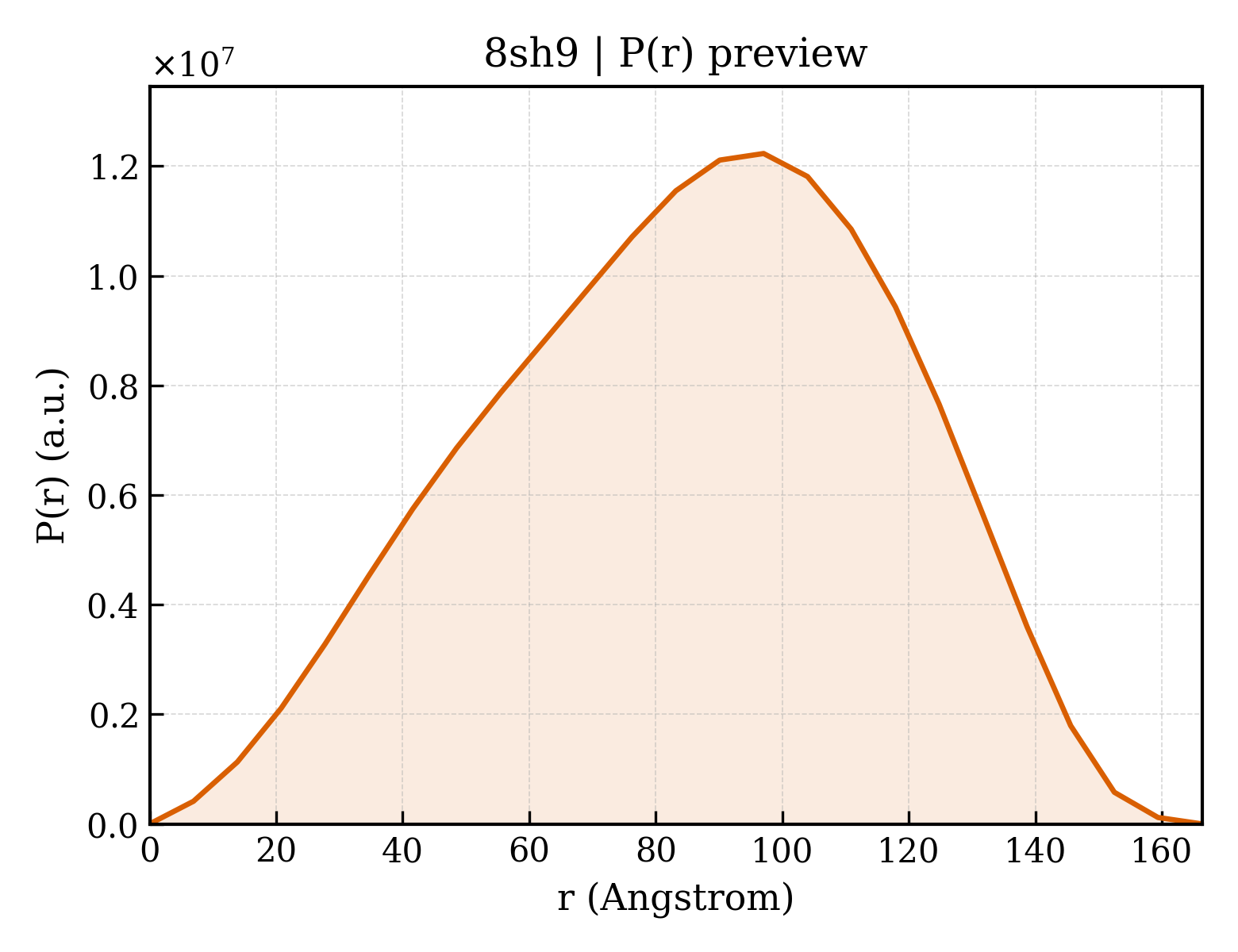

8sh9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	65.16 Å
Rg (electron density)	64.08 Å
Total Rg	64.23 Å
Atom count	67145
Residues	8724
Excluded volume	1203200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8sh9__assembly_1__model_1`	octadecameric （18）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein subunit beta-5
Molecular weight formula_weight	43619.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N
Atom count atom_count	67197

MCDQTFLVNVFGSCDKCFKQRALRPVFKKSQQLSYCSTCAEIMATEGLHENETLASLKSEAESLKGKLEEERAKLHDVELHQVAERVEALGQFVMKTRRTLKGHGNKVLCMDWCKDKRRIVSSSQDGKVIVWDSFTTNKEHAVTMPCTWVMACAYAPSGCAIACGGLDNKCSVYPLTFDKNENMAAKKKSVAMHTNYLSACSFTNSDMQILTASGDGTCALWDVESGQLLQSFHGHGADVLCLDLAPSETGNTFVSGGCDKKAMVWDMRSGQCVQAFETHESDINSVRYYPSGDAFASGSDDATCRLYDLRADREVAIYSKESIIFGASSVDFSLSGRLLFAGYNDYTINVWDVLKGSRVSILFGHENRVSTLRVSPDGTAFCSGSWDHTLRVWA

Entity 2 Entity 2 polymer

Description description	T-complex protein 1 subunit alpha
Molecular weight formula_weight	58243.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,a

EGPLSVFGDRSTGETIRSQNVMAAASIANIVKSSLGPVGLDKMLVDDIGDVTITNDGATILKLLEVEHPAAKVLCELADLQDKEVGDGTTSVVIIAAELLKNADELVKQKIHPTSVISGYRLACKEAVRYINENLIVNTDELGRDCLINAAKTSMSSKIIGINGDFFANMVVDAVLAIKYTDIRGQPRYPVNSVNILKAHGRSQMESMLISGYALNCVVGSQGMPKRIVNAKIACLDFSLQKTKMKLGVQVVITDPEKLDQIRQRESDITKERIQKILATGANVILTTGGIDDMCLKYFVEAGAMAVRRVLKRDLKRIAKASGATILSTLANLEGEETFEAAMLGQAEEVVQERICDDELILIKNTKARTSASIILRGANDFMCDEMERSLHDALCVVKRVLESKSVVPGGGAVEAALSIYLENYATSMGSREQLAIAEFARSLLVIPNTLAVNAAQDSTDLVAKLRAFHNEAQVNPERKNLKWIGLDLSNGKPRDNKQAGVFEPTIVKVKSLKFATEAAITILRIDDLIKLHPES

Entity 3 Entity 3 polymer

Description description	T-complex protein 1 subunit beta
Molecular weight formula_weight	56490.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,b

ASLSLAPVNIFKAGADEERAETARLTSFIGAIAIGDLVKSTLGPKGMDKILLSSGRDASLMVTNDGATILKNIGVDNPAAKVLVDMSRVQDDEVGDGTTSVTVLAAELLREAESLIAKKIHPQTIIAGWREATKAAREALLSSAVDHGSDEVKFRQDLMNIAGTTLSSKLLTHHKDHFTKLAVEAVLRLKGSGNLEAIHIIKKLGGSLADSYLDEGFLLDKKIGVNQPKRIENAKILIANTGMDTDKIKIFGSRVRVDSTAKVAEIEHAEKEKMKEKVERILKHGINCFINRQLIYNYPEQLFGAAGVMAIEHADFAGVERLALVTGGEIASTFDHPELVKLGSCKLIEEVMIGEDKLIHFSGVALGEACTIVLRGATQQILDEAERSLHDALCVLAQTVKDSRTVYGGGCSEMLMAHAVTQLANRTPGKEAVAMESYAKALRMLPTIIADNAGYDSADLVAQLRAAHSEGNTTAGLDMREGTIGDMAILGITESFQVKRQVLLSAAEAAEVILRVDNIIKAAPRK

Entity 4 Entity 4 polymer

Description description	T-complex protein 1 subunit delta
Molecular weight formula_weight	56242.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,d

RGKGAYQDRDKPAQIRFSNISAAKAVADAIRTSLGPKGMDKMIQDGKGDVTITNDGATILKQMQVLHPAARMLVELSKAQDIEAGDGTTSVVIIAGSLLDSCTKLLQKGIHPTIISESFQKALEKGIEILTDMSRPVELSDRETLLNSATTSLNSKVVSQYSSLLSPMSVNAVMKVIDPATATSVDLRDIKIVKKLGGTIDDCELVEGLVLTQKVSNSGITRVEKAKIGLIQFCLSAPKTDMDNQIVVSDYAQMDRVLREERAYILNLVKQIKKTGCNVLLIQKSILRDALSDLALHFLNKMKIMVIKDIEREDIEFICKTIGTKPVAHIDQFTADMLGSAELAEEVNLNGSGKLLKITGCASPGKTVTIVVRGSNKLVIEEAERSIHDALCVIRCLVKKRALIAGGGAPEIELALRLTEYSRTLSGMESYCVRAFADAMEVIPSTLAENAGLNPISTVTELRNRHAQGEKTAGINVRKGGISNILEELVVQPLLVSVSALTLATETVRSILKIDDVVNT

Entity 5 Entity 5 polymer

Description description	T-complex protein 1 subunit epsilon
Molecular weight formula_weight	59618.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,e

ASMGTLAFDEYGRPFLIIKDQDRKSRLMGLEALKSHIMAAKAVANTMRTSLGPNGLDKMMVDKDGDVTVTNDGATILSMMDVDHQIAKLMVELSKSQDDEIGDGTTGVVVLAGALLEEAEQLLDRGIHPIRIADGYEQAARVAIEHLDKISDSVLVDIKDTEPLIQTAKTTLGSKVVNSCHRQMAEIAVNAVLTVADMERRDVDFELIKVEGKVGGRLEDTKLIKGVIVDKDFSHPQMPKKVEDAKIAILTCPFEPPKPKTKHKLDVTSVEDYKALQKYEKEKFEEMIQQIKETGANLAICQWGFDDEANHLLLQNNLPAVRWVGGPEIELIAIATGGRIVPRFSELTAEKLGFAGLVQEISFGTTKDKMLVIEQCKNSRAVTIFIRGGNKMIIEEAKRSLHDALCVIRNLIRDNRVVYGGGAAEISCALAVSQEADKCPTLEQYAMRAFADALEVIPMALSENSGMNPIQTMTEVRARQVKEMNPALGIDCLHKGTNDMKQQHVIETLIGKKQQISLATQMVRMILKIDDIRKPGESEE

Entity 6 Entity 6 polymer

Description description	T-complex protein 1 subunit gamma
Molecular weight formula_weight	58838.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,g

GHRPVLVLSQNTKRESGRKVQSGNINAAKTIADIIRTCLGPKSMMKMLLDPMGGIVMTNDGNAILREIQVQHPAAKSMIEISRTQDEEVGDGTTSVIILAGEMLSVAEHFLEQQMHPTVVISAYRKALDDMISTLKKISIPVDISDSDMMLNIINSSITTKAISRWSSLACNIALDAVKMVQFEENGRKEIDIKKYARVEKIPGGIIEDSCVLRGVMINKDVTHPRMRRYIKNPRIVLLDSSLEYKKGESQTDIEITREEDFTRILQMEEEYIQQLCEDIIQLKPDVVITEKGISDLAQHYLMRANITAIRRVRKTDNNRIARACGARIVSRPEELREDDVGTGAGLLEIKKIGDEYFTFITDCKDPKACTILLRGASKEILSEVERNLQDAMQVCRNVLLDPQLVPGGGASEMAVAHALTEKSKAMTGVEQWPYRAVAQALEVIPRTLIQNCGASTIRLLTSLRAKHTQENCETWGVNGETGTLVDMKELGIWEPLAVKLQTYKTAVETAVLLLRIDDIVSGHKKKG

Entity 7 Entity 7 polymer

Description description	T-complex protein 1 subunit eta, N-terminally processed
Molecular weight formula_weight	57939.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,h

MMPTPVILLKEGTDSSQGIPQLVSNISACQVIAEAVRTTLGPRGMDKLIVDGRGKATISNDGATILKLLDVVHPAAKTLVDIAKSQDAEVGDGTTSVTLLAAEFLKQVKPYVEEGLHPQIIIRAFRTATQLAVNKIKEIAVTVKKADKVEQRKLLEKCAMTALSSKLISQQKAFFAKMVVDAVMMLDDLLQLKMIGIKKVQGGALEDSQLVAGVAFKKTFSYAGFEMQPKKYHNPKIALLNVELELKAEKDNAEIRVHTVEDYQAIVDAEWNILYDKLEKIHHSGAKVVLSKLPIGDVATQYFADRDMFCAGRVPEEDLKRTMMACGGSIQTSVNALSADVLGRCQVFEETQIGGERYNFFTGCPKAKTCTFILRGGAEQFMEETERSLHDAIMIVRRAIKNDSVVAGGGAIEMELSKYLRDYSRTIPGKQQLLIGAYAKALEIIPRQLCDNAGFDATNILNKLRARHAQGGTWYGVDINNEDIADNFEAFVWEPAMVRINALTAASEAACLIVSVDETIKNPRSTVD

Entity 8 Entity 8 polymer

Description description	T-complex protein 1 subunit theta
Molecular weight formula_weight	58427.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q,q

ALHVPKAPGFAQMLKEGAKHFSGLEEAVYRNIQACKELAQTTRTAYGPNGMNKMVINHLEKLFVTNDAATILRELEVQHPAAKMIVMASHMQEQEVGDGTNFVLVFAGALLELAEELLRIGLSVSEVIEGYEIACRKAHEILPNLVCCSAKNLRDIDEVSSLLRTSIMSKQYGNEVFLAKLIAQACVSIFPDSGHFNVDNIRVCKILGSGISSSSVLHGMVFKKETEGDVTSVKDAKIAVYSCPFDGMITETKGTVLIKTAEELMNFSKGEENLMDAQVKAIADTGANVVVTGGKVADMALHYANKYNIMLVRLNSKWDLRRLCKTVGATALPRLTPPVLEEMGHCDSVYLSEVGDTQVVVFKHEKEDGAISTIVLRGSTDNLMDDIERAVDDGVNTFKVLTRDKRLVPGGGATEIELAKQITSYGETCPGLEQYAIKKFAEAFEAIPRALAENSGVKANEVISKLYAVHQEGNKNVGLDIEAEVPAVKDMLEAGILDTYLGKYWAIKLATNAAVTVLRVDQIIMAKPAGGPKPPSGK

Entity 9 Entity 9 polymer

Description description	T-complex protein 1 subunit zeta
Molecular weight formula_weight	57719.6 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Z,z

MAAVKTLNPKAEVARAQAALAVNISAARGLQDVLRTNLGPKGTMKMLVSGAGDIKLTKDGNVLLHEMQIQHPTASLIAKVATAQDDITGDGTTSNVLIIGELLKQADLYISEGLHPRIITEGFEAAKEKALQFLEEVKVSREMDRETLIDVARTSLRTKVHAELADVLTEAVVDSILAIKKQDEPIDLFMIEIMEMKHKSETDTSLIRGLVLDHGARHPDMKKRVEDAYILTCNVSLEYEKTEVNSGFFYKSAEEREKLVKAERKFIEDRVKKIIELKRKVCGDSDKGFVVINQKGIDPFSLDALSKEGIVALRRAKRRNMERLTLACGGVALNSFDDLSPDCLGHAGLVYEYTLGEEKFTFIEKCNNPRSVTLLIKGPNKHTLTQIKDAVRDGLRAVKNAIDDGCVVPGAGAVEVAMAEALIKHKPSVKGRAQLGVQAFADALLIIPKVLAQNSGFDLQETLVKIQAEHSESGQLVGVDLNTGEPMVAAEVGVWDNYCVKKQLLHSCTVIATNILLVDEIMRAGMS

Entity 10 Entity 10 polymer

Description description	Phosducin-like protein
Molecular weight formula_weight	32244.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

SSSEDEDSDHEDKDRGRCAPASSSVPAEAELAGEGISVNTGPKGVINDWRRFKQLETEQREEQCREMERLIKKLSMTCRSHLDEEEEQQKQKDLQEKISGKMTLKEFAIMNEDQDDEEFLQQYRKQRMEEMRQQLHKGPQFKQVFEISSGEGFLDMIDKEQKSIVIMVHIYEDGIPGTEAMNGCMICLAAEYPAVKFCKVKSSVIGASSQFTRNALPALLIYKGGELIGNFVRVTDQLGDDFFAVDLEAFLQEFGLLPEKEVLVLTSVRNSATCHSEDSDLEID

Entity 11 Entity 11 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 12 Entity 12 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 13 Entity 13 non-polymer

Description description	ALUMINUM FLUORIDE
Molecular weight formula_weight	84.0 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 14 Entity 14 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	19

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	175869

CCT G beta 5 complex best PhLP1 class

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein subunit beta-5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit delta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit epsilon

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit gamma

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit eta, N-terminally processed

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit theta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-complex protein 1 subunit zeta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Phosducin-like protein

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
