SAXSdb — 7zre

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Potassium-transporting ATPase potassium-binding subunit

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Potassium-transporting ATPase KdpC subunit × 1 （P03961） Potassium-transporting ATPase KdpF subunit × 1 （P36937） Potassium-transporting ATPase ATP-binding subunit × 1 （P03960） POTASSIUM ION × 9 CARDIOLIPIN × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KDPA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–557； UniProt 1–557

Potassium-transporting ATPase KdpC subunit

Escherichia coli

UniProt P03961

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Potassium-transporting ATPase potassium-binding subunit × 1 （P03959） Potassium-transporting ATPase KdpF subunit × 1 （P36937） Potassium-transporting ATPase ATP-binding subunit × 1 （P03960） POTASSIUM ION × 9 CARDIOLIPIN × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KDPC_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–190； UniProt 1–190

Potassium-transporting ATPase KdpF subunit

Escherichia coli

UniProt P36937

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Potassium-transporting ATPase potassium-binding subunit × 1 （P03959） Potassium-transporting ATPase KdpC subunit × 1 （P03961） Potassium-transporting ATPase ATP-binding subunit × 1 （P03960） POTASSIUM ION × 9 CARDIOLIPIN × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KDPF_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–27； UniProt 1–27

Potassium-transporting ATPase ATP-binding subunit

Escherichia coli

UniProt P03960

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Potassium-transporting ATPase potassium-binding subunit × 1 （P03959） Potassium-transporting ATPase KdpC subunit × 1 （P03961） Potassium-transporting ATPase KdpF subunit × 1 （P36937） POTASSIUM ION × 9 CARDIOLIPIN × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KDPB_ECOLI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain B； PDBConstruct 1–682； UniProt 1–682

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7zre
Deposition date deposition_date	2022-05-04
Structure title title	Cryo-EM map of the WT KdpFABC complex in the E1-P tight conformation, under turnover conditions
Keywords keywords	P-type ATPase, superfamily of K+ transporters (SKT), potassium uptake system, off-cycle post-albers conformation, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7zre__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7zre__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

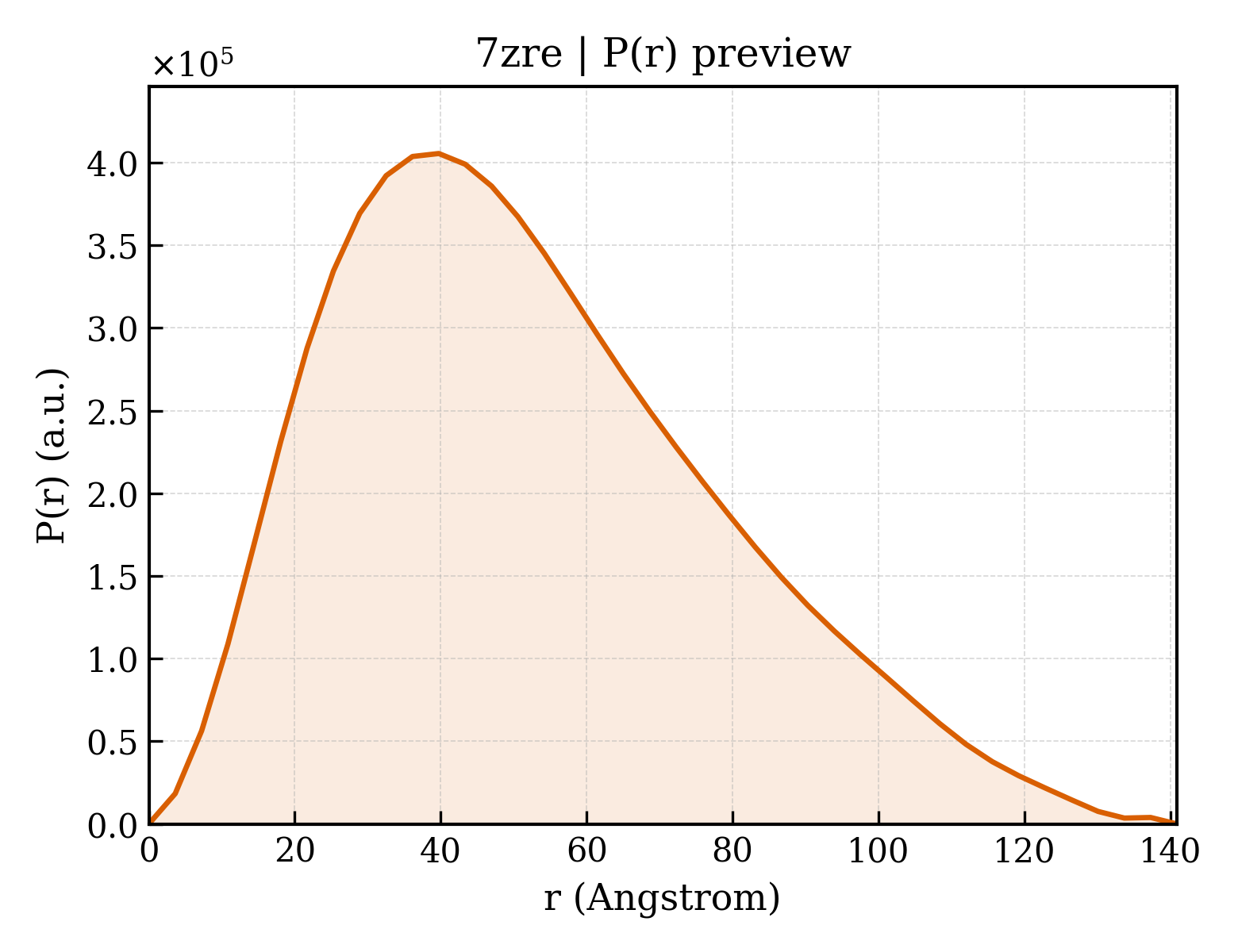

7zre__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.95 Å
Rg (electron density)	40.02 Å
Total Rg	39.90 Å
Atom count	10996
Residues	1445
Excluded volume	200790 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7zre__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Potassium-transporting ATPase potassium-binding subunit
Molecular weight formula_weight	59218.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10996

MAAQGFLLIATFLLVLMVLARPLGSGLARLINDIPLPGTTGVERVLFRALGVSDREMNWKQYLCAILGLNMLGLAVLFFMLLGQHYLPLNPQQLPGLSWDLALNTAVSFVTNTNWQSYSGETTLSYFSQMAGLTVQNFLSAASGIAVIFALIRAFTRQSMSTLGNAWVDLLRITLWVLVPVALLIALFFIQQGALQNFLPYQAVNTVEGAQQLLPMGPVASQEAIKMLGTNGGGFFNANSSHPFENPTALTNFVQMLAIFLIPTALCFAFGEVMGDRRQGRMLLWAMSVIFVICVGVVMWAEVQGNPHLLALGTDSSINMEGKESRFGVLVSSLFAVVTTAASCGAVIAMHDSFTALGGMVPMWLMQIGEVVFGGVGSGLYGMMLFVLLAVFIAGLMIGRTPEYLGKKIDVREMKLTALAILVTPTLVLMGAALAMMTDAGRSAMLNPGPHGFSEVLYAVSSAANNNGSAFAGLSANSPFWNCLLAFCMFVGRFGVIIPVMAIAGSLVSKKSQAASSGTLPTHGPLFVGLLIGTVLLVGALTFIPALALGPVAEYLS

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Potassium-transporting ATPase KdpC subunit
Molecular weight formula_weight	20281.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSGLRPALSTFIFLLLITGGVYPLLTTVLGQWWFPWQANGSLIREGDTVRGSALIGQNFTGNGYFHGRPSATAEMPYNPQASGGSNLAVSNPELDKLIAARVAALRAANPDASASVPVELVTASASGLDNNITPQAAAWQIPRVAKARNLSVEQLTQLIAKYSQQPLVKYIGQPVVNIVELNLALDKLDE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Potassium-transporting ATPase KdpF subunit
Molecular weight formula_weight	2853.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSAGVITGVLLVFLLLGYLVYALINAE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Potassium-transporting ATPase ATP-binding subunit
Molecular weight formula_weight	72427.8 kDa
EC 编号 ec_number	7.2.2.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSRKQLALFEPTLVVQALKEAVKKLNPQAQWRNPVMFIVWIGSLLTTCISIAMASGAMPGNALFSAAISGWLWITVLFANFAEALAEGRSKAQANSLKGVKKTAFARKLREPKYGAAADKVPADQLRKGDIVLVEAGDIIPCDGEVIEGGASVDESAITGESAPVIRESGGDFASVTGGTRILSDWLVIECSVNPGETFLDRMIAMVEGAQRRKTPNEIALTILLIALTIVFLLATATLWPFSAWGGNAVSVTVLVALLVCLIPTTIGGLLSAIGVAGMSRMLGANVIATSGRAVEAAGDVDVLLLDKTGTITLGNRQASEFIPAQGVDEKTLADAAQLASLADETPEGRSIVILAKQRFNLRERDVQSLHATFVPFTAQSRMSGINIDNRMIRKGSVDAIRRHVEANGGHFPTDVDQKVDQVARQGATPLVVVEGSRVLGVIALKDIVKGGIKERFAQLRKMGIKTVMITGDNRLTAAAIAAEAGVDDFLAEATPEAKLALIRQYQAEGRLVAMTGDGTNDAPALAQADVAVAMNSGTQAAKEAGNMVDLDSNPTKLIEVVHIGKQMLMTRGSLTTFSIANDVAKYFAIIPAAFAATYPQLNALNIMCLHSPDSAILSAVIFNALIIVFLIPLALKGVSYKPLTASAMLRRNLWIYGLGGLLVPFIGIKVIDLLLTVCGLV

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 6 Entity 6 non-polymer

Description description	CARDIOLIPIN
Molecular weight formula_weight	1464.0 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	114588
