SAXSdb — 8aow

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

mRNA-capping enzyme nsP1

Chikungunya virus strain S27-African prototype

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 12	ZINC ION × 12 S-ADENOSYL-L-HOMOCYSTEINE × 12 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE × 12 MAGNESIUM ION × 24 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLN_CHIKS
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–535； UniProt 1–535 Author chain C； PDBConstruct 1–535； UniProt 1–535 Author chain E； PDBConstruct 1–535； UniProt 1–535 Author chain G； PDBConstruct 1–535； UniProt 1–535 Author chain I； PDBConstruct 1–535； UniProt 1–535 Author chain K； PDBConstruct 1–535； UniProt 1–535 Author chain M； PDBConstruct 1–535； UniProt 1–535 Author chain O； PDBConstruct 1–535； UniProt 1–535 Author chain Q； PDBConstruct 1–535； UniProt 1–535 Author chain S； PDBConstruct 1–535； UniProt 1–535 Author chain V； PDBConstruct 1–535； UniProt 1–535 Author chain X； PDBConstruct 1–535； UniProt 1–535

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8aow
Deposition date deposition_date	2022-08-08
Structure title title	CryoEM structure of the Chikungunya virus nsP1 capping pores in complex with m7GTP and SAH ligands
Keywords keywords	Alphavirus Replication complex Capping pores Membrane pore Methyltransferase gunayltransferase VIRAL PROTEIN, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8aow__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

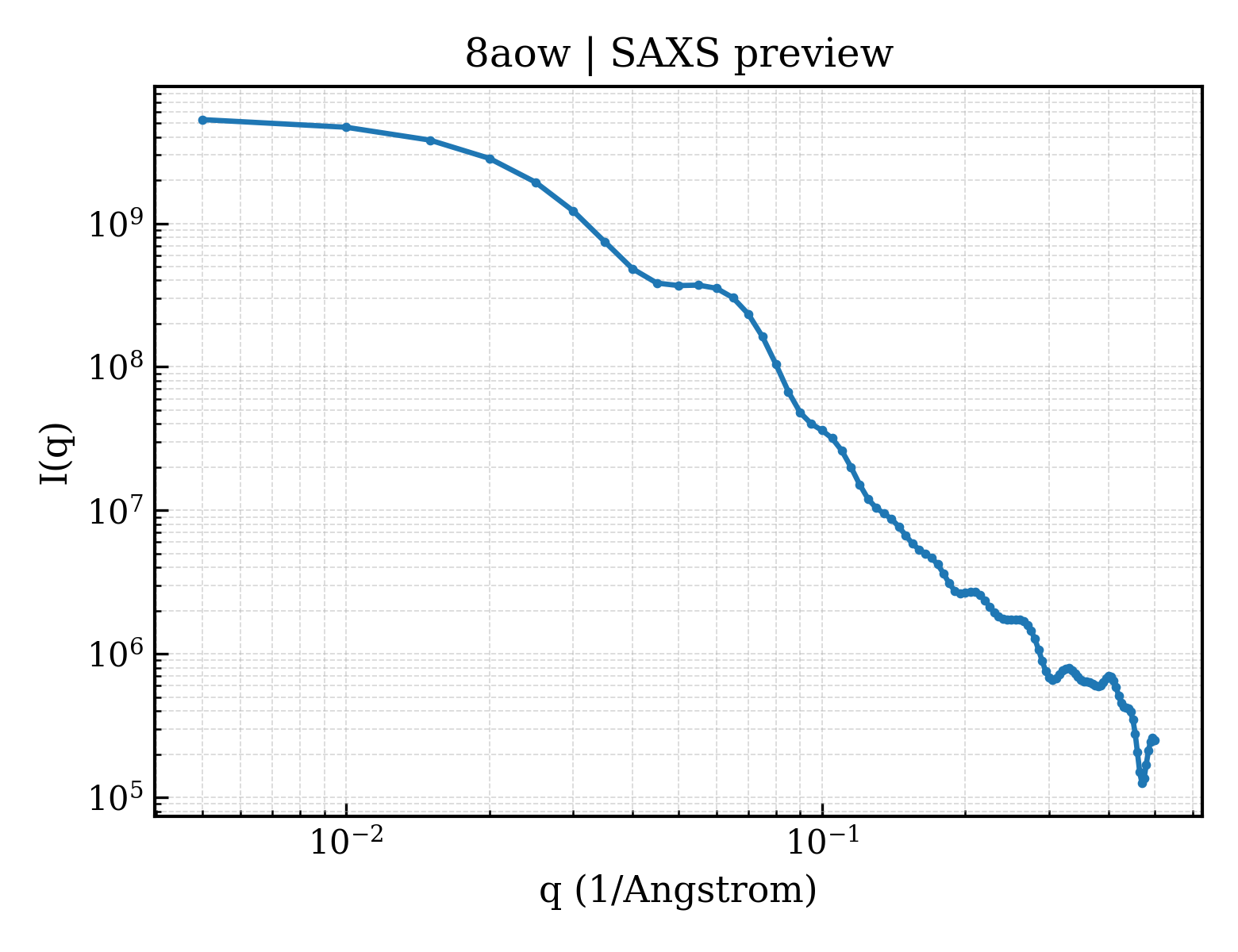

8aow__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

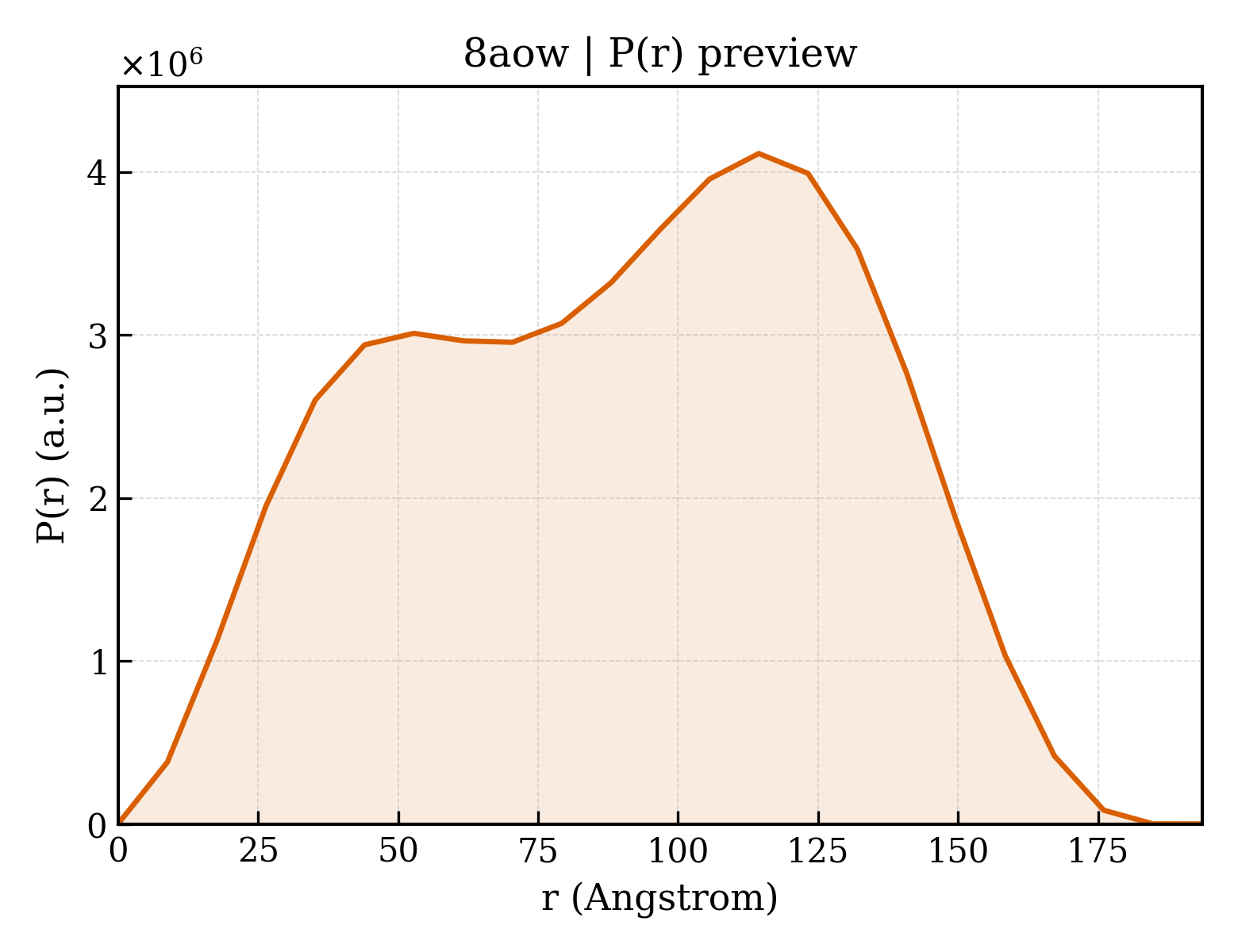

8aow__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	69.80 Å
Rg (electron density)	69.48 Å
Total Rg	69.77 Å
Atom count	43068
Residues	5412
Excluded volume	766260 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8aow__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	mRNA-capping enzyme nsP1
Molecular weight formula_weight	60946.5 kDa
EC 编号 ec_number	2.1.1.-,2.7.7.-
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I,K,M,O,Q,S,V,X
Atom count atom_count	43632

MDPVYVDIDADSAFLKALQRAYPMFEVEPRQVTPNDHANARAFSHLAIKLIEQEIDPDSTILDIGSAPARRMMSDRKYHCVCPMRSAEDPERLANYARKLASAAGKVLDRNISGKIGDLQAVMAVPDTETPTFCLHTDVSCRQRADVAIYQDVYAVHAPTSLYHQAIKGVRLAYWVGFDTTPFMYNAMAGAYPSYSTNWADEQVLKAKNIGLCSTDLTEGRRGKLSIMRGKKLEPCDRVLFSVGSTLYPESRKLLKSWHLPSVFHLKGKLSFTCRCDTVVSCEGYVVKRITMSPGLYGKTTGYAVTHHADGFLMCKTTDTVDGERVSFSVCTYVPATICDQMTGILATEVTPEDAQKLLVGLNQRIVVNGRTQRNTNTMKNYMIPVVAQAFSKWAKECRKDMEDEKLLGVRERTLTCCCLWAFKKQKTHTVYKRPDTQSIQKVQAEFDSFVVPSLWSSGLSIPLRTRIKWLLSKVPKTDLTPYSGDAQEARDAEKEAEEEREAELTLEALPPLQAAQEDVQVEIDVEQLEDRAGAAAHHHHHH

Source Source

Source organism organism	Chikungunya virus strain S27-African prototype
NCBI taxonomy ID ncbi_taxonomy_id	371094
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 non-polymer

Description description	S-ADENOSYL-L-HOMOCYSTEINE
Molecular weight formula_weight	384.4 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 non-polymer

Description description	7-METHYL-GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	538.2 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	24

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	324

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	253384
