SAXSdb — 8dei

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Maltodextrin-binding protein,Chromatin assembly factor 1 subunit p90 fusion

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 27–392	Fragment：KER domain, residues 136-225	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282
2	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 27–392	Fragment：KER domain, residues 136-225	PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282
3	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 27–392	Fragment：KER domain, residues 136-225	PEG DI(HYDROXYETHYL)ETHER × 2 PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282
4	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 27–392	Fragment：KER domain, residues 136-225	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8DEI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6USM Structure of nuclease domain of human parvovirus B19 non-structural protein 1 in complex with zinc Deposited 2019-10-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 27–392（366 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；1.2 M LiSo4 and sodium acetate tri-hydrate buffer of pH4.6	Resolution 3.37 Å
6WH0 Crystal structure of HyBcl-2-4 with HyBax BH3 Deposited 2020-04-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 27–392（366 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.2M Magnesium chloride hexahydrate, 0.1 Bis Tris pH 5.5, 25% PEG 3350	Resolution 1.99 Å R-free 0.268
7JHG Cryo-EM structure of ATP-bound fully inactive AMPK in complex with Dorsomorphin (Compound C) and Fab-nanobody Deposited 2020-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain M 26–392（367 aa）	Not recorded	TAK 6-[4-(2-piperidin-1-ylethoxy)phenyl]-3-pyridin-4-ylpyrazolo[1,5-a]pyrimidine × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å
7JHH Cryo-EM structure of ATP-bound fully inactive AMPK in complex with Fab and nanobody Deposited 2020-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain M 26–392（367 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.92 Å
8E0P Crystal structure of mouse APCDD1 in fusion with engineered MBP Deposited 2022-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–392（364 aa）	Mutation：D84A, K85A, E174A, N175A, A217H, K221H, K241A, A314V, I319V, E361A, K364A, D365A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PLM PALMITIC ACID × 1 GOL GLYCEROL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；0.2 M ammonium citrate, pH 7.0, 20% PEG3350, 4% NDSB-256, 5% glycerol	Resolution 2.33 Å R-free 0.239
8E0P Crystal structure of mouse APCDD1 in fusion with engineered MBP Deposited 2022-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 29–392（364 aa）	Mutation：D84A, K85A, E174A, N175A, A217H, K221H, K241A, A314V, I319V, E361A, K364A, D365A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GOL GLYCEROL × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；0.2 M ammonium citrate, pH 7.0, 20% PEG3350, 4% NDSB-256, 5% glycerol	Resolution 2.33 Å R-free 0.239
8E0P Crystal structure of mouse APCDD1 in fusion with engineered MBP Deposited 2022-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 29–392（364 aa）	Mutation：D84A, K85A, E174A, N175A, A217H, K221H, K241A, A314V, I319V, E361A, K364A, D365A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PLM PALMITIC ACID × 1 GOL GLYCEROL × 1 DMX 3-[BENZYL(DIMETHYL)AMMONIO]PROPANE-1-SULFONATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；0.2 M ammonium citrate, pH 7.0, 20% PEG3350, 4% NDSB-256, 5% glycerol	Resolution 2.33 Å R-free 0.239
8E0P Crystal structure of mouse APCDD1 in fusion with engineered MBP Deposited 2022-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 29–392（364 aa）	Mutation：D84A, K85A, E174A, N175A, A217H, K221H, K241A, A314V, I319V, E361A, K364A, D365A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GOL GLYCEROL × 1 CL CHLORIDE ION × 1 DMX 3-[BENZYL(DIMETHYL)AMMONIO]PROPANE-1-SULFONATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；0.2 M ammonium citrate, pH 7.0, 20% PEG3350, 4% NDSB-256, 5% glycerol	Resolution 2.33 Å R-free 0.239
8IIY Crystal structure of MBP fused GAS41 YEATS domain in complex with H3K14ac peptide Deposited 2023-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 27–392（366 aa）	Mutation：D108A, K109A, E198A, N199A, K265A	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris buffer (pH 8.5) containing 20% (w/v) PEG monomethyl ether 2000, 200 mM trimethylamine N-oxide	Resolution 2.15 Å R-free 0.247
8IIZ Crystal structure of MBP fused GAS41 YEATS domain in complex with H3K27ac peptide Deposited 2023-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 27–392（366 aa）	Mutation：D108A, K109A, E198A, N199A, K265A	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris buffer (pH 8.5) containing 20% (w/v) PEG monomethyl ether 2000, 200 mM trimethylamine N-oxide	Resolution 2.10 Å R-free 0.301
8SQB The cryo-EM structure of the EcBAM/EspP(beta7-12) complex Deposited 2023-05-04	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 26–392（367 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9B83 Cryo-EM structure of human ADAR1 in complex with dsRNA derived from human GLI1 gene Deposited 2024-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: trimeric	Chain A 27–392（366 aa） Chain B 27–392（366 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 2 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å
9B84 Cryo-EM structure of human ADAR1 in complex with dsRNA derived from HT2C gene Deposited 2024-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: trimeric	Chain A 27–392（366 aa） Chain B 27–392（366 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 2 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9B89 Cryo-EM structure of human ADAR1 in complex with dsRNA derived from HT2C gene in the pre-editing state Deposited 2024-03-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: trimeric	Chain A 27–392（366 aa） Chain B 27–392（366 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 2 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.87 Å
9BDT Apolipoprotein B 100 bound to LDL receptor and legobody Deposited 2024-04-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain B 27–384（358 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.40 Å
9COO Nanobody 4 bound to Apolipoprotein B 100 Deposited 2024-07-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 27–384（358 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
9IVP 24-mer DARPin-apoferritin scaffold in complex with the maltose binding protein Deposited 2024-07-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric	Chain AA 27–392（366 aa） Chain B 27–392（366 aa） Chain CA 27–392（366 aa） Chain D 27–392（366 aa） Chain EA 27–392（366 aa） Chain F 27–392（366 aa） Chain GA 27–392（366 aa） Chain H 27–392（366 aa） Chain IA 27–392（366 aa） Chain J 27–392（366 aa） Chain KA 27–392（366 aa） Chain L 27–392（366 aa） Chain MA 27–392（366 aa） Chain N 27–392（366 aa） Chain OA 27–392（366 aa） Chain P 27–392（366 aa） Chain QA 27–392（366 aa） Chain R 27–392（366 aa） Chain SA 27–392（366 aa） Chain T 27–392（366 aa） Chain UA 27–392（366 aa） Chain W 27–392（366 aa） Chain WA 27–392（366 aa） Chain Y 27–392（366 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9ZVM Dimer structure of Thlaspi arvense plastid biotin carboxylase Deposited 2025-12-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 27–392（366 aa） Chain D 27–392（366 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；50mM HEPES pH 8.0, 4mM MgCl2, 5% glycerol, 0.5mM TCEP cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.85 Å

15 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	C3SHQ8_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–376； UniProt 27–392 Author chain B； PDBConstruct 11–376； UniProt 27–392 Author chain C； PDBConstruct 11–376； UniProt 27–392 Author chain D； PDBConstruct 11–376； UniProt 27–392

Maltodextrin-binding protein,Chromatin assembly factor 1 subunit p90 fusion

Saccharomyces cerevisiae

UniProt Q12495

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 136–225	Fragment：KER domain, residues 136-225	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282
2	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 136–225	Fragment：KER domain, residues 136-225	PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282
3	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 136–225	Fragment：KER domain, residues 136-225	PEG DI(HYDROXYETHYL)ETHER × 2 PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282
4	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 136–225	Fragment：KER domain, residues 136-225	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8DEI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5EJO Crystal structure of the winged helix domain in Chromatin assembly factor 1 subunit p90 Deposited 2015-11-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 519–606（88 aa） Fragment：UNP residues 519-606	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；0.1 M NaCl, 1.5 M (NH4)2SO4, 0.1 M BIS-Tris	Resolution 2.75 Å R-free 0.230
5JBM Crystal structgure of Cac1 C-terminus Deposited 2016-04-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 457–606（150 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.3；291 K；0.2 M sodium formate, 14% PEG 3350, 0.1 M Tris, pH 8.3	Resolution 3.00 Å R-free 0.275
8THW Cac1 PIP motif bound to PCNA Deposited 2023-07-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 222–240（19 aa） Chain B 222–240（19 aa） Chain C 222–240（19 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M magnesium acetate tetrahydrate (Mg Ac4H) and 11% w/v PEG3350	Resolution 2.60 Å R-free 0.267

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RLF2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 401–490； UniProt 136–225 Author chain B； PDBConstruct 401–490； UniProt 136–225 Author chain C； PDBConstruct 401–490； UniProt 136–225 Author chain D； PDBConstruct 401–490； UniProt 136–225

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8dei
Deposition date deposition_date	2022-06-20
Structure title title	Structure of the Cac1 KER domain
Keywords keywords	chromatin, DNA binding, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

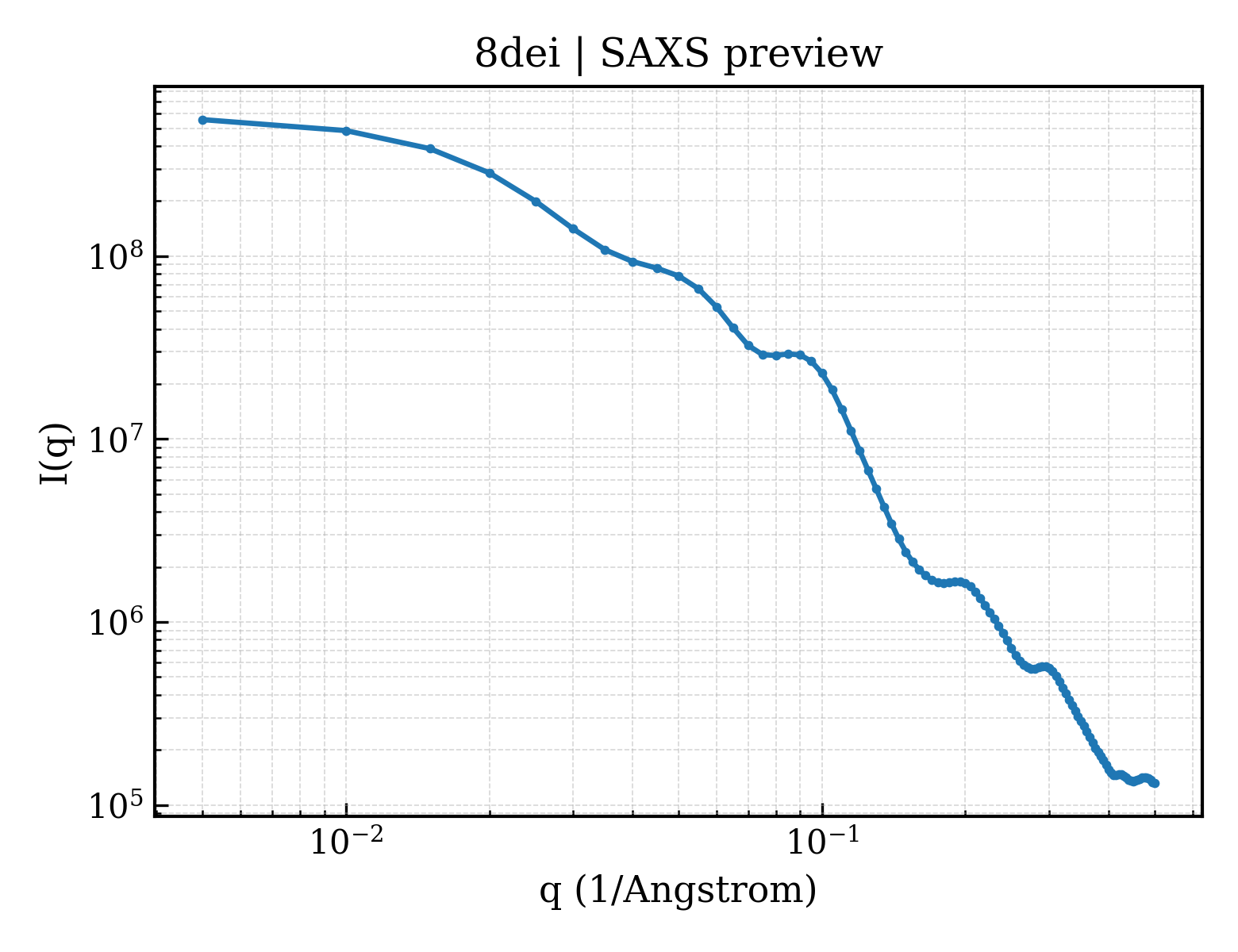

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	74.37 Å
Radius of gyration Rg (electron density) rg_electron	75.22 Å
Forward intensity I(0) i0	584084000.00
Molecular weight molecular_weight	208140.0 kDa
Excluded volume excluded_volume	262420 Å³
Envelope volume envelope_volume	487540 Å³
Hydration-shell volume shell_volume	58096 Å³
Envelope diameter envelope_diameter	216.5 Å
Shell Rg shell_rg	64.09 Å
Envelope Rg envelope_rg	69.31 Å
Shape Rg shape_rg	75.25 Å
Total Rg total_rg	74.88 Å
Total atoms total_atoms	14746
Residues n_residues	1870
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

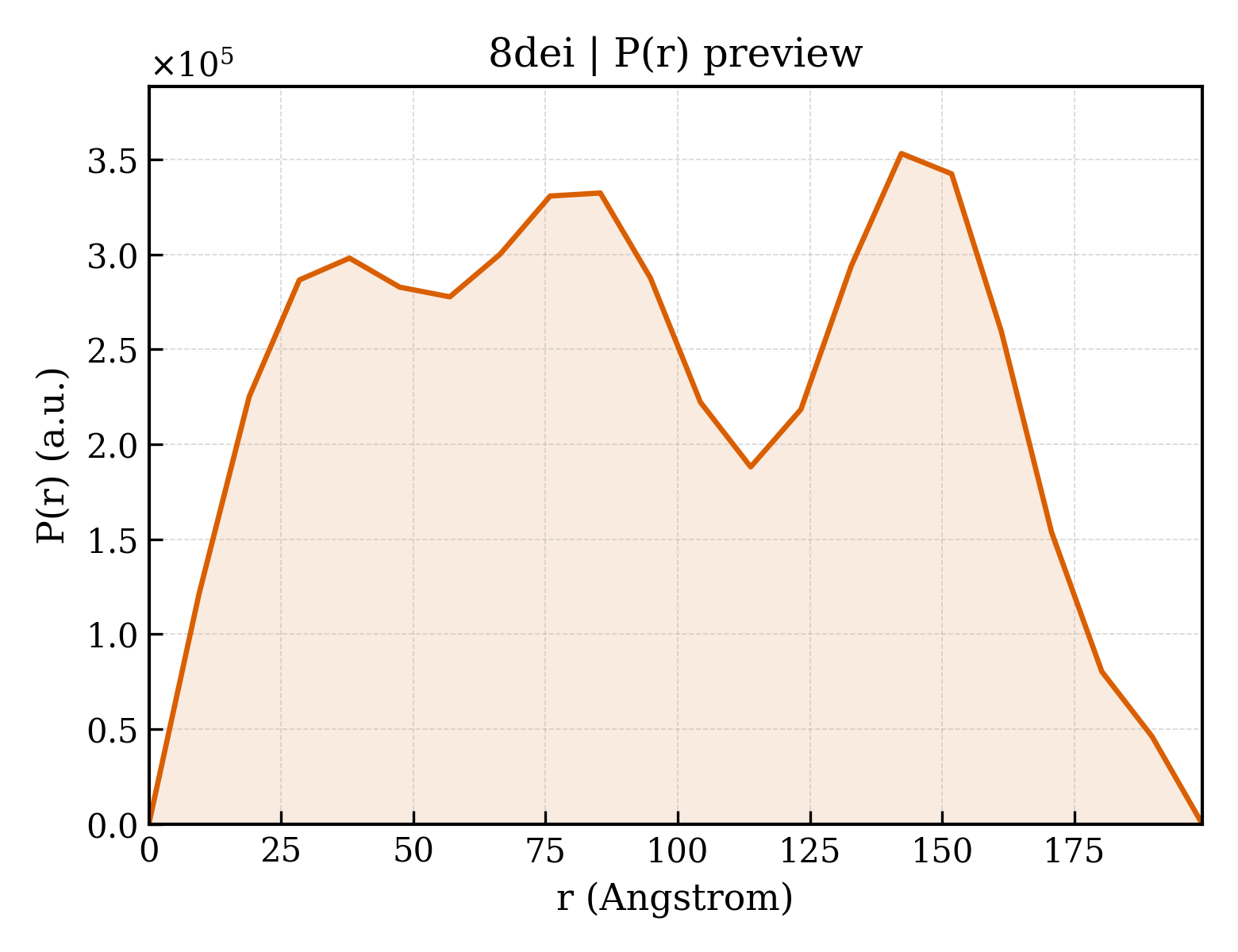

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	199.2 Å
Rg (real space) rg_real	74.52 Å
Rg uncertainty (real space) rg_real_error	1.27 Å
I(0) (real space) i0_real	5.8410e+08
I(0) uncertainty (real space) i0_real_error	1.1600e+07
Rg (reciprocal space) rg_reciprocal	73.34 Å
I(0) (reciprocal space) i0_reciprocal	582500000.0000
Solution quality estimate total_estimate	0.6744
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	142.3 Å
Skewness Skewness skewness	0.054
Kurtosis Kurtosis kurtosis	-1.161
Angular range angular_range	— – 0.1050 Å⁻¹
Current regularization parameter α current_alpha	0.0004
Highest regularization parameter α highest_alpha	11580000.0000
Real-space data points n_real_points	22
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.522; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.201; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Maltodextrin-binding protein,Chromatin assembly factor 1 subunit p90 fusion
Molecular weight formula_weight	55608.2 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	14757

MRSHHHHHHGKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTNSGSDITSLYKKAGFLEVLFQGPLKKEEAKREKELKKQQRAEEKHRKELLRQEEKKKKELKVEEERQRRAELKKQKEEEKRRKEEARLEAKRRKEEERLKKEEEIRLKEEAKER

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	11

▶

8. Citations (1)

▶

Unit-cell length a length_a	53.586 Å
Unit-cell length b length_b	165.249 Å
Unit-cell length c length_c	116.149 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	96.47 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	2.810 Å
Low-resolution limit resolution_low	28.680 Å
R factor r_factor	0.2380
R_work r_work	0.2330
R_free r_free	0.2825

fit	/app/data/saxs_computation/de/8dei/8dei.fit
pddf	/app/data/pr_computation/de/8dei/8dei.pr.out
profile	/app/data/saxs_computation/de/8dei/8dei.dat
