SAXSdb — 9zvm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Maltodextrin-binding protein,Biotin carboxylase

Thlaspi arvense

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 71–535 Chain D； UniProt 71–535	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 8；50mM HEPES pH 8.0, 4mM MgCl2, 5% glycerol, 0.5mM TCEP cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.85 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	A0AAU9SW86_THLAR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 396–860； UniProt 71–535 Author chain D； PDBConstruct 396–860； UniProt 71–535

Maltodextrin-binding protein,Biotin carboxylase

Thlaspi arvense

UniProt C3SHQ8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 27–392 Chain D； UniProt 27–392	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 8；50mM HEPES pH 8.0, 4mM MgCl2, 5% glycerol, 0.5mM TCEP cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.85 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9ZVM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6USM Structure of nuclease domain of human parvovirus B19 non-structural protein 1 in complex with zinc Deposited 2019-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 27–392（366 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；1.2 M LiSo4 and sodium acetate tri-hydrate buffer of pH4.6	Resolution 3.37 Å
6WH0 Crystal structure of HyBcl-2-4 with HyBax BH3 Deposited 2020-04-07	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 27–392（366 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.2M Magnesium chloride hexahydrate, 0.1 Bis Tris pH 5.5, 25% PEG 3350	Resolution 1.99 Å R-free 0.268
7JHG Cryo-EM structure of ATP-bound fully inactive AMPK in complex with Dorsomorphin (Compound C) and Fab-nanobody Deposited 2020-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain M 26–392（367 aa）	Not recorded	TAK 6-[4-(2-piperidin-1-ylethoxy)phenyl]-3-pyridin-4-ylpyrazolo[1,5-a]pyrimidine × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å
7JHH Cryo-EM structure of ATP-bound fully inactive AMPK in complex with Fab and nanobody Deposited 2020-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain M 26–392（367 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 AMP ADENOSINE MONOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.92 Å
8DEI Structure of the Cac1 KER domain Deposited 2022-06-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–392（366 aa） Fragment：KER domain, residues 136-225	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282
8DEI Structure of the Cac1 KER domain Deposited 2022-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 27–392（366 aa） Fragment：KER domain, residues 136-225	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282
8DEI Structure of the Cac1 KER domain Deposited 2022-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 27–392（366 aa） Fragment：KER domain, residues 136-225	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 2 PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282
8DEI Structure of the Cac1 KER domain Deposited 2022-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 27–392（366 aa） Fragment：KER domain, residues 136-225	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；0.1 M Phosphate/citrate pH 4.2 and 30 % PEG 300	Resolution 2.81 Å R-free 0.282
8E0P Crystal structure of mouse APCDD1 in fusion with engineered MBP Deposited 2022-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–392（364 aa）	Mutation：D84A, K85A, E174A, N175A, A217H, K221H, K241A, A314V, I319V, E361A, K364A, D365A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PLM PALMITIC ACID × 1 GOL GLYCEROL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；0.2 M ammonium citrate, pH 7.0, 20% PEG3350, 4% NDSB-256, 5% glycerol	Resolution 2.33 Å R-free 0.239
8E0P Crystal structure of mouse APCDD1 in fusion with engineered MBP Deposited 2022-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 29–392（364 aa）	Mutation：D84A, K85A, E174A, N175A, A217H, K221H, K241A, A314V, I319V, E361A, K364A, D365A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GOL GLYCEROL × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；0.2 M ammonium citrate, pH 7.0, 20% PEG3350, 4% NDSB-256, 5% glycerol	Resolution 2.33 Å R-free 0.239
8E0P Crystal structure of mouse APCDD1 in fusion with engineered MBP Deposited 2022-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 29–392（364 aa）	Mutation：D84A, K85A, E174A, N175A, A217H, K221H, K241A, A314V, I319V, E361A, K364A, D365A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PLM PALMITIC ACID × 1 GOL GLYCEROL × 1 DMX 3-[BENZYL(DIMETHYL)AMMONIO]PROPANE-1-SULFONATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；0.2 M ammonium citrate, pH 7.0, 20% PEG3350, 4% NDSB-256, 5% glycerol	Resolution 2.33 Å R-free 0.239
8E0P Crystal structure of mouse APCDD1 in fusion with engineered MBP Deposited 2022-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 29–392（364 aa）	Mutation：D84A, K85A, E174A, N175A, A217H, K221H, K241A, A314V, I319V, E361A, K364A, D365A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GOL GLYCEROL × 1 CL CHLORIDE ION × 1 DMX 3-[BENZYL(DIMETHYL)AMMONIO]PROPANE-1-SULFONATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；0.2 M ammonium citrate, pH 7.0, 20% PEG3350, 4% NDSB-256, 5% glycerol	Resolution 2.33 Å R-free 0.239
8IIY Crystal structure of MBP fused GAS41 YEATS domain in complex with H3K14ac peptide Deposited 2023-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 27–392（366 aa）	Mutation：D108A, K109A, E198A, N199A, K265A	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris buffer (pH 8.5) containing 20% (w/v) PEG monomethyl ether 2000, 200 mM trimethylamine N-oxide	Resolution 2.15 Å R-free 0.247
8IIZ Crystal structure of MBP fused GAS41 YEATS domain in complex with H3K27ac peptide Deposited 2023-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 27–392（366 aa）	Mutation：D108A, K109A, E198A, N199A, K265A	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris buffer (pH 8.5) containing 20% (w/v) PEG monomethyl ether 2000, 200 mM trimethylamine N-oxide	Resolution 2.10 Å R-free 0.301
8SQB The cryo-EM structure of the EcBAM/EspP(beta7-12) complex Deposited 2023-05-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 26–392（367 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9B83 Cryo-EM structure of human ADAR1 in complex with dsRNA derived from human GLI1 gene Deposited 2024-03-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: trimeric	Chain A 27–392（366 aa） Chain B 27–392（366 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 2 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å
9B84 Cryo-EM structure of human ADAR1 in complex with dsRNA derived from HT2C gene Deposited 2024-03-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: trimeric	Chain A 27–392（366 aa） Chain B 27–392（366 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 2 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9B89 Cryo-EM structure of human ADAR1 in complex with dsRNA derived from HT2C gene in the pre-editing state Deposited 2024-03-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: trimeric	Chain A 27–392（366 aa） Chain B 27–392（366 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 2 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.87 Å
9BDT Apolipoprotein B 100 bound to LDL receptor and legobody Deposited 2024-04-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain B 27–384（358 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.40 Å
9COO Nanobody 4 bound to Apolipoprotein B 100 Deposited 2024-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 27–384（358 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
9IVP 24-mer DARPin-apoferritin scaffold in complex with the maltose binding protein Deposited 2024-07-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric	Chain AA 27–392（366 aa） Chain B 27–392（366 aa） Chain CA 27–392（366 aa） Chain D 27–392（366 aa） Chain EA 27–392（366 aa） Chain F 27–392（366 aa） Chain GA 27–392（366 aa） Chain H 27–392（366 aa） Chain IA 27–392（366 aa） Chain J 27–392（366 aa） Chain KA 27–392（366 aa） Chain L 27–392（366 aa） Chain MA 27–392（366 aa） Chain N 27–392（366 aa） Chain OA 27–392（366 aa） Chain P 27–392（366 aa） Chain QA 27–392（366 aa） Chain R 27–392（366 aa） Chain SA 27–392（366 aa） Chain T 27–392（366 aa） Chain UA 27–392（366 aa） Chain W 27–392（366 aa） Chain WA 27–392（366 aa） Chain Y 27–392（366 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å

15 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	C3SHQ8_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 2–367； UniProt 27–392 Author chain D； PDBConstruct 2–367； UniProt 27–392

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9zvm
Deposition date deposition_date	2025-12-30
Structure title title	Dimer structure of Thlaspi arvense plastid biotin carboxylase
Keywords keywords	ligase, homodimer, carboxylase; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.42 Å
Radius of gyration Rg (electron density) rg_electron	32.97 Å
Forward intensity I(0) i0	156894000.00
Molecular weight molecular_weight	99086.0 kDa
Excluded volume excluded_volume	124020 Å³
Envelope volume envelope_volume	168790 Å³
Hydration-shell volume shell_volume	43809 Å³
Envelope diameter envelope_diameter	130.1 Å
Shell Rg shell_rg	38.31 Å
Envelope Rg envelope_rg	33.54 Å
Shape Rg shape_rg	32.97 Å
Total Rg total_rg	33.41 Å
Total atoms total_atoms	13924
Residues n_residues	898
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

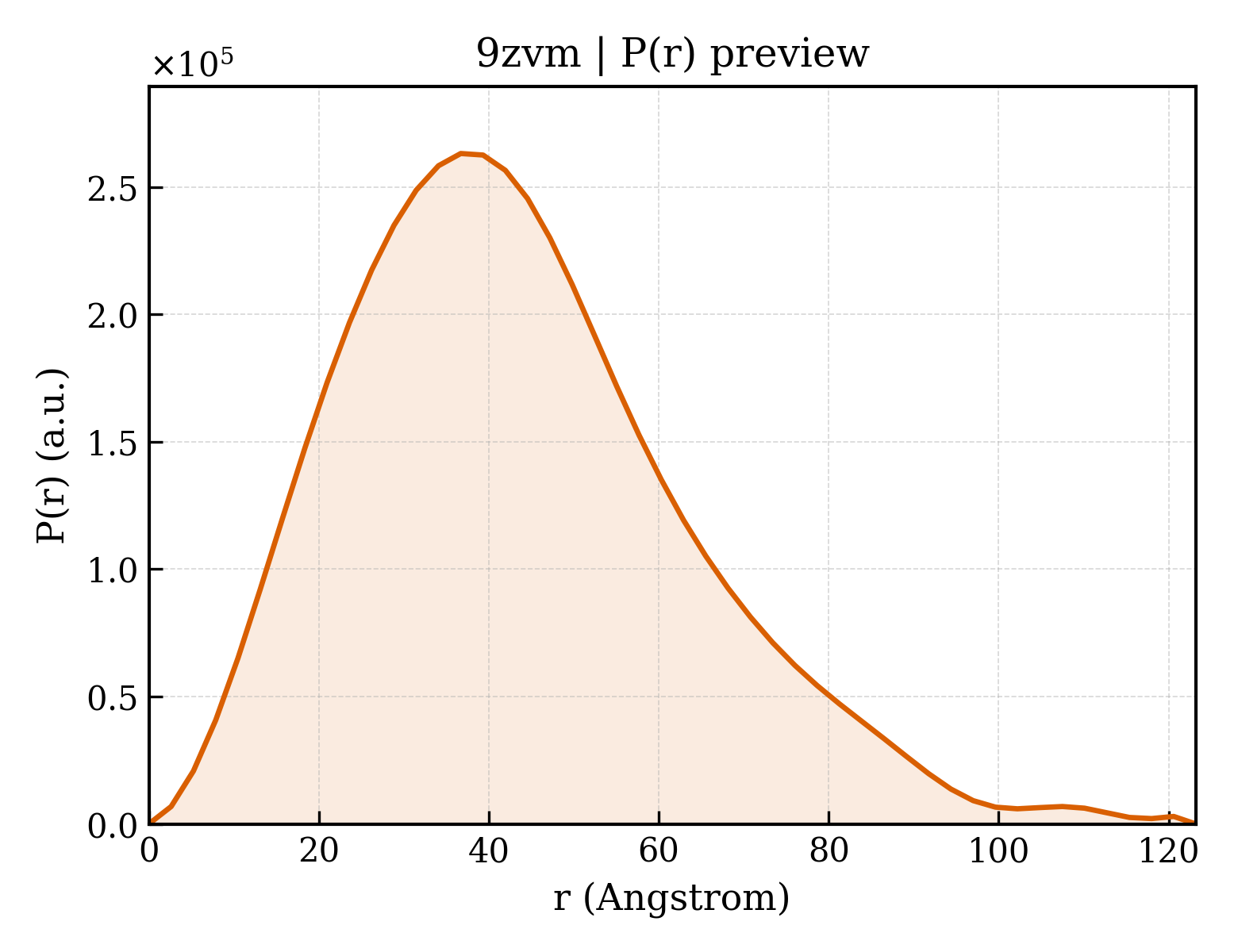

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	123.2 Å
Rg (real space) rg_real	33.59 Å
Rg uncertainty (real space) rg_real_error	1.03 Å
I(0) (real space) i0_real	1.5690e+08
I(0) uncertainty (real space) i0_real_error	2.6620e+06
Rg (reciprocal space) rg_reciprocal	33.49 Å
I(0) (reciprocal space) i0_reciprocal	156900000.0000
Solution quality estimate total_estimate	0.8116
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	36.7 Å
Skewness Skewness skewness	0.627
Kurtosis Kurtosis kurtosis	0.316
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	36980000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.591; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.839; Smooth: 0.934

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Description description	Maltodextrin-binding protein,Biotin carboxylase
Molecular weight formula_weight	94663.5 kDa
EC 编号 ec_number	6.3.4.14
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D
Atom count atom_count	13924

MKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTNSSSNNNNNNNNNNLGIEGRGENLYFQGSGDKILVANRGEIAVRVIRTAHEMGIPCVAVYSTIDKDALHVKLADEAVCIGEAPSNQSYLLIPNVLSAAISRGCTMLHPGYGFLAENALFVEMCRDHRINFIGPNPDSIRVMGDKSTARETMKNAGVPTVPGSDGLLQSTEEGVRLANEIGFPVMIKATAGGGGRGMRLANEPSEFVKLLQQAKSEAAAAFGNDGVYLEKYVQNPRHIEFQILADKFGNVVHFGERDCSIQRRNQKLLEEAPSPALTPELRKAMGDAAVAAAASIGYIGVGTVEFLLDERGSFYFMEMNTRIQVEHPVTEMIYSVDLIEEQIRVAMGEKLRYKQEEIVLRGHSIECRINAEDPFKGFRPGPGRITSYLPSGGPFVRMDSHVYPDYVVPPSYDSLLGKLIVWAPTRERAIERMKRALNDTIITGVPTTIEYHKLILEVEDFKNGKVDTAFIPKHEEELAEPQEIVSVKDLTNVAA

来源 Source

来源生物 organism	Thlaspi arvense
NCBI Class编号 ncbi_taxonomy_id	13288
宿主生物 host_organism	Escherichia coli BL21(DE3)

▶

8. Citations (2)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.85 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	142000

fit	/app/data/saxs_computation/zv/9zvm/9zvm.fit
pddf	/app/data/pr_computation/zv/9zvm/9zvm.pr.out
profile	/app/data/saxs_computation/zv/9zvm/9zvm.dat
