SAXSdb — 8dof

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

UDP-N-acetylmuramate--L-alanine ligase

Pseudomonas aeruginosa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	1,2-ETHANEDIOL × 6 (2R)-2-cyclohexyl-2-[(4-{[5-(propan-2-yl)-1H-pyrazol-3-yl]amino}-1H-pyrazolo[3,4-d]pyrimidin-6-yl)amino]ethan-1-ol × 2 SULFATE ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MURC_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–480； UniProt 1–480

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8dof
Deposition date deposition_date	2022-07-13
Structure title title	Pseudomonas aeruginosa MurC with WYH9-2-P - OSA_001044
Keywords keywords	MurC, WYH9-2-P - OSA_001044, Structural Genomics, Seattle Structural Genomics Center for Infectious Disease, SSGCID, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8dof__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

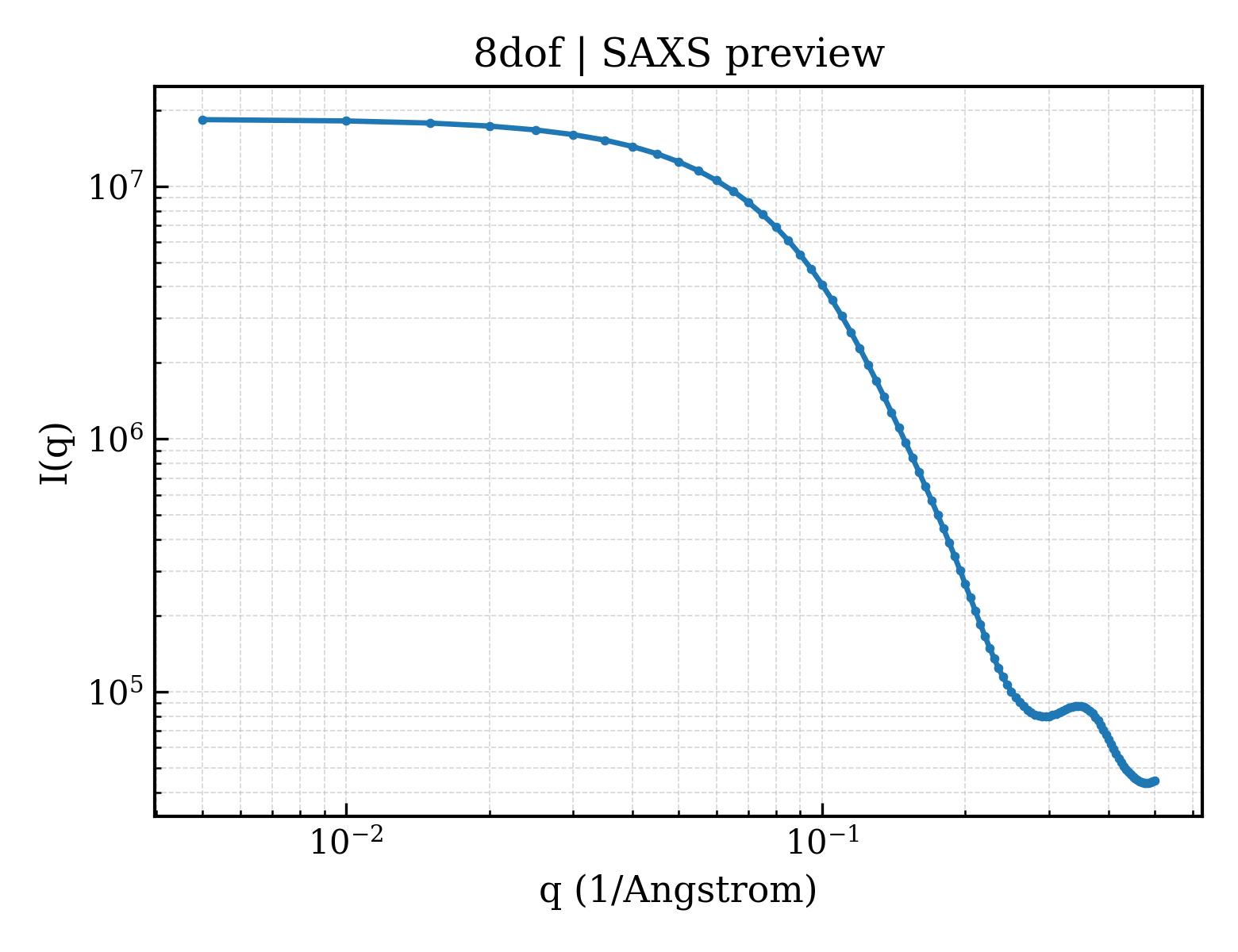

8dof__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8dof__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.00 Å
Rg (electron density)	29.43 Å
Total Rg	29.87 Å
Atom count	4516
Residues	602
Excluded volume	80080 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8dof__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	UDP-N-acetylmuramate--L-alanine ligase
Molecular weight formula_weight	52040.4 kDa
EC 编号 ec_number	6.3.2.8
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2293

MVKEPNGVTRTMRRIRRIHFVGIGGAGMCGIAEVLLNLGYEVSGSDLKASAVTERLEKFGAQIFIGHQAENADGADVLVVSSAINRANPEVASALERRIPVVPRAEMLAELMRYRHGIAVAGTHGKTTTTSLIASVFAAGGLDPTFVIGGRLNAAGTNAQLGASRYLVAEADESDASFLHLQPMVAVVTNIDADHMATYGGDFNKLKKTFVEFLHNLPFYGLAVMCVDDPVVREILPQIARPTVTYGLSEDADVRAINIRQEGMRTWFTVLRPEREPLDVSVNMPGLHNVLNSLATIVIATDEGISDEAIVQGLSGFQGVGRRFQVYGELQVEGGSVMLVDDYGHHPREVAAVIKAIRGGWPERRLVMVYQPHRYTRTRDLYEDFVQVLGEANVLLLMEVYPAGEEPIPGADSRQLCHSIRQRGQLDPIYFERDADLAPLVKPLLRAGDILLCQGAGDVGGLAPQLIKNPLFAGKGGKGA

Source Source

Source organism organism	Pseudomonas aeruginosa
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	(2R)-2-cyclohexyl-2-[(4-{[5-(propan-2-yl)-1H-pyrazol-3-yl]amino}-1H-pyrazolo[3,4-d]pyrimidin-6-yl)amino]ethan-1-ol
Molecular weight formula_weight	384.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	35

▶

Unit-cell length a length_a	76.210 Å
Unit-cell length b length_b	76.210 Å
Unit-cell length c length_c	132.680 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 42 2 2
Space-group number int_tables_number	93
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	38.250 Å
R factor r_factor	0.1926
R_work r_work	0.1876
R_free r_free	0.2416
