SAXSdb — 8eaz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RanBP-type and C3HC4-type zinc finger-containing protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Ubiquitin-conjugating enzyme E2 L3 × 1 （P68036） Ubiquitin × 2 （P0CG48） ZINC ION × 7 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Ubiquitin-conjugating enzyme E2 L3 × 1 （P68036） Ubiquitin × 2 （P0CG48） ZINC ION × 7 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HOIL1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–280； UniProt 232–510 Author chain B； PDBConstruct 2–280； UniProt 232–510

Ubiquitin-conjugating enzyme E2 L3

Homo sapiens

UniProt P68036

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	RanBP-type and C3HC4-type zinc finger-containing protein 1 × 1 （Q9BYM8） Ubiquitin × 2 （P0CG48） ZINC ION × 7 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	RanBP-type and C3HC4-type zinc finger-containing protein 1 × 1 （Q9BYM8） Ubiquitin × 2 （P0CG48） ZINC ION × 7 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UB2L3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 4–157； UniProt 1–154 Author chain D； PDBConstruct 4–157； UniProt 1–154

Ubiquitin

Homo sapiens

UniProt P0CG48

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	RanBP-type and C3HC4-type zinc finger-containing protein 1 × 1 （Q9BYM8） Ubiquitin-conjugating enzyme E2 L3 × 1 （P68036） ZINC ION × 7 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	RanBP-type and C3HC4-type zinc finger-containing protein 1 × 1 （Q9BYM8） Ubiquitin-conjugating enzyme E2 L3 × 1 （P68036） ZINC ION × 7 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBC_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–76； UniProt 1–76 Author chain F； PDBConstruct 1–76； UniProt 1–76 Author chain G； PDBConstruct 1–76； UniProt 1–76 Author chain H； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8eaz
Deposition date deposition_date	2022-08-30
Structure title title	HOIL-1/E2-Ub/Ub transthiolation complex
Keywords keywords	LUBAC, ubiquitin, transthiolation, 2Zn-6Cys ZF, RBR, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8eaz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8eaz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

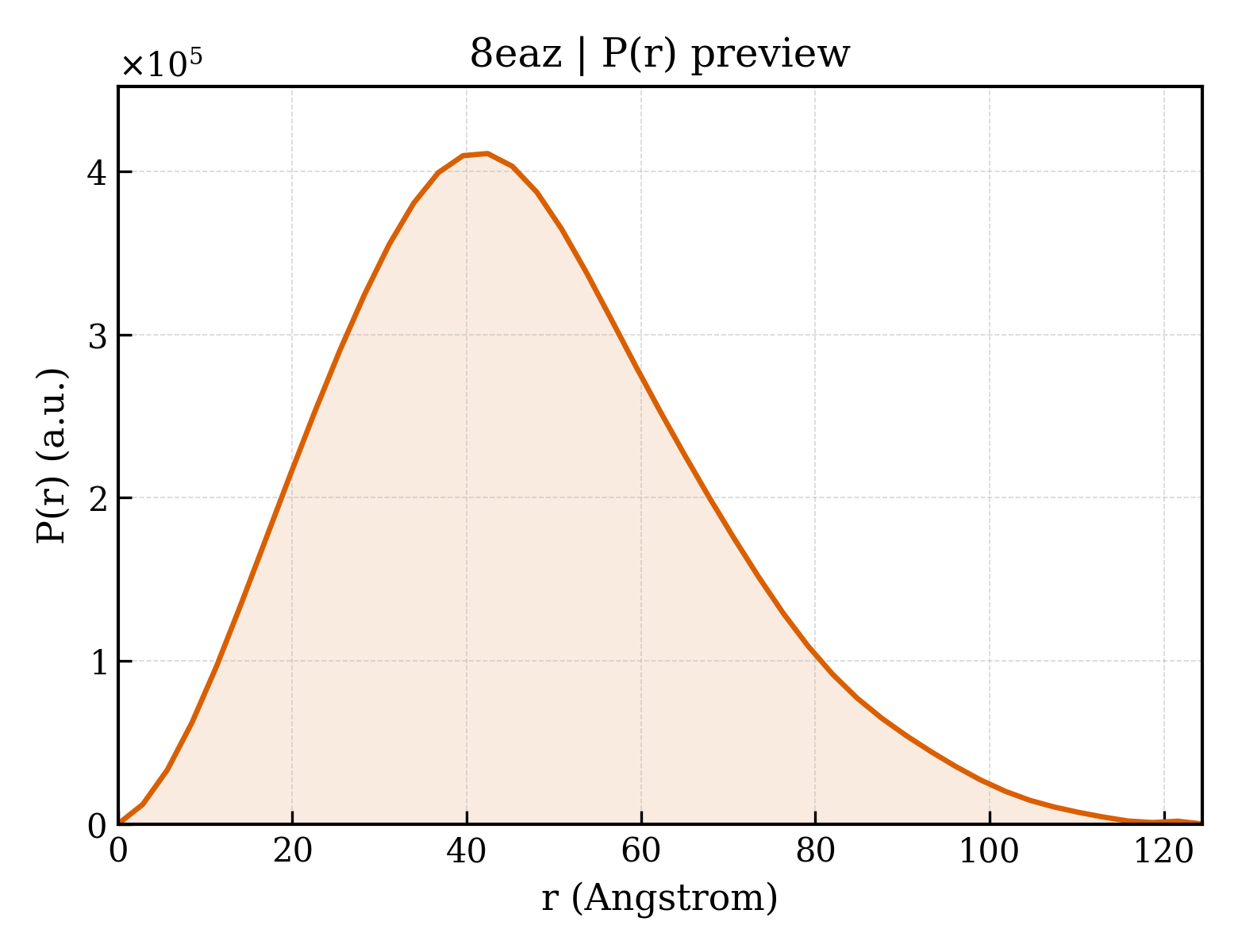

8eaz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.64 Å
Rg (electron density)	26.71 Å
Total Rg	27.44 Å
Atom count	4439
Residues	557
Excluded volume	79064 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8eaz__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8eaz__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	RanBP-type and C3HC4-type zinc finger-containing protein 1
Molecular weight formula_weight	31770.0 kDa
Mutation mutation	C460A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8813

GPDEEERARLAGEEEALRQYQQRKQQQQEGNYLQHVQLDQRSLVLNTEPAECPVCYSVLAPGEAVVLRECLHTFCRECLQGTIRNSQEAEVSCPFIDNTYSCSGKLLEREIKALLTPEDYQRFLDLGISIAENRSAFSYHCKTPDCKGWCFFEDDVNEFTCPVCFHVNCLLCKAIHEQMNCKEYQEDLALRAQNDVAARQTTEMLKVMLQQGEAMRCPQCQIVVQKKDGADWIRCTVCHTEICWVTKGPRWGPGGPGDTSGGCRCRVNGIPCHPSCQNCH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Ubiquitin-conjugating enzyme E2 L3
Molecular weight formula_weight	18126.8 kDa
Mutation mutation	C86K
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

GPGMAASRRLMKELEEIRKCGMKNFRNIQVDEANLLTWQGLIVPDNPPYDKGAFRIEINFPAEYPFKPPKITFKTKIYHPNIDEKGQVKLPVISAENWKPATKTDQVIQSLIALVNDPQPEHPLRADLAEEYSKDRKKFCKNAEEFTKKYGEKRPVD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Ubiquitin
Molecular weight formula_weight	8576.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	8

▼

6. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id	8eazD01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

Domain ID domain_id	8eazE01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	8eazF01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	8eazG01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	8eazH01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

Unit-cell length a length_a	83.953 Å
Unit-cell length b length_b	95.478 Å
Unit-cell length c length_c	115.006 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.58 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	3.080 Å
Low-resolution limit resolution_low	47.740 Å
R factor r_factor	0.2333
R_work r_work	0.2316
R_free r_free	0.2664
