8eb1

Chim2 - Intragenic antimicrobial peptide

Method: SOLUTION NMR
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Unconventional myosin-Ih, Transcription activator BRG1 intragenic antimicrobial chimeric peptide

OrganismNot specified

UniProt P51532

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Insufficient information Monomer Protein 1 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name SMCA4_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 20–24; UniProt 874–878

Unconventional myosin-Ih, Transcription activator BRG1 intragenic antimicrobial chimeric peptide

OrganismNot specified

UniProt Q8N1T3

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Insufficient information Monomer Protein 1 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name MYO1H_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 1–16; UniProt 751–766

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8eb1
Deposition date deposition_date2022-08-30
Structure title titleChim2 - Intragenic antimicrobial peptide
Keywords keywordsANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN
Experimental Method methodSOLUTION NMR
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8eb1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

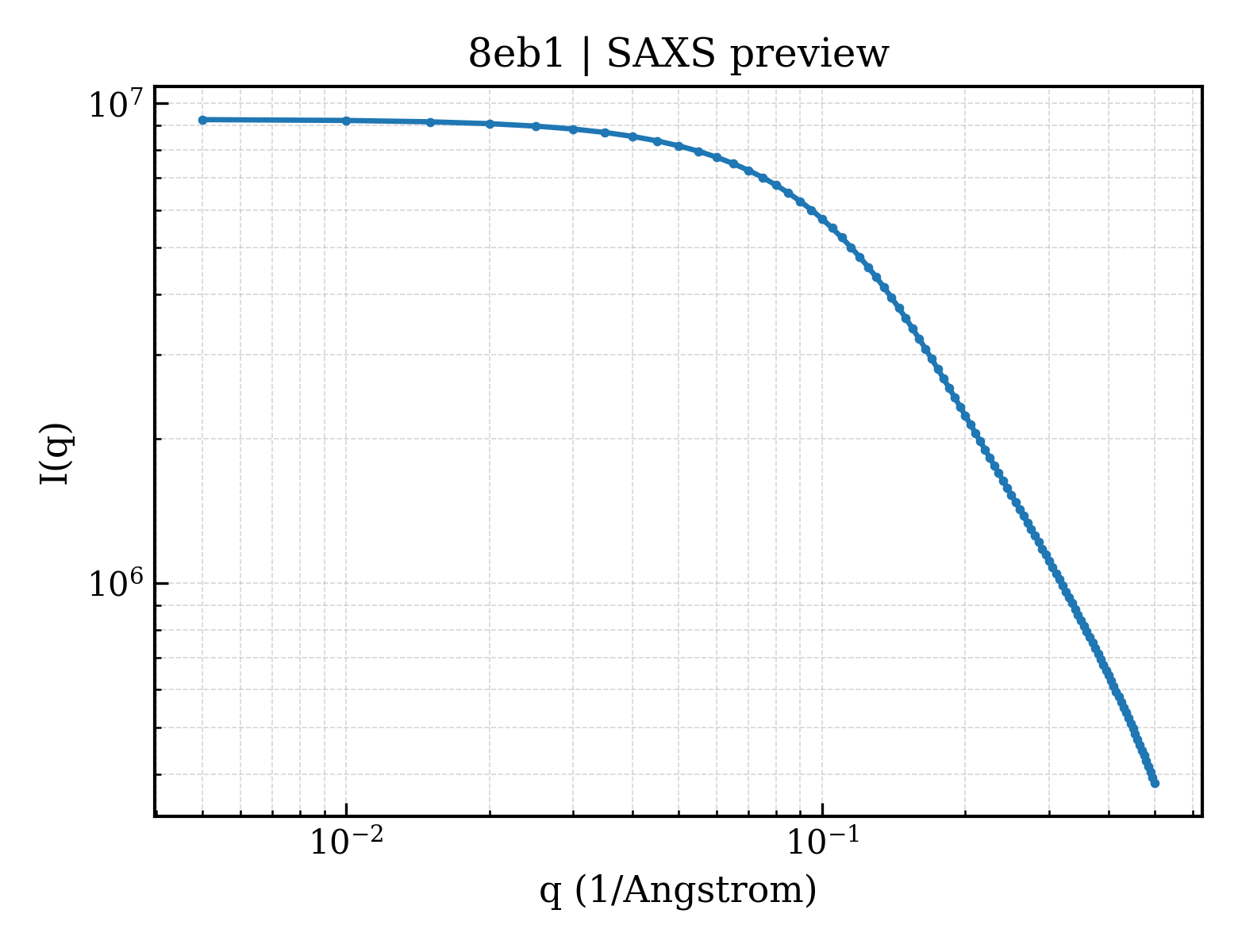

8eb1__assembly_1__model_1 | I(q)

10-2 10-1 104 105 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

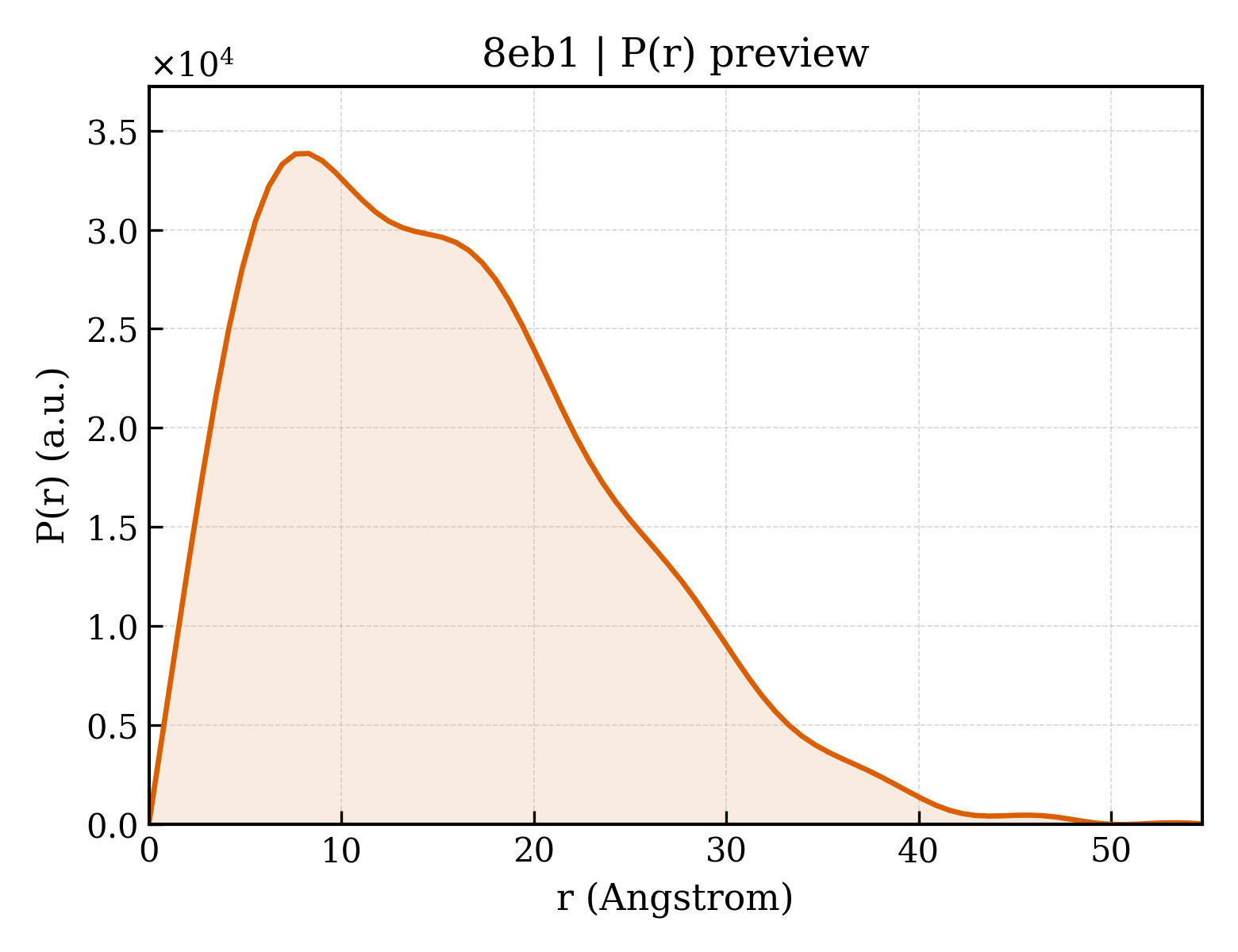

8eb1__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg(Guinier)12.22 Å
Rg (electron density)11.54 Å
Total Rg13.11 Å
Atom count442
Residues24
Excluded volume3902 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8eb1__assembly_1__model_1 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
1 2 8eb1__assembly_1__model_2 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
1 3 8eb1__assembly_1__model_3 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
1 4 8eb1__assembly_1__model_4 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
1 5 8eb1__assembly_1__model_5 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
1 6 8eb1__assembly_1__model_6 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
1 7 8eb1__assembly_1__model_7 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
1 8 8eb1__assembly_1__model_8 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
1 9 8eb1__assembly_1__model_9 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
1 10 8eb1__assembly_1__model_10 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

7. Citations (1)
