8eya

Crystal structure of PTP1B D181A/Q262A/C215A phosphatase domain with a JAK2 activation loop phosphopeptide

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tyrosine-protein phosphatase non-receptor type 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Tyrosine-protein kinase JAK2 activation loop phosphopeptide × 1 （O60674） 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 1,2-ETHANEDIOL × 1 CHLORIDE ION × 3 SODIUM ION × 2 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Tyrosine-protein kinase JAK2 activation loop phosphopeptide × 1 （O60674） 1,2-ETHANEDIOL × 1 CHLORIDE ION × 1 SODIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PTN1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–301； UniProt 1–301 Author chain B； PDBConstruct 1–301； UniProt 1–301

Tyrosine-protein kinase JAK2 activation loop phosphopeptide

OrganismNot specified

UniProt O60674

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Tyrosine-protein phosphatase non-receptor type 1 × 1 （P18031） 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 1,2-ETHANEDIOL × 1 CHLORIDE ION × 3 SODIUM ION × 2 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Tyrosine-protein phosphatase non-receptor type 1 × 1 （P18031） 1,2-ETHANEDIOL × 1 CHLORIDE ION × 1 SODIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	JAK2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–16； UniProt 1000–1015 Author chain E； PDBConstruct 1–16； UniProt 1000–1015

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8eya
Deposition date deposition_date	2022-10-26
Structure title title	Crystal structure of PTP1B D181A/Q262A/C215A phosphatase domain with a JAK2 activation loop phosphopeptide
Keywords keywords	PTP1B, JAK/STAT, IRK, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8eya__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8eya__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

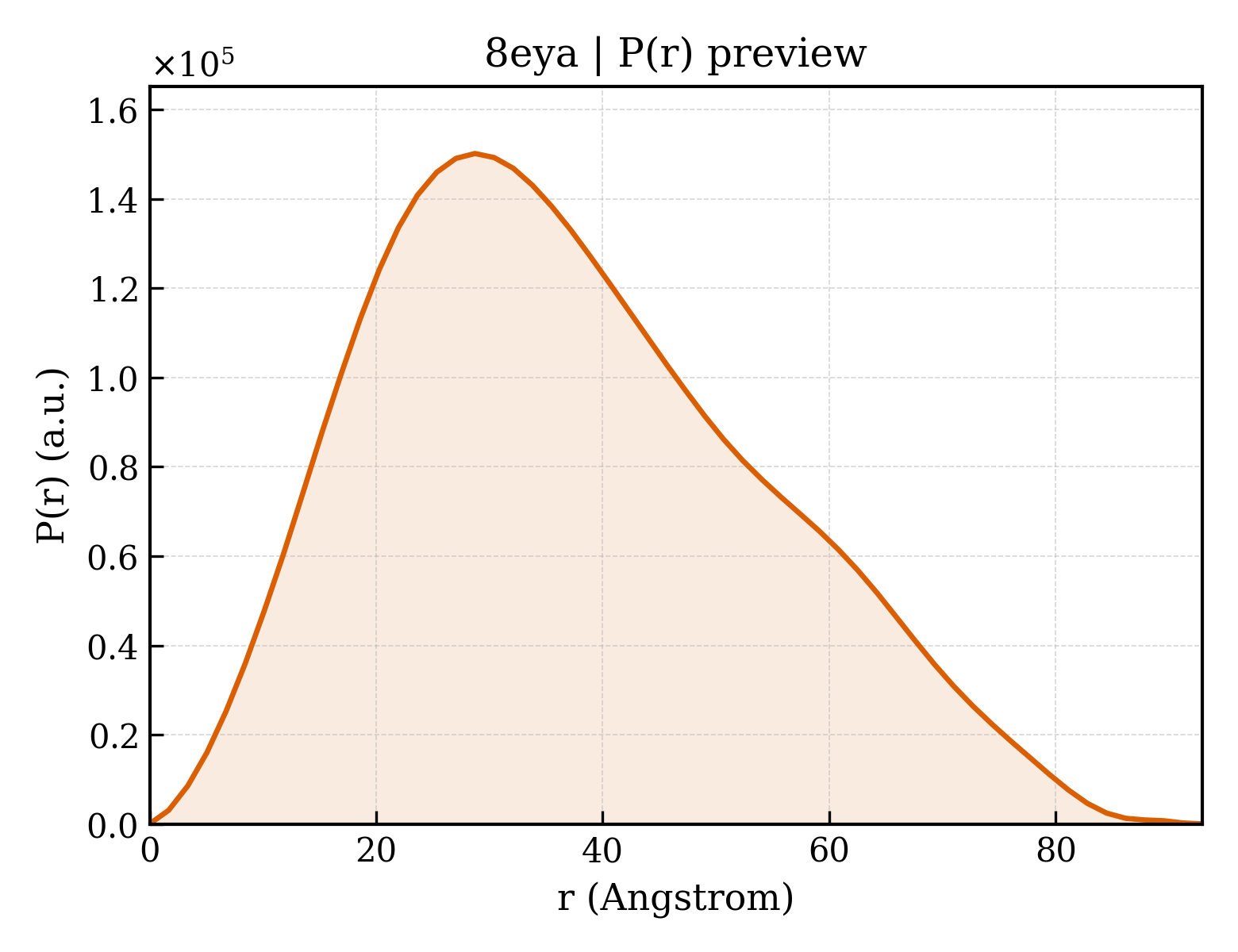

8eya__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.25 Å
Rg (electron density)	19.04 Å
Total Rg	19.99 Å
Atom count	2460
Residues	305
Excluded volume	43626 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8eya__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8eya__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Tyrosine-protein phosphatase non-receptor type 1
Molecular weight formula_weight	34997.9 kDa
EC 编号 ec_number	3.1.3.48
Mutation mutation	D181A/Q262A/C215A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5089

MEMEKEFEQIDKSGSWAAIYQDIRHEASDFPCRVAKLPKNKNRNRYRDVSPFDHSRIKLHQEDNDYINASLIKMEEAQRSYILTQGPLPNTCGHFWEMVWEQKSRGVVMLNRVMEKGSLKCAQYWPQKEEKEMIFEDTNLKLTLISEDIKSYYTVRQLELENLTTQETREILHFHYTTWPAFGVPESPASFLNFLFKVRESGSLSPEHGPVVVHASAGIGRSGTFCLADTCLLLMDKRKDPSSVDIKKVLLEMRKFRMGLIATADQLRFSYLAVIEGAKFIMGDSSVQDQWKELSHEDLEPA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Tyrosine-protein kinase JAK2 activation loop phosphopeptide
Molecular weight formula_weight	2085.1 kDa
EC 编号 ec_number	2.7.10.2
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E

VLPQDKEYYKVKEPGE

Entity 3 Entity 3 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	175

▶

Unit-cell length a length_a	88.833 Å
Unit-cell length b length_b	88.833 Å
Unit-cell length c length_c	197.456 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.099 Å
Low-resolution limit resolution_low	44.416 Å
R factor r_factor	0.2221
R_work r_work	0.2206
R_free r_free	0.2604
