SAXSdb — 8fxx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CPXV040 protein

Cowpox virus (Brighton Red)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	T-lymphocyte activation antigen CD86 × 7 （P42081） 2-acetamido-2-deoxy-beta-D-glucopyranose × 21	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8QN22_CWPXB
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–204； UniProt 18–218 Author chain B； PDBConstruct 4–204； UniProt 18–218 Author chain D； PDBConstruct 4–204； UniProt 18–218 Author chain F； PDBConstruct 4–204； UniProt 18–218 Author chain I； PDBConstruct 4–204； UniProt 18–218 Author chain K； PDBConstruct 4–204； UniProt 18–218 Author chain M； PDBConstruct 4–204； UniProt 18–218

T-lymphocyte activation antigen CD86

Homo sapiens

UniProt P42081

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	CPXV040 protein × 7 （Q8QN22） 2-acetamido-2-deoxy-beta-D-glucopyranose × 21	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD86_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 2–110； UniProt 26–134 Author chain E； PDBConstruct 2–110； UniProt 26–134 Author chain G； PDBConstruct 2–110； UniProt 26–134 Author chain H； PDBConstruct 2–110； UniProt 26–134 Author chain J； PDBConstruct 2–110； UniProt 26–134 Author chain L； PDBConstruct 2–110； UniProt 26–134 Author chain N； PDBConstruct 2–110； UniProt 26–134

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8fxx
Deposition date deposition_date	2023-01-25
Structure title title	Cryo-EM structure of cowpox virus M2 in complex with human B7.2 (heptameric ring)
Keywords keywords	;poxvirus M2 protein, OPG038, T-cell costimulation, poxviral immune evasion domain PIE, B7.1, Structural Genomics, CSGID, VIRAL PROTEIN ;; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8fxx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

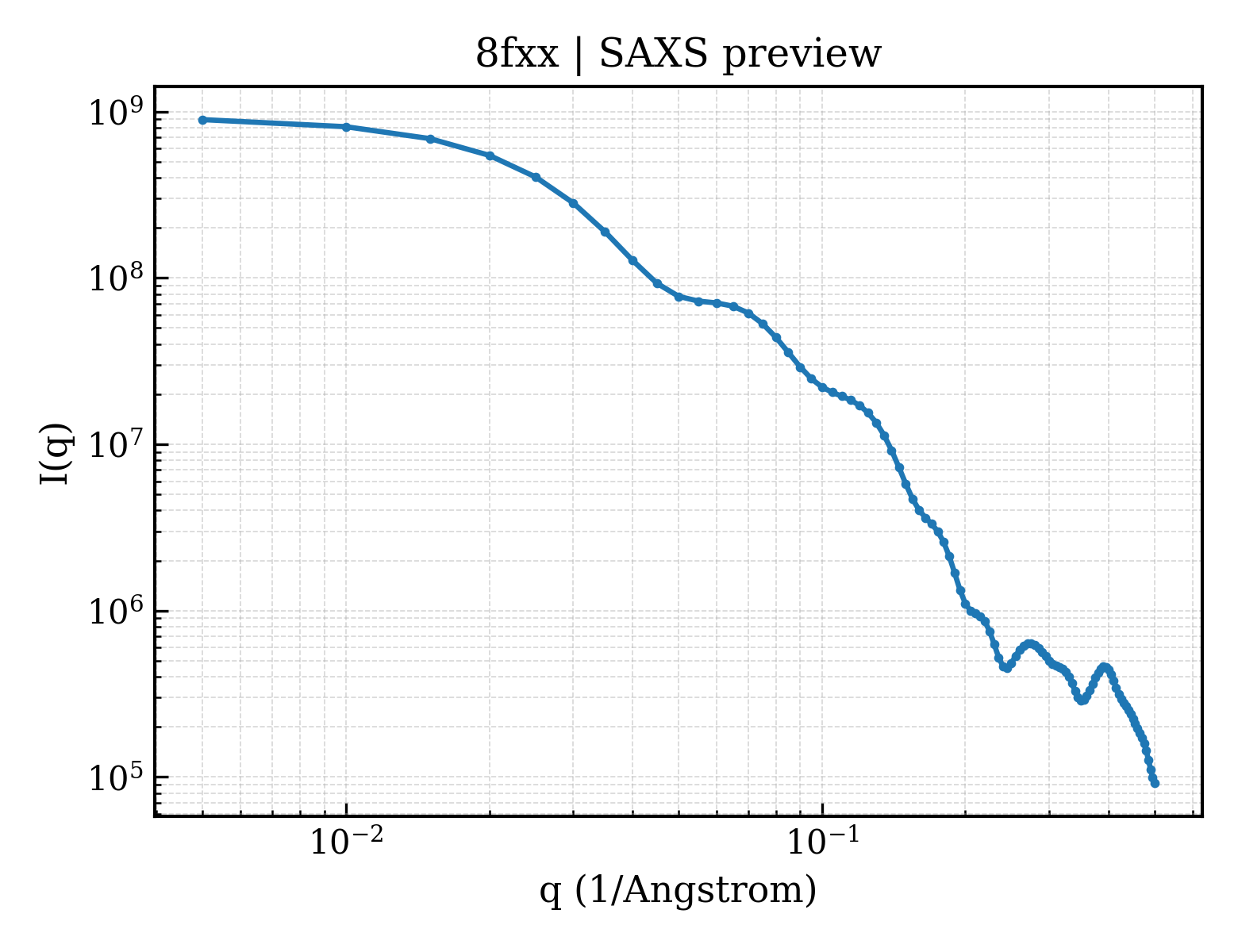

8fxx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

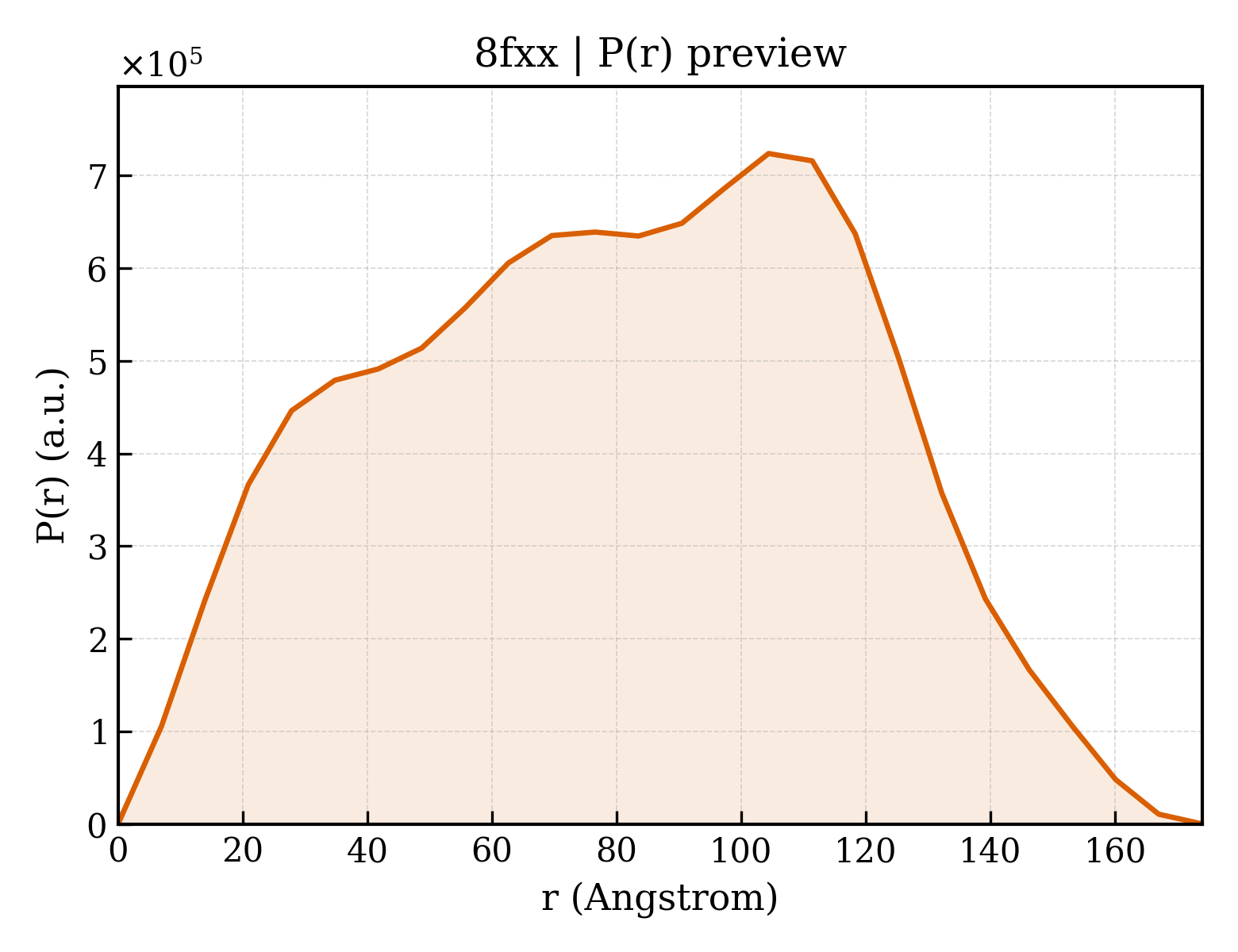

8fxx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	62.73 Å
Rg (electron density)	62.33 Å
Total Rg	62.35 Å
Atom count	17556
Residues	2142
Excluded volume	311130 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8fxx__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CPXV040 protein
Molecular weight formula_weight	23396.4 kDa
Source method src_method	man
Copy count entity_count	7

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,F,I,K,M
Atom count atom_count	17556

KPEAEYKNTICPPRQDYRYWYFAAELTIGVNYDINSTIMGECHMSESYIDRNANIVLTGYGLEINMTIMDTDQRFVAAAEGVGKDNKLSVLLFTTQRLDKVHHNISVTITCMEMNCGTTKYDSDLPESIHHKSSCDITINGSCVTCVNLETDPTKINPHYLHPKDKYLYRNSEYGMRGSYGVTFMDELNQCFLDIKEVSYDICY

Source Source

Source organism organism	Cowpox virus (Brighton Red)
NCBI taxonomy ID ncbi_taxonomy_id	265872
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	T-lymphocyte activation antigen CD86
Molecular weight formula_weight	12849.6 kDa
Source method src_method	man
Copy count entity_count	7

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,E,G,H,J,L,N

MLKIQAYFNETADLPCQFANSQNQSLSELVVFWQDQENLVLNEVYLGKEKFDSVHSKYMGRTSFDSDSWTLRLHNLQIKDKGLYQCIIHHKKPTGMIRIHQMNSELSVLA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	21

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.26 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	58055

Cryo-EM structure of cowpox virus M2 in complex with human B7.2 (heptameric ring)
