8g4p

Crystal structure of the peanut allergen Ara h 2 bound by two neutralizing antibodies 13T1 and 13T5

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ara h 2 allergen

Arachis hypogaea

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	13t1 Fab heavy chain × 1 13T1 Fab light chain × 1 13T5 Fab heavy chain × 1 13T5 Fab light chain × 1 1,2-ETHANEDIOL × 6 CHLORIDE ION × 7 SULFATE ION × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A445BYI5_ARAHY
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 6–135； UniProt 31–160

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8g4p
Deposition date deposition_date	2023-02-10
Structure title title	Crystal structure of the peanut allergen Ara h 2 bound by two neutralizing antibodies 13T1 and 13T5
Keywords keywords	allergy, antibody, peanut, epitope, paratope, ALLERGEN; ALLERGEN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8g4p__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8g4p__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

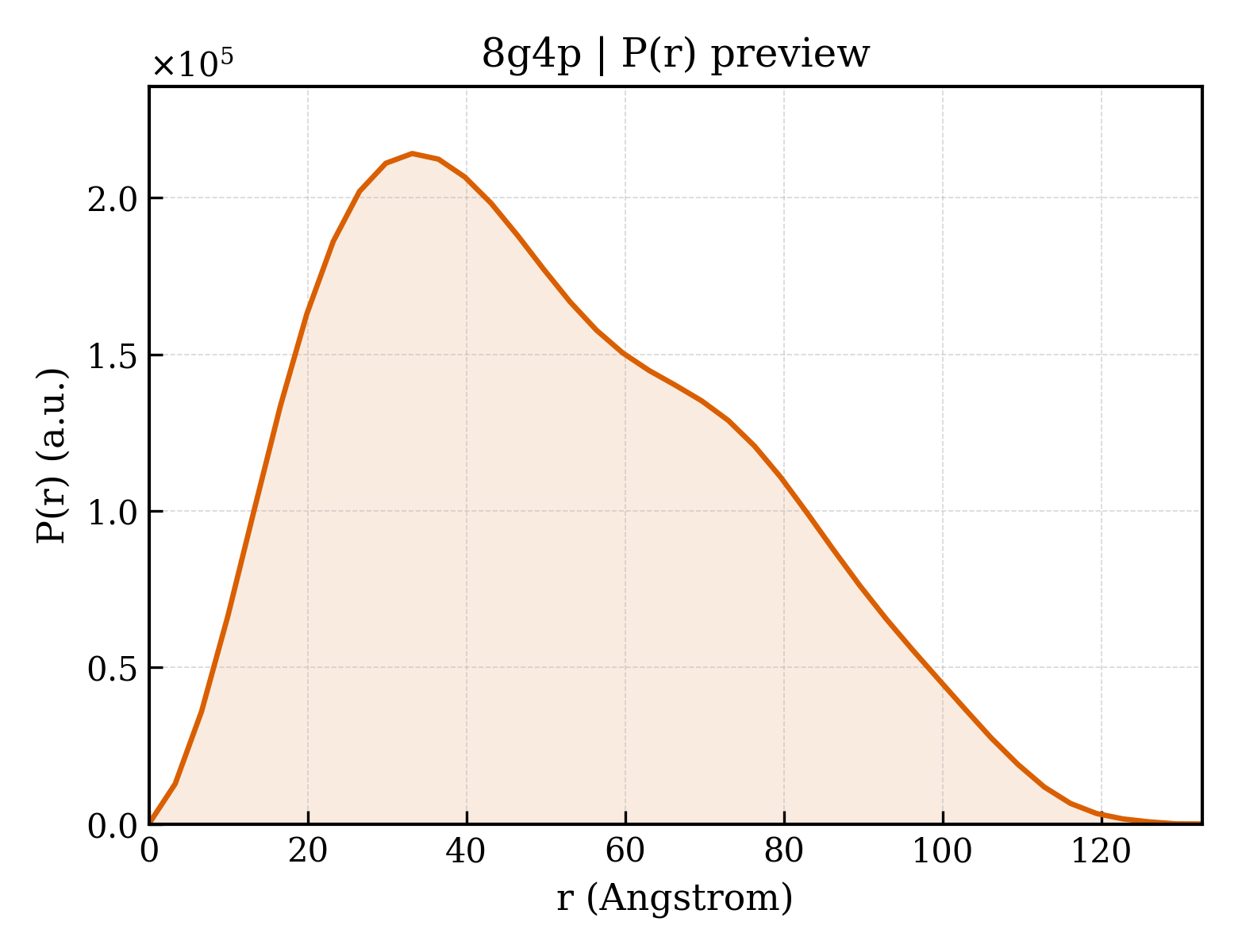

8g4p__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.14 Å
Rg (electron density)	39.43 Å
Total Rg	39.62 Å
Atom count	13872
Residues	967
Excluded volume	126420 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8g4p__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	13t1 Fab heavy chain
Molecular weight formula_weight	24478.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	14173

EVQLVESGGGVVQPGGSLRLSCVASGFKFQNYGMSWVRQAPGKGLEWVADISGSDESTYYADSVKGRFTISRDTSKNTLHLQMSSPRAEDTALYYCAKATAPAGKYYYYGMDVWGQGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	13T1 Fab light chain
Molecular weight formula_weight	23665.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

EIVMTQSPATLSLSPGEIATLSCRASQTVSSYLAWYQLKPGQAPRLLIYDASRRAAGIPARFSGSESGTDFTLTISSLEPEDSAVYYCHQRSNWPPVHTFGQGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	13T5 Fab heavy chain
Molecular weight formula_weight	25040.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

QVQLQESGPGLVKPSETLSLTCTVSGGSMSSYYWGWIRQPAGRGLEWIGRIFTTGSTIYNASLNSRVSMSVDTSKNQFSLKLTSVTAADTALYFCVRDRRGRSHDSNWYWYFDLWGRGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 4 Entity 4 polymer

Description description	13T5 Fab light chain
Molecular weight formula_weight	23397.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DIVMTQSPSSLSASVGDRVIITCRTSQTLSRNLNWYQQKPGEAPKLLIYGASTLQSGVPSRFTGSGSGTDFTLIISSLQPEDFATYYCQQSDNTPRTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 5 Entity 5 polymer

Description description	Ara h 2 allergen
Molecular weight formula_weight	15875.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

GSAAARRCQSQLERANLRPCEQHLMQKIQRDEDSYERDPYSPSQDPYSPSPYDRRGAGSSQHQERCCNELNEFENNQRCMCEALQQIMENQSDRLQGRQQEQQFKRELRNLPQQCGLRAPQRCDLDVESGGRDRY

Source Source

Source organism organism	Arachis hypogaea
Common name common_name	peanut
NCBI taxonomy ID ncbi_taxonomy_id	3818
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 7 Entity 7 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 8 Entity 8 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 9 Entity 9 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	247

▶

Unit-cell length a length_a	136.302 Å
Unit-cell length b length_b	136.794 Å
Unit-cell length c length_c	96.819 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	127.34 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	2.250 Å
Low-resolution limit resolution_low	42.550 Å
R factor r_factor	0.1896
R_work r_work	0.1887
R_free r_free	0.2175
