SAXSdb — 8sj6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ara h 2 allergen

Arachis hypogaea

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	8F3 light chain × 1 8F3 heavy chain × 1 38B7 heavy chain × 1 38B7 light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A445BYI5_ARAHY
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain Q； PDBConstruct 1–135； UniProt 26–160

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8sj6
Deposition date deposition_date	2023-04-17
Structure title title	Ara h 2.01 38B7 8F3
Keywords keywords	allergy, peanut, antibody, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8sj6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8sj6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

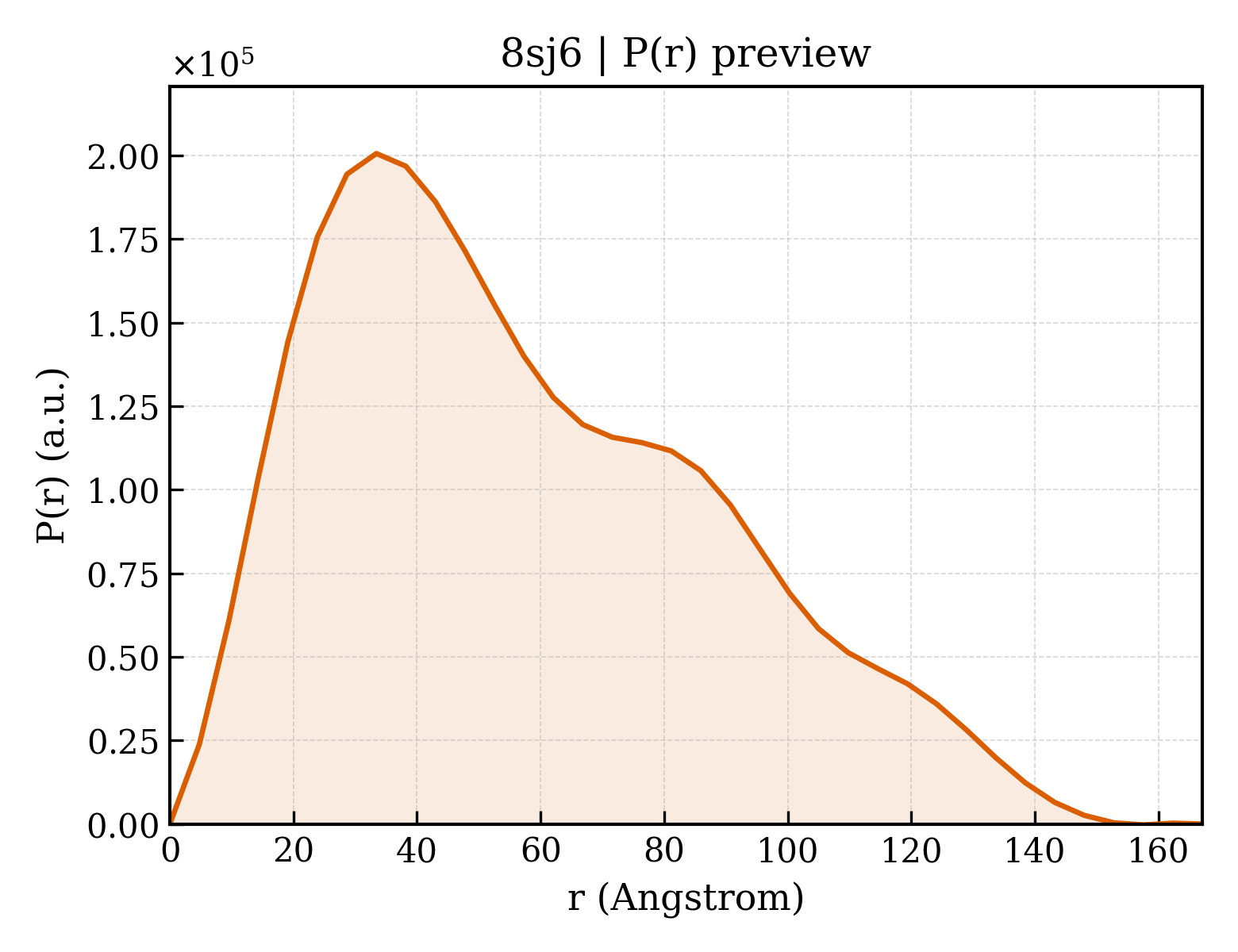

8sj6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.43 Å
Rg (electron density)	46.71 Å
Total Rg	46.76 Å
Atom count	7501
Residues	968
Excluded volume	132050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8sj6__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	8F3 light chain
Molecular weight formula_weight	23412.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D
Atom count atom_count	7501

EIVLTQSPATLSLSPGERATLSCRASPSAGRFLAWYQQRPGQAPRLLIYDASKRATDTPARFSGSGSGTDFNLTIASLEPEDFAVYYCQHRSNWPLTFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	8F3 heavy chain
Molecular weight formula_weight	24266.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

QLQLQESGPGLVKPSETLSLTCTVSDASIDTPSYFWSWIRQPPGKGLEWIGSIYYTGNKYSNPSLKSRVTMSVDTPKRQFSLRLSSVTAADTAVYYCARYVDYVWLRAFDIWGQGTRVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	38B7 heavy chain
Molecular weight formula_weight	23708.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

QVQLVESGGGVVQPGRSLRLSCVGSGFTFRRDAKYWVRQAPGKGLEWVAAISHDGGEEDYAESVKGRFTISRDNSRETVYLEMNSLRPEDTAVYYCATTRSGWYFDYWGQGALVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 4 Entity 4 polymer

Description description	38B7 light chain
Molecular weight formula_weight	23771.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

EIVLTQSPATLSLSPGARATLSCRASQSVDTYLAWYQQRRGQSPRLLIYDASKRATGIPARFSGSGSGTDFTLTISSLEPEDFAVYYCQQRNNWRTWTFGQGTKVEINRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 5 Entity 5 polymer

Description description	Ara h 2 allergen
Molecular weight formula_weight	17033.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

ELQGDRRCQSQLERANLRPCEQHLMQKIQRDEDSYERDPYSPSQDPYSPSPYDRRGAGSSQHQERCCNELNEFENNQRCMCEALQQIMENQSDRLQGRQQEQQFKRELRNLPQQCGLRAPQRCDLDVESGGRDRYGSHHHHHH

Source Source

Source organism organism	Arachis hypogaea
Common name common_name	peanut
NCBI taxonomy ID ncbi_taxonomy_id	3818
Host organism host_organism	Cricetulus griseus

▶

Unit-cell length a length_a	44.400 Å
Unit-cell length b length_b	182.892 Å
Unit-cell length c length_c	194.175 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	orthorhombic

Resolution resolution	3.970 Å
Low-resolution limit resolution_low	97.090 Å
R factor r_factor	0.2538
R_work r_work	0.2515
R_free r_free	0.3018
