SAXSdb — 8gmb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tyrosine-protein kinase BTK

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	;2-[3'-(hydroxymethyl)-1-methyl-5-({5-[(2S)-2-methyl-4-(oxetan-3-yl)piperazin-1-yl]pyridin-2-yl}amino)-6-oxo[1,6-dihydro[3,4'-bipyridine]]-2'-yl]-7,7-dimethyl-3,4,7,8-tetrahydro-2H-cyclopenta[4,5]pyrrolo[1,2-a]pyrazin-1(6H)-one ; × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BTK_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–659； UniProt 1–659

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8gmb
Deposition date deposition_date	2023-03-24
Structure title title	Crystal structure of the full-length Bruton's tyrosine kinase (PH-TH domain not visible)
Keywords keywords	ATP-binding, Lipid-binding, transcription regulation, immunity, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8gmb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8gmb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

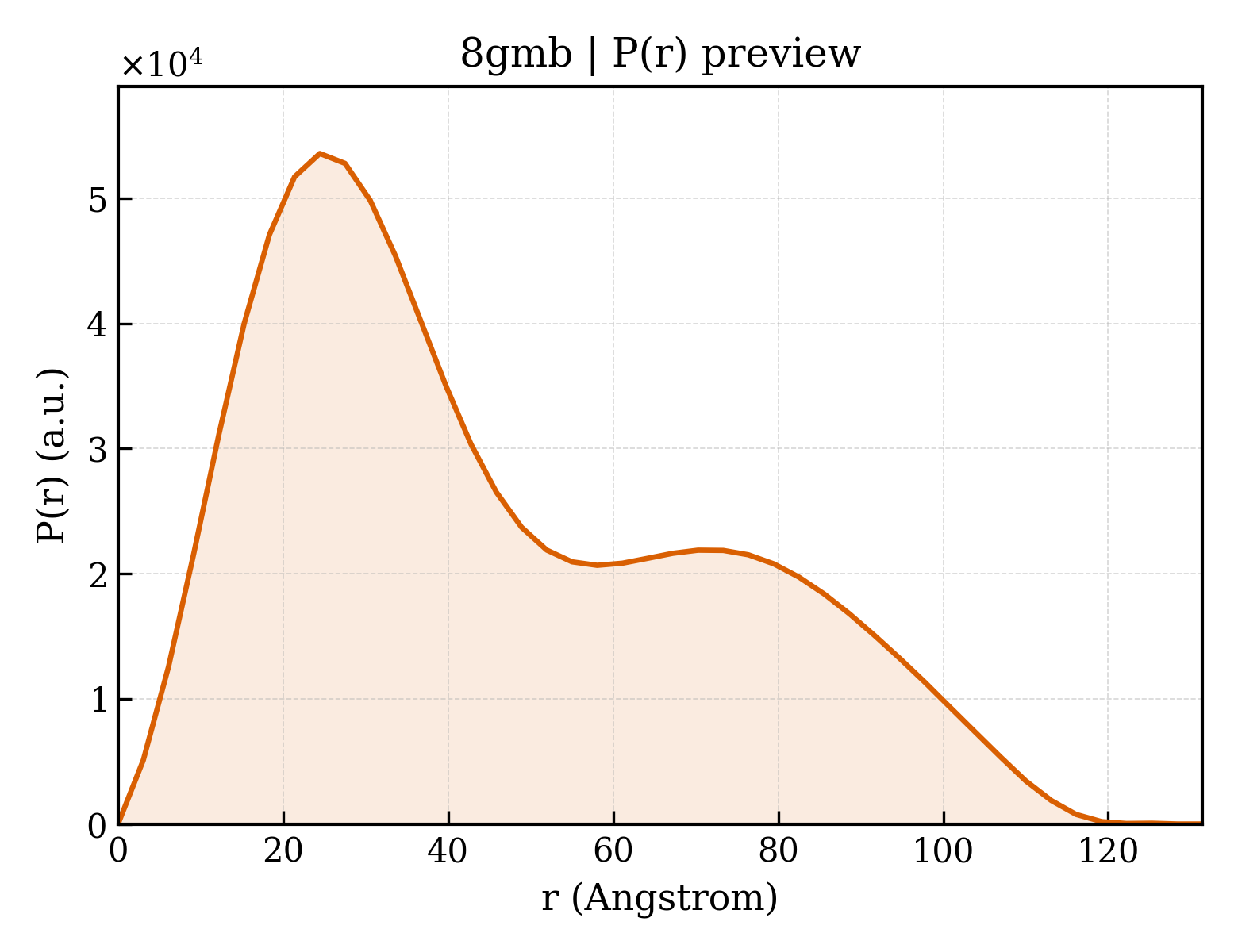

8gmb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.55 Å
Rg (electron density)	43.69 Å
Total Rg	43.81 Å
Atom count	11322
Residues	876
Excluded volume	110250 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8gmb__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Tyrosine-protein kinase BTK
Molecular weight formula_weight	76400.3 kDa
EC 编号 ec_number	2.7.10.2
Mutation mutation	E298A, K300A, E301A, A384P, S386P, T387P, A388P, L390F, K430R, L542M S543T, V555T, R562K, S564A, P565S, Y617P
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5661

MAAVILESIFLKRSQQKKKTSPLNFKKRLFLLTVHKLSYYEYDFERGRRGSKKGSIDVEKITCVETVIPEKNPPPERQIPRRGEESSEMEQISIIERFPYPFQVVYDEGPLYVFSPTEELRKRWIHQLKNVIRYNSDLVQKYHPCFWIDGQYLCCSQTAKNAMGCQILENRNGSLKPGSSHRKTKKPLPPTPEEDQILKKPLPPEPTAAPISTTELKKVVALYDYMPMNANDLQLRKGEEYFILEESNLPWWRARDKNGQEGYIPSNYITEAEDSIEMYEWYSKHMTRSQAEQLLKQAGAAGGFIVRDSSKAGKYTVSVFAKSTGEPQGVIRHYVVCSTPQSQYYLAEKHLFSTIPELINYHQHNSAGLISRLKYPVSKQNKNPPPPPGFGYGSWEIDPKDLTFLKELGTGQFGVVKYGKWRGQYDVAIRMIREGSMSEDEFIEEAKVMMNLSHEKLVQLYGVCTKQRPIFIITEYMANGCLLNYLREMRHRFQTQQLLEMCKDVCEAMEYLESKQFLHRDLAARNCLVNDQGVVKVSDFGMTRYVLDDEYTSSTGSKFPVKWASPEVLMYSKFSSKSDIWAFGVLMWEIYSLGKMPYERFTNSETAEHIAQGLRLPRPHLASERVYTIMYSCWHEKADERPSFKILLSNILDVMDEES

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;2-[3'-(hydroxymethyl)-1-methyl-5-({5-[(2S)-2-methyl-4-(oxetan-3-yl)piperazin-1-yl]pyridin-2-yl}amino)-6-oxo[1,6-dihydro[3,4'-bipyridine]]-2'-yl]-7,7-dimethyl-3,4,7,8-tetrahydro-2H-cyclopenta[4,5]pyrrolo[1,2-a]pyrazin-1(6H)-one ;
Molecular weight formula_weight	664.8 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	125.718 Å
Unit-cell length b length_b	125.718 Å
Unit-cell length c length_c	110.091 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	trigonal

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	19.940 Å
R factor r_factor	0.2727
R_work r_work	0.2719
R_free r_free	0.2891

Crystal structure of the full-length Bruton's tyrosine kinase (PH-TH domain not visible)
