SAXSdb — 8s9f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tyrosine-protein kinase BTK

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 382–659 Chain B； UniProt 382–659	Mutation：L390G, Y551E, Y617P	1N1 N-(2-CHLORO-6-METHYLPHENYL)-2-({6-[4-(2-HYDROXYETHYL)PIPERAZIN-1-YL]-2-METHYLPYRIMIDIN-4-YL}AMINO)-1,3-THIAZOLE-5-CARBOXAMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；42% PEG200, 0.1M HEPES	Resolution 2.60 Å R-free 0.284

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8S9F	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4XI2 Crystal Structure of an auto-inhibited form of Bruton's Tryrosine Kinase Deposited 2015-01-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 214–659（446 aa） Fragment：UNP residues 214-659	Not recorded	AU GOLD ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；Mix purified dimer protein at 5 mg/ml in 25 mM TRIS.Cl, pH 8.5, 10 mM NaCl, 5 mM DTT with an equal volume of the precipitant solution, 100 mM TRIS.Cl, pH 8.5, 200 mM Na.acetate, 7.5 % PEG 4,000, then suspend over 1 ml of precipitant solution. Wedge shaped crystals grew to approximately 0.1 mm on a side after a period of two weeks. Crystals were frozen by first transferring them, in four sequential steps, to a solution of 100 mM TRIS.Cl, pH 8.5, 200 mM Na.acetate, 15 % PEG 4,000. This was followed by transfer in six sequential steps to a solution containing 100 mM TRIS.Cl, pH 8.5, 200 mM Na.acetate, 15 % PEG 4,000, 30% glucose	Resolution 2.60 Å R-free 0.248
8FD9 Structure of BTK kinase domain with the second-generation inhibitor acalabrutinib Deposited 2022-12-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 396–659（264 aa）	Mutation：K430R, L542M S543T, V555T, R562K, S564A, P565S, Y617P	XQQ 4-[(4S)-8-amino-3-{(2S)-1-[(2E)-but-2-enoyl]pyrrolidin-2-yl}imidazo[1,5-a]pyrazin-1-yl]-N-(pyridin-2-yl)benzamide × 1 BR BROMIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；277 K；20% PEG 3350, 0.1M Bis-tris propane, pH 6.5 and 0.2M sodium bromide	Resolution 1.70 Å R-free 0.228
8FF0 Structure of BTK kinase domain with the second-generation inhibitor tirabrutinib Deposited 2022-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 396–659（264 aa）	Mutation：K430R, L542M S543T, V555T, R562K, S564A, P565S, Y617P	7GB 6-azanyl-9-[(3~{R})-1-[(~{E})-but-2-enoyl]pyrrolidin-3-yl]-7-(4-phenoxyphenyl)purin-8-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；16% PEG 8000 and 0.1M sodium citrate	Resolution 2.60 Å R-free 0.267
8GMB Crystal structure of the full-length Bruton's tyrosine kinase (PH-TH domain not visible) Deposited 2023-03-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–659（659 aa）	Mutation：E298A, K300A, E301A, A384P, S386P, T387P, A388P, L390F, K430R, L542M S543T, V555T, R562K, S564A, P565S, Y617P	9AJ 2-[3'-(hydroxymethyl)-1-methyl-5-({5-[(2S)-2-methyl-4-(oxetan-3-yl)piperazin-1-yl]pyridin-2-yl}amino)-6-oxo[1,6-dihydro[3,4'-bipyridine]]-2'-yl]-7,7-dimethyl-3,4,7,8-tetrahydro-2H-cyclopenta[4,5]pyrrolo[1,2-a]pyrazin-1(6H)-one × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277.15 K；20% PEG 3350, 0.1M Bis-Tris Propane, 0.2M potassium thiocyanate	Resolution 3.40 Å R-free 0.289
8S93 Crystal structure of the PH-TH/kinase complex of Bruton's tyrosine kinase Deposited 2023-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–171（171 aa） Fragment：PHTH domain residues 1-171 and Kinase domain residues 396-659 Chain A 396–659（264 aa） Fragment：PHTH domain residues 1-171 and Kinase domain residues 396-659	Mutation：Q91A, I92A, I94A, I95A, K430R, L542M S543T, V555T, R562K, S564A, P565S, Y617P Mutation：Q91A, I92A, I94A, I95A, K430R, L542M S543T, V555T, R562K, S564A, P565S, Y617P	9AJ 2-[3'-(hydroxymethyl)-1-methyl-5-({5-[(2S)-2-methyl-4-(oxetan-3-yl)piperazin-1-yl]pyridin-2-yl}amino)-6-oxo[1,6-dihydro[3,4'-bipyridine]]-2'-yl]-7,7-dimethyl-3,4,7,8-tetrahydro-2H-cyclopenta[4,5]pyrrolo[1,2-a]pyrazin-1(6H)-one × 1 ZN ZINC ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；277 K；20%PEG3350, 0.1M Bis-Tris, pH5.6, 0.2M magnesium chloride	Resolution 2.10 Å R-free 0.246
9EJJ Bruton's tyrosine kinase in complex with compound PTI55 Deposited 2024-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 382–659（278 aa）	Mutation：L390G, Y551E, Y617P	A1BIZ 4-{4-amino-1-[(3R)-1-(cyclopropanecarbonyl)piperidin-3-yl]-1H-pyrazolo[3,4-d]pyrimidin-3-yl}-N-[4-(trifluoromethoxy)pyridin-2-yl]benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1M NaCitrate pH 5.5, 18% PEG3350	Resolution 2.03 Å R-free 0.242
9EJJ Bruton's tyrosine kinase in complex with compound PTI55 Deposited 2024-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 382–659（278 aa）	Mutation：L390G, Y551E, Y617P	A1BIZ 4-{4-amino-1-[(3R)-1-(cyclopropanecarbonyl)piperidin-3-yl]-1H-pyrazolo[3,4-d]pyrimidin-3-yl}-N-[4-(trifluoromethoxy)pyridin-2-yl]benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1M NaCitrate pH 5.5, 18% PEG3350	Resolution 2.03 Å R-free 0.242
9EJR Bruton's tyrosine kinase in complex with compound PTI52 Deposited 2024-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 382–659（278 aa）	Mutation：L390G, Y551E, Y617P	A1BI0 4-{4-amino-1-[(3R)-1-(cyclopropanecarbonyl)piperidin-3-yl]-1H-pyrazolo[3,4-d]pyrimidin-3-yl}-N-(4-cyclopropylpyridin-2-yl)benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1M NaCitrate pH 5.5, 18% PEG3350	Resolution 2.10 Å R-free 0.295
9EJR Bruton's tyrosine kinase in complex with compound PTI52 Deposited 2024-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 382–659（278 aa）	Mutation：L390G, Y551E, Y617P	A1BI0 4-{4-amino-1-[(3R)-1-(cyclopropanecarbonyl)piperidin-3-yl]-1H-pyrazolo[3,4-d]pyrimidin-3-yl}-N-(4-cyclopropylpyridin-2-yl)benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1M NaCitrate pH 5.5, 18% PEG3350	Resolution 2.10 Å R-free 0.295
9EJS Bruton's tyrosine kinase with mutations in the activation loop in complex with compound PTI52 Deposited 2024-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 396–659（264 aa）	Mutation：K430R, L542M, S543T, V555T, R562K, S564A, P565S	A1BI0 4-{4-amino-1-[(3R)-1-(cyclopropanecarbonyl)piperidin-3-yl]-1H-pyrazolo[3,4-d]pyrimidin-3-yl}-N-(4-cyclopropylpyridin-2-yl)benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；Sodium citrate tribasic dihydrate pH 5.5, 16% w/v Polyethylene glycol 8,000	Resolution 2.26 Å R-free 0.246
9EJS Bruton's tyrosine kinase with mutations in the activation loop in complex with compound PTI52 Deposited 2024-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 396–659（264 aa）	Mutation：K430R, L542M, S543T, V555T, R562K, S564A, P565S	A1BI0 4-{4-amino-1-[(3R)-1-(cyclopropanecarbonyl)piperidin-3-yl]-1H-pyrazolo[3,4-d]pyrimidin-3-yl}-N-(4-cyclopropylpyridin-2-yl)benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；Sodium citrate tribasic dihydrate pH 5.5, 16% w/v Polyethylene glycol 8,000	Resolution 2.26 Å R-free 0.246
9EJS Bruton's tyrosine kinase with mutations in the activation loop in complex with compound PTI52 Deposited 2024-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 396–659（264 aa）	Mutation：K430R, L542M, S543T, V555T, R562K, S564A, P565S	A1BI0 4-{4-amino-1-[(3R)-1-(cyclopropanecarbonyl)piperidin-3-yl]-1H-pyrazolo[3,4-d]pyrimidin-3-yl}-N-(4-cyclopropylpyridin-2-yl)benzamide × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；Sodium citrate tribasic dihydrate pH 5.5, 16% w/v Polyethylene glycol 8,000	Resolution 2.26 Å R-free 0.246
9EJX Bruton's tyrosine kinase with mutations in the activation loop in complex with compound PTI42 Deposited 2024-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 396–659（264 aa）	Mutation：K430R, L542M, S543T, V555T, R562K, S564A, P565S,Y617P	A1BI1 {(3R)-3-[4-amino-3-(4-phenoxyphenyl)-1H-pyrazolo[3,4-d]pyrimidin-1-yl]piperidin-1-yl}(cyclopropyl)methanone × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M Sodium citrate tribasic dihydrate pH 5.5, 18% w/v Polyethylene glycol 8,000	Resolution 2.86 Å R-free 0.296
9ME2 Bruton's tyrosine kinase with mutations in the activation loop in complex with compound A110162 Deposited 2024-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 396–659（264 aa）	Mutation：K430R, L542M, S543T, V555T, R562K, S564A, P565S,Y617P	A1BKW 3-(4-phenoxyphenyl)-1-[(3S)-piperidin-3-yl]-1H-pyrazolo[3,4-d]pyrimidin-4-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M Sodium citrate tribasic dihydrate pH 5.5, 18% w/v Polyethylene glycol 8,000	Resolution 3.38 Å R-free 0.286
9ME3 Bruton's tyrosine kinase with mutations in the activation loop in complex with compound P301390 Deposited 2024-12-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 396–659（264 aa）	Mutation：K430R, L542M, S543T, V555T, R562K, S564A, P565S,Y617P	A1BJE 3-(4-phenoxyphenyl)-1H-pyrazolo[3,4-d]pyrimidin-4-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M Sodium citrate tribasic dihydrate pH 5.5, 18% w/v Polyethylene glycol 8,000	Resolution 3.05 Å R-free 0.288
9ZLJ Crystal structure of BTK kinase domain bound to compound YS1 Deposited 2025-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 382–659（278 aa）	Mutation：Y617P	A1C20 N-{(1r,4r)-4-[2-(4-chlorophenoxy)acetamido]cyclohexyl}-N-[2-(4-methyl-1H-pyrrolo[2,3-b]pyridin-3-yl)ethyl]propanamide × 1 IMD IMIDAZOLE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；15-25% PEG3350, 0.1M imidazole	Resolution 1.60 Å R-free 0.218
9ZLM Crystal structure of BTK kinase domain bound to compound YS2 Deposited 2025-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 382–659（278 aa）	Mutation：Y617P	A1C2Z N-[4-(3-{2-oxo-2-[3-(phenoxymethyl)azetidin-1-yl]acetamido}phenyl)oxan-4-yl]propanamide × 1 IMD IMIDAZOLE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；15-25% PEG3350, 0.1M imidazole	Resolution 1.27 Å R-free 0.212

13 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BTK_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–279； UniProt 382–659 Author chain B； PDBConstruct 2–279； UniProt 382–659

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8s9f
Deposition date deposition_date	2023-03-28
Structure title title	Crystal structure of the kinase domain of Bruton's Tyrosine Kinase bound to dasatinib
Keywords keywords	;Bruton's Tyrosine Kinase, ATP-binding, protein phosphorylation, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.95 Å
Radius of gyration Rg (electron density) rg_electron	27.02 Å
Forward intensity I(0) i0	56827400.00
Molecular weight molecular_weight	58405.0 kDa
Excluded volume excluded_volume	72778 Å³
Envelope volume envelope_volume	92803 Å³
Hydration-shell volume shell_volume	29083 Å³
Envelope diameter envelope_diameter	88.0 Å
Shell Rg shell_rg	33.97 Å
Envelope Rg envelope_rg	26.53 Å
Shape Rg shape_rg	27.02 Å
Total Rg total_rg	27.75 Å
Total atoms total_atoms	7935
Residues n_residues	509
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

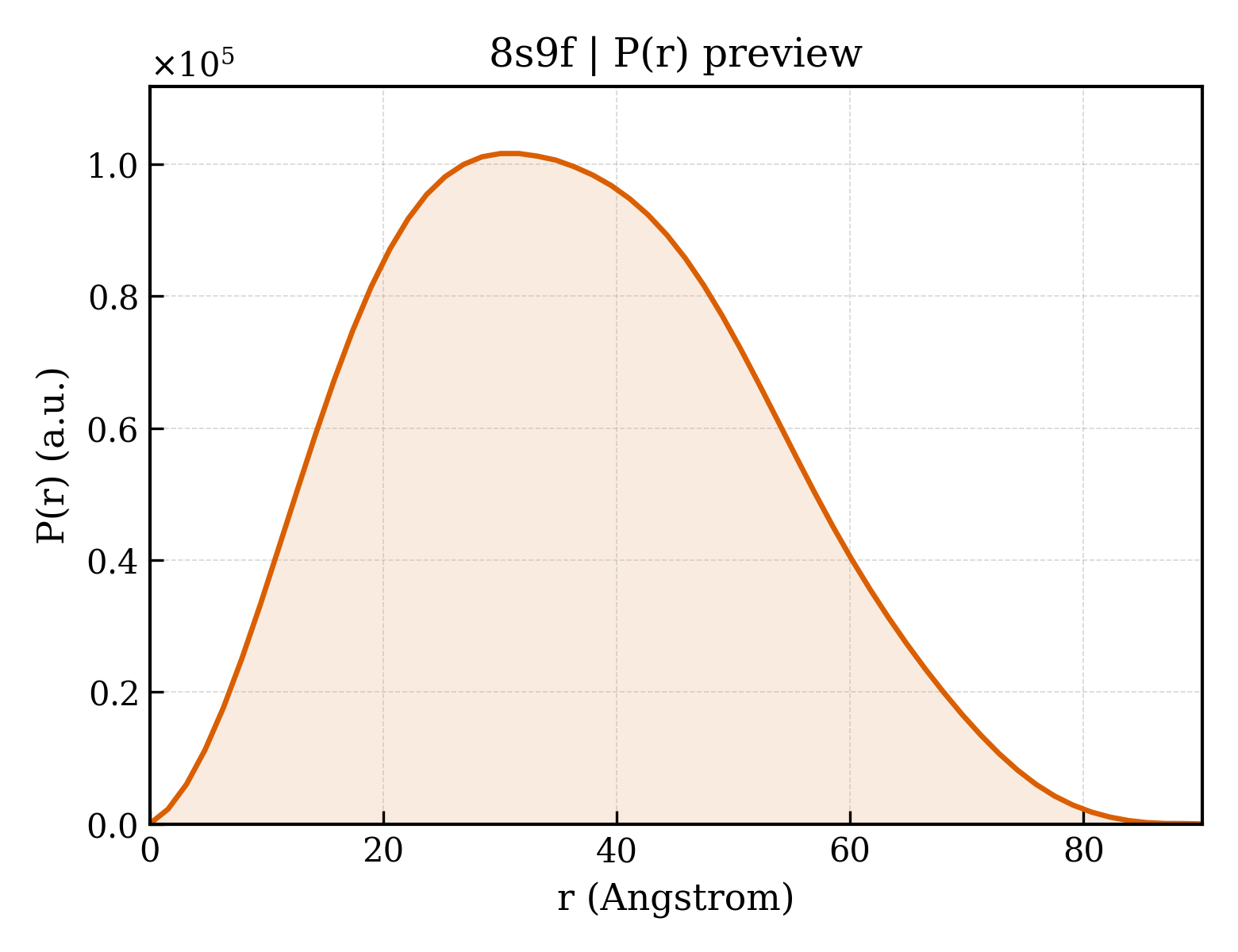

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	90.2 Å
Rg (real space) rg_real	27.93 Å
Rg uncertainty (real space) rg_real_error	0.64 Å
I(0) (real space) i0_real	5.6830e+07
I(0) uncertainty (real space) i0_real_error	7.6670e+05
Rg (reciprocal space) rg_reciprocal	27.94 Å
I(0) (reciprocal space) i0_reciprocal	56830000.0000
Solution quality estimate total_estimate	0.9029
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	0
Primary peak position r_peak_primary	— Å
Skewness Skewness skewness	0.259
Kurtosis Kurtosis kurtosis	-0.546
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15820000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.951

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Tyrosine-protein kinase BTK
Molecular weight formula_weight	32286.0 kDa
EC 编号 ec_number	2.7.10.2
Mutation mutation	L390G, Y551E, Y617P
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,A
Atom count atom_count	8002

MKNAPSTAGGGYGSWEIDPKDLTFLKELGTGQFGVVKYGKWRGQYDVAIKMIREGSMSEDEFIEEAKVMMNLSHEKLVQLYGVCTKQRPIFIITEYMANGCLLNYLREMRHRFQTQQLLEMCKDVCEAMEYLESKQFLHRDLAARNCLVNDQGVVKVSDFGLSRYVLDDEETSSVGSKFPVRWSPPEVLMYSKFSSKSDIWAFGVLMWEIYSLGKMPYERFTNSETAEHIAQGLRLPRPHLASERVYTIMYSCWHEKADERPSFKILLSNILDVMDEES

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	N-(2-CHLORO-6-METHYLPHENYL)-2-({6-[4-(2-HYDROXYETHYL)PIPERAZIN-1-YL]-2-METHYLPYRIMIDIN-4-YL}AMINO)-1,3-THIAZOLE-5-CARBOXAMIDE
Molecular weight formula_weight	488.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	67

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	8s9fA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	8s9fA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	8s9fB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	8s9fB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	55.237 Å
Unit-cell length b length_b	110.036 Å
Unit-cell length c length_c	61.142 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.51 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	19.960 Å
R factor r_factor	0.2437
R_work r_work	0.2416
R_free r_free	0.2838

fit	/app/data/saxs_computation/s9/8s9f/8s9f.fit
pddf	/app/data/pr_computation/s9/8s9f/8s9f.pr.out
profile	/app/data/saxs_computation/s9/8s9f/8s9f.dat
