SAXSdb — 8h9k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP synthase F(0) complex subunit B1, mitochondrial

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	ATP synthase-coupling factor 6, mitochondrial × 1 （P18859） ATP synthase subunit d, mitochondrial × 1 （O75947）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AT5F1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain K； PDBConstruct 1–214； UniProt 43–256

ATP synthase-coupling factor 6, mitochondrial

OrganismNot specified

UniProt P18859

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P24539） ATP synthase subunit d, mitochondrial × 1 （O75947）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5J_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain L； PDBConstruct 1–108； UniProt 1–108

ATP synthase subunit d, mitochondrial

OrganismNot specified

UniProt O75947

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	ATP synthase F(0) complex subunit B1, mitochondrial × 1 （P24539） ATP synthase-coupling factor 6, mitochondrial × 1 （P18859）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ATP5H_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain M； PDBConstruct 1–160； UniProt 2–161

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8h9k
Deposition date deposition_date	2022-10-25
Structure title title	Human ATP synthase state 2 subregion 2
Keywords keywords	ATP synthase, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8h9k__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8h9k__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

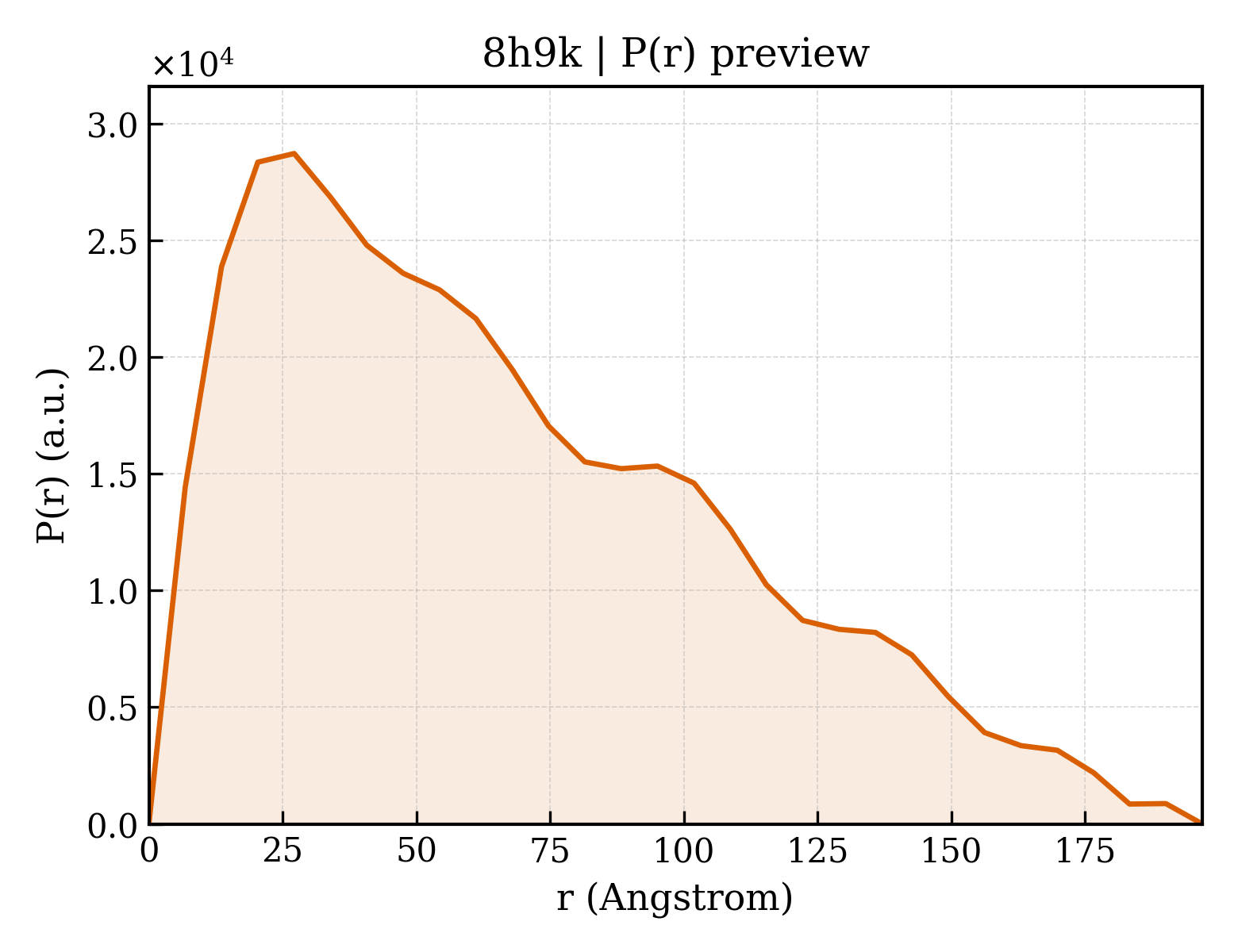

8h9k__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	54.19 Å
Rg (electron density)	57.06 Å
Total Rg	56.03 Å
Atom count	3381
Residues	421
Excluded volume	60509 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8h9k__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ATP synthase F(0) complex subunit B1, mitochondrial
Molecular weight formula_weight	24658.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K
Atom count atom_count	3381

PVPPLPEYGGKVRYGLIPEEFFQFLYPKTGVTGPYVLGTGLILYALSKEIYVISAETFTALSVLGVMVYGIKKYGPFVADFADKLNEQKLAQLEEAKQASIQHIQNAIDTEKSQQALVQKRHYLFDVQRNNIAMALEVTYRERLYRVYKEVKNRLDYHISVQNMMRRKEQEHMINWVEKHVVQSISTQQEKETIAKCIADLKLLAKKAQAQPVM

Entity 2 Entity 2 polymer

Description description	ATP synthase-coupling factor 6, mitochondrial
Molecular weight formula_weight	12606.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MILQRLFRFSSVIRSAVSVHLRRNIGVTAVAFNKELDPIQKLFVDKIREYKSKRQTSGGPVDASSEYQQELERELFKLKQMFGNADMNTFPTFKFEDPKFEVIEKPQA

Entity 3 Entity 3 polymer

Description description	ATP synthase subunit d, mitochondrial
Molecular weight formula_weight	18384.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

AGRKLALKTIDWVAFAEIIPQNQKAIASSLKSWNETLTSRLAALPENPPAIDWAYYKANVAKAGLVDDFEKKFNALKVPVPEDKYTAQVDAEEKEDVKSCAEWVSLSKARIVEYEKEMEKMKNLIPFDQMTIEDLNEAFPETKLDKKKYPYWPHQPIENL

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.51 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	37480
