SAXSdb — 8hd0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cell division ATP-binding protein FtsE

Escherichia coli (strain K12)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Cell division protein FtsX × 2 （P0AC30） Murein hydrolase activator EnvC × 1 （P37690） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FTSE_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–222； UniProt 1–222 Author chain B； PDBConstruct 1–222； UniProt 1–222

Cell division protein FtsX

Escherichia coli (strain K12)

UniProt P0AC30

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Cell division ATP-binding protein FtsE × 2 （P0A9R7） Murein hydrolase activator EnvC × 1 （P37690） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FTSX_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–352； UniProt 1–352 Author chain D； PDBConstruct 1–352； UniProt 1–352

Murein hydrolase activator EnvC

Escherichia coli (strain K12)

UniProt P37690

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Cell division ATP-binding protein FtsE × 2 （P0A9R7） Cell division protein FtsX × 2 （P0AC30） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ENVC_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–419； UniProt 1–419

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8hd0
Deposition date deposition_date	2022-11-03
Last revision last_revision	2023-11-08
Structure title title	Cell divisome sPG hydrolysis machinery FtsEX-EnvC
Keywords keywords	bacterial cell divison, divisome PG hydrolysis, ABC transporter, Regulator, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8hd0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8hd0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

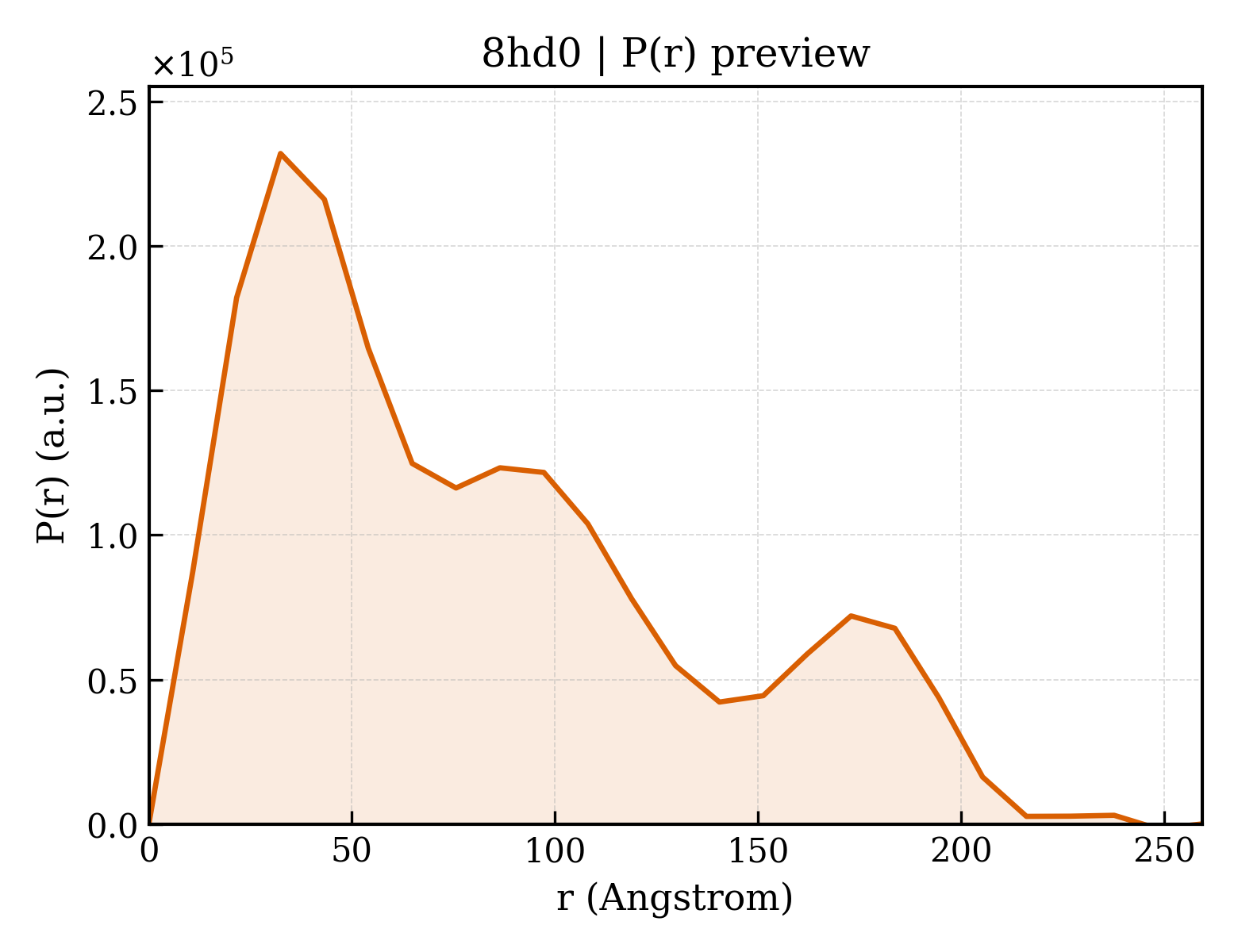

8hd0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	65.47 Å
Rg (electron density)	66.17 Å
Total Rg	64.70 Å
Atom count	9076
Residues	1414
Excluded volume	157970 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8hd0__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Cell division ATP-binding protein FtsE
Molecular weight formula_weight	24475.3 kDa
Mutation mutation	E163Q
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9096

MIRFEHVSKAYLGGRQALQGVTFHMQPGEMAFLTGHSGAGKSTLLKLICGIERPSAGKIWFSGHDITRLKNREVPFLRRQIGMIFQDHHLLMDRTVYDNVAIPLIIAGASGDDIRRRVSAALDKVGLLDKAKNFPIQLSGGEQQRVGIARAVVNKPAVLLADQPTGNLDDALSEGILRLFEEFNRVGVTVLMATHDINLISRRSYRMLTLSDGHLHGGVGHE

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Cell division protein FtsX
Molecular weight formula_weight	38583.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MNKRDAINHIRQFGGRLDRFRKSVGGSGDGGRNAPKRAKSSPKPVNRKTNVFNEQVRYAFHGALQDLKSKPFATFLTVMVIAISLTLPSVCYMVYKNVNQAATQYYPSPQITVYLQKTLDDDAAAGVVAQLQAEQGVEKVNYLSREDALGEFRNWSGFGGALDMLEENPLPAVAVVIPKLDFQGTESLNTLRDRITQINGIDEVRMDDSWFARLAALTGLVGRVSAMIGVLMVAAVFLVIGNSVRLSIFARRDSINVQKLIGATDGFILRPFLYGGALLGFSGALLSLILSEILVLRLSSAVAEVAQVFGTKFDINGLSFDECLLLLLVCSMIGWVAAWLATVQHLRHFTPE

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Murein hydrolase activator EnvC
Molecular weight formula_weight	46661.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MTRAVKPRRFAIRPIIYASVLSAGVLLCAFSAHADERDQLKSIQADIAAKERAVRQKQQQRASLLAQLKKQEEAISEATRKLRETQNTLNQLNKQIDEMNASIAKLEQQKAAQERSLAAQLDAAFRQGEHTGIQLILSGEESQRGQRLQAYFGYLNQARQETIAQLKQTREEVAMQRAELEEKQSEQQTLLYEQRAQQAKLTQALNERKKTLAGLESSIQQGQQQLSELRANESRLRNSIARAEAAAKARAEREAREAQAVRDRQKEATRKGTTYKPTESEKSLMSRTGGLGAPRGQAFWPVRGPTLHRYGEQLQGELRWKGMVIGASEGTEVKAIADGRVILADWLQGYGLVVVVEHGKGDMSLYGYNQSALVSVGSQVRAGQPIALVGSSGGQGRPSLYFEIRRQGQAVNPQPWLGR

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.11 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	1455436
