SAXSdb — 8w6j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cell division ATP-binding protein FtsE

Escherichia coli K-12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Cell division protein FtsX × 2 （P0AC30） Murein hydrolase activator EnvC × 1 （P37690） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FTSE_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–222； UniProt 1–222 Author chain D； PDBConstruct 1–222； UniProt 1–222

Cell division protein FtsX

Escherichia coli K-12

UniProt P0AC30

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Cell division ATP-binding protein FtsE × 2 （P0A9R7） Murein hydrolase activator EnvC × 1 （P37690） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FTSX_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–352； UniProt 1–352 Author chain C； PDBConstruct 1–352； UniProt 1–352

Murein hydrolase activator EnvC

Escherichia coli K-12

UniProt P37690

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Cell division ATP-binding protein FtsE × 2 （P0A9R7） Cell division protein FtsX × 2 （P0AC30） ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ENVC_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–419； UniProt 1–419

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8w6j
Deposition date deposition_date	2023-08-29
Structure title title	Cryo-EM structure of Escherichia coli Str K12 FtsE(E163Q)X/EnvC complex with ATP in peptidisc
Keywords keywords	complex, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8w6j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8w6j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

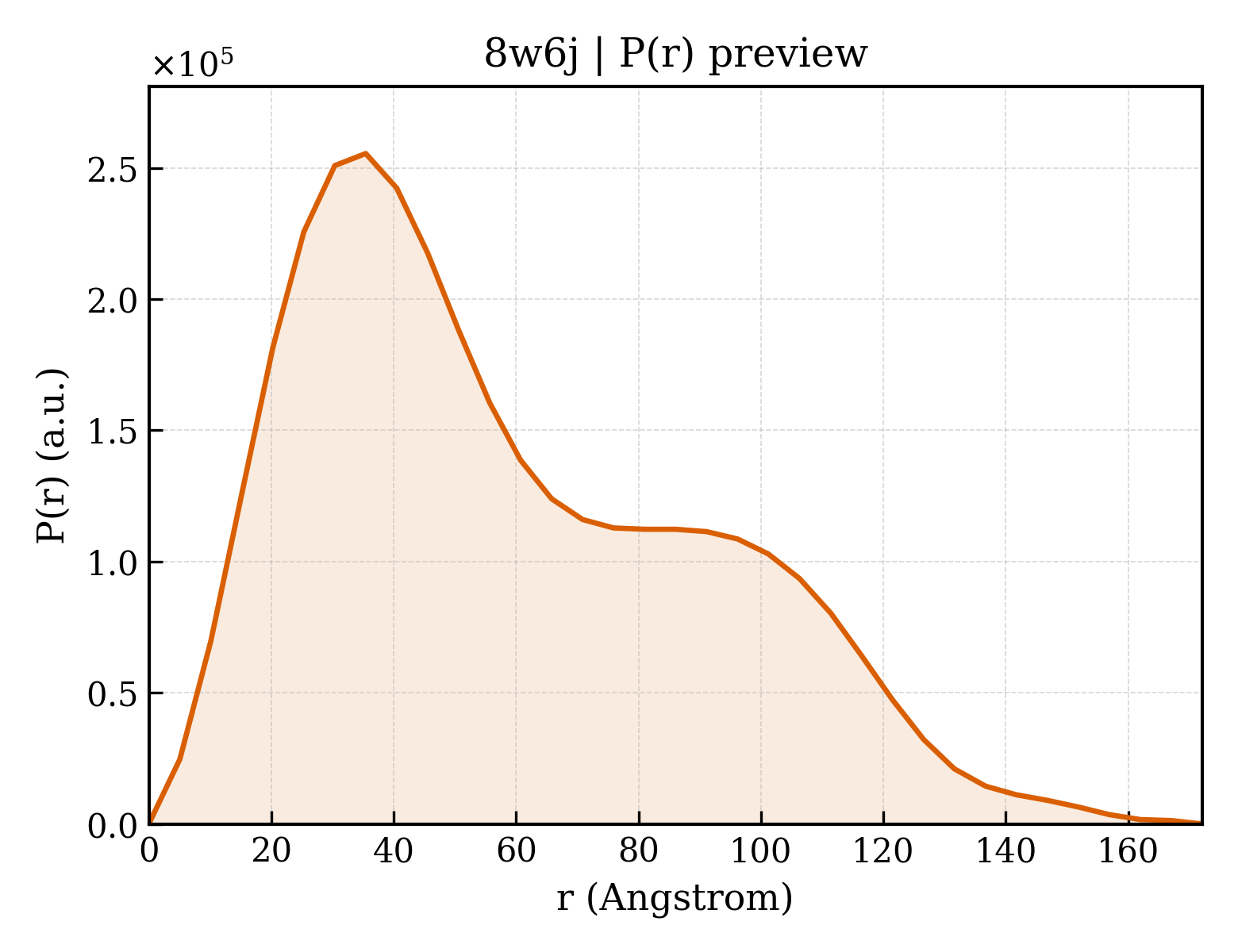

8w6j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.24 Å
Rg (electron density)	46.13 Å
Total Rg	45.78 Å
Atom count	8553
Residues	1127
Excluded volume	153090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8w6j__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Cell division ATP-binding protein FtsE
Molecular weight formula_weight	24475.3 kDa
Mutation mutation	E163Q
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D
Atom count atom_count	8553

MIRFEHVSKAYLGGRQALQGVTFHMQPGEMAFLTGHSGAGKSTLLKLICGIERPSAGKIWFSGHDITRLKNREVPFLRRQIGMIFQDHHLLMDRTVYDNVAIPLIIAGASGDDIRRRVSAALDKVGLLDKAKNFPIQLSGGEQQRVGIARAVVNKPAVLLADQPTGNLDDALSEGILRLFEEFNRVGVTVLMATHDINLISRRSYRMLTLSDGHLHGGVGHE

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 polymer

Description description	Cell division protein FtsX
Molecular weight formula_weight	38583.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C

MNKRDAINHIRQFGGRLDRFRKSVGGSGDGGRNAPKRAKSSPKPVNRKTNVFNEQVRYAFHGALQDLKSKPFATFLTVMVIAISLTLPSVCYMVYKNVNQAATQYYPSPQITVYLQKTLDDDAAAGVVAQLQAEQGVEKVNYLSREDALGEFRNWSGFGGALDMLEENPLPAVAVVIPKLDFQGTESLNTLRDRITQINGIDEVRMDDSWFARLAALTGLVGRVSAMIGVLMVAAVFLVIGNSVRLSIFARRDSINVQKLIGATDGFILRPFLYGGALLGFSGALLSLILSEILVLRLSSAVAEVAQVFGTKFDINGLSFDECLLLLLVCSMIGWVAAWLATVQHLRHFTPE

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 Entity 3 polymer

Description description	Murein hydrolase activator EnvC
Molecular weight formula_weight	46661.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MTRAVKPRRFAIRPIIYASVLSAGVLLCAFSAHADERDQLKSIQADIAAKERAVRQKQQQRASLLAQLKKQEEAISEATRKLRETQNTLNQLNKQIDEMNASIAKLEQQKAAQERSLAAQLDAAFRQGEHTGIQLILSGEESQRGQRLQAYFGYLNQARQETIAQLKQTREEVAMQRAELEEKQSEQQTLLYEQRAQQAKLTQALNERKKTLAGLESSIQQGQQQLSELRANESRLRNSIARAEAAAKARAEREAREAQAVRDRQKEATRKGTTYKPTESEKSLMSRTGGLGAPRGQAFWPVRGPTLHRYGEQLQGELRWKGMVIGASEGTEVKAIADGRVILADWLQGYGLVVVVEHGKGDMSLYGYNQSALVSVGSQVRAGQPIALVGSSGGQGRPSLYFEIRRQGQAVNPQPWLGR

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	182732

Cryo-EM structure of Escherichia coli Str K12 FtsE(E163Q)X/EnvC complex with ATP in peptidisc
