8hsr

Thermus thermophilus Rho-engaged RNAP elongation complex (composite structure)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription termination factor Rho

Thermus thermophilus HB8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 DNA 2 RNA 1	DNA-directed RNA polymerase subunit alpha × 2 （Q5SHR6） DNA-directed RNA polymerase subunit beta × 1 （Q8RQE9） ;DNA-directed RNA polymerase subunit beta' ; × 1 （Q8RQE8） DNA-directed RNA polymerase subunit omega × 1 （Q8RQE7） DNA (41-MER) × 1 RNA (29-MER) × 1 DNA (31-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 6 MAGNESIUM ION × 7 BERYLLIUM TRIFLUORIDE ION × 6 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5SJE9_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–428； UniProt 1–426 Author chain B； PDBConstruct 3–428； UniProt 1–426 Author chain C； PDBConstruct 3–428； UniProt 1–426 Author chain D； PDBConstruct 3–428； UniProt 1–426 Author chain E； PDBConstruct 3–428； UniProt 1–426 Author chain F； PDBConstruct 3–428； UniProt 1–426

DNA-directed RNA polymerase subunit alpha

Thermus thermophilus HB8

UniProt Q5SHR6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 DNA 2 RNA 1	Transcription termination factor Rho × 6 （Q5SJE9） DNA-directed RNA polymerase subunit beta × 1 （Q8RQE9） ;DNA-directed RNA polymerase subunit beta' ; × 1 （Q8RQE8） DNA-directed RNA polymerase subunit omega × 1 （Q8RQE7） DNA (41-MER) × 1 RNA (29-MER) × 1 DNA (31-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 6 MAGNESIUM ION × 7 BERYLLIUM TRIFLUORIDE ION × 6 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOA_THET8
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–315； UniProt 1–315 Author chain H； PDBConstruct 1–315； UniProt 1–315

DNA-directed RNA polymerase subunit beta

Thermus thermophilus HB8

UniProt Q8RQE9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 DNA 2 RNA 1	Transcription termination factor Rho × 6 （Q5SJE9） DNA-directed RNA polymerase subunit alpha × 2 （Q5SHR6） ;DNA-directed RNA polymerase subunit beta' ; × 1 （Q8RQE8） DNA-directed RNA polymerase subunit omega × 1 （Q8RQE7） DNA (41-MER) × 1 RNA (29-MER) × 1 DNA (31-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 6 MAGNESIUM ION × 7 BERYLLIUM TRIFLUORIDE ION × 6 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOB_THET8
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain I； PDBConstruct 1–1119； UniProt 1–1119

;DNA-directed RNA polymerase subunit beta' ;

Thermus thermophilus HB8

UniProt Q8RQE8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 DNA 2 RNA 1	Transcription termination factor Rho × 6 （Q5SJE9） DNA-directed RNA polymerase subunit alpha × 2 （Q5SHR6） DNA-directed RNA polymerase subunit beta × 1 （Q8RQE9） DNA-directed RNA polymerase subunit omega × 1 （Q8RQE7） DNA (41-MER) × 1 RNA (29-MER) × 1 DNA (31-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 6 MAGNESIUM ION × 7 BERYLLIUM TRIFLUORIDE ION × 6 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOC_THET8
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain J； PDBConstruct 1–1524； UniProt 1–1524

DNA-directed RNA polymerase subunit omega

Thermus thermophilus HB8

UniProt Q8RQE7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 DNA 2 RNA 1	Transcription termination factor Rho × 6 （Q5SJE9） DNA-directed RNA polymerase subunit alpha × 2 （Q5SHR6） DNA-directed RNA polymerase subunit beta × 1 （Q8RQE9） ;DNA-directed RNA polymerase subunit beta' ; × 1 （Q8RQE8） DNA (41-MER) × 1 RNA (29-MER) × 1 DNA (31-MER) × 1 ADENOSINE-5'-DIPHOSPHATE × 6 MAGNESIUM ION × 7 BERYLLIUM TRIFLUORIDE ION × 6 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOZ_THET8
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain K； PDBConstruct 1–99； UniProt 1–99

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8hsr
Deposition date deposition_date	2022-12-20
Structure title title	Thermus thermophilus Rho-engaged RNAP elongation complex (composite structure)
Keywords keywords	Transcription elongation complex, Transcription termination, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8hsr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8hsr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

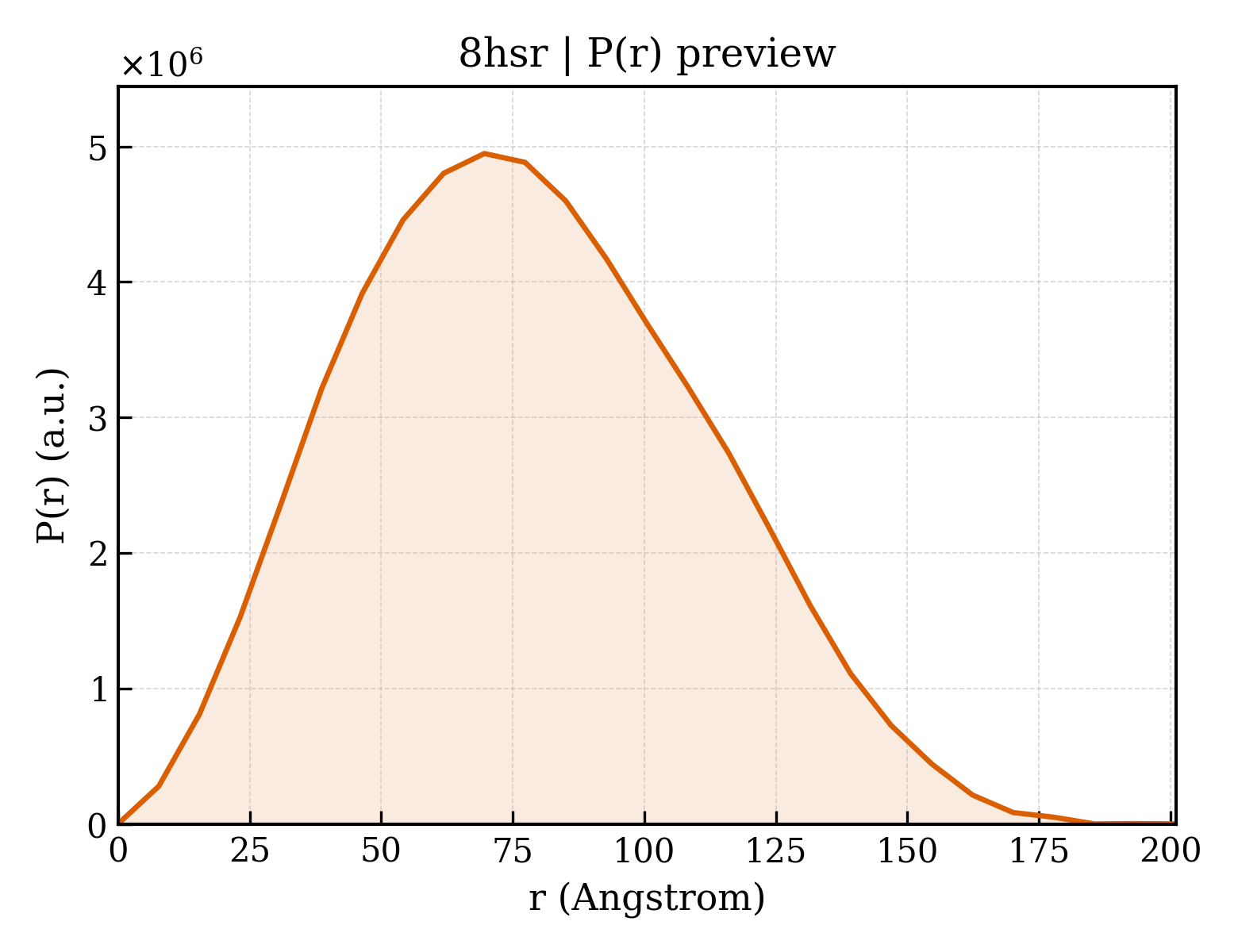

8hsr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	60.00 Å
Rg (electron density)	60.05 Å
Total Rg	59.96 Å
Atom count	42577
Residues	5238
Excluded volume	754360 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8hsr__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Description description	Transcription termination factor Rho
Molecular weight formula_weight	47996.3 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	42577

GPMRRKETLQETPLTYQELASKILPELHLLAQEAGIEGYKRMKKDQLIMALLERQTQGEGLRLVKGYLEISQDGYGFLTENLHNLESRVAIVSAGLIKQYALRAGDYVVGQARPPRENERYATLLKVEAVNNLDPEAAKNRPRFDELTPQFPDRQIRLETTPDELSTRVIDLLAPIGRGQRGLIVAPPKAGKTTLLKKIANAVLKNEPDIKVIVLLIDERPEEVTDFRESVQGAEVIASTFDEPPQNHIRVAEFVHERAKRIVEEGGHVMILLDSITRLARANNLVTPPTGRTLSGGLDSAALYFPKRFLGAARNIRGGGSLTILATALVETGSRMDDVIFEEFKGTGNMELHLSRRLEERRIFPAIDILKSGTRREELLLGEEVTHKMWLLRKVLADMDPAEAMEMLLARLARTKNNKEFLASLAAR

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	DNA-directed RNA polymerase subunit alpha
Molecular weight formula_weight	35056.2 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

MLDSKLKAPVFTVRTQGREYGEFVLEPLERGFGVTLGNPLRRILLSSIPGTAVTSVYIEDVLHEFSTIPGVKEDVVEIILNLKELVVRFLNPSLQTVTLLLKAEGPKEVKARDFLPVADVEIMNPDLHIATLEEGGRLNMEVRVDRGVGYVPAEKHGIKDRINAIPVDAVFSPVRRVAFQVEDTRLGQRTDLDKLTLRIWTDGSVTPLEALNQAVEILREHLTYFSNPQAAAVAAPEEAKEPEAPPEQEEELDLPLEELGLSTRVLHSLKEEGIESVRALLALNLKDLKNIPGIGERSLEEIKEALEKKGFTLKE

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	125436.5 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MEIKRFGRIREVIPLPPLTEIQVESYRRALQADVPPEKRENVGIQAAFRETFPIEEEDKGKGGLVLDFLEYRLGEPPFPQDECREKDLTYQAPLYARLQLIHKDTGLIKEDEVFLGHIPLMTEDGSFIINGADRVIVSQIHRSPGVYFTPDPARPGRYIASIIPLPKRGPWIDLEVEPNGVVSMKVNKRKFPLVLLLRVLGYDQETLARELGAYGELVQGLMDESVFAMRPEEALIRLFTLLRPGDPPKRDKAVAYVYGLIADPRRYDLGEAGRYKAEEKLGIRLSGRTLARFEDGEFKDEVFLPTLRYLFALTAGVPGHEVDDIDHLGNRRIRTVGELMTDQFRVGLARLARGVRERMLMGSEDSLTPAKLVNSRPLEAAIREFFSRSQLSQFKDETNPLSSLRHKRRISALGPGGLTRERAGFDVRDVHRTHYGRICPVETPEGANIGLITSLAAYARVDELGFIRTPYRRVVGGVVTDEVVYMTATEEDRYTIAQANTPLEGNRIAAERVVARRKGEPVIVSPEEVEFMDVSPKQVFSVNTNLIPFLEHDDANRALMGSNMQTQAVPLIRAQAPVVMTGLEERVVRDSLAALYAEEDGEVAKVDGNRIVVRYEDGRLVEYPLRRFYRSNQGTALDQRPRVVVGQRVRKGDLLADGPASENGFLALGQNVLVAIMPFDGYNFEDAIVISEELLKRDFYTSIHIERYEIEARDTKLGPERITRDIPHLSEAALRDLDEEGVVRIGAEVKPGDILVGRTSFKGESEPTPEERLLRSIFGEKARDVKDTSLRVPPGEGGIVVRTVRLRRGDPGVELKPGVREVVRVYVAQKRKLQVGDKLANRHGNKGVVAKILPVEDMPHLPDGTPVDVILNPLGVPSRMNLGQILETHLGLAGYFLGQRYISPIFDGAKEPEIKELLAQAFEVYFGKRKGEGFGVDKREVEVLRRAEKLGLVTPGKTPEEQLKELFLQGKVVLYDGRTGEPIEGPIVVGQMFIMKLYHMVEDKMHARSTGPYSLITQQPLGGKAQFGGQRFGEMEVWALEAYGAAHTLQEMLTLKSDDIEGRNAAYEAIIKGEDVPEPSVPESFRVLVKELQALALDVQTLDEKDNPVDIFEGLASKR

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	;DNA-directed RNA polymerase subunit beta' ;
Molecular weight formula_weight	171994.4 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

MKKEVRKVRIALASPEKIRSWSYGEVEKPETINYRTLKPERDGLFDERIFGPIKDYECACGKYKRQRFEGKVCERCGVEVTKSIVRRYRMGHIELATPAAHIWFVKDVPSKIGTLLDLSATELEQVLYFSKYIVLDPKGAILNGVPVEKRQLLTDEEYRELRYGKQETYPLPPGVDALVKDGEEVVKGQELAPGVVSRLDGVALYRFPRRVRVEYVKKERAGLRLPLAAWVEKEAYKPGEILAELPEPYLFRAEEEGVVELKELEEGAFLVLRREDEPVATYFLPVGMTPLVVHGEIVEKGQPLAEAKGLLRMPRQVRAAQVEAEEEGETVYLTLFLEWTEPKDYRVQPHMNVVVPEGARVEAGDKIVAAIDPEEEVIAEAEGVVHLHEPASILVVKARVYPFEDDVEVSTGDRVAPGDVLADGGKVKSDVYGRVEVDLVRNVVRVVESYDIDARMGAEAIQQLLKELDLEALEKELLEEMKHPSRARRAKARKRLEVVRAFLDSGNRPEWMILEAVPVLPPDLRPMVQVDGGRFATSDLNDLYRRLINRNNRLKKLLAQGAPEIIIRNEKRMLQEAVDALLDNGRRGAPVTNPGSDRPLRSLTDILSGKQGRFRQNLLGKRVDYSGRSVIVVGPQLKLHQCGLPKRMALELFKPFLLKKMEEKGIAPNVKAARRMLERQRDIKDEVWDALEEVIHGKVVLLNRAPTLHRLGIQAFQPVLVEGQSIQLHPLVCEAFNADFDGDQMAVHVPLSSFAQAEARIQMLSAHNLLSPASGEPLAKPSRDIILGLYYITQVRKEKKGAGLEFATPEEALAAHERGEVALNAPIKVAGRETSVGRLKYVFANPDEALLAVAHGIVDLQDVVTVRYMGKRLETSPGRILFARIVAEAVEDEKVAWELIQLDVPQEKNSLKDLVYQAFLRLGMEKTARLLDALKYYGFTFSTTSGITIGIDDAVIPEEKKQYLEEADRKLLQIEQAYEMGFLTDRERYDQILQLWTETTEKVTQAVFKNFEENYPFNPLYVMAQSGARGNPQQIRQLCGLRGLMQKPSGETFEVPVRSSFREGLTVLEYFISSHGARKGGADTALRTADSGYLTRKLVDVTHEIVVREADCGTTNYISVPLFQPDEVTRSLRLRKRADIEAGLYGRVLAREVEVLGVRLEEGRYLSMDDVHLLIKAAEAGEIQEVPVRSPLTCQTRYGVCQKCYGYDLSMARPVSIGEAVGIVAAQSIGEPGTQLTMRTFHTGGVAGAADITQGLPRVIELFEARRPKAKAVISEIDGVVRIEETEEKLSVFVESEGFSKEYKLPKEARLLVKDGDYVEAGQPLTRGAIDPHQLLEAKGPEAVERYLVEEIQKVYRAQGVKLHDKHIEIVVRQMMKYVEVTDPGDSRLLEGQVLEKWDVEALNERLIAEGKTPVAWKPLLMGVTKSALSTKSWLSAASFQNTTHVLTEAAIAGKKDELIGLKENVILGRLIPAGTGSDFVRFTQVVDQKTLKAIEEARKEAVEAKERPAARRGVKREQPGKQADYKDDDDK

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	DNA-directed RNA polymerase subunit omega
Molecular weight formula_weight	11533.3 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MAEPGIDKLFGMVDSKYRLTVVVAKRAQQLLRHGFKNTVLEPEERPKMQTLEGLFDDPNAVTWAMKELLTGRLVFGENLVPEDRLQKEMERLYPVEREE

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 polymer

Description description	DNA (41-MER)
Molecular weight formula_weight	57785.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T

GAACGCATTACCAGAGAATTCACGGGAAAGTCGACAGGGATCGGTGCACTACCACAAGCACCCAGGTGGATGTGGAGATATGGTTATGGGTAAGATAGATGGTGAGGTGATGAGTTTAAAGGAGTGAAGTATGGAGTGAAGAGAGATGGGTAGATAGTAGTTGAGTAGGGAGTGAAGTCCTGCA

Entity 7 Entity 7 polymer

Description description	RNA (29-MER)
Molecular weight formula_weight	39054.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	R

AAUUUGCAGGACUUCACUCCCUACUCAACUACUAUCUACCCAUCUCUCUUCACUCCAUACUUCACUCCUUUAAACUCAUCACCUCACCAUCUAUCUUACCCAUAACCAUAUCUCCACAUCCACCU

Entity 8 Entity 8 polymer

Description description	DNA (31-MER)
Molecular weight formula_weight	54576.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	N

GGACTTCACTCCCTACTCAACTACTATCTACCCATCTCTCTTCACTCCATACTTCACTCCTTTAAACTCATCACCTCACCATCTATCTTACCCATAACCATATCTCCACATCCACCTGGGTGCTTGTGGTAGTGCACCGATCCCTGTCGACTTTCCCGTGAATTCTCTGGTAATGCGTTC

Entity 9 Entity 9 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 10 Entity 10 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 11 Entity 11 non-polymer

Description description	BERYLLIUM TRIFLUORIDE ION
Molecular weight formula_weight	66.0 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 12 Entity 12 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id	8hsrG01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	8hsrH01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	8hsrI01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1110 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; domain 3
Homologous superfamily homologous superfamily	10 — RNA polymerase Rpb2, domain 2

Domain ID domain_id	8hsrI02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	150 — RNA polymerase II, Rpb2 subunit, wall domain

Domain ID domain_id	8hsrJ01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	274 — Enzyme I; Chain A, domain 2
Homologous superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	43245

Thermus thermophilus Rho-engaged RNAP elongation complex (composite structure)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription termination factor Rho

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

;DNA-directed RNA polymerase subunit beta' ;

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase subunit omega

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8hsr__assembly_1__model_1

8hsr__assembly_1__model_1 | I(q)

8hsr__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 polymer

Polymer Polymer

Source Source

Entity 6 Entity 6 polymer

Polymer Polymer

Entity 7 Entity 7 polymer

Polymer Polymer

Entity 8 Entity 8 polymer

Polymer Polymer

Entity 9 Entity 9 non-polymer

Entity 10 Entity 10 non-polymer

Entity 11 Entity 11 non-polymer

Entity 12 Entity 12 non-polymer

6. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

7. Citations (1)
