SAXSdb — 8i4u

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Structural maintenance of chromosomes protein 5

Saccharomyces cerevisiae S288C

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Structural maintenance of chromosomes protein 6 × 1 （Q12749） E3 SUMO-protein ligase MMS21 × 1 （P38632）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMC5_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1093； UniProt 1–1093

Structural maintenance of chromosomes protein 6

Saccharomyces cerevisiae S288C

UniProt Q12749

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Structural maintenance of chromosomes protein 5 × 1 （Q08204） E3 SUMO-protein ligase MMS21 × 1 （P38632）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMC6_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–1114； UniProt 1–1114

E3 SUMO-protein ligase MMS21

Saccharomyces cerevisiae S288C

UniProt P38632

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Structural maintenance of chromosomes protein 5 × 1 （Q08204） Structural maintenance of chromosomes protein 6 × 1 （Q12749）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NSE2_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–267； UniProt 1–267

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8i4u
Deposition date deposition_date	2023-01-21
Structure title title	Cryo-EM structure of 5-subunit Smc5/6 hinge region
Keywords keywords	CELL CYCLE; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8i4u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

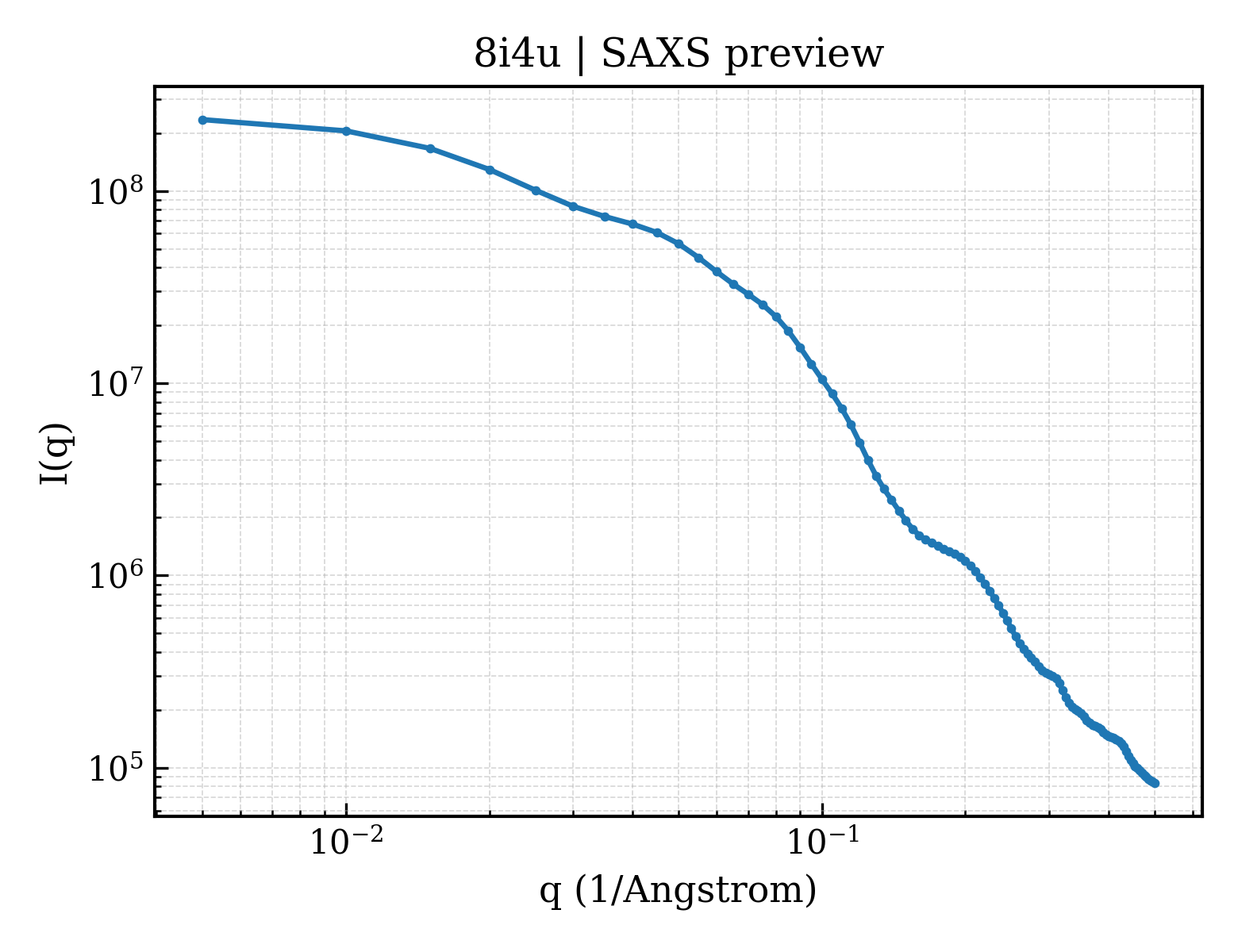

8i4u__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

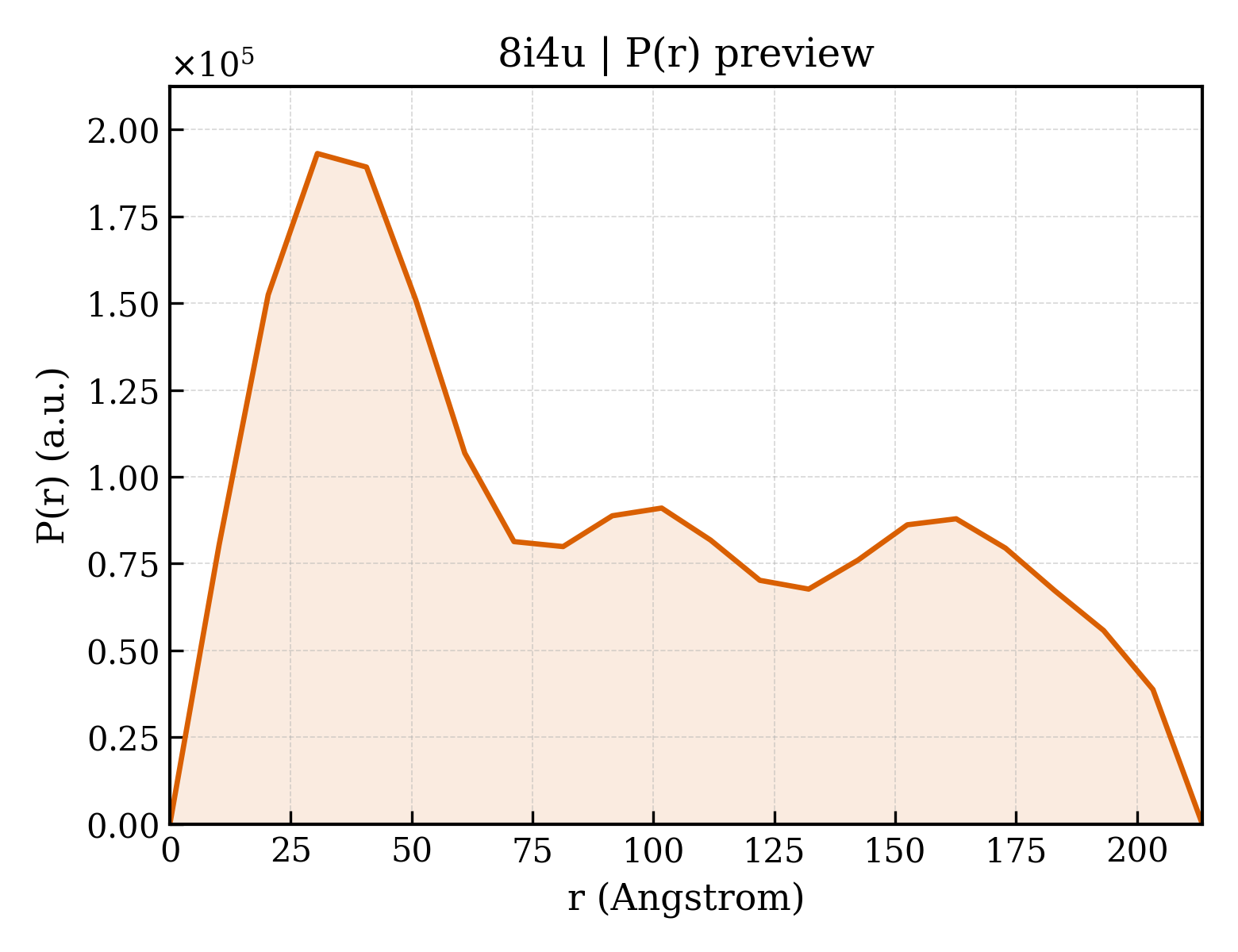

8i4u__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	73.64 Å
Rg (electron density)	75.69 Å
Total Rg	75.06 Å
Atom count	18058
Residues	1108
Excluded volume	159090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8i4u__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Structural maintenance of chromosomes protein 5
Molecular weight formula_weight	126237.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	18058

MTSLIDLGRYVERTHHGEDTEPRSKRVKIAKPDLSSFQPGSIIKIRLQDFVTYTLTEFNLSPSLNMIIGPNGSGKSTFVCAVCLGLAGKPEYIGRSKKVEDFIKNGQDVSKIEITLKNSPNVTDIEYIDARDETIKITRIITRSKRRSDYLINDYQVSESVVKTLVAQLNIQLDNLCQFLSQERVEEFARLKSVKLLVETIRSIDASLLDVLDELRELQGNEQSLQKDLDFKKAKIVHLRQESDKLRKSVESLRDFQNKKGEIELHSQLLPYVKVKDHKEKLNIYKEEYERAKANLRAILKDKKPFANTKKTLENQVEELTEKCSLKTDEFLKAKEKINEIFEKLNTIRDEVIKKKNQNEYYRGRTKKLQATIISTKEDFLRSQEILAQTHLPEKSVFEDIDIKRKEIINKEGEIRDLISEIDAKANAINHEMRSIQRQAESKTKSLTTTDKIGILNQDQDLKEVRDAVLMVREHPEMKDKILEPPIMTVSAINAQFAAYLAQCVDYNTSKALTVVDSDSYKLFANPILDKFKVNLRELSSADTTPPVPAETVRDLGFEGYLSDFITGDKRVMKMLCQTSKIHTIPVSRRELTPAQIKKLITPRPNGKILFKRIIHGNRLVDIKQSAYGSKQVFPTDVSIKQTNFYQGSIMSNEQKIRIENEIINLKNEYNDRKSTLDALSNQKSGYRHELSELASKNDDINREAHQLNEIRKKYTMRKSTIETLREKLDQLKREARKDVSQKIKDIDDQIQQLLLKQRHLLSKMASSMKSLKNCQKELISTQILQFEAQNMDVSMNDVIGFFNEREADLKSQYEDKKKFVKEMRDTPEFQSWMREIRSYDQDTKEKLNKVAEKYEEEGNFNLSFVQDVLDKLESEIAMVNHDESAVTILDQVTAELRELEHTVPQQSKDLETIKAKLKEDHAVLEPKLDDIVSKISARFARLFNNVGSAGAVRLEKPKDYAEWKIEIMVKFRDNAPLKKLDSHTQSGGERAVSTVLYMIALQEFTSAPFRVVDEINQGMDSRNERIVHKAMVENACAENTSQYFLITPKLLTGLHYHEKMRIHCVMAGSWIPNPSEDPKMIHFGETSNYSFD

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Structural maintenance of chromosomes protein 6
Molecular weight formula_weight	128199.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MISTTISGKRPIEQVDDELLSLTAQQENEEQQQQRKRRRHQFAPMTQFNSNTLDEDSGFRSSSDVATADQDNFLEESPSGYIKKVILRNFMCHEHFELELGSRLNFIVGNNGSGKSAILTAITIGLGAKASETNRGSSLKDLIREGCYSAKIILHLDNSKYGAYQQGIFGNEIIVERIIKRDGPASFSLRSENGKEISNKKKDIQTVVDYFSVPVSNPMCFLSQDAARSFLTASTSQDKYSHFMKGTLLQEITENLLYASAIHDSAQENMALHLENLKSLKAEYEDAKKLLRELNQTSDLNERKMLLQAKSLWIDVAHNTDACKNLENEISGIQQKVDEVTEKIRNRQEKIERYTSDGTTIEAQIDAKVIYVNEKDSEHQNARELLRDVKSRFEKEKSNQAEAQSNIDQGRKKVDALNKTIAHLEEELTKEMGGDKDQMRQELEQLEKANEKLREVNNSLVVSLQDVKNEERDIQHERESELRTISRSIQNKKVELQNIAKGNDTFLMNFDRNMDRLLRTIEQRKNEFETPAIGPLGSLVTIRKGFEKWTRSIQRAISSSLNAFVVSNPKDNRLFRDIMRSCGIRSNIPIVTYCLSQFDYSKGRAHGNYPTIVDALEFSKPEIECLFVDLSRIERIVLIEDKNEARNFLQRNPVNVNMALSLRDRRSGFQLSGGYRLDTVTYQDKIRLKVNSSSDNGTQYLKDLIEQETKELQNIRDRYEEKLSEVRSRLKEIDGRLKSTKNEMRKTNFRMTELKMNVGKVVDTGILNSKINERKNQEQAIASYEAAKEELGLKIEQIAQEAQPIKEQYDSTKLALVEAQDELQQLKEDINSRQSKIQKYKDDTIYYEDKKKVYLENIKKIEVNVAALKEGIQRQIQNACAFCSKERIENVDLPDTQEEIKRELDKVSRMIQKAEKSLGLSQEEVIALFEKCRNKYKEGQKKYMEIDEALNRLHNSLKARDQNYKNAEKGTCFDADMDFRASLKVRKFSGNLSFIKDTKSLEIYILTTNDEKARNVDTLSGGEKSFSQMALLLATWKPMRSRIIALDEFDVFMDQVNRKIGTTLIVKKLKDIARTQTIIITPQDIGKIADIDSSGVSIHRMRDPERQNNSNFYN

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	E3 SUMO-protein ligase MMS21
Molecular weight formula_weight	30388.3 kDa
EC 编号 ec_number	2.3.2.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MALNDNPIPKSVPLHPKSGKYFHNLHARDLSNIYQQCYKQIDETINQLVDSTSPSTIGIEEQVADITSTYKLLSTYESESNSFDEHIKDLKKNFKQSSDACPQIDLSTWDKYRTGELTAPKLSELYLNMPTPEPATMVNNTDTLKILKVLPYIWNDPTCVIPDLQNPADEDDLQIEGGKIELTCPITCKPYEAPLISRKCNHVFDRDGIQNYLQGYTTRDCPQAACSQVVSMRDFVRDPIMELRCKIAKMKESQEQDKRSSQAIDVL

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

▶

Resolution resolution	6.73 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	99526
