SAXSdb — 8i9j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA-binding protein E3

Vaccinia virus WR

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 9–70 Chain C； UniProt 96–183	Not recorded	Interferon-induced, double-stranded RNA-activated protein kinase × 1 （P19525）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.1 cryo-EM vitrification conditions：Cryogen NITROGEN	Resolution 6.39 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	E3_VACCW
Isoform	—
PDB entities	1, 3
Chains and sequence ranges	Author chain B； PDBConstruct 1–62； UniProt 9–70 Author chain C； PDBConstruct 1–88； UniProt 96–183

Interferon-induced, double-stranded RNA-activated protein kinase

Homo sapiens

UniProt P19525

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–170	Not recorded	RNA-binding protein E3 × 1 （P21605） RNA-binding protein E3 × 1 （P21605）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.1 cryo-EM vitrification conditions：Cryogen NITROGEN	Resolution 6.39 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8I9J	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1QU6 STRUCTURE OF THE DOUBLE-STRANDED RNA-BINDING DOMAIN OF THE PROTEIN KINASE PKR REVEALS THE MOLECULAR BASIS OF ITS DSRNA-MEDIATED ACTIVATION Deposited 1999-07-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–170（170 aa） Fragment：DSRNA-BINDING N-TERMINAL DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K	Resolution not provided
2A19 PKR kinase domain- eIF2alpha- AMP-PNP complex. Deposited 2005-06-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 258–551（294 aa） Fragment：PKR kinase domain Chain C 258–551（294 aa） Fragment：PKR kinase domain	Mutation：DEL(338-350) Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：DEL(338-350) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å R-free 0.286
2A1A PKR kinase domain-eIF2alpha Complex Deposited 2005-06-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 258–551（294 aa）	Mutation：residue 3-175 Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8	Resolution 2.80 Å R-free 0.268
3UIU Crystal structure of Apo-PKR kinase domain Deposited 2011-11-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 254–551（298 aa） Fragment：PROTEIN KINASE DOMAIN, UNP RESIDUES 254-551	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；20% PEG 3350, 0.2M NaF, 0.1M MES pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.90 Å R-free 0.305
3UIU Crystal structure of Apo-PKR kinase domain Deposited 2011-11-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 254–551（298 aa） Fragment：PROTEIN KINASE DOMAIN, UNP RESIDUES 254-551	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；20% PEG 3350, 0.2M NaF, 0.1M MES pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.90 Å R-free 0.305
6D3K Crystal structure of unphosphorylated human PKR kinase domain in complex with ADP Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 229–551（323 aa） Fragment：kinase domain (229-551) Chain B 229–551（323 aa） Fragment：kinase domain (229-551)	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 2 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH 7.5, 6% v/v PEG400, 2.0 M ammonium sulfate, protein was complexed with AMP-PNP and Mg2+ prior to crystallization	Resolution 2.60 Å R-free 0.266
6D3K Crystal structure of unphosphorylated human PKR kinase domain in complex with ADP Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 229–551（323 aa） Fragment：kinase domain (229-551) Chain C 229–551（323 aa） Fragment：kinase domain (229-551)	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 3 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH 7.5, 6% v/v PEG400, 2.0 M ammonium sulfate, protein was complexed with AMP-PNP and Mg2+ prior to crystallization	Resolution 2.60 Å R-free 0.266
6D3L Crystal structure of unphosphorylated human PKR Deposited 2018-04-16	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 229–551（323 aa） Fragment：kinase domain (229-551)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1 M Bis-Tris, pH 5.5, 2.0 M ammonium sulfate, 1:3 molar ratio of dp8 (heparin) was added to protein prior to crystallization	Resolution 3.10 Å R-free 0.347
6D3L Crystal structure of unphosphorylated human PKR Deposited 2018-04-16	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 229–551（323 aa） Fragment：kinase domain (229-551)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1 M Bis-Tris, pH 5.5, 2.0 M ammonium sulfate, 1:3 molar ratio of dp8 (heparin) was added to protein prior to crystallization	Resolution 3.10 Å R-free 0.347
6NPY Cryo-EM structure of NLRP3 bound to NEK7 Deposited 2019-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 260–266（7 aa）	Mutation：L54R,V58K,P59T,K87A,A99V,S100C,E103T,D104G	ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7OBK Crystal structure of 14-3-3 sigma in complex with PKR phosphopeptide Deposited 2021-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 541–551（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.095 M Hepes pH7.3, 25%PEG 400, 0.19 M CaCl2 and 5 % Glycerol	Resolution 1.80 Å R-free 0.183
7OBL Crystal structure of 14-3-3 sigma in complex with PKR phosphopeptide and stabilizer Fusicoccin-A Deposited 2021-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 541–551（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FSC FUSICOCCIN × 2 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.095 M Hepes pH7.3, 25%PEG 400, 0.19 M CaCl2 and 5 % Glycerol	Resolution 1.80 Å R-free 0.239
8BI7 Binary structure of 14-3-3s and PKR phosphopeptide Deposited 2022-11-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 541–551（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M Hepes pH 7.1, 0.19 M CaCl2, 25% PEG400, 5% glycerol	Resolution 1.40 Å R-free 0.188
8IZN Structural study of Interferon-induced, double-stranded RNA-activated protein kinase (PKR) and Non-structural protein 1 (NS1) complex Deposited 2023-04-07	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–170（170 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 6.67 Å
8QEL PKR kinase domain- eIF2alpha in complex with compound Deposited 2023-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 258–337（80 aa） Chain B 357–541（185 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	UH3 (3~{Z})-3-[(4-methyl-1~{H}-imidazol-5-yl)methylidene]-2-oxidanylidene-1~{H}-indole-5-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M MOPS pH 7.5, 10% PEG 8000, 0.2 M magnesium acetate	Resolution 2.45 Å R-free 0.278

12 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	E2AK2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 6–175； UniProt 1–170

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8i9j
Deposition date deposition_date	2023-02-07
Structure title title	The PKR and E3L complex
Keywords keywords	E3L, PKR, Vaccinia Virus, VIRAL PROTEIN-TRANSFERASE complex; VIRAL PROTEIN/TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.10 Å
Radius of gyration Rg (electron density) rg_electron	33.23 Å
Forward intensity I(0) i0	23234800.00
Molecular weight molecular_weight	36599.0 kDa
Excluded volume excluded_volume	45579 Å³
Envelope volume envelope_volume	66073 Å³
Hydration-shell volume shell_volume	19705 Å³
Envelope diameter envelope_diameter	108.8 Å
Shell Rg shell_rg	33.95 Å
Envelope Rg envelope_rg	31.79 Å
Shape Rg shape_rg	33.27 Å
Total Rg total_rg	33.17 Å
Total atoms total_atoms	4446
Residues n_residues	329
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	112.5 Å
Rg (real space) rg_real	33.53 Å
Rg uncertainty (real space) rg_real_error	1.39 Å
I(0) (real space) i0_real	2.3230e+07
I(0) uncertainty (real space) i0_real_error	4.2270e+05
Rg (reciprocal space) rg_reciprocal	33.35 Å
I(0) (reciprocal space) i0_reciprocal	23230000.0000
Solution quality estimate total_estimate	0.7901
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	4
Primary peak position r_peak_primary	37.5 Å
Skewness Skewness skewness	0.428
Kurtosis Kurtosis kurtosis	-0.486
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	508900.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.556; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.749; Smooth: 0.852

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	RNA-binding protein E3
Molecular weight formula_weight	7041.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	4446

RSNAEIVCEAIKTIGIEGATAAQLTRQLNMEKREVNKALYDLQRSAMVYSSDDIPPRWFMTT

来源 Source

来源生物 organism	Vaccinia virus WR
NCBI Class编号 ncbi_taxonomy_id	10254
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Interferon-induced, double-stranded RNA-activated protein kinase
Molecular weight formula_weight	19705.4 kDa
EC 编号 ec_number	2.7.11.1,2.7.10.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

GSHMEMAGDLSAGFFMEELNTYRQKQGVVLKYQELPNSGPPHDRRFTFQVIIDGREFPEGEGRSKKEAKNAAAKLAVEILNKEKKAVSPLLLTTTNSSEGLSMGNYIGLINRIAQKKRLTVNYEQCASGVHGPEGFHYKCKMGQKEYSIGTGSTKQEAKQLAAKLAYLQILSEETGSGC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	RNA-binding protein E3
Molecular weight formula_weight	9916.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

EDHKSFDDVIPAKKIIDWKGANPVTVINEYCQITRRDWSFRIESVGPSNSPTFYACVDIDGRVFDKADGKSKRDAKNNAAKLAVDKLL

来源 Source

来源生物 organism	Vaccinia virus WR
NCBI Class编号 ncbi_taxonomy_id	10254
宿主生物 host_organism	Escherichia coli

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	6.39 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	307424

fit	/app/data/saxs_computation/i9/8i9j/8i9j.fit
pddf	/app/data/pr_computation/i9/8i9j/8i9j.pr.out
profile	/app/data/saxs_computation/i9/8i9j/8i9j.dat

The PKR and E3L complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA-binding protein E3

State in the Current Structure

Other States of the Same Protein in the Database

Interferon-induced, double-stranded RNA-activated protein kinase

State in the Current Structure

Other States of the Same Protein in the Database

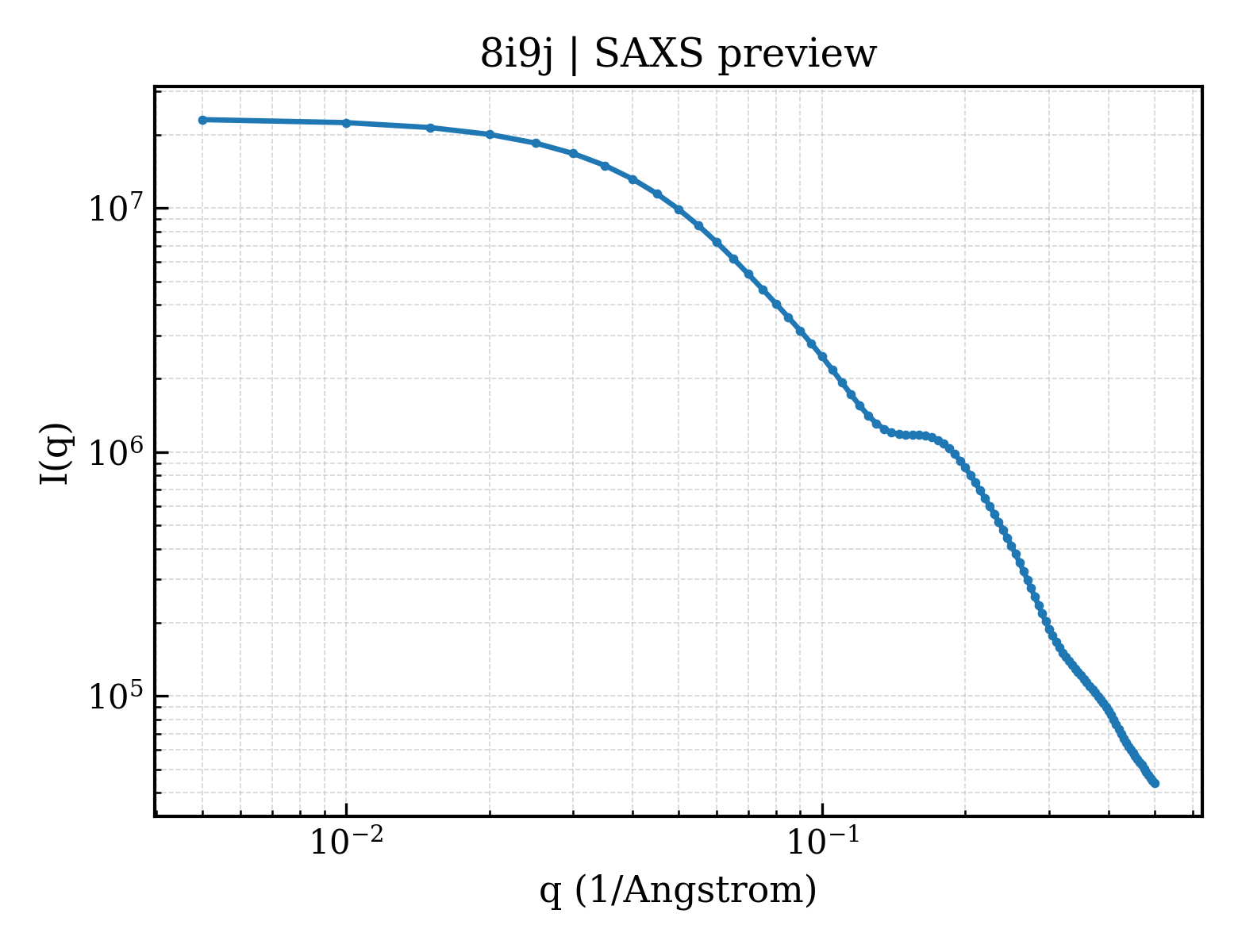

SAXS scattering curve SAXS Profile

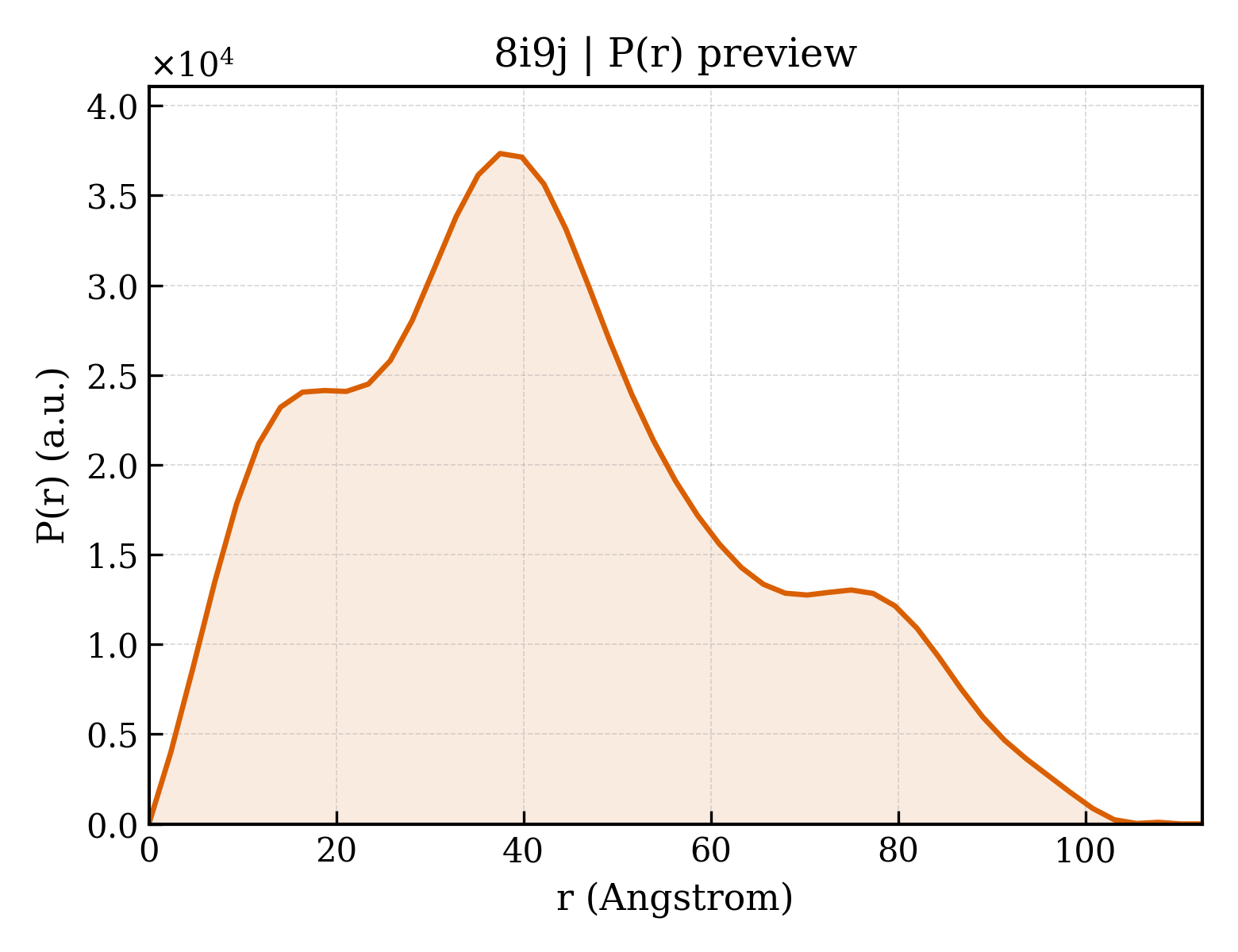

P(r) Distance Distribution P(r) Distribution
