SAXSdb — 8qel

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Eukaryotic translation initiation factor 2 subunit alpha

Saccharomyces cerevisiae

UniProt P20459

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 4–176	Not recorded	Interferon-induced, double-stranded RNA-activated protein kinase × 1 （P19525） UH3 (3~{Z})-3-[(4-methyl-1~{H}-imidazol-5-yl)methylidene]-2-oxidanylidene-1~{H}-indole-5-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M MOPS pH 7.5, 10% PEG 8000, 0.2 M magnesium acetate	Resolution 2.45 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8QEL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Q46 crystal structure of the eIF2 alpha subunit from saccharomyces cerevisia Deposited 2003-08-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–176（175 aa） Fragment：N-terminal two thirds of eIF2a	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；0.1 M sodium acetate (pH=4.6), 1.8-2.5 M sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.86 Å R-free 0.236
2A19 PKR kinase domain- eIF2alpha- AMP-PNP complex. Deposited 2005-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 4–176（173 aa） Fragment：eIF2alpha	Mutation：residues 4-175	MG MAGNESIUM ION × 4 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å R-free 0.286
2A1A PKR kinase domain-eIF2alpha Complex Deposited 2005-06-19	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4–176（173 aa）	Mutation：residue 258-551	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8	Resolution 2.80 Å R-free 0.268
3J81 CryoEM structure of a partial yeast 48S preinitiation complex Deposited 2014-08-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 42-meric	Chain j 1–300（300 aa）	Not recorded	MG MAGNESIUM ION × 81 ZN ZINC ION × 3 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer 20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT；pH 6.5；20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT cryo-EM vitrification conditions Blot for 2.5 seconds before plunging；120 K；Cryogen ETHANE；Blot for 2.5 seconds before plunging into liquid ethane (FEI VITROBOT MARK I)	Resolution 4.00 Å
3JAP Structure of a partial yeast 48S preinitiation complex in closed conformation Deposited 2015-06-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 81 ZN ZINC ION × 4 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer 20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT；pH 6.5；20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT cryo-EM vitrification conditions Blot for 2.5 to 3 seconds before plunging；120 K；Cryogen ETHANE；Blot for 2.5 to 3 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).	Resolution 4.90 Å
6FYX Structure of a partial yeast 48S preinitiation complex with eIF5 N-terminal domain (model C1) Deposited 2018-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 117 ZN ZINC ION × 5 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6FYY Structure of a partial yeast 48S preinitiation complex with eIF5 N-terminal domain (model C2) Deposited 2018-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 117 ZN ZINC ION × 5 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.02 Å
6GSM Structure of a partial yeast 48S preinitiation complex in open conformation. Deposited 2018-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain j 3–265（263 aa）	Not recorded	7NO [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-2-(phosphonooxymethyl)oxolan-3-yl] (2~{S})-2-azanyl-4-methylsulfanyl-butanoate × 1 MG MAGNESIUM ION × 82 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.15 Å
6GSN Structure of a partial yeast 48S preinitiation complex in closed conformation Deposited 2018-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain j 3–265（263 aa）	Not recorded	MG MAGNESIUM ION × 81 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.75 Å
6I3M eIF2B:eIF2 complex, phosphorylated on eIF2 alpha serine 52. Deposited 2018-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain K 1–304（304 aa） Chain L 1–304（304 aa）	Mutation：serine 52 to SEP Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：serine 52 to SEP Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Solutions for sample preparation were made fresh, filter sterilized, and degassed. cryo-EM vitrification conditions Cryogen ETHANE；Blot for 2 seconds before plunging	Resolution 3.93 Å
6I7T eIF2B:eIF2 complex Deposited 2018-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain K 1–304（304 aa） Chain L 1–304（304 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Solutions for sample preparation were made fresh, filter sterilized, and degassed. cryo-EM vitrification conditions Cryogen ETHANE；Blot for 1 second before plunging	Resolution 4.61 Å
6JLY eIF2a - eIF2B complex Deposited 2019-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 1–304（304 aa） Chain M 1–304（304 aa）	Not recorded	PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；sodium acetate, sodium citrate, PEG 4000, glycerol	Resolution 3.50 Å R-free 0.260
6JLZ P-eIF2a - eIF2B complex Deposited 2019-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 1–304（304 aa） Chain M 1–304（304 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	PO4 PHOSPHATE ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；sodium acetate, sodium citrate, PEG 4000, glycerol	Resolution 3.35 Å R-free 0.253
6QG0 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model 1) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain K 1–304（304 aa） Chain L 1–304（304 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
6QG1 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model 2) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain K 1–304（304 aa） Chain L 1–304（304 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.25 Å
6QG2 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model A) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain K 1–304（304 aa） Chain L 1–304（304 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.55 Å
6QG3 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model B) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain K 1–304（304 aa） Chain L 1–304（304 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.40 Å
6QG5 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model C) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain K 1–304（304 aa） Chain L 1–304（304 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 10.10 Å
6QG6 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model D) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain K 1–304（304 aa） Chain L 1–304（304 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 10.40 Å
8RW1 Structure of a yeast 48S-AUC preinitiation complex in closed conformation Deposited 2024-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 41-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 115 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.35 Å
8S8D Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-2) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 41-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.45 Å
8S8E Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-3.1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 40 PDB declaration: 43-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.85 Å
8S8F Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-3.2) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 42-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å
8S8G Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-2.1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 41-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8S8H Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-2.2) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 41-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8S8I Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-eIF1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 42-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 117 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
8S8J Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-eIF5) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 42-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 115 ZN ZINC ION × 4 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.70 Å
8S8K Structure of a yeast 48S-AUC preinitiation complex in swivelled conformation (model py48S-AUC-swiv-eIF1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 40 PDB declaration: 43-meric	Chain j 1–304（304 aa）	Not recorded	MG MAGNESIUM ION × 96 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

28 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IF2A_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–173； UniProt 4–176

Interferon-induced, double-stranded RNA-activated protein kinase

Homo sapiens

UniProt P19525

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 258–337 Chain B； UniProt 357–541	Non-standard monomer：Yes (specific site not provided by mmCIF)	Eukaryotic translation initiation factor 2 subunit alpha × 1 （P20459） UH3 (3~{Z})-3-[(4-methyl-1~{H}-imidazol-5-yl)methylidene]-2-oxidanylidene-1~{H}-indole-5-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M MOPS pH 7.5, 10% PEG 8000, 0.2 M magnesium acetate	Resolution 2.45 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8QEL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1QU6 STRUCTURE OF THE DOUBLE-STRANDED RNA-BINDING DOMAIN OF THE PROTEIN KINASE PKR REVEALS THE MOLECULAR BASIS OF ITS DSRNA-MEDIATED ACTIVATION Deposited 1999-07-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–170（170 aa） Fragment：DSRNA-BINDING N-TERMINAL DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K	Resolution not provided
2A19 PKR kinase domain- eIF2alpha- AMP-PNP complex. Deposited 2005-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 258–551（294 aa） Fragment：PKR kinase domain Chain C 258–551（294 aa） Fragment：PKR kinase domain	Mutation：DEL(338-350) Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：DEL(338-350) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å R-free 0.286
2A1A PKR kinase domain-eIF2alpha Complex Deposited 2005-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 258–551（294 aa）	Mutation：residue 3-175 Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8	Resolution 2.80 Å R-free 0.268
3UIU Crystal structure of Apo-PKR kinase domain Deposited 2011-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 254–551（298 aa） Fragment：PROTEIN KINASE DOMAIN, UNP RESIDUES 254-551	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；20% PEG 3350, 0.2M NaF, 0.1M MES pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.90 Å R-free 0.305
3UIU Crystal structure of Apo-PKR kinase domain Deposited 2011-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 254–551（298 aa） Fragment：PROTEIN KINASE DOMAIN, UNP RESIDUES 254-551	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；20% PEG 3350, 0.2M NaF, 0.1M MES pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.90 Å R-free 0.305
6D3K Crystal structure of unphosphorylated human PKR kinase domain in complex with ADP Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 229–551（323 aa） Fragment：kinase domain (229-551) Chain B 229–551（323 aa） Fragment：kinase domain (229-551)	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 2 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH 7.5, 6% v/v PEG400, 2.0 M ammonium sulfate, protein was complexed with AMP-PNP and Mg2+ prior to crystallization	Resolution 2.60 Å R-free 0.266
6D3K Crystal structure of unphosphorylated human PKR kinase domain in complex with ADP Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 229–551（323 aa） Fragment：kinase domain (229-551) Chain C 229–551（323 aa） Fragment：kinase domain (229-551)	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 3 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH 7.5, 6% v/v PEG400, 2.0 M ammonium sulfate, protein was complexed with AMP-PNP and Mg2+ prior to crystallization	Resolution 2.60 Å R-free 0.266
6D3L Crystal structure of unphosphorylated human PKR Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 229–551（323 aa） Fragment：kinase domain (229-551)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1 M Bis-Tris, pH 5.5, 2.0 M ammonium sulfate, 1:3 molar ratio of dp8 (heparin) was added to protein prior to crystallization	Resolution 3.10 Å R-free 0.347
6D3L Crystal structure of unphosphorylated human PKR Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 229–551（323 aa） Fragment：kinase domain (229-551)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1 M Bis-Tris, pH 5.5, 2.0 M ammonium sulfate, 1:3 molar ratio of dp8 (heparin) was added to protein prior to crystallization	Resolution 3.10 Å R-free 0.347
6NPY Cryo-EM structure of NLRP3 bound to NEK7 Deposited 2019-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 260–266（7 aa）	Mutation：L54R,V58K,P59T,K87A,A99V,S100C,E103T,D104G	ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7OBK Crystal structure of 14-3-3 sigma in complex with PKR phosphopeptide Deposited 2021-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 541–551（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.095 M Hepes pH7.3, 25%PEG 400, 0.19 M CaCl2 and 5 % Glycerol	Resolution 1.80 Å R-free 0.183
7OBL Crystal structure of 14-3-3 sigma in complex with PKR phosphopeptide and stabilizer Fusicoccin-A Deposited 2021-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 541–551（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FSC FUSICOCCIN × 2 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.095 M Hepes pH7.3, 25%PEG 400, 0.19 M CaCl2 and 5 % Glycerol	Resolution 1.80 Å R-free 0.239
8BI7 Binary structure of 14-3-3s and PKR phosphopeptide Deposited 2022-11-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 541–551（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M Hepes pH 7.1, 0.19 M CaCl2, 25% PEG400, 5% glycerol	Resolution 1.40 Å R-free 0.188
8I9J The PKR and E3L complex Deposited 2023-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–170（170 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.1 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 6.39 Å
8IZN Structural study of Interferon-induced, double-stranded RNA-activated protein kinase (PKR) and Non-structural protein 1 (NS1) complex Deposited 2023-04-07	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–170（170 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 6.67 Å

12 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	E2AK2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–82； UniProt 258–337 Author chain B； PDBConstruct 89–273； UniProt 357–541

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8qel
Deposition date deposition_date	2023-08-31
Structure title title	PKR kinase domain- eIF2alpha in complex with compound
Keywords keywords	protein synthesis/transferase, antiproliferative and antiviral effects, interferon, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.36 Å
Radius of gyration Rg (electron density) rg_electron	28.23 Å
Forward intensity I(0) i0	38575400.00
Molecular weight molecular_weight	49640.0 kDa
Excluded volume excluded_volume	62793 Å³
Envelope volume envelope_volume	79858 Å³
Hydration-shell volume shell_volume	25514 Å³
Envelope diameter envelope_diameter	94.5 Å
Shell Rg shell_rg	32.79 Å
Envelope Rg envelope_rg	28.13 Å
Shape Rg shape_rg	28.24 Å
Total Rg total_rg	28.71 Å
Total atoms total_atoms	3498
Residues n_residues	427
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	94.2 Å
Rg (real space) rg_real	28.65 Å
Rg uncertainty (real space) rg_real_error	0.62 Å
I(0) (real space) i0_real	3.8580e+07
I(0) uncertainty (real space) i0_real_error	5.9170e+05
Rg (reciprocal space) rg_reciprocal	28.56 Å
I(0) (reciprocal space) i0_reciprocal	38570000.0000
Solution quality estimate total_estimate	0.8545
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.9 Å
Skewness Skewness skewness	0.512
Kurtosis Kurtosis kurtosis	-0.414
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	9225000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.810; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.782; Smooth: 0.891

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Eukaryotic translation initiation factor 2 subunit alpha
Molecular weight formula_weight	20409.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3498

SHCRFYENKYPEIDDIVMVNVQQIAEMGAYVKLLEYDNIEGMILLSELSRRRIRSIQKLIRVGKNDVAVVLRVDKEKGYIDLSKRRVSSEDIIKCEEKYQKSKTVHSILRYCAEKFQIPLEELYKTIAWPLSRKFGHAYEAFKLSIIDETVWEGIEPPSKDVLDELKNYISKR

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Interferon-induced, double-stranded RNA-activated protein kinase
Molecular weight formula_weight	31589.3 kDa
EC 编号 ec_number	2.7.11.1,2.7.10.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

AHTVDKRFGMDFKEIELIGSGGFGQVFKAKHRIDGKTYVIKRVKYNNEKAEREVKALAKLDHVNIVHYNGCWDGFDYDPETSSKNSSRSKTKCLFIQMEFCDKGTLEQWIEKRRGEKLDKVLALELFEQITKGVDYIHSKKLINRDLKPSNIFLVDTKQVKIGDFGLVTSLKNDGKRTRSKGTLRYMSPEQISSQDYGKEVDLYALGLILAELLHVCDTAFETSKFFTDLRDGIISDIFDKKEKTLLQKLLSKKPEDRPNTSEILRTLTVWKK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	(3~{Z})-3-[(4-methyl-1~{H}-imidazol-5-yl)methylidene]-2-oxidanylidene-1~{H}-indole-5-carboxamide
Molecular weight formula_weight	268.3 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	8qelA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	8qelA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	190 — Translation initiation factor 2; subunit 1; domain 2

Domain ID domain_id	8qelB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	8qelB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	85.028 Å
Unit-cell length b length_b	85.028 Å
Unit-cell length c length_c	168.940 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.451 Å
Low-resolution limit resolution_low	73.640 Å
R factor r_factor	0.2431
R_work r_work	0.2412
R_free r_free	0.2780

fit	/app/data/saxs_computation/qe/8qel/8qel.fit
pddf	/app/data/pr_computation/qe/8qel/8qel.pr.out
profile	/app/data/saxs_computation/qe/8qel/8qel.dat

PKR kinase domain- eIF2alpha in complex with compound

1. Protein Identity and Related Structures Protein Identity & Related Structures

Eukaryotic translation initiation factor 2 subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Interferon-induced, double-stranded RNA-activated protein kinase

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

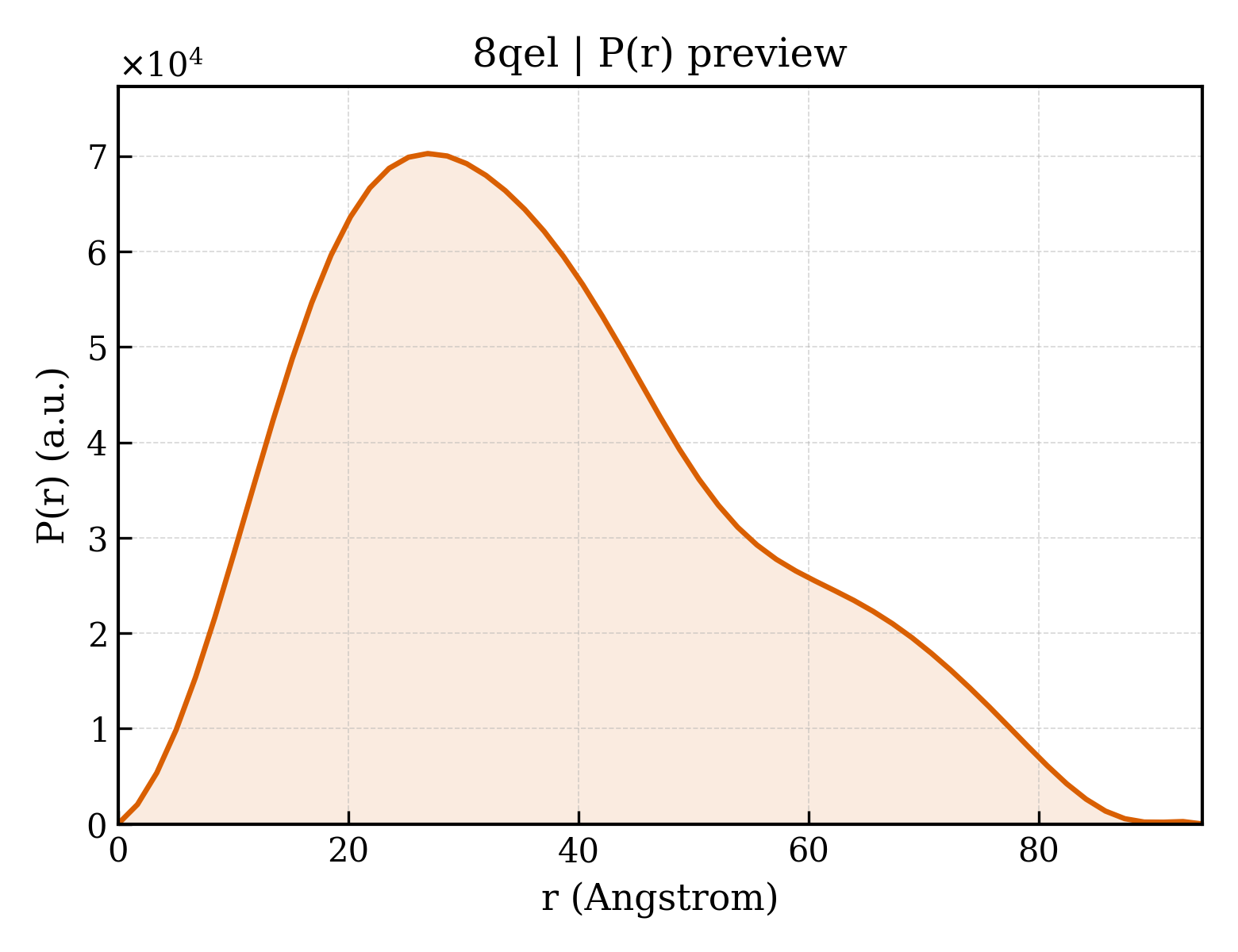

P(r) Distance Distribution P(r) Distribution
