1. Protein Identity and Related Structures Protein Identity & Related Structures

Mediator of RNA polymerase II transcription subunit 15

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 453–561	Fragment：activator-binding domain 3	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7.5；298 K；Ionic strength (raw mmCIF value) 200；Pressure 1 NMR sample composition：1 mM [U-99% 13C; U-99% 15N] MED15_ABD3, 20 mM HEPES, 200 mM sodium chloride, 1 mM TCEP, 6 % v/v D2O, 94% H2O/6% D2O \| 94% H2O/6% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8J9A	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2GUT Solution structure of the trans-activation domain of the human co-activator ARC105 Deposited 2006-05-01	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 5–78（74 aa） Fragment：ARC/MEDIATOR KIX domain, residues 5-78	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 30 mM NaCl；Pressure ambient NMR sample composition 1mM arc105 U-15N, 13C, 30mM NaCl, 10mM phosphate buffer, 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
7EMF Human Mediator (deletion of MED1-IDR) in a Tail-extended conformation Deposited 2021-04-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric	Chain O 1–788（788 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7ENA TFIID-based PIC-Mediator holo-complex in pre-assembled state (pre-hPIC-MED) Deposited 2021-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 74 PDB declaration: 76-meric	Chain o 1–788（788 aa）	Not recorded	ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.07 Å
7ENC TFIID-based PIC-Mediator holo-complex in fully-assembled state (hPIC-MED) Deposited 2021-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 74 PDB declaration: 76-meric	Chain o 1–788（788 aa）	Not recorded	ZN ZINC ION × 16 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.13 Å
7ENJ Human Mediator (deletion of MED1-IDR) in a Tail-bent conformation (MED-B) Deposited 2021-04-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 26 PDB declaration: 26-meric	Chain O 1–788（788 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7LBM Structure of the human Mediator-bound transcription pre-initiation complex Deposited 2021-01-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 54 PDB declaration: 56-meric	Chain z 1–788（788 aa）	Not recorded	MG MAGNESIUM ION × 2 ZN ZINC ION × 16 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
8GXQ PIC-Mediator in complex with +1 nucleosome (T40N) in MH-binding state Deposited 2022-09-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 83 PDB declaration: 87-meric	Chain o 1–788（788 aa）	Not recorded	ZN ZINC ION × 19 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.04 Å
8GXS PIC-Mediator in complex with +1 nucleosome (T40N) in H-binding state Deposited 2022-09-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 83 PDB declaration: 87-meric	Chain o 1–788（788 aa）	Not recorded	ZN ZINC ION × 19 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.16 Å
8T9D CryoEM structure of TR-TRAP Deposited 2023-06-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 26 PDB declaration: 26-meric	Chain J 1–788（788 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.66 Å
8TQW Structure of human transcriptional Mediator complex Deposited 2023-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric	Chain O 1–788（788 aa）	Not recorded	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.20 Å
8TRH The IDRc bound human core Mediator complex Deposited 2023-08-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 26 PDB declaration: 26-meric	Chain O 1–788（788 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MED15_HUMAN
Isoform	Q96RN5-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 10–118； UniProt 453–561

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8j9a
Deposition date deposition_date	2023-05-03
Structure title title	Solution structure of ABD3 (residues 453-561) of human MED15 isoform 2
Keywords keywords	Mediator of RNA polymerase II transcription subunit 15, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.55 Å
Radius of gyration Rg (electron density) rg_electron	24.93 Å
Forward intensity I(0) i0	1062920000.00
Molecular weight molecular_weight	267730.0 kDa
Excluded volume excluded_volume	333820 Å³
Envelope volume envelope_volume	127610 Å³
Hydration-shell volume shell_volume	34868 Å³
Envelope diameter envelope_diameter	118.3 Å
Shell Rg shell_rg	36.67 Å
Envelope Rg envelope_rg	33.29 Å
Shape Rg shape_rg	25.02 Å
Total Rg total_rg	25.00 Å
Total atoms total_atoms	38120
Residues n_residues	2360
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	108.8 Å
Rg (real space) rg_real	25.99 Å
Rg uncertainty (real space) rg_real_error	1.85 Å
I(0) (real space) i0_real	1.0630e+09
I(0) uncertainty (real space) i0_real_error	1.8870e+07
Rg (reciprocal space) rg_reciprocal	25.85 Å
I(0) (reciprocal space) i0_reciprocal	1063000000.0000
Solution quality estimate total_estimate	0.6416
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.5 Å
Skewness Skewness skewness	0.637
Kurtosis Kurtosis kurtosis	-0.146
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3967000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.105; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.023; Smooth: 0.998

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Description description	Mediator of RNA polymerase II transcription subunit 15
Molecular weight formula_weight	13405.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	38120

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/j9/8j9a/8j9a.fit
pddf	/app/data/pr_computation/j9/8j9a/8j9a.pr.out
profile	/app/data/saxs_computation/j9/8j9a/8j9a.dat

Solution structure of ABD3 (residues 453-561) of human MED15 isoform 2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mediator of RNA polymerase II transcription subunit 15

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

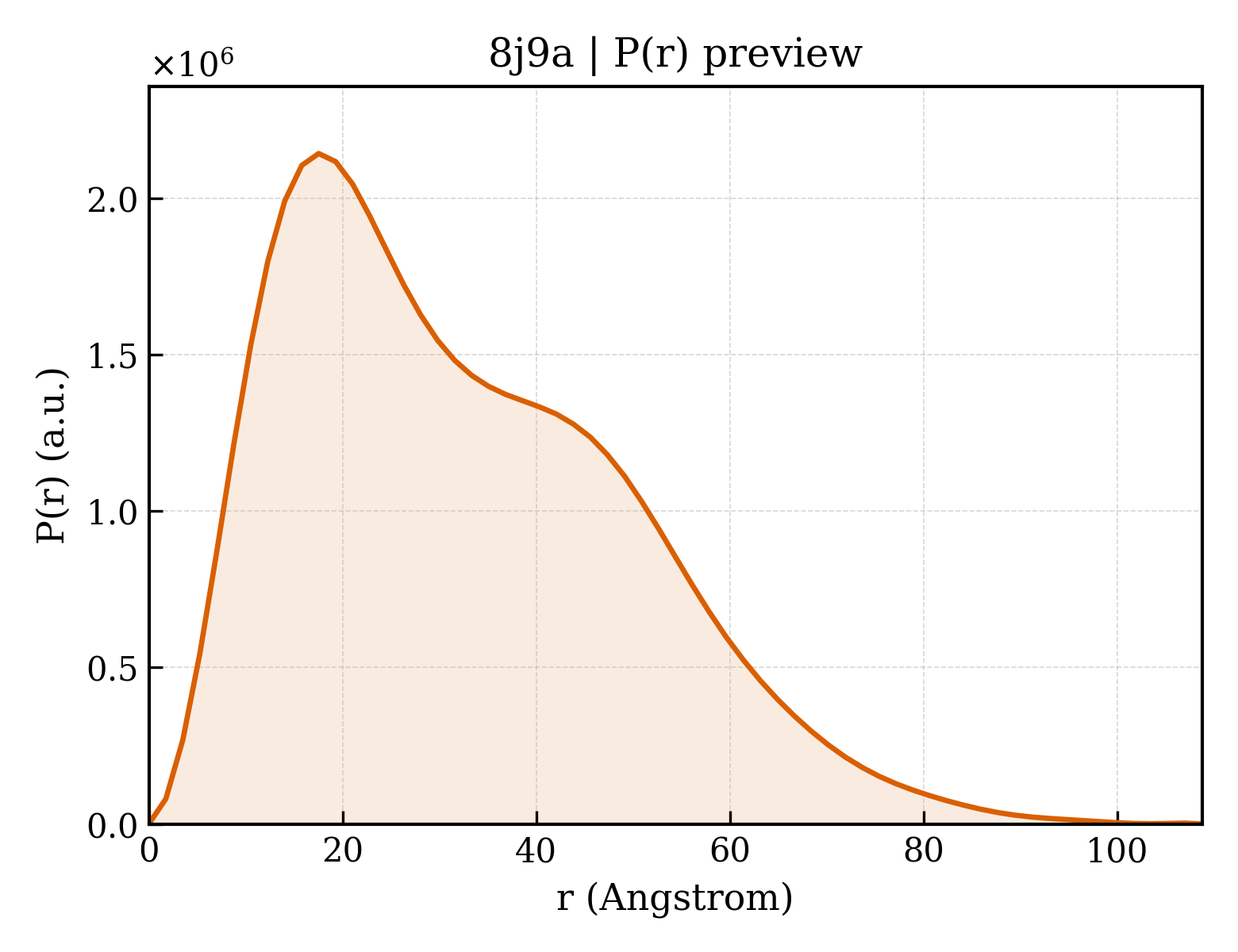

P(r) Distance Distribution P(r) Distribution
