SAXSdb — 8kc9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Prolyl 3-hydroxylase 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Cartilage-associated protein × 1 （O75718） Peptidyl-prolyl cis-trans isomerase B × 1 （P23284） DSN-MLE-MLE-MVA-BMT-ABA-SAR-MLE-VAL-MLE-ALA × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 FE (III) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P3H1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–736； UniProt 1–736

Cartilage-associated protein

Homo sapiens

UniProt O75718

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Prolyl 3-hydroxylase 1 × 1 （Q32P28） Peptidyl-prolyl cis-trans isomerase B × 1 （P23284） DSN-MLE-MLE-MVA-BMT-ABA-SAR-MLE-VAL-MLE-ALA × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 FE (III) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CRTAP_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–401； UniProt 1–401

Peptidyl-prolyl cis-trans isomerase B

Homo sapiens

UniProt P23284

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Prolyl 3-hydroxylase 1 × 1 （Q32P28） Cartilage-associated protein × 1 （O75718） DSN-MLE-MLE-MVA-BMT-ABA-SAR-MLE-VAL-MLE-ALA × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 FE (III) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PPIB_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–216； UniProt 1–216

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8kc9
Deposition date deposition_date	2023-08-06
Last revision last_revision	2024-09-18
Structure title title	Human collagen prolyl processing enzyme complex, P3H1/CRTAP/PPIB heterotrimer, bound to cyclosporin A
Keywords keywords	complex, hydroxylase, collagen, ER protein, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8kc9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

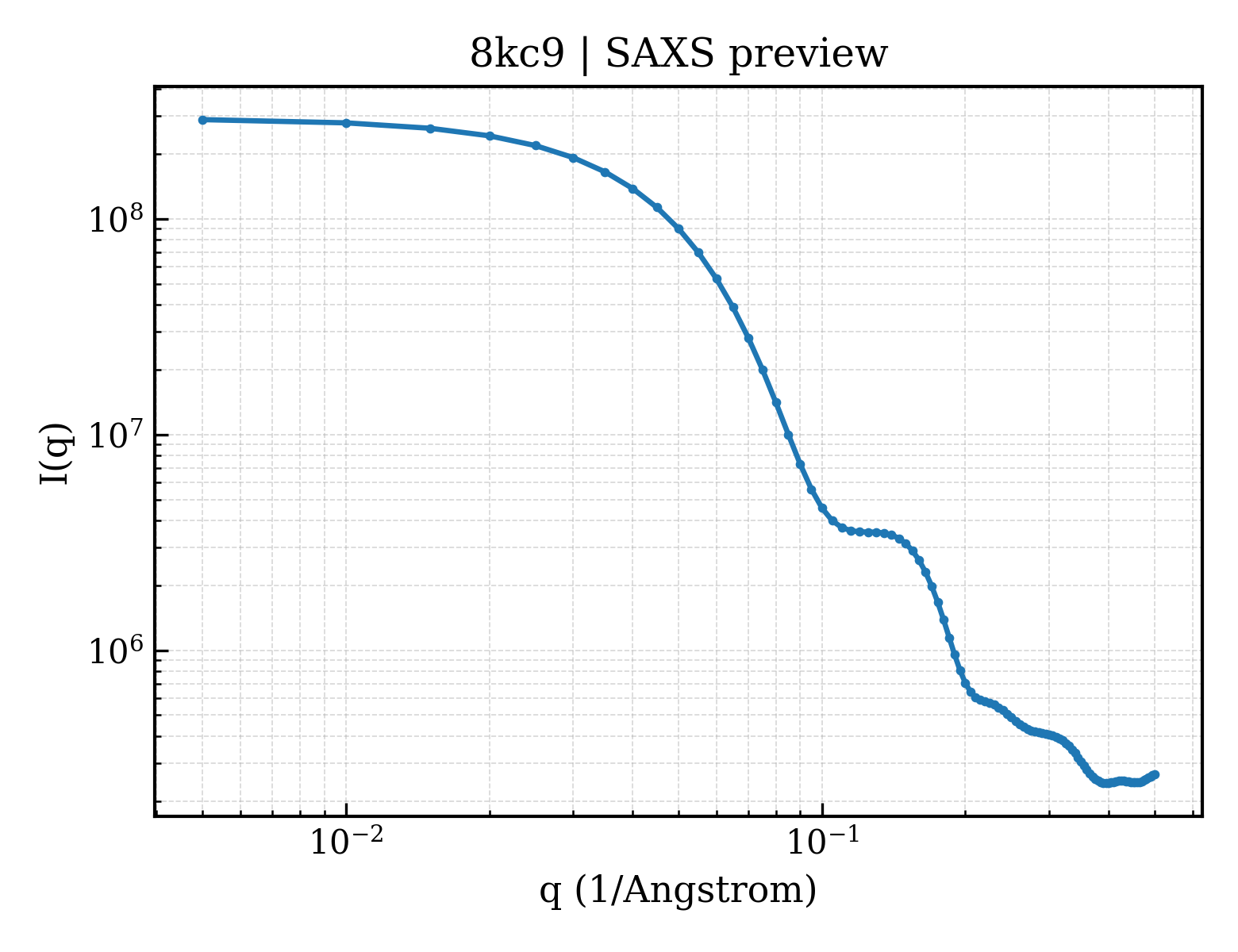

8kc9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8kc9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.19 Å
Rg (electron density)	36.59 Å
Total Rg	36.97 Å
Atom count	9714
Residues	1188
Excluded volume	172480 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8kc9__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Prolyl 3-hydroxylase 1
Molecular weight formula_weight	83485.7 kDa
EC 编号 ec_number	1.14.11.7
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9714

MAVRALKLLTTLLAVVAAASQAEVESEAGWGMVTPDLLFAEGTAAYARGDWPGVVLSMERALRSRAALRALRLRCRTQCAADFPWELDPDWSPSPAQASGAAALRDLSFFGGLLRRAACLRRCLGPPAAHSLSEEMELEFRKRSPYNYLQVAYFKINKLEKAVAAAHTFFVGNPEHMEMQQNLDYYQTMSGVKEADFKDLETQPHMQEFRLGVRLYSEEQPQEAVPHLEAALQEYFVAYEECRALCEGPYDYDGYNYLEYNADLFQAITDHYIQVLNCKQNCVTELASHPSREKPFEDFLPSHYNYLQFAYYNIGNYTQAVECAKTYLLFFPNDEVMNQNLAYYAAMLGEEHTRSIGPRESAKEYRQRSLLEKELLFFAYDVFGIPFVDPDSWTPEEVIPKRLQEKQKSERETAVRISQEIGNLMKEIETLVEEKTKESLDVSRLTREGGPLLYEGISLTMNSKLLNGSQRVVMDGVISDHECQELQRLTNVAATSGDGYRGQTSPHTPNEKFYGVTVFKALKLGQEGKVPLQSAHLYYNVTEKVRRIMESYFRLDTPLYFSYSHLVCRTAIEEVQAERKDDSHPVHVDNCILNAETLVCVKEPPAYTFRDYSAILYLNGDFDGGNFYFTELDAKTVTAEVQPQCGRAVGFSSGTENPHGVKAVTRGQRCAIALWFTLDPRHSERDRVQADDLVKMLFSPEEMDLSQEQPLDAQQGPPEPAQESLSGSESKPKDEL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Cartilage-associated protein
Molecular weight formula_weight	50749.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MEPGRRGAAALLALLCVACALRAGRAQYERYSFRSFPRDELMPLESAYRHALDKYSGEHWAESVGYLEISLRLHRLLRDSEAFCHRNCSAAPQPEPAAGLASYPELRLFGGLLRRAHCLKRCKQGLPAFRQSQPSREVLADFQRREPYKFLQFAYFKANNLPKAIAAAHTFLLKHPDDEMMKRNMAYYKSLPGAEDYIKDLETKSYESLFIRAVRAYNGENWRTSITDMELALPDFFKAFYECLAACEGSREIKDFKDFYLSIADHYVEVLECKIQCEENLTPVIGGYPVEKFVATMYHYLQFAYYKLNDLKNAAPCAVSYLLFDQNDKVMQQNLVYYQYHRDTWGLSDEHFQPRPEAVQFFNVTTLQKELYDFAKENIMDDDEGEVVEYVDDLLELEETSAAALEVLFQGPSAWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Peptidyl-prolyl cis-trans isomerase B
Molecular weight formula_weight	28669.6 kDa
EC 编号 ec_number	5.2.1.8
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MLRLSERNMKVLLAAALIAGSVFFLLLPGPSAADEKKKGPKVTVKVYFDLRIGDEDVGRVIFGLFGKTVPKTVDNFVALATGEKGFGYKNSKFHRVIKDFMIQGGDFTRGDGTGGKSIYGERFPDENFKLKHYGPGWVSMANAGKDTNGSQFFITTVKTAWLDGKHVVFGKVLEGMEVVRKVESTKTDSRDKPLKDVIIADCGKIEVEKPFAIAKEAAAENLYFQGDYKDHDGDYKDHDIDYKDDDDKHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	DSN-MLE-MLE-MVA-BMT-ABA-SAR-MLE-VAL-MLE-ALA
Molecular weight formula_weight	1220.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

ALLVTAGLVLA

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.75 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	138386

Human collagen prolyl processing enzyme complex, P3H1/CRTAP/PPIB heterotrimer, bound to cyclosporin A
