SAXSdb — 8ou6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cereblon isoform 4

Magnetospirillum gryphiswaldense MSR-1 v2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	ZINC ION × 3 4-azanyl-~{N}-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2-methyl-benzamide × 2 PHOSPHATE ION × 4 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A4TVL0_9PROT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–105； UniProt 20–123 Author chain B； PDBConstruct 2–105； UniProt 20–123 Author chain C； PDBConstruct 2–105； UniProt 20–123

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ou6
Deposition date deposition_date	2023-04-21
Structure title title	Cereblon isoform 4 in complex with novel Benzamide-Type Cereblon Binder 11c
Keywords keywords	Cereblon, PROTAC, E3, molecular glue, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ou6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ou6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

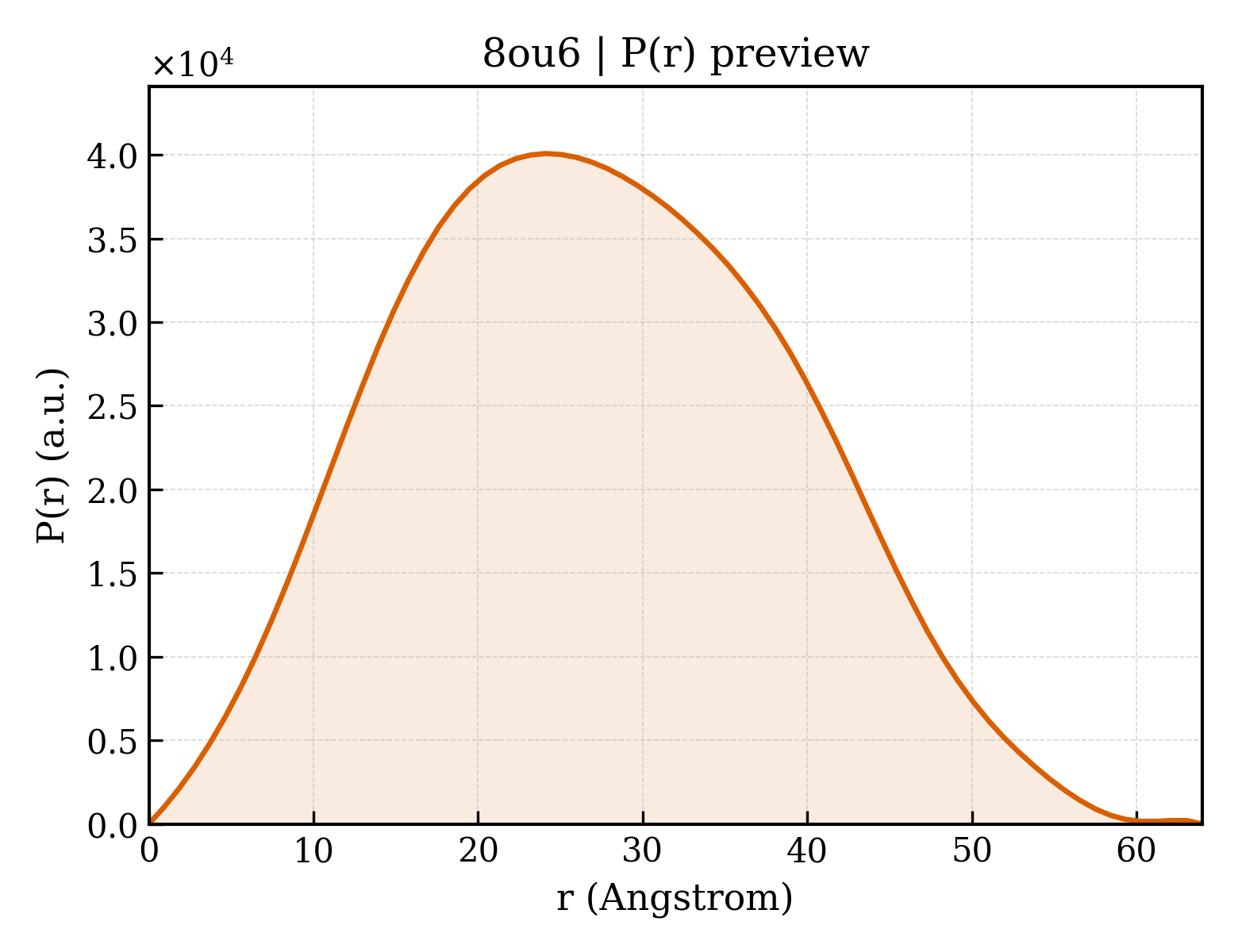

8ou6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.96 Å
Rg (electron density)	20.07 Å
Total Rg	20.89 Å
Atom count	3858
Residues	266
Excluded volume	35952 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ou6__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Cereblon isoform 4
Molecular weight formula_weight	11748.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	3954

ASIFRCRQCGQTISRRDWLLPMGGDHEHVVFNPAGMIFRVWCFSLAQGLRLIGAPSGEFSWFKGYDWTIALCGQCGSHLGWHYEGGSQPQTFFGLIKDRLAEGPA

Source Source

Source organism organism	Magnetospirillum gryphiswaldense MSR-1 v2
NCBI taxonomy ID ncbi_taxonomy_id	1430440
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	4-azanyl-~{N}-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2-methyl-benzamide
Molecular weight formula_weight	261.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	55

▶

Unit-cell length a length_a	56.989 Å
Unit-cell length b length_b	59.126 Å
Unit-cell length c length_c	87.139 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.840 Å
Low-resolution limit resolution_low	37.120 Å
R factor r_factor	—
R_work r_work	0.1840
R_free r_free	0.2250

Cereblon isoform 4 in complex with novel Benzamide-Type Cereblon Binder 11c
