8p1f

X-ray structure of acetylcholine-binding protein (AChBP) in complex with FL001909.

Method: X-RAY DIFFRACTION D_max: 179.4 Å Quality: GOOD

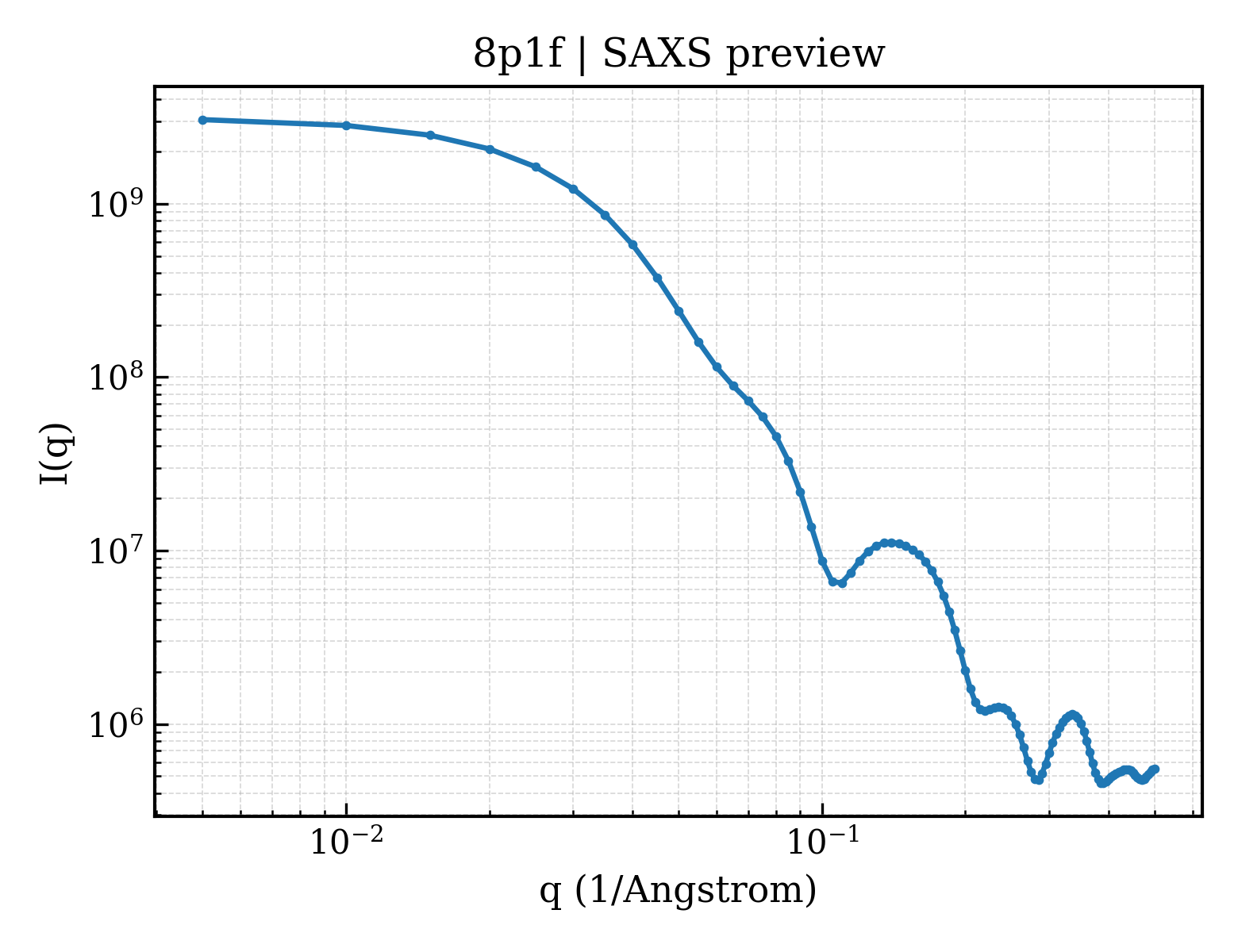

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8p1f
沉积日期 deposition_date	2023-05-12
结构标题 title	X-ray structure of acetylcholine-binding protein (AChBP) in complex with FL001909.
关键词 keywords	Fragment based drug design, Acetylcholine-binding protein, choline-binding proteins, CHOLINE-BINDING PROTEIN; CHOLINE-BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	55.62 Å
回转半径 Rg (电子) rg_electron	54.88 Å
零角强度 I(0) i0	3135650000.00
分子量 molecular_weight	461590.0 kDa
排除体积 excluded_volume	573470 Å³
包络体积 envelope_volume	820730 Å³
水化壳体积 shell_volume	119530 Å³
包络直径 envelope_diameter	189.3 Å
壳层 Rg shell_rg	61.88 Å
包络 Rg envelope_rg	53.48 Å
形状 Rg shape_rg	54.88 Å
总 Rg total_rg	55.08 Å
总原子数 total_atoms	32533
残基数 n_residues	4039
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	179.4 Å
Rg (实空间) rg_real	55.44 Å
Rg 误差 (实空间) rg_real_error	1.43 Å
I(0) (实空间) i0_real	3.1360e+09
I(0) 误差 (实空间) i0_real_error	6.2550e+07
Rg (倒空间) rg_reciprocal	55.76 Å
I(0) (倒空间) i0_reciprocal	3137000000.0000
解质量估计 total_estimate	0.8837
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	57.7 Å
偏度 Skewness skewness	0.172
峰度 Kurtosis kurtosis	-0.598
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	727100000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.779

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Acetylcholine-binding protein
分子量 formula_weight	27060.3 kDa
来源方法 src_method	man
拷贝数 entity_count	20

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T
原子数 atom_count	33433

MRRNIFCLACLWIVQACLSLDRADILYNIRQTSRPDVIPTQRDRPVAVSVSLKFINILEVNEITNEVDVVFWQQTTWSDRTLAWNSSHSPDQVSVPISSLWVPDLAAYNAISKPEVLTPQLARVVSDGEVLYMPSIRQRFSCDVSGVDTESGATCRIKIGSWTHHSREISVDPTTENSDDSEYFSQYSRFEILDVTQKKNSVTYSCCPEAYEDVEVSLNFRKKGRSEILGSHHHHHH

来源 Source

来源生物 organism	Lymnaea stagnalis
通用名 common_name	great pond snail
NCBI 分类编号 ncbi_taxonomy_id	6523
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	13

Entity 3 non-polymer

描述 description	4-azanyl-1-phenyl-piperidine-4-carboxylic acid
分子量 formula_weight	220.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	703

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	116.710 Å
晶胞边长 b length_b	140.710 Å
晶胞边长 c length_c	147.170 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	109.68 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	40

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.100 Å
最低分辨率 resolution_low	49.370 Å
R 因子 r_factor	0.2266
R_work r_work	0.2251
R_free r_free	0.2548
