8pk9

Structure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (persulfide on NFS1 and ISCU2)

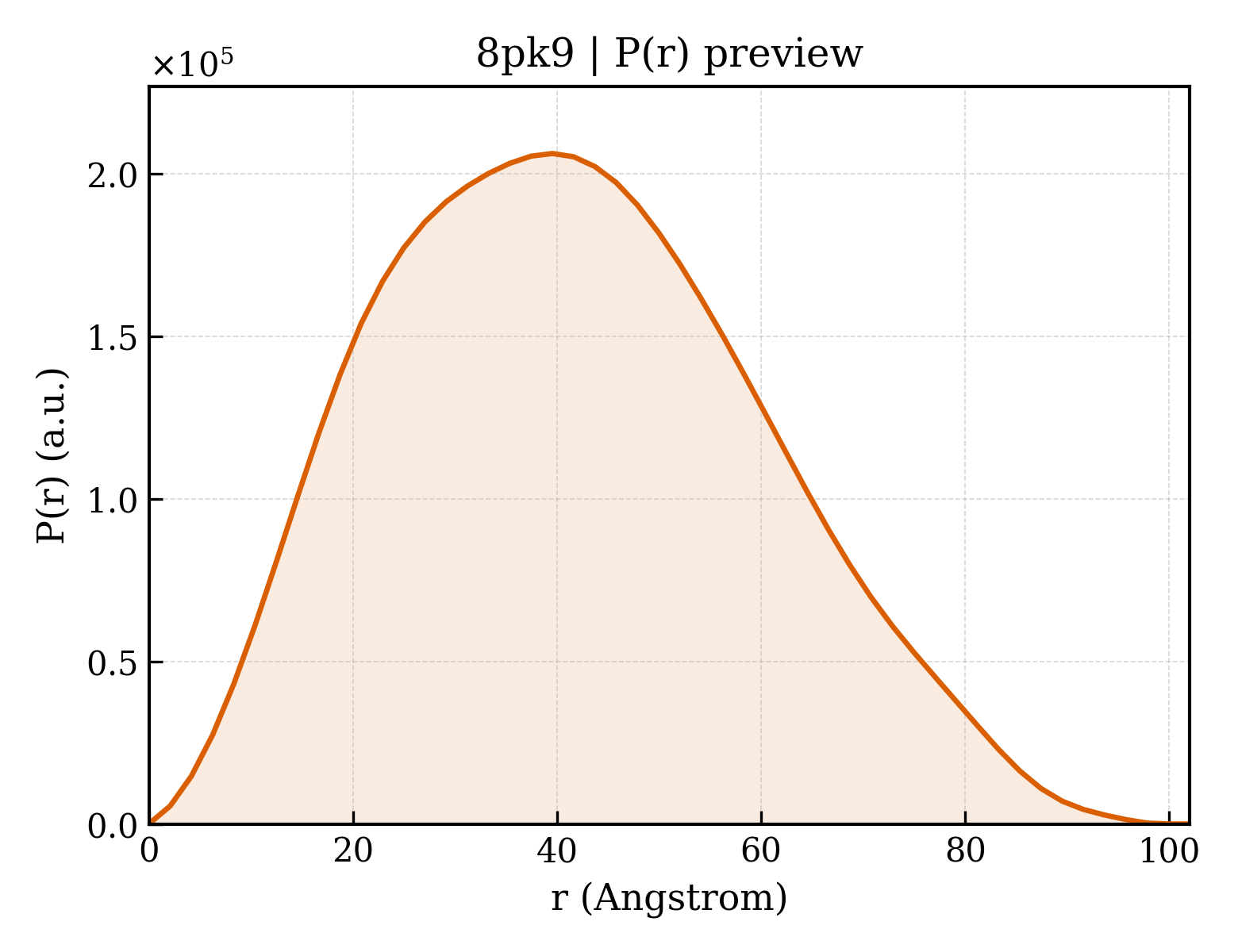

Method: ELECTRON MICROSCOPY Dmax: 102.0 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cysteine desulfurase

Homo sapiens

UniProt Q9Y697

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain A； UniProt 56–457 Non-standard monomer：Yes (specific site not provided by mmCIF) LYR motif-containing protein 4 × 1 （Q9HD34） Acyl carrier protein × 1 （P0A6A8） Iron-sulfur cluster assembly enzyme ISCU × 1 （Q9H1K1） Frataxin mature form × 1 （Q16595） PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.58 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8PK9 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5KZ5 Architecture of the Human Mitochondrial Iron-Sulfur Cluster Assembly Machinery: the Complex Formed by the Iron Donor, the Sulfur Donor, and the Scaffold Deposited 2016-07-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain 1 67–457（391 aa）
Chain 2 67–457（391 aa）
Chain 3 67–457（391 aa）
Chain 4 67–457（391 aa）
Chain M 67–457（391 aa）
Chain N 67–457（391 aa）
Chain O 67–457（391 aa）
Chain P 67–457（391 aa）
Chain Q 67–457（391 aa）
Chain R 67–457（391 aa）
Chain S 67–457（391 aa）
Chain T 67–457（391 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
Resolution 14.30 Å
5USR Crystal structure of human NFS1-ISD11 in complex with E. coli acyl-carrier protein at 3.09 angstroms Deposited 2017-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 56–457（402 aa）
Chain G 56–457（402 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；450 uL 0.1 M CBTP (pH = 6.4), 0.3 M CsCl, 0.2 M D,L - allylglycine, 5 mM TCEP, 8 % (wt/vol) PEG 3350 mixed with 50 uL of 40 % (vol/vol) acetone
Resolution 3.09 Å R-free 0.259
5USR Crystal structure of human NFS1-ISD11 in complex with E. coli acyl-carrier protein at 3.09 angstroms Deposited 2017-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 56–457（402 aa）
Chain E 56–457（402 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；450 uL 0.1 M CBTP (pH = 6.4), 0.3 M CsCl, 0.2 M D,L - allylglycine, 5 mM TCEP, 8 % (wt/vol) PEG 3350 mixed with 50 uL of 40 % (vol/vol) acetone
Resolution 3.09 Å R-free 0.259
5WGB Crystal Structure of the Human mitochondrial Cysteine Desulfurase in complex with ISD11 and E. coli ACP1 protein at 2.75A Deposited 2017-07-13 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 56–457（402 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；285 K；0.1 M MES pH 6.5 0.3 M Ammonium Acetate 20 mM Calcium Acetate 20 mM CaCl2 19 % isopropanol
Resolution 2.75 Å R-free 0.255
5WKP Crystal Structure of the Human mitochondrial Cysteine Desulfurase in complex with ISD11 and Iron-Sulfur Cluster Scaffold Protein ISCU1, and E. coli ACP1 protein at 3.15A Deposited 2017-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 56–457（402 aa） Fragment：UNP residues 56-457
Chain E 56–457（402 aa） Fragment：UNP residues 56-457
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；285 K；0.1 M MES pH 7 15 % PEG 3350
Resolution 3.15 Å R-free 0.242
5WLW Crystal Structure of the Human Mitochondrial Cysteine Desulfurase with active Cysteine Loop within ISCU1 active site, coordinating Zn ion. Complexed with human ISD11 and E. coli ACP1 at 3.3A. Deposited 2017-07-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 56–457（402 aa） Fragment：UNP residues 56-457
Chain E 56–457（402 aa） Fragment：UNP residues 56-457
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M MES pH 7.0 15 % PEG 3350
Resolution 3.32 Å R-free 0.255
6NZU Structure of the human frataxin-bound iron-sulfur cluster assembly complex Deposited 2019-02-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 56–457（402 aa） Fragment：UNP residues 56-457
Chain E 56–457（402 aa） Fragment：UNP residues 56-457
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6UXE Structure of the human mitochondrial desulfurase complex Nfs1-ISCU2(M140I)-ISD11 with E.coli ACP1 at 1.57 A resolution showing flexibility of N terminal end of ISCU2 Deposited 2019-11-07 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 56–457（402 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 GOL GLYCEROL × 12 EDO 1,2-ETHANEDIOL × 100 PEG DI(HYDROXYETHYL)ETHER × 22 PG4 TETRAETHYLENE GLYCOL × 4 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；288 K；0.1 M MES pH 6.0-6.5, 22% PEG400
Resolution 1.57 Å R-free 0.180
6W1D Structure of human mitochondrial complex Nfs1-ISCU2 (WT)-ISD11 with E.coli ACP1 at 1.8 A resolution (NIAU)2 Deposited 2020-03-04 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 56–457（402 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 GOL GLYCEROL × 12 EDO 1,2-ETHANEDIOL × 96 PEG DI(HYDROXYETHYL)ETHER × 22 PG4 TETRAETHYLENE GLYCOL × 4 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；288 K；0.1 M MES pH 6.0-6.5 22 % PEG 400
Resolution 1.79 Å R-free 0.189
6WI2 Structure of human mitochondrial complex Nfs1-ISCU2-ISD11 with E.coli ACP1 at 1.95 A resolution (NIAU)2. N-terminal mutation of ISCU2 (L35) traps Nfs1 Cys loop in the active site of ISCU2 without metal present. Deposited 2020-04-08 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 56–457（402 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 36 GOL GLYCEROL × 3 PEG DI(HYDROXYETHYL)ETHER × 10 PG4 TETRAETHYLENE GLYCOL × 2 ETE 2-{2-[2-2-(METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 PGE TRIETHYLENE GLYCOL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400
Resolution 1.95 Å R-free 0.185
6WIH N-terminal mutation of ISCU2 (L35H36) traps Nfs1 Cys loop in the active site of ISCU2 without metal present. Structure of human mitochondrial complex Nfs1-ISCU2(L35H36)-ISD11 with E.coli ACP1 at 1.9 A resolution (NIAU)2. Deposited 2020-04-09 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 56–457（402 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 PEG DI(HYDROXYETHYL)ETHER × 9 GOL GLYCEROL × 5 EDO 1,2-ETHANEDIOL × 38 PG4 TETRAETHYLENE GLYCOL × 2 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 1 PGE TRIETHYLENE GLYCOL × 3 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400
Resolution 1.90 Å R-free 0.186
7RTK Structure of the (NIAU)2 complex with N-terminal mutation of ISCU2 Y35D at 2.5 A resolution Deposited 2021-08-13 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 56–457（402 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 EDO 1,2-ETHANEDIOL × 58 GOL GLYCEROL × 6 PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 16 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400
Resolution 2.50 Å R-free 0.214
8PK8 Structure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (persulfide on ISCU2) Deposited 2023-06-26 Different mutation/modification Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 56–457（402 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
8PKA Structure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (without frataxin) Deposited 2023-06-26 Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 56–457（402 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
8RMC Structure of the FDX2-bound core ISC complex (proximal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 56–457（402 aa）
Chain E 56–457（402 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.26 Å
8RMD Structure of the FDX2-bound core ISC complex (distal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 56–457（402 aa）
Chain E 56–457（402 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
8RME Structure of the core ISC complex under turnover conditions (frataxin-bound) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 56–457（402 aa）
Chain E 56–457（402 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) FE2 FE (II) ION × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
8RMF Structure of the core ISC complex under turnover conditions (FDX2-bound in proximal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 56–457（402 aa）
Chain E 56–457（402 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.33 Å
8RMG Structure of the core ISC complex under turnover conditions (FDX2-bound in distal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 56–457（402 aa）
Chain E 56–457（402 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.46 Å
8TVT Structure of human Cysteine desulfurase Nfs1 with L-propargylglycine bound to active site PLP in complex with ISD11, Acp1 and ISCU2 Deposited 2023-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 56–454（399 aa）
Not recorded EDO 1,2-ETHANEDIOL × 30 PLP PYRIDOXAL-5'-PHOSPHATE × 1 LPH L-Propargylglycine × 1 GOL GLYCEROL × 3 PEG DI(HYDROXYETHYL)ETHER × 8 PG4 TETRAETHYLENE GLYCOL × 2 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 1 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1 PGE TRIETHYLENE GLYCOL × 1 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；288 K；0.1 M MES pH 6.5 22.5 % PEG 400
Resolution 2.00 Å R-free 0.186

19 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NFS1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 3–404； UniProt 56–457

LYR motif-containing protein 4

Homo sapiens

UniProt Q9HD34

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain B； UniProt 1–91 Not recorded Cysteine desulfurase × 1 （Q9Y697） Acyl carrier protein × 1 （P0A6A8） Iron-sulfur cluster assembly enzyme ISCU × 1 （Q9H1K1） Frataxin mature form × 1 （Q16595） PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.58 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8PK9 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5USR Crystal structure of human NFS1-ISD11 in complex with E. coli acyl-carrier protein at 3.09 angstroms Deposited 2017-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–91（91 aa）
Chain H 1–91（91 aa）
Mutation：S11A Mutation：S11A 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；450 uL 0.1 M CBTP (pH = 6.4), 0.3 M CsCl, 0.2 M D,L - allylglycine, 5 mM TCEP, 8 % (wt/vol) PEG 3350 mixed with 50 uL of 40 % (vol/vol) acetone
Resolution 3.09 Å R-free 0.259
5USR Crystal structure of human NFS1-ISD11 in complex with E. coli acyl-carrier protein at 3.09 angstroms Deposited 2017-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–91（91 aa）
Chain F 1–91（91 aa）
Mutation：S11A Mutation：S11A 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；450 uL 0.1 M CBTP (pH = 6.4), 0.3 M CsCl, 0.2 M D,L - allylglycine, 5 mM TCEP, 8 % (wt/vol) PEG 3350 mixed with 50 uL of 40 % (vol/vol) acetone
Resolution 3.09 Å R-free 0.259
5WGB Crystal Structure of the Human mitochondrial Cysteine Desulfurase in complex with ISD11 and E. coli ACP1 protein at 2.75A Deposited 2017-07-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；285 K；0.1 M MES pH 6.5 0.3 M Ammonium Acetate 20 mM Calcium Acetate 20 mM CaCl2 19 % isopropanol
Resolution 2.75 Å R-free 0.255
5WKP Crystal Structure of the Human mitochondrial Cysteine Desulfurase in complex with ISD11 and Iron-Sulfur Cluster Scaffold Protein ISCU1, and E. coli ACP1 protein at 3.15A Deposited 2017-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–91（91 aa）
Chain F 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；285 K；0.1 M MES pH 7 15 % PEG 3350
Resolution 3.15 Å R-free 0.242
5WLW Crystal Structure of the Human Mitochondrial Cysteine Desulfurase with active Cysteine Loop within ISCU1 active site, coordinating Zn ion. Complexed with human ISD11 and E. coli ACP1 at 3.3A. Deposited 2017-07-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–91（91 aa）
Chain F 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M MES pH 7.0 15 % PEG 3350
Resolution 3.32 Å R-free 0.255
6NZU Structure of the human frataxin-bound iron-sulfur cluster assembly complex Deposited 2019-02-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain B 1–91（91 aa）
Chain F 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6ODD Crystal structure of the human complex ACP-ISD11 Deposited 2019-03-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 5–78（74 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；The drop was a 1:1 mix of protein (in 10 mM Tris buffer, 25 mM NaCl, pH 7.5) and reservoir solution (0.1 M Tris pH 9.1, 0.1 M CaCl2, 23% tert-butanol)
Resolution 2.00 Å R-free 0.216
6ODD Crystal structure of the human complex ACP-ISD11 Deposited 2019-03-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–78（74 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；The drop was a 1:1 mix of protein (in 10 mM Tris buffer, 25 mM NaCl, pH 7.5) and reservoir solution (0.1 M Tris pH 9.1, 0.1 M CaCl2, 23% tert-butanol)
Resolution 2.00 Å R-free 0.216
6UXE Structure of the human mitochondrial desulfurase complex Nfs1-ISCU2(M140I)-ISD11 with E.coli ACP1 at 1.57 A resolution showing flexibility of N terminal end of ISCU2 Deposited 2019-11-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 GOL GLYCEROL × 12 EDO 1,2-ETHANEDIOL × 100 PEG DI(HYDROXYETHYL)ETHER × 22 PG4 TETRAETHYLENE GLYCOL × 4 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；288 K；0.1 M MES pH 6.0-6.5, 22% PEG400
Resolution 1.57 Å R-free 0.180
6W1D Structure of human mitochondrial complex Nfs1-ISCU2 (WT)-ISD11 with E.coli ACP1 at 1.8 A resolution (NIAU)2 Deposited 2020-03-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 GOL GLYCEROL × 12 EDO 1,2-ETHANEDIOL × 96 PEG DI(HYDROXYETHYL)ETHER × 22 PG4 TETRAETHYLENE GLYCOL × 4 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；288 K；0.1 M MES pH 6.0-6.5 22 % PEG 400
Resolution 1.79 Å R-free 0.189
6WI2 Structure of human mitochondrial complex Nfs1-ISCU2-ISD11 with E.coli ACP1 at 1.95 A resolution (NIAU)2. N-terminal mutation of ISCU2 (L35) traps Nfs1 Cys loop in the active site of ISCU2 without metal present. Deposited 2020-04-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 36 GOL GLYCEROL × 3 PEG DI(HYDROXYETHYL)ETHER × 10 PG4 TETRAETHYLENE GLYCOL × 2 ETE 2-{2-[2-2-(METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 PGE TRIETHYLENE GLYCOL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400
Resolution 1.95 Å R-free 0.185
6WIH N-terminal mutation of ISCU2 (L35H36) traps Nfs1 Cys loop in the active site of ISCU2 without metal present. Structure of human mitochondrial complex Nfs1-ISCU2(L35H36)-ISD11 with E.coli ACP1 at 1.9 A resolution (NIAU)2. Deposited 2020-04-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 PEG DI(HYDROXYETHYL)ETHER × 9 GOL GLYCEROL × 5 EDO 1,2-ETHANEDIOL × 38 PG4 TETRAETHYLENE GLYCOL × 2 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 1 PGE TRIETHYLENE GLYCOL × 3 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400
Resolution 1.90 Å R-free 0.186
7RTK Structure of the (NIAU)2 complex with N-terminal mutation of ISCU2 Y35D at 2.5 A resolution Deposited 2021-08-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 EDO 1,2-ETHANEDIOL × 58 GOL GLYCEROL × 6 PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 16 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400
Resolution 2.50 Å R-free 0.214
8PK8 Structure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (persulfide on ISCU2) Deposited 2023-06-26 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
8PKA Structure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (without frataxin) Deposited 2023-06-26 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–91（91 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
8RMC Structure of the FDX2-bound core ISC complex (proximal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–91（91 aa）
Chain F 1–91（91 aa）
Not recorded FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.26 Å
8RMD Structure of the FDX2-bound core ISC complex (distal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–91（91 aa）
Chain F 1–91（91 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
8RME Structure of the core ISC complex under turnover conditions (frataxin-bound) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–91（91 aa）
Chain F 1–91（91 aa）
Not recorded FE2 FE (II) ION × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
8RMF Structure of the core ISC complex under turnover conditions (FDX2-bound in proximal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–91（91 aa）
Chain F 1–91（91 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.33 Å
8RMG Structure of the core ISC complex under turnover conditions (FDX2-bound in distal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–91（91 aa）
Chain F 1–91（91 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.46 Å
8TVT Structure of human Cysteine desulfurase Nfs1 with L-propargylglycine bound to active site PLP in complex with ISD11, Acp1 and ISCU2 Deposited 2023-08-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–91（91 aa）
Not recorded EDO 1,2-ETHANEDIOL × 30 PLP PYRIDOXAL-5'-PHOSPHATE × 1 LPH L-Propargylglycine × 1 GOL GLYCEROL × 3 PEG DI(HYDROXYETHYL)ETHER × 8 PG4 TETRAETHYLENE GLYCOL × 2 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 1 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1 PGE TRIETHYLENE GLYCOL × 1 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；288 K；0.1 M MES pH 6.5 22.5 % PEG 400
Resolution 2.00 Å R-free 0.186

19 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name LYRM4_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 25–115； UniProt 1–91

Acyl carrier protein

OrganismNot specified

UniProt P0A6A8

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain C； UniProt 1–78 Not recorded Cysteine desulfurase × 1 （Q9Y697） LYR motif-containing protein 4 × 1 （Q9HD34） Iron-sulfur cluster assembly enzyme ISCU × 1 （Q9H1K1） Frataxin mature form × 1 （Q16595） PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.58 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8PK9 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1ACP REFINEMENT OF THE NMR STRUCTURES FOR ACYL CARRIER PROTEIN WITH SCALAR COUPLING DATA Deposited 1990-07-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–77（77 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1L0H CRYSTAL STRUCTURE OF BUTYRYL-ACP FROM E.COLI Deposited 2002-02-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–76（76 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；PEG 20000, zinc chloride, sodium cacodylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 2.00 Å R-free 0.252
1L0I Crystal structure of butyryl-ACP I62M mutant Deposited 2002-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 0–77（78 aa）
Mutation：I62M NA SODIUM ION × 1 ZN ZINC ION × 7 CAC CACODYLATE ION × 1 PSR THIOBUTYRIC ACID S-{2-[3-(2-HYDROXY-3,3-DIMETHYL-4-PHOSPHONOOXY-BUTYRYLAMINO)-PROPIONYLAMINO]-ETHYL} ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；PEG 4000, zinc acetate, sodium cacodylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.20 Å R-free 0.193
1T8K Crystal Structure of apo acyl carrier protein from E. coli Deposited 2004-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–77（77 aa）
Not recorded ZN ZINC ION × 10 IMD IMIDAZOLE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；300 K；peg, zinc acetate, imidazole buffer, pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 300K
Resolution 1.10 Å R-free 0.150
2FAC Crystal structure of E. coli hexanoyl-ACP Deposited 2005-12-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–77（77 aa）
Not recorded ZN ZINC ION × 7 PM4 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEXANETHIOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；16-20% PEG 1500, 20 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.76 Å R-free 0.241
2FAC Crystal structure of E. coli hexanoyl-ACP Deposited 2005-12-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 4 PM4 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEXANETHIOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；16-20% PEG 1500, 20 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.76 Å R-free 0.241
2FAC Crystal structure of E. coli hexanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 22 PM4 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEXANETHIOATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；16-20% PEG 1500, 20 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.76 Å R-free 0.241
2FAC Crystal structure of E. coli hexanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 22 PM4 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEXANETHIOATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；16-20% PEG 1500, 20 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.76 Å R-free 0.241
2FAC Crystal structure of E. coli hexanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 22 PM4 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEXANETHIOATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；16-20% PEG 1500, 20 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.76 Å R-free 0.241
2FAC Crystal structure of E. coli hexanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 11 PM4 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEXANETHIOATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；16-20% PEG 1500, 20 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.76 Å R-free 0.241
2FAC Crystal structure of E. coli hexanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 11 PM4 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEXANETHIOATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；16-20% PEG 1500, 20 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.76 Å R-free 0.241
2FAC Crystal structure of E. coli hexanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 11 PM4 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEXANETHIOATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；16-20% PEG 1500, 20 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.76 Å R-free 0.241
2FAC Crystal structure of E. coli hexanoyl-ACP Deposited 2005-12-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 9 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–77（77 aa）
Not recorded ZN ZINC ION × 14 PM4 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEXANETHIOATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；16-20% PEG 1500, 20 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.76 Å R-free 0.241
2FAD Crystal structure of E. coli heptanoyl-ACP Deposited 2005-12-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–77（77 aa）
Not recorded NA SODIUM ION × 1 ZN ZINC ION × 7 PM5 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEPTANETHIOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.60 Å R-free 0.256
2FAD Crystal structure of E. coli heptanoyl-ACP Deposited 2005-12-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 1 PM5 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEPTANETHIOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.60 Å R-free 0.256
2FAD Crystal structure of E. coli heptanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded NA SODIUM ION × 2 ZN ZINC ION × 16 PM5 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) HEPTANETHIOATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.60 Å R-free 0.256
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–77（77 aa）
Not recorded ZN ZINC ION × 7 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 10 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 8 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 11 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–77（77 aa）
Not recorded ZN ZINC ION × 14 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 1 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 16 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 16 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 16 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 16 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 16 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 8 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FAE Crystal structure of E. coli decanoyl-ACP Deposited 2005-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 9 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–77（77 aa）
Chain B 1–77（77 aa）
Not recorded ZN ZINC ION × 8 PM8 S-(2-{[N-(2-HYDROXY-4-{[HYDROXY(OXIDO)PHOSPHINO]OXY}-3,3-DIMETHYLBUTANOYL)-BETA-ALANYL]AMINO}ETHYL) DECANETHIOATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；290 K；8-12% PEG 4000, 30 mM zinc acetate, 50 mM sodium cocadylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 1.55 Å R-free 0.269
2FHS Structure of Acyl Carrier Protein Bound to FabI, the Enoyl Reductase from Escherichia Coli Deposited 2005-12-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–77（77 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；22% PEG 4000 and 1M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 2.70 Å R-free 0.263
2K92 Structural modification of acyl carrier protein by butyryl group Deposited 2008-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–78（77 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；300 K；Ionic strength (raw mmCIF value) 40
NMR sample composition 1.5 mM [U-13C; U-15N] apoacp, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2K93 Structural modification of acyl carrier protein by butyryl group Deposited 2008-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–78（77 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5
NMR sample composition 1.5 mM [U-100% 13C; U-100% 15N] Holo ACP, 40 mM potassium phosphate, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2K94 Structural modification of acyl carrier protein by butyryl group Deposited 2008-09-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–78（77 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5
NMR sample composition 1.5 mM [U-100% 13C; U-100% 15N] Butyryl ACP, 40 mM potassium phosphate, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
3EJB Crystal Structure of P450BioI in complex with tetradecanoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–78（78 aa）
Not recorded ZMP S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] tetradecanethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.266
3EJB Crystal Structure of P450BioI in complex with tetradecanoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–78（78 aa）
Not recorded ZMP S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] tetradecanethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.266
3EJB Crystal Structure of P450BioI in complex with tetradecanoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–78（78 aa）
Not recorded ZMP S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] tetradecanethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.266
3EJB Crystal Structure of P450BioI in complex with tetradecanoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–78（78 aa）
Not recorded ZMP S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] tetradecanethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.266
3EJD Crystal Structure of P450BioI in complex with hexadec-9Z-enoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–78（78 aa）
Not recorded ZMQ S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] (9Z)-hexadec-9-enethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.285
3EJD Crystal Structure of P450BioI in complex with hexadec-9Z-enoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–78（78 aa）
Not recorded ZMQ S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] (9Z)-hexadec-9-enethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.285
3EJD Crystal Structure of P450BioI in complex with hexadec-9Z-enoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–78（78 aa）
Not recorded ZMQ S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] (9Z)-hexadec-9-enethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.285
3EJD Crystal Structure of P450BioI in complex with hexadec-9Z-enoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–78（78 aa）
Not recorded ZMQ S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] (9Z)-hexadec-9-enethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.285
3EJE Crystal Structure of P450BioI in complex with octadec-9Z-enoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–78（78 aa）
Not recorded ZMO S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] (9Z)-octadec-9-enethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.274
3EJE Crystal Structure of P450BioI in complex with octadec-9Z-enoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–78（78 aa）
Not recorded ZMO S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] (9Z)-octadec-9-enethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.274
3EJE Crystal Structure of P450BioI in complex with octadec-9Z-enoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–78（78 aa）
Not recorded ZMO S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] (9Z)-octadec-9-enethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.274
3EJE Crystal Structure of P450BioI in complex with octadec-9Z-enoic acid ligated Acyl Carrier Protein Deposited 2008-09-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–78（78 aa）
Not recorded ZMO S-[2-({N-[(2S)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] (9Z)-octadec-9-enethioate × 1 HTG heptyl 1-thio-beta-D-glucopyranoside × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1 M Na HEPES, 0.25 M NaCl, 0.15 M Li2SO4, 19% PEG 4000, 0.2% n-heptyl b-D-thioglucopyranoside, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.274
5USR Crystal structure of human NFS1-ISD11 in complex with E. coli acyl-carrier protein at 3.09 angstroms Deposited 2017-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain J 1–78（78 aa）
Chain K 1–78（78 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；450 uL 0.1 M CBTP (pH = 6.4), 0.3 M CsCl, 0.2 M D,L - allylglycine, 5 mM TCEP, 8 % (wt/vol) PEG 3350 mixed with 50 uL of 40 % (vol/vol) acetone
Resolution 3.09 Å R-free 0.259
5USR Crystal structure of human NFS1-ISD11 in complex with E. coli acyl-carrier protein at 3.09 angstroms Deposited 2017-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain I 1–78（78 aa）
Chain L 1–78（78 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；450 uL 0.1 M CBTP (pH = 6.4), 0.3 M CsCl, 0.2 M D,L - allylglycine, 5 mM TCEP, 8 % (wt/vol) PEG 3350 mixed with 50 uL of 40 % (vol/vol) acetone
Resolution 3.09 Å R-free 0.259
6OKC Crosslinked Crystal Structure of Type II Fatty Acid Synthase Ketosynthase, FabB, and C12-crypto Acyl Carrier Protein, AcpP Deposited 2019-04-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–78（78 aa）
Chain D 1–78（78 aa）
Not recorded MRJ N-[2-(dodecanoylamino)ethyl]-N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alaninamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；20% PEG 8K, 0.2 M magnesium acetate, 0.1 M sodium cacodylate pH 6.5
Resolution 1.55 Å R-free 0.164
6OKF Crosslinked Crystal Structure of Type II Fatty Acid Synthase Ketosynthase, FabB, and C16-crypto Acyl Carrier Protein, AcpP Deposited 2019-04-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–78（78 aa）
Chain D 1–78（78 aa）
Not recorded NA SODIUM ION × 2 MRJ N-[2-(dodecanoylamino)ethyl]-N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alaninamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；26% PEG 8K, 0.1 M sodium cacodylate pH 6.5, and 0.3 M sodium acetate
Resolution 2.50 Å R-free 0.218
6OKG Crosslinked Crystal Structure of Type II Fatty Acid Synthase Ketosynthase, FabF, and C16-crypto Acyl Carrier Protein, AcpP Deposited 2019-04-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–78（78 aa）
Not recorded NA SODIUM ION × 2 MU4 N-[2-(hexadecanoylamino)ethyl]-N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alaninamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；30 % PEG 8K, 0.1 M sodium cacodylate pH 6.5, and 0.3 M sodium acetate
Resolution 2.30 Å R-free 0.228
6OLT Crosslinked Crystal Structure of Type II Fatty Acid Synthase Ketosynthase, FabF, and C12-crypto Acyl Carrier Protein, AcpP Deposited 2019-04-17 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–78（78 aa）
Not recorded MRJ N-[2-(dodecanoylamino)ethyl]-N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alaninamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；30 % PEG 8K, 0.1 M sodium cacodylate pH 6.5, and 0.3 M sodium acetate
Resolution 2.35 Å R-free 0.239
6W98 Single-Particle Cryo-EM Structure of Arabinofuranosyltransferase AftD from Mycobacteria Deposited 2020-03-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–78（78 aa）
Not recorded CA CALCIUM ION × 2 6OU [(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyloxy-propan-2-yl] (~{Z})-octadec-9-enoate × 1 PNS 4'-PHOSPHOPANTETHEINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solution was filtered and degassed.
cryo-EM vitrification conditions Cryogen ETHANE；The Spotiton V1.0 robot was operating at room temperature and moderate humidity.
Resolution 2.90 Å
7L4E Crosslinked Crystal Structure of Type II Fatty Acid Synthase Ketosynthase, FabF, and C16:1-crypto Acyl Carrier Protein, AcpP Deposited 2020-12-18 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–78（78 aa）
Not recorded EDO 1,2-ETHANEDIOL × 4 MU4 N-[2-(hexadecanoylamino)ethyl]-N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alaninamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；30 % PEG 8K, 0.1 M sodium cacodylate pH 6.5, and 0.3 M sodium acetate
Resolution 2.00 Å R-free 0.207
7L4L Crosslinked Crystal Structure of Type II Fatty Acid Synthase Ketosynthase, FabF, and C8-crypto Acyl Carrier Protein, AcpP Deposited 2020-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–78（78 aa）
Chain D 1–78（78 aa）
Not recorded NA SODIUM ION × 2 DYF [(3~{R})-2,2-dimethyl-4-[[3-[2-[[(~{E})-oct-2-enoyl]amino]ethylamino]-3-oxidanylidene-propyl]amino]-3-oxidanyl-4-oxidanylidene-butyl] dihydrogen phosphate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；281 K；30 % PEG 8K, 0.1 M sodium cacodylate pH 6.5, and 0.3 M sodium acetate
Resolution 2.65 Å R-free 0.267
8PK8 Structure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (persulfide on ISCU2) Deposited 2023-06-26 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–78（78 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
8PKA Structure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (without frataxin) Deposited 2023-06-26 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–78（78 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
8RMC Structure of the FDX2-bound core ISC complex (proximal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain C 1–78（78 aa）
Chain G 1–78（78 aa）
Not recorded FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.26 Å
8RMD Structure of the FDX2-bound core ISC complex (distal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain C 1–78（78 aa）
Chain G 1–78（78 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
8RME Structure of the core ISC complex under turnover conditions (frataxin-bound) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain C 1–78（78 aa）
Chain G 1–78（78 aa）
Not recorded FE2 FE (II) ION × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
8RMF Structure of the core ISC complex under turnover conditions (FDX2-bound in proximal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain C 1–78（78 aa）
Chain G 1–78（78 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.33 Å
8RMG Structure of the core ISC complex under turnover conditions (FDX2-bound in distal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain C 1–78（78 aa）
Chain G 1–78（78 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.46 Å
9GI2 Truncated MmpL4 in nanodiscs in absence of substrate Deposited 2024-08-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–78（78 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM Tris-HCl pH 7.5, 150mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
9GI3 Truncated MmpL4 in nanodiscs in the presence of desferrated mycobactin Deposited 2024-08-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–78（78 aa）
Not recorded A1IL5 Mycobactin S × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM Tris-HCl pH 7.5, 150mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.50 Å
9GM6 MukBEF in a nucleotide-bound state with open neck gate (heads core) Deposited 2024-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–78（78 aa）
Chain G 1–78（78 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.70 Å
9GM7 MukBEF in a nucleotide-bound state with open neck gate (monomer) Deposited 2024-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–78（78 aa）
Chain I 1–78（78 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 4.30 Å
9GM8 MukBEF in a nucleotide-bound state with open neck gate Deposited 2024-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–78（78 aa）
Chain I 1–78（78 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.90 Å
9GM9 MukBEF in a DNA capture state Deposited 2024-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain G 1–78（78 aa）
Chain I 1–78（78 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 7.80 Å
9GMA MukBEF in a DNA capture state (dimer) Deposited 2024-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain G 1–78（78 aa）
Chain I 1–78（78 aa）
Chain M 1–78（78 aa）
Chain S 1–78（78 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 4 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 9.10 Å
9KA6 Crystal structure of beta-ketoacyl-ACP synthase FabH C112Q in complex with acyl-ACP from E. coli Deposited 2024-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 3–78（76 aa）
Not recorded 6VG ~{S}-[2-[3-[[(2~{R})-3,3-dimethyl-2-oxidanyl-4-phosphonooxy-butanoyl]amino]propanoylamino]ethyl] ethanethioate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.0M sodium chloride,0.1M HEPES PH7.0
Resolution 1.47 Å R-free 0.178
9KA7 Crystal structure of beta-ketoacyl-ACP synthase FabH C112Q in complex with malonyl-ACP from E. coli Deposited 2024-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 3–78（76 aa）
Not recorded A1EE0 3-[2-[3-[[(2R)-4-bis(oxidanyl)phosphanyloxy-3,3-dimethyl-2-oxidanyl-butanoyl]amino]propanoylamino]ethylsulfanyl]-3-oxidanylidene-propanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.0M sodium chloride,0.1M HEPES PH7.0
Resolution 2.30 Å R-free 0.207
9MLW Crosslinked complex of ketosynthase FabB mutant FabBG107M and acyl carrier protein AcpP from E.coli with C8 crosslinker Deposited 2024-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 3–78（76 aa）
Chain D 3–78（76 aa）
Not recorded A1BMZ N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-(2-octanamidoethyl)-beta-alaninamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；Sodium Cacodylate pH 6.0, 28% PEG8K, NaCH3COO
Resolution 2.21 Å R-free 0.243

39 other PDB entries and 69 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ACP_ECOLI
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–78； UniProt 1–78

Iron-sulfur cluster assembly enzyme ISCU

Homo sapiens

UniProt Q9H1K1

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain D； UniProt 35–167 Non-standard monomer：Yes (specific site not provided by mmCIF) Cysteine desulfurase × 1 （Q9Y697） LYR motif-containing protein 4 × 1 （Q9HD34） Acyl carrier protein × 1 （P0A6A8） Frataxin mature form × 1 （Q16595） PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.58 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8PK9 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5KZ5 Architecture of the Human Mitochondrial Iron-Sulfur Cluster Assembly Machinery: the Complex Formed by the Iron Donor, the Sulfur Donor, and the Scaffold Deposited 2016-07-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain a 25–142（118 aa）
Chain b 25–142（118 aa）
Chain c 25–142（118 aa）
Chain d 25–142（118 aa）
Chain e 25–142（118 aa）
Chain f 25–142（118 aa）
Chain g 25–142（118 aa）
Chain h 25–142（118 aa）
Chain i 25–142（118 aa）
Chain j 25–142（118 aa）
Chain k 25–142（118 aa）
Chain l 25–142（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
Resolution 14.30 Å
5WKP Crystal Structure of the Human mitochondrial Cysteine Desulfurase in complex with ISD11 and Iron-Sulfur Cluster Scaffold Protein ISCU1, and E. coli ACP1 protein at 3.15A Deposited 2017-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–142（142 aa）
Chain H 1–142（142 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；285 K；0.1 M MES pH 7 15 % PEG 3350
Resolution 3.15 Å R-free 0.242
5WLW Crystal Structure of the Human Mitochondrial Cysteine Desulfurase with active Cysteine Loop within ISCU1 active site, coordinating Zn ion. Complexed with human ISD11 and E. coli ACP1 at 3.3A. Deposited 2017-07-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–142（142 aa）
Chain H 1–142（142 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M MES pH 7.0 15 % PEG 3350
Resolution 3.32 Å R-free 0.255
6NZU Structure of the human frataxin-bound iron-sulfur cluster assembly complex Deposited 2019-02-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 35–157（123 aa） Fragment：UNP residues 35-157
Chain H 35–157（123 aa） Fragment：UNP residues 35-157
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6UXE Structure of the human mitochondrial desulfurase complex Nfs1-ISCU2(M140I)-ISD11 with E.coli ACP1 at 1.57 A resolution showing flexibility of N terminal end of ISCU2 Deposited 2019-11-07 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 35–167（133 aa）
Mutation：M140I PLP PYRIDOXAL-5'-PHOSPHATE × 2 GOL GLYCEROL × 12 EDO 1,2-ETHANEDIOL × 100 PEG DI(HYDROXYETHYL)ETHER × 22 PG4 TETRAETHYLENE GLYCOL × 4 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；288 K；0.1 M MES pH 6.0-6.5, 22% PEG400
Resolution 1.57 Å R-free 0.180
6W1D Structure of human mitochondrial complex Nfs1-ISCU2 (WT)-ISD11 with E.coli ACP1 at 1.8 A resolution (NIAU)2 Deposited 2020-03-04 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 35–167（133 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 GOL GLYCEROL × 12 EDO 1,2-ETHANEDIOL × 96 PEG DI(HYDROXYETHYL)ETHER × 22 PG4 TETRAETHYLENE GLYCOL × 4 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；288 K；0.1 M MES pH 6.0-6.5 22 % PEG 400
Resolution 1.79 Å R-free 0.189
6WI2 Structure of human mitochondrial complex Nfs1-ISCU2-ISD11 with E.coli ACP1 at 1.95 A resolution (NIAU)2. N-terminal mutation of ISCU2 (L35) traps Nfs1 Cys loop in the active site of ISCU2 without metal present. Deposited 2020-04-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 10–142（133 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 36 GOL GLYCEROL × 3 PEG DI(HYDROXYETHYL)ETHER × 10 PG4 TETRAETHYLENE GLYCOL × 2 ETE 2-{2-[2-2-(METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 PGE TRIETHYLENE GLYCOL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400
Resolution 1.95 Å R-free 0.185
6WIH N-terminal mutation of ISCU2 (L35H36) traps Nfs1 Cys loop in the active site of ISCU2 without metal present. Structure of human mitochondrial complex Nfs1-ISCU2(L35H36)-ISD11 with E.coli ACP1 at 1.9 A resolution (NIAU)2. Deposited 2020-04-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 10–142（133 aa）
Mutation：S11H PLP PYRIDOXAL-5'-PHOSPHATE × 1 PEG DI(HYDROXYETHYL)ETHER × 9 GOL GLYCEROL × 5 EDO 1,2-ETHANEDIOL × 38 PG4 TETRAETHYLENE GLYCOL × 2 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 1 PGE TRIETHYLENE GLYCOL × 3 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400
Resolution 1.90 Å R-free 0.186
7RTK Structure of the (NIAU)2 complex with N-terminal mutation of ISCU2 Y35D at 2.5 A resolution Deposited 2021-08-13 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 35–167（133 aa）
Mutation：Y35D PLP PYRIDOXAL-5'-PHOSPHATE × 2 EDO 1,2-ETHANEDIOL × 58 GOL GLYCEROL × 6 PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 16 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 2 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 PGE TRIETHYLENE GLYCOL × 6 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 1PE PENTAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；288 K；0.1 M MES pH 5.5 22.5 % PEG 400
Resolution 2.50 Å R-free 0.214
8PK8 Structure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (persulfide on ISCU2) Deposited 2023-06-26 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 35–167（133 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
8PKA Structure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (without frataxin) Deposited 2023-06-26 Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 35–167（133 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
8RMC Structure of the FDX2-bound core ISC complex (proximal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 35–167（133 aa）
Chain H 35–167（133 aa）
Not recorded FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.26 Å
8RMD Structure of the FDX2-bound core ISC complex (distal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 35–167（133 aa）
Chain H 35–167（133 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
8RME Structure of the core ISC complex under turnover conditions (frataxin-bound) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 35–167（133 aa）
Chain H 35–167（133 aa）
Not recorded FE2 FE (II) ION × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
8RMF Structure of the core ISC complex under turnover conditions (FDX2-bound in proximal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 35–167（133 aa）
Chain H 35–167（133 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.33 Å
8RMG Structure of the core ISC complex under turnover conditions (FDX2-bound in distal conformation) Deposited 2024-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 35–167（133 aa）
Chain H 35–167（133 aa）
Not recorded 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 FE2 FE (II) ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.46 Å
8TVT Structure of human Cysteine desulfurase Nfs1 with L-propargylglycine bound to active site PLP in complex with ISD11, Acp1 and ISCU2 Deposited 2023-08-18 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 35–167（133 aa）
Not recorded EDO 1,2-ETHANEDIOL × 30 PLP PYRIDOXAL-5'-PHOSPHATE × 1 LPH L-Propargylglycine × 1 GOL GLYCEROL × 3 PEG DI(HYDROXYETHYL)ETHER × 8 PG4 TETRAETHYLENE GLYCOL × 2 P15 2,5,8,11,14,17-HEXAOXANONADECAN-19-OL × 1 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1 PGE TRIETHYLENE GLYCOL × 1 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；288 K；0.1 M MES pH 6.5 22.5 % PEG 400
Resolution 2.00 Å R-free 0.186

17 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ISCU_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain D； PDBConstruct 3–135； UniProt 35–167

Frataxin mature form

Homo sapiens

UniProt Q16595

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain E； UniProt 81–210 Not recorded Cysteine desulfurase × 1 （Q9Y697） LYR motif-containing protein 4 × 1 （Q9HD34） Acyl carrier protein × 1 （P0A6A8） Iron-sulfur cluster assembly enzyme ISCU × 1 （Q9H1K1） PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.58 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8PK9 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EKG MATURE HUMAN FRATAXIN Deposited 2000-03-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 84–210（127 aa） Fragment：RESIDUES 88-210
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；2.5 M ammonium sulfate, 0.1 sodium citrate, 2% sucrose, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 18K
Resolution 1.80 Å R-free 0.220
1LY7 The solution structure of the the c-terminal domain of frataxin, the protein responsible for friedreich ataxia Deposited 2002-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 91–210（120 aa） Fragment：C-TERMINAL DOMAIN (91-210)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；300 K；Ionic strength (raw mmCIF value) 10 mM phosphate；Pressure ambient
NMR sample composition 1 MM FRATAXIN. U-15N 10 MM PHOSPHATE BUFFER (PH 6.8)90% H2O, 10% D2O | h2o
Resolution not provided
3S4M Crystal structure of wild-type human frataxin Deposited 2011-05-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；295 K；30% MPD, 0.1 M sodium citrate, 0.2 M ammonium acetate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.30 Å R-free 0.187
3S5D Crystal structure of human frataxin variant W155A Deposited 2011-05-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：W155A SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.8 M ammonium sulfate, 0.2 M potassium sodium tartrate tetrahydrate, 0.1 M sodium citrate tribasic dihydrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.50 Å R-free 0.192
3S5E Crystal structure of human frataxin variant W155R, one of the Friedreich's ataxia point mutations Deposited 2011-05-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：W155R MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；16% PEG2000 MME, 0.1 M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.31 Å R-free 0.197
3S5F Crystal structure of human frataxin variant W155F Deposited 2011-05-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：W155F MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；0.2 M sodium acetate trihydrate, 0.1 M Tris hydrochloride, 30% PEG4000, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.50 Å R-free 0.213
3S5F Crystal structure of human frataxin variant W155F Deposited 2011-05-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：W155F MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；0.2 M sodium acetate trihydrate, 0.1 M Tris hydrochloride, 30% PEG4000, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.50 Å R-free 0.213
3T3J 1.70 A structure of Friedreich's ataxia frataxin variant N146K Deposited 2011-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：N146K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；28% PEG2000 MME, 0.1 M Tris, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.70 Å R-free 0.245
3T3K 1.24 A Structure of Friedreich's ataxia frataxin variant Q148R Deposited 2011-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：Q148R No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；20% PEG3000, 0.1 M sodium citrate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.24 Å R-free 0.197
3T3L 1.15 A structure of human frataxin variant Q153A Deposited 2011-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：Q153A SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；295 K；2.0 M ammonium sulfate, 0.1 M sodium citrate tribasic dihydrate, 0.2 M potassium sodium tartrate tetrahydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.15 Å R-free 0.179
3T3T 1.38 A structure of human frataxin variant Q148G Deposited 2011-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：Q148G SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；2.0 M ammonium sulfate, 0.1 M citrate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.38 Å R-free 0.227
3T3T 1.38 A structure of human frataxin variant Q148G Deposited 2011-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：Q148G SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；2.0 M ammonium sulfate, 0.1 M citrate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.38 Å R-free 0.227
3T3T 1.38 A structure of human frataxin variant Q148G Deposited 2011-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：Q148G SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；2.0 M ammonium sulfate, 0.1 M citrate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.38 Å R-free 0.227
3T3T 1.38 A structure of human frataxin variant Q148G Deposited 2011-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：Q148G SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；2.0 M ammonium sulfate, 0.1 M citrate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.38 Å R-free 0.227
3T3X 1.57 A structure of Friedreich's ataxia frataxin variant R165C Deposited 2011-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：R165C SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；1.9 M ammonium sulfate, 0.1 M sodium citrate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.57 Å R-free 0.251
3T3X 1.57 A structure of Friedreich's ataxia frataxin variant R165C Deposited 2011-07-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 82–210（129 aa） Fragment：mature form (UNP residues 82-210)
Mutation：R165C SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；1.9 M ammonium sulfate, 0.1 M sodium citrate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.57 Å R-free 0.251
5KZ5 Architecture of the Human Mitochondrial Iron-Sulfur Cluster Assembly Machinery: the Complex Formed by the Iron Donor, the Sulfur Donor, and the Scaffold Deposited 2016-07-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain A 42–210（169 aa）
Chain B 42–210（169 aa）
Chain C 42–210（169 aa）
Chain D 42–210（169 aa）
Chain E 42–210（169 aa）
Chain F 42–210（169 aa）
Chain G 42–210（169 aa）
Chain H 42–210（169 aa）
Chain I 42–210（169 aa）
Chain J 42–210（169 aa）
Chain K 42–210（169 aa）
Chain L 42–210（169 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
Resolution 14.30 Å
6NZU Structure of the human frataxin-bound iron-sulfur cluster assembly complex Deposited 2019-02-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain I 81–210（130 aa） Fragment：UNP residues 81-210
Chain J 81–210（130 aa） Fragment：UNP residues 81-210
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8PK8 Structure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (persulfide on ISCU2) Deposited 2023-06-26 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 81–210（130 aa）
Not recorded PLP PYRIDOXAL-5'-PHOSPHATE × 1 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 1 FE2 FE (II) ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
8RME Structure of the core ISC complex under turnover conditions (frataxin-bound) Deposited 2024-01-05 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain I 81–210（130 aa）
Not recorded FE2 FE (II) ION × 2 8Q1 S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
9HO4 Crystal Structure of the Human Frataxin protein in complex with a tailored Camelid Nanobody 6B1 Deposited 2024-12-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 93–206（114 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M HEPES pH 7.0 0.8M Potassium Sodium Tartrate
Resolution 1.76 Å R-free 0.175
9HO5 Crystal Structure of the Human Frataxin protein in complex with a tailored Camelid Nanobody 4A7 Deposited 2024-12-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 90–210（121 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Sodium Thiocyanate pH 6.9 20% PEG 3350
Resolution 1.50 Å R-free 0.210
9HO6 Crystal Structure of the Human Frataxin protein in complex with a tailored Camelid Nanobody 16C10 Deposited 2024-12-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 90–210（121 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；15% PEG 10K 0.1M Ammonium acetate 0.1M Bis-Tris pH 5.5
Resolution 2.00 Å R-free 0.227
9HO6 Crystal Structure of the Human Frataxin protein in complex with a tailored Camelid Nanobody 16C10 Deposited 2024-12-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 90–210（121 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；15% PEG 10K 0.1M Ammonium acetate 0.1M Bis-Tris pH 5.5
Resolution 2.00 Å R-free 0.227

18 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name FRDA_HUMAN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain E； PDBConstruct 4–133； UniProt 81–210

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8pk9

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8pk9
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8pk9
Deposition date deposition_date2023-06-26
最后修订 last_revision2024-05-01
Structure title titleStructure of the human mitochondrial iron-sulfur cluster biosynthesis complex during persulfide transfer (persulfide on NFS1 and ISCU2)
Keywords keywords;cysteine desulfurase, FeS biosynthesis, FeS biogenesis, mitochondria, Friedreich's ataxia, persulfide, frataxin, TRANSFERASE ;; TRANSFERASE
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier32.09 Å
Radius of gyration Rg (electron density) rg_electron31.49 Å
Forward intensity I(0) i0129486000.00
Molecular weight molecular_weight89940.0 kDa
Excluded volume excluded_volume112480 ų
Envelope volume envelope_volume143850 ų
Hydration-shell volume shell_volume38308 ų
Envelope diameter envelope_diameter105.1 Å
Shell Rg shell_rg38.25 Å
Envelope Rg envelope_rg31.43 Å
Shape Rg shape_rg31.51 Å
Total Rg total_rg31.98 Å
Total atoms total_atoms6310
Residues n_residues798
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax102.0 Å
Rg (real space) rg_real32.05 Å
Rg uncertainty (real space) rg_real_error0.73 Å
I(0) (real space) i0_real1.2950e+08
I(0) uncertainty (real space) i0_real_error1.8880e+06
Rg (reciprocal space) rg_reciprocal32.07 Å
I(0) (reciprocal space) i0_reciprocal129500000.0000
Solution quality estimate total_estimate0.8964
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary39.5 Å
Skewness Skewness skewness0.262
Kurtosis Kurtosis kurtosis-0.526
Angular range angular_range— – 0.2450 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha34650000.0000
Real-space data points n_real_points50
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.947; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.815
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

▶

8. Citations (1)

▶

9. Files and Curves (10)
