SAXSdb — 8q3p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription termination factor Rho

Escherichia

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 18 PDB declaration: 18-meric（18） Consistent with protein copy count	Chain a； UniProt 1–419 Chain b； UniProt 1–419 Chain c； UniProt 1–419 Chain d； UniProt 1–419 Chain e； UniProt 1–419 Chain f； UniProt 1–419 Chain g； UniProt 1–419 Chain h； UniProt 1–419 Chain i； UniProt 1–419 Chain j； UniProt 1–419 Chain k； UniProt 1–419 Chain l； UniProt 1–419 Chain m； UniProt 1–419 Chain n； UniProt 1–419 Chain o； UniProt 1–419 Chain p； UniProt 1–419 Chain q； UniProt 1–419 Chain r； UniProt 1–419	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 18 MG MAGNESIUM ION × 18	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.50 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8Q3P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1PV4 X-ray crystal structure of the Rho transcription termination factor in complex with single stranded DNA Deposited 2003-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 6 PDB declaration: undecameric	Chain A 1–419（419 aa） Fragment：bacterial transcription termination Chain B 1–419（419 aa） Fragment：bacterial transcription termination Chain C 1–419（419 aa） Fragment：bacterial transcription termination Chain D 1–419（419 aa） Fragment：bacterial transcription termination Chain E 1–419（419 aa） Fragment：bacterial transcription termination Chain F 1–419（419 aa） Fragment：bacterial transcription termination	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；0.05M Nacacodylate (pH 6.5), 0.05M NaCl, 2.5% PEG 8K, 20% glycerol, 0.3mM n-Nonyl-beta-D-thiomaltoside, 1mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 18K	Resolution 3.00 Å R-free 0.296
1PVO X-ray crystal structure of Rho transcription termination factor in complex with ssRNA substrate and ANPPNP Deposited 2003-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: undecameric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；0.05 M Cacodylate (pH 6.5), 0.05 M NaCl, 2.5% PEG 8K, 20% glycerol, 0.3 mM n-Nonyl-beta-D-thiomaltoside, 1mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 18K	Resolution 3.00 Å R-free 0.304
2HT1 The closed ring structure of the Rho transcription termination factor in complex with nucleic acid in the motor domains Deposited 2006-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: pentadecameric	Chain A 1–411（411 aa） Chain B 1–411（411 aa）	Not recorded	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions Microbatch under paraffine oil；pH 6.5；291 K；50 mM Na cacodylate, 10 mM MgOAc, 1.8 M LiSO4, 2% benzamidine, 10 mM spermine-HCl, pH 6.5, Microbatch under paraffine oil, temperature 291K	Resolution 3.51 Å R-free 0.328
3ICE Rho transcription termination factor bound to RNA and ADP-BeF3 Deposited 2009-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: heptameric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 6 SPD SPERMIDINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.9；291 K；2.5% MPD, 50mM HEPES, 5mM Tris-HCL, 160mM sodium chloride, 1.25mM magnesium chloride, 5mM spermidine-HCL, 0.5mM TCEP, 1.25mM ADP-BeF3,, pH 7.9, MICROBATCH, temperature 291K	Resolution 2.80 Å R-free 0.295
6WA8 Crystal structure of the E. coli transcription termination factor Rho Deposited 2020-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；293 K；100 mM NaCl, 100 mM Tris pH 8.3, 28% PEG2000MME, 20 mM ATP, pH 7.5	Resolution 3.30 Å R-free 0.296
6XAS CryoEM Structure of E. coli Rho-dependent Transcription Pre-termination Complex Deposited 2020-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
6XAV CryoEM Structure of E. coli Rho-dependent Transcription Pre-termination Complex bound with NusG Deposited 2020-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.70 Å
6Z9P Transcription termination intermediate complex 1 Deposited 2020-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric	Chain a 1–419（419 aa） Chain b 1–419（419 aa） Chain c 1–419（419 aa） Chain d 1–419（419 aa） Chain e 1–419（419 aa） Chain f 1–419（419 aa）	Not recorded	BEF BERYLLIUM TRIFLUORIDE ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 6 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
6Z9R Transcription termination intermediate complex 3 Deposited 2020-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric	Chain a 1–419（419 aa） Chain b 1–419（419 aa） Chain c 1–419（419 aa） Chain d 1–419（419 aa） Chain e 1–419（419 aa） Chain f 1–419（419 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 5 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
6Z9T Transcription termination intermediate complex 5 Deposited 2020-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: pentadecameric	Chain a 1–419（419 aa） Chain b 1–419（419 aa） Chain c 1–419（419 aa） Chain d 1–419（419 aa） Chain e 1–419（419 aa） Chain f 1–419（419 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 5 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8PEX Rho P167L-ATPgS-Psu complex II Deposited 2023-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa） Chain I 1–419（419 aa） Chain J 1–419（419 aa） Chain K 1–419（419 aa） Chain L 1–419（419 aa） Chain M 1–419（419 aa） Chain N 1–419（419 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 12 MG MAGNESIUM ION × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.10 Å
8PEY Rho P167L-ATPgS-Psu complex II locked Deposited 2023-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa） Chain G 1–419（419 aa） Chain I 1–419（419 aa） Chain J 1–419（419 aa） Chain K 1–419（419 aa） Chain L 1–419（419 aa） Chain M 1–419（419 aa） Chain N 1–419（419 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 12 MG MAGNESIUM ION × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.00 Å
8PTG Structure of the transcription termination factor Rho bound to RNA at the PBS and SBS Deposited 2023-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 6 PDB declaration: heptameric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 BEF BERYLLIUM TRIFLUORIDE ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 2.90 Å
8PTM Structure of the transcription termination factor Rho in complex with Rof and ADP Deposited 2023-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: 11-meric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 2.90 Å
8PTN Structure of the transcription termination factor Rho in complex with Rof Deposited 2023-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.30 Å
8PTO Structure of Rho pentamer in complex with Rof and ADP Deposited 2023-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 2.70 Å
8PTP Structure of Rho pentamer in complex with Rof Deposited 2023-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.00 Å
8Q3Q Bacterial transcription termination factor Rho G152D mutant bound to ADP; C-terminal 8xHis-tag Deposited 2023-08-04	Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 18 PDB declaration: 18-meric	Chain a 1–419（419 aa） Chain b 1–419（419 aa） Chain c 1–419（419 aa） Chain d 1–419（419 aa） Chain e 1–419（419 aa） Chain f 1–419（419 aa） Chain g 1–419（419 aa） Chain h 1–419（419 aa） Chain i 1–419（419 aa） Chain j 1–419（419 aa） Chain k 1–419（419 aa） Chain l 1–419（419 aa） Chain m 1–419（419 aa） Chain n 1–419（419 aa） Chain o 1–419（419 aa） Chain p 1–419（419 aa） Chain q 1–419（419 aa） Chain r 1–419（419 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 18 MG MAGNESIUM ION × 18	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8W8D Structural mechanism of inhibition of the Rho transcription termination factor by Rof Deposited 2023-09-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9GCS Rho-ATP-Psu complex II Deposited 2024-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa） Chain G 1–419（419 aa） Chain J 1–419（419 aa） Chain K 1–419（419 aa） Chain L 1–419（419 aa） Chain M 1–419（419 aa） Chain N 1–419（419 aa） Chain O 1–419（419 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 12 MG MAGNESIUM ION × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9GCT Rho-ATP-Psu complex II expanded Deposited 2024-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa） Chain G 1–419（419 aa） Chain H 1–419（419 aa） Chain J 1–419（419 aa） Chain K 1–419（419 aa） Chain L 1–419（419 aa） Chain M 1–419（419 aa） Chain N 1–419（419 aa） Chain O 1–419（419 aa） Chain P 1–419（419 aa） Chain Y 1–419（419 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 15 MG MAGNESIUM ION × 15	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
9GCU Rho-P167L-ATP gamma S Deposited 2024-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–419（419 aa） Chain B 1–419（419 aa） Chain C 1–419（419 aa） Chain D 1–419（419 aa） Chain E 1–419（419 aa） Chain F 1–419（419 aa）	Not recorded	MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å

22 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RHO_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain a； PDBConstruct 4–422； UniProt 1–419 Author chain b； PDBConstruct 4–422； UniProt 1–419 Author chain c； PDBConstruct 4–422； UniProt 1–419 Author chain d； PDBConstruct 4–422； UniProt 1–419 Author chain e； PDBConstruct 4–422； UniProt 1–419 Author chain f； PDBConstruct 4–422； UniProt 1–419 Author chain g； PDBConstruct 4–422； UniProt 1–419 Author chain h； PDBConstruct 4–422； UniProt 1–419 Author chain i； PDBConstruct 4–422； UniProt 1–419 Author chain j； PDBConstruct 4–422； UniProt 1–419 Author chain k； PDBConstruct 4–422； UniProt 1–419 Author chain l； PDBConstruct 4–422； UniProt 1–419 Author chain m； PDBConstruct 4–422； UniProt 1–419 Author chain n； PDBConstruct 4–422； UniProt 1–419 Author chain o； PDBConstruct 4–422； UniProt 1–419 Author chain p； PDBConstruct 4–422； UniProt 1–419 Author chain q； PDBConstruct 4–422； UniProt 1–419 Author chain r； PDBConstruct 4–422； UniProt 1–419

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8q3p
Deposition date deposition_date	2023-08-04
Structure title title	Bacterial transcription termination factor Rho G150D mutant bound to ADP; C-terminal 8xHis-tag
Keywords keywords	Rho, termination, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	71.98 Å
Radius of gyration Rg (electron density) rg_electron	72.06 Å
Forward intensity I(0) i0	10335800000.00
Molecular weight molecular_weight	854910.0 kDa
Excluded volume excluded_volume	1069400 Å³
Envelope volume envelope_volume	1652100 Å³
Hydration-shell volume shell_volume	194230 Å³
Envelope diameter envelope_diameter	279.7 Å
Shell Rg shell_rg	73.20 Å
Envelope Rg envelope_rg	69.52 Å
Shape Rg shape_rg	72.06 Å
Total Rg total_rg	72.08 Å
Total atoms total_atoms	59922
Residues n_residues	7542
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	214.0 Å
Rg (real space) rg_real	70.92 Å
Rg uncertainty (real space) rg_real_error	0.83 Å
I(0) (real space) i0_real	1.0200e+10
I(0) uncertainty (real space) i0_real_error	1.7120e+08
Rg (reciprocal space) rg_reciprocal	71.52 Å
I(0) (reciprocal space) i0_reciprocal	10320000000.0000
Solution quality estimate total_estimate	0.8336
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	87.5 Å
Skewness Skewness skewness	0.417
Kurtosis Kurtosis kurtosis	-0.205
Angular range angular_range	— – 0.1100 Å⁻¹
Current regularization parameter α current_alpha	0.2819
Highest regularization parameter α highest_alpha	683900000.0000
Real-space data points n_real_points	23
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.896; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.107

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Transcription termination factor Rho
Molecular weight formula_weight	48616.8 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	man
Copy count entity_count	18

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	a,r,q,p,o,n,m,l,k,j,b,c,d,e,f,g,h,i
Atom count atom_count	59922

MGHMNLTELKNTPVSELITLGENMGLENLARMRKQDIIFAILKQHAKSGEDIFGDGVLEILQDGFGFLRSADSSYLAGPDDIYVSPSQIRRFNLRTGDTISGKIRPPKEGERYFALLKVNEVNFDKPENARNKILFENLTPLHANSRLRMERDNGSTEDLTARVLDLASPIGRGQRGLIVAPPKAGKTMLLQNIAQSIAYNHPDCVLMVLLIDERPEEVTEMQRLVKGEVVASTFDEPASRHVQVAEMVIEKAKRLVEHKKDVIILLDSITRLARAYNTVVPASGKVLTGGVDANALHRPKRFFGAARNVEEGGSLTIIATALIDTGSKMDEVIYEEFKGTGNMELHLSRKIAEKRVFPAIDYNRSGTRKEELLTTQEELQKMWILRKIIHPMGEIDAMEFLINKLAMTKTNDDFFEMMKRSGHHHHHHHH

来源 Source

来源生物 organism	Escherichia
NCBI Class编号 ncbi_taxonomy_id	561
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	18

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.50 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	140359

fit	/app/data/saxs_computation/q3/8q3p/8q3p.fit
pddf	/app/data/pr_computation/q3/8q3p/8q3p.pr.out
profile	/app/data/saxs_computation/q3/8q3p/8q3p.dat

Bacterial transcription termination factor Rho G150D mutant bound to ADP; C-terminal 8xHis-tag

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription termination factor Rho

State in the Current Structure

Other States of the Same Protein in the Database

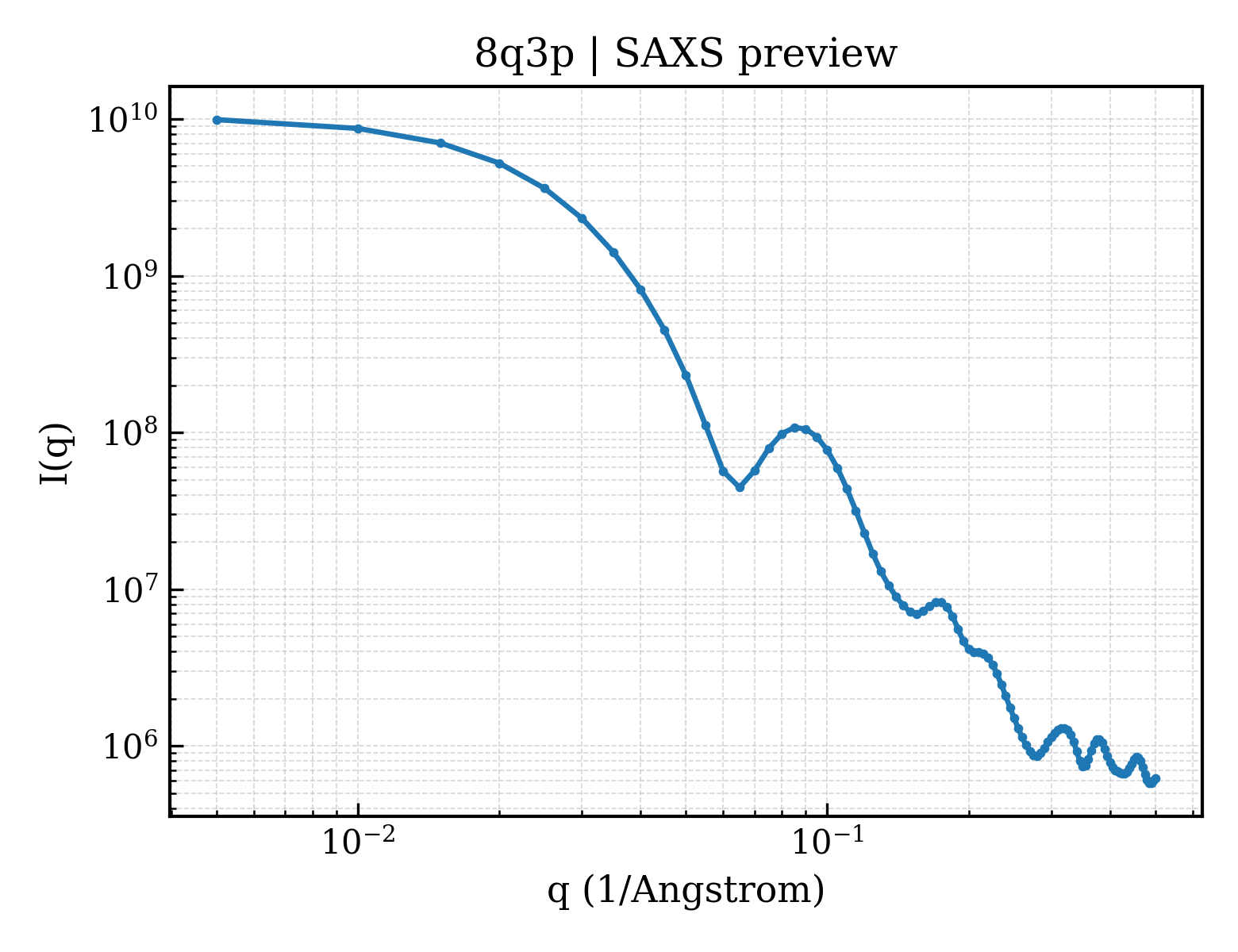

SAXS scattering curve SAXS Profile

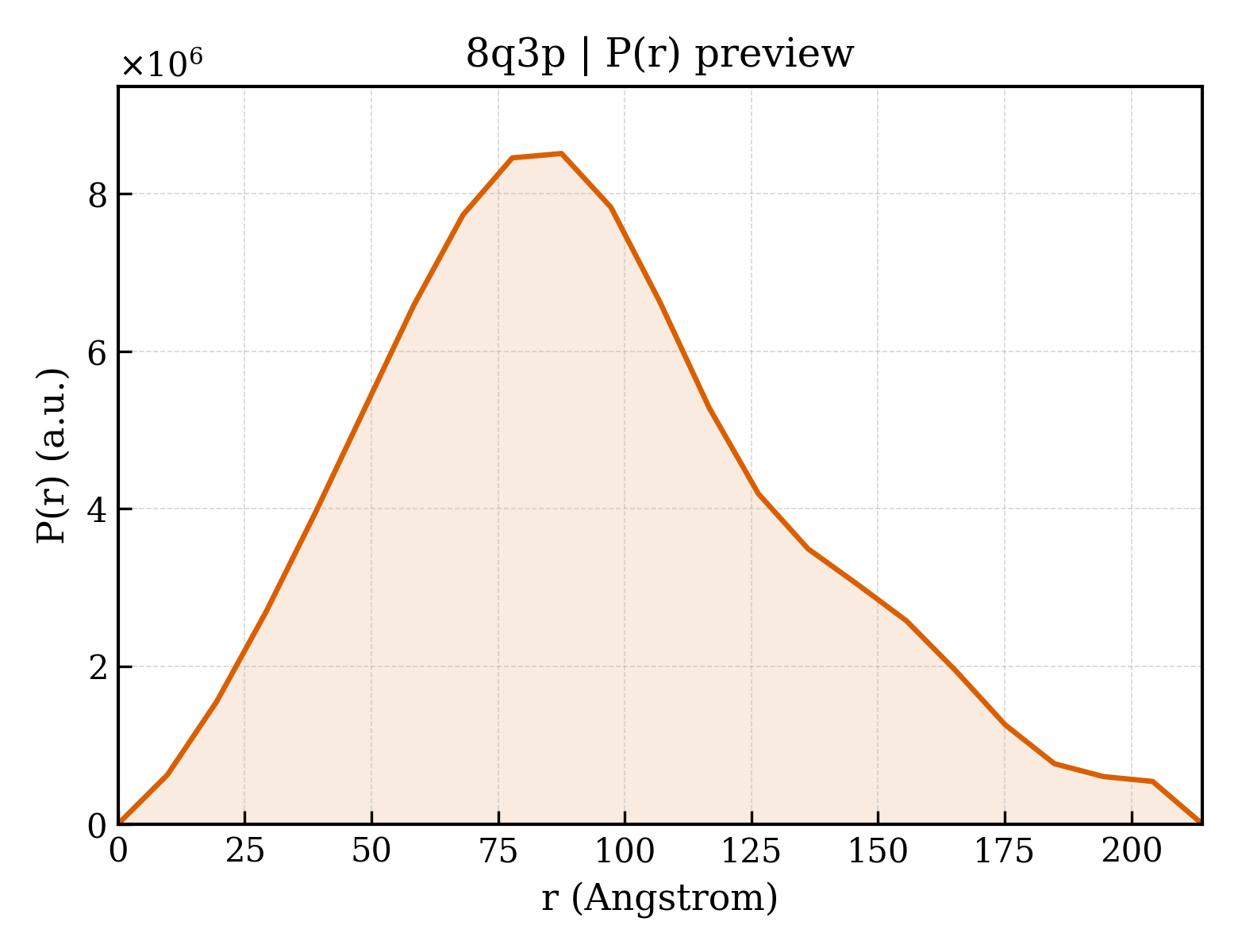

P(r) Distance Distribution P(r) Distribution
