8qv0

Structure of the native microtubule lattice nucleated from the yeast spindle pole body

Method: ELECTRON MICROSCOPY D_max: 289.4 Å Quality: GOOD

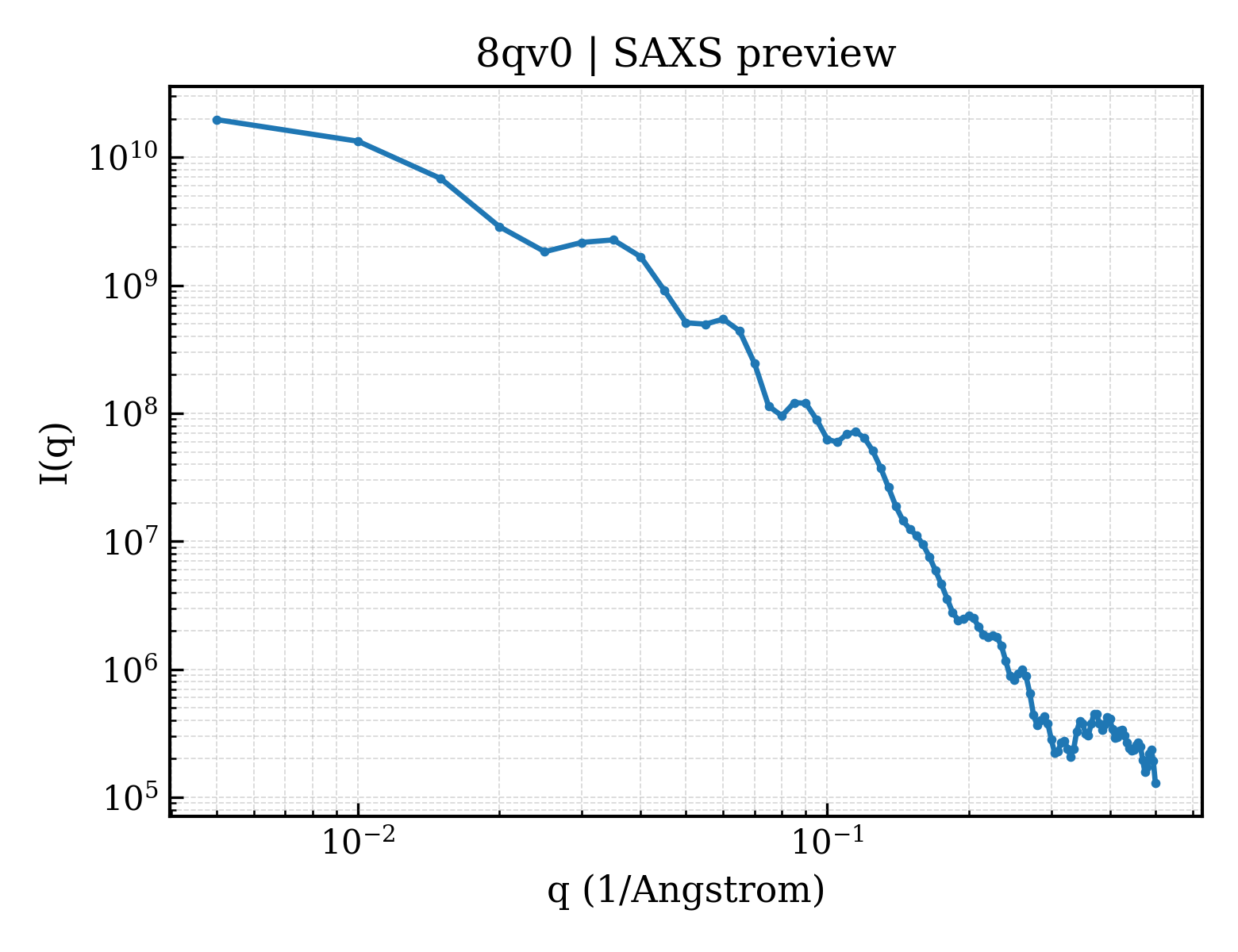

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8qv0
沉积日期 deposition_date	2023-10-17
结构标题 title	Structure of the native microtubule lattice nucleated from the yeast spindle pole body
关键词 keywords	Microtubule nucleation, MTOC, y-tubulin, SPB, CELL CYCLE; CELL CYCLE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	122.50 Å
零角强度 I(0) i0	22328900000.00
分子量 molecular_weight	1253400.0 kDa
排除体积 excluded_volume	1555400 Å³
包络体积 envelope_volume	3578100 Å³
水化壳体积 shell_volume	242460 Å³
包络直径 envelope_diameter	313.1 Å
壳层 Rg shell_rg	136.40 Å
包络 Rg envelope_rg	106.60 Å
形状 Rg shape_rg	122.60 Å
总 Rg total_rg	122.60 Å
总原子数 total_atoms	88153
残基数 n_residues	11271
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

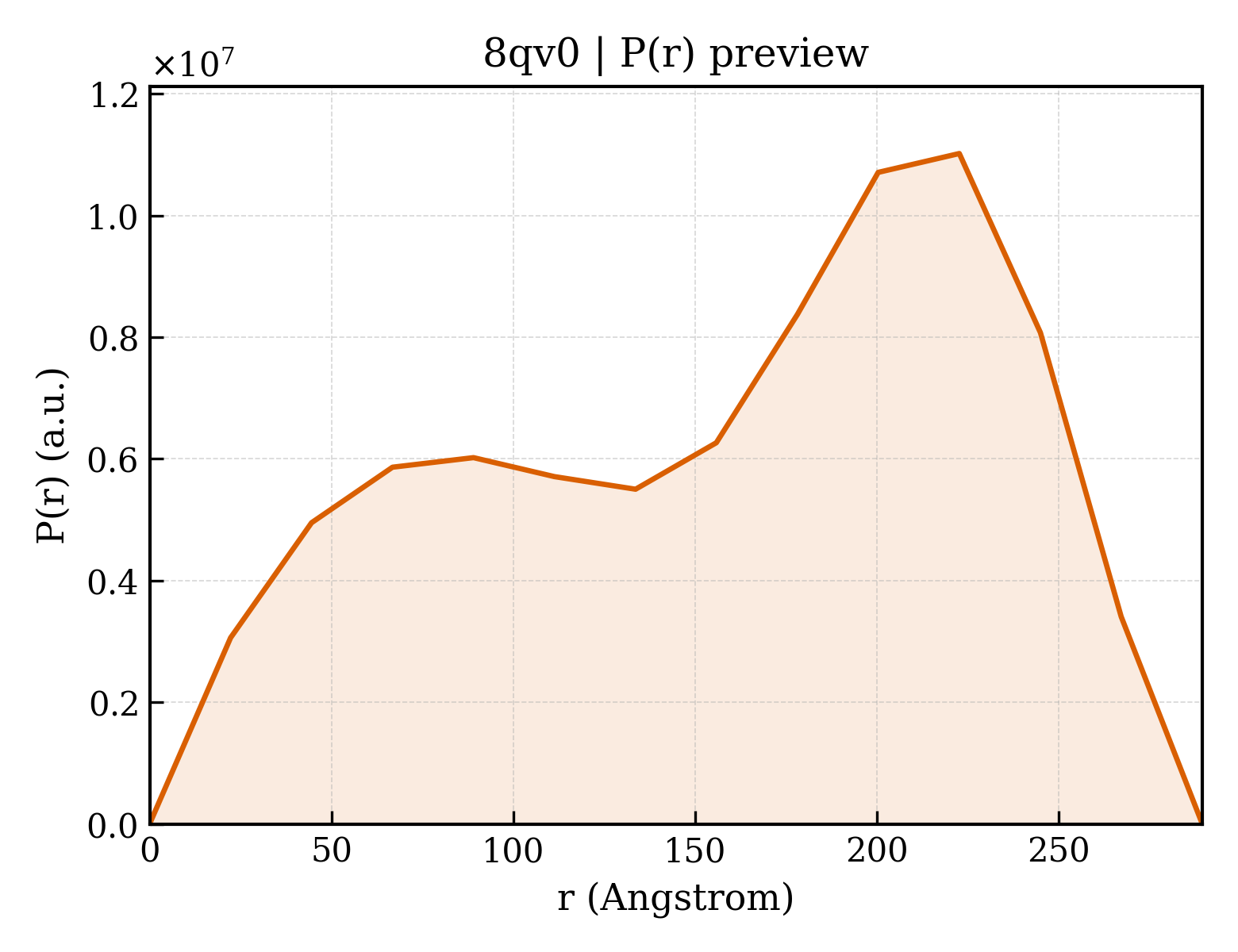

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	289.4 Å
Rg (实空间) rg_real	122.60 Å
Rg 误差 (实空间) rg_real_error	0.67 Å
I(0) (实空间) i0_real	2.2090e+10
I(0) 误差 (实空间) i0_real_error	4.0390e+08
Rg (倒空间) rg_reciprocal	124.30 Å
I(0) (倒空间) i0_reciprocal	22270000000.0000
解质量估计 total_estimate	0.7811
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	222.6 Å
偏度 Skewness skewness	-0.350
峰度 Kurtosis kurtosis	-1.049
角度范围 angular_range	— – 0.0650 Å⁻¹
当前正则化参数 α current_alpha	0.8022
最高正则化参数 α highest_alpha	290700000.0000
实空间数据点数 n_real_points	14
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.791; Stabil: 0.925; Sysdev: 1.000; Positv: 1.000; Valcen: 0.005; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Tubulin alpha-1 chain
分子量 formula_weight	49853.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	13

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,D,E,F,G,H,I,J,K,L,M,N
原子数 atom_count	88153

MREVISINVGQAGCQIGNACWELYSLEHGIKPDGHLEDGLSKPKGGEEGFSTFFHETGYGKFVPRAIYVDLEPNVIDEVRNGPYKDLFHPEQLISGKEDAANNYARGHYTVGREILGDVLDRIRKLADQCDGLQGFLFTHSLGGGTGSGLGSLLLEELSAEYGKKSKLEFAVYPAPQVSTSVVEPYNTVLTTHTTLEHADCTFMVDNEAIYDMCKRNLDIPRPSFANLNNLIAQVVSSVTASLRFDGSLNVDLNEFQTNLVPYPRIHFPLVSYSPVLSKSKAFHESNSVSEITNACFEPGNQMVKCDPRDGKYMATCLLYRGDVVTRDVQRAVEQVKNKKTVQLVDWCPTGFKIGICYEPPTATPNSQLATVDRAVCMLSNTTSIAEAWKRIDRKFDLMYAKRAFVHWYVGEGMEEGEFTEAREDLAALERDYIEVGADSYAEEEEF

Entity 2 polymer

描述 description	Tubulin beta chain
分子量 formula_weight	50967.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	13

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,O,P,Q,R,S,T,U,V,W,X,Y,Z

MREIIHISTGQCGNQIGAAFWETICGEHGLDFNGTYHGHDDIQKERLNVYFNEASSGKWVPRSINVDLEPGTIDAVRNSAIGNLFRPDNYIFGQSSAGNVWAKGHYTEGAELVDSVMDVIRREAEGCDSLQGFQITHSLGGGTGSGMGTLLISKIREEFPDRMMATFSVLPSPKTSDTVVEPYNATLSVHQLVEHSDETFCIDNEALYDICQRTLKLNQPSYGDLNNLVSSVMSGVTTSLRYPGQLNSDLRKLAVNLVPFPRLHFFMVGYAPLTAIGSQSFRSLTVPELTQQMFDAKNMMAAADPRNGRYLTVAAFFRGKVSVKEVEDEMHKVQSKNSDYFVEWIPNNVQTAVCSVAPQGLDMAATFIANSTSIQELFKRVGDQFSAMFKRKAFLHWYTSEGMDELEFSEAESNMNDLVSEYQQYQEATVEDDEEVDENGDFGAPQNQDEPITENFE

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	6.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	130704

fit	/app/data/saxs_computation/qv/8qv0/8qv0.fit
pddf	/app/data/pr_computation/qv/8qv0/8qv0.pr.out
profile	/app/data/saxs_computation/qv/8qv0/8qv0.dat
