8qv3

Structure of the y-Tubulin Small Complex (yTuSC) as part of the native y-Tubulin Ring Complex (yTuRC) capping microtubule minus ends at the spindle pole body

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tubulin gamma chain

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Spindle pole body component × 1 （A0A8H4C290） Spindle pole body component × 1 （A0A8H4BVY6） Spindle pole body component 110 × 2 （A0A8H8UNQ3） Tubulin alpha-1 chain × 2 （P09733） Tubulin beta chain × 2 （A0A6A5PXT5） Unknown protein × 1 Unknown protein × 1 GUANOSINE-5'-TRIPHOSPHATE × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8H4BZN3_YEASX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain c； PDBConstruct 1–473； UniProt 1–473 Author chain d； PDBConstruct 1–473； UniProt 1–473

Spindle pole body component

OrganismNot specified

UniProt A0A8H4C290

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Tubulin gamma chain × 2 （A0A8H4BZN3） Spindle pole body component × 1 （A0A8H4BVY6） Spindle pole body component 110 × 2 （A0A8H8UNQ3） Tubulin alpha-1 chain × 2 （P09733） Tubulin beta chain × 2 （A0A6A5PXT5） Unknown protein × 1 Unknown protein × 1 GUANOSINE-5'-TRIPHOSPHATE × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8H4C290_YEASX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–823； UniProt 1–823

Spindle pole body component

OrganismNot specified

UniProt A0A8H4BVY6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Tubulin gamma chain × 2 （A0A8H4BZN3） Spindle pole body component × 1 （A0A8H4C290） Spindle pole body component 110 × 2 （A0A8H8UNQ3） Tubulin alpha-1 chain × 2 （P09733） Tubulin beta chain × 2 （A0A6A5PXT5） Unknown protein × 1 Unknown protein × 1 GUANOSINE-5'-TRIPHOSPHATE × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8H4BVY6_YEASX
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–846； UniProt 1–846

Spindle pole body component 110

OrganismNot specified

UniProt A0A8H8UNQ3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Tubulin gamma chain × 2 （A0A8H4BZN3） Spindle pole body component × 1 （A0A8H4C290） Spindle pole body component × 1 （A0A8H4BVY6） Tubulin alpha-1 chain × 2 （P09733） Tubulin beta chain × 2 （A0A6A5PXT5） Unknown protein × 1 Unknown protein × 1 GUANOSINE-5'-TRIPHOSPHATE × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8H8UNQ3_YEASX
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain Sc； PDBConstruct 1–944； UniProt 1–944 Author chain Sd； PDBConstruct 1–944； UniProt 1–944

Tubulin alpha-1 chain

OrganismNot specified

UniProt P09733

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Tubulin gamma chain × 2 （A0A8H4BZN3） Spindle pole body component × 1 （A0A8H4C290） Spindle pole body component × 1 （A0A8H4BVY6） Spindle pole body component 110 × 2 （A0A8H8UNQ3） Tubulin beta chain × 2 （A0A6A5PXT5） Unknown protein × 1 Unknown protein × 1 GUANOSINE-5'-TRIPHOSPHATE × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBA1_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain Ac； PDBConstruct 1–447； UniProt 1–447 Author chain Ad； PDBConstruct 1–447； UniProt 1–447

Tubulin beta chain

OrganismNot specified

UniProt A0A6A5PXT5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Tubulin gamma chain × 2 （A0A8H4BZN3） Spindle pole body component × 1 （A0A8H4C290） Spindle pole body component × 1 （A0A8H4BVY6） Spindle pole body component 110 × 2 （A0A8H8UNQ3） Tubulin alpha-1 chain × 2 （P09733） Unknown protein × 1 Unknown protein × 1 GUANOSINE-5'-TRIPHOSPHATE × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6A5PXT5_YEASX
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain Bc； PDBConstruct 1–457； UniProt 1–457 Author chain Bd； PDBConstruct 1–457； UniProt 1–457

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8qv3
Deposition date deposition_date	2023-10-17
Structure title title	Structure of the y-Tubulin Small Complex (yTuSC) as part of the native y-Tubulin Ring Complex (yTuRC) capping microtubule minus ends at the spindle pole body
Keywords keywords	Microtubule nucleation, MTOC, y-tubulin, SPB, CELL CYCLE; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8qv3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

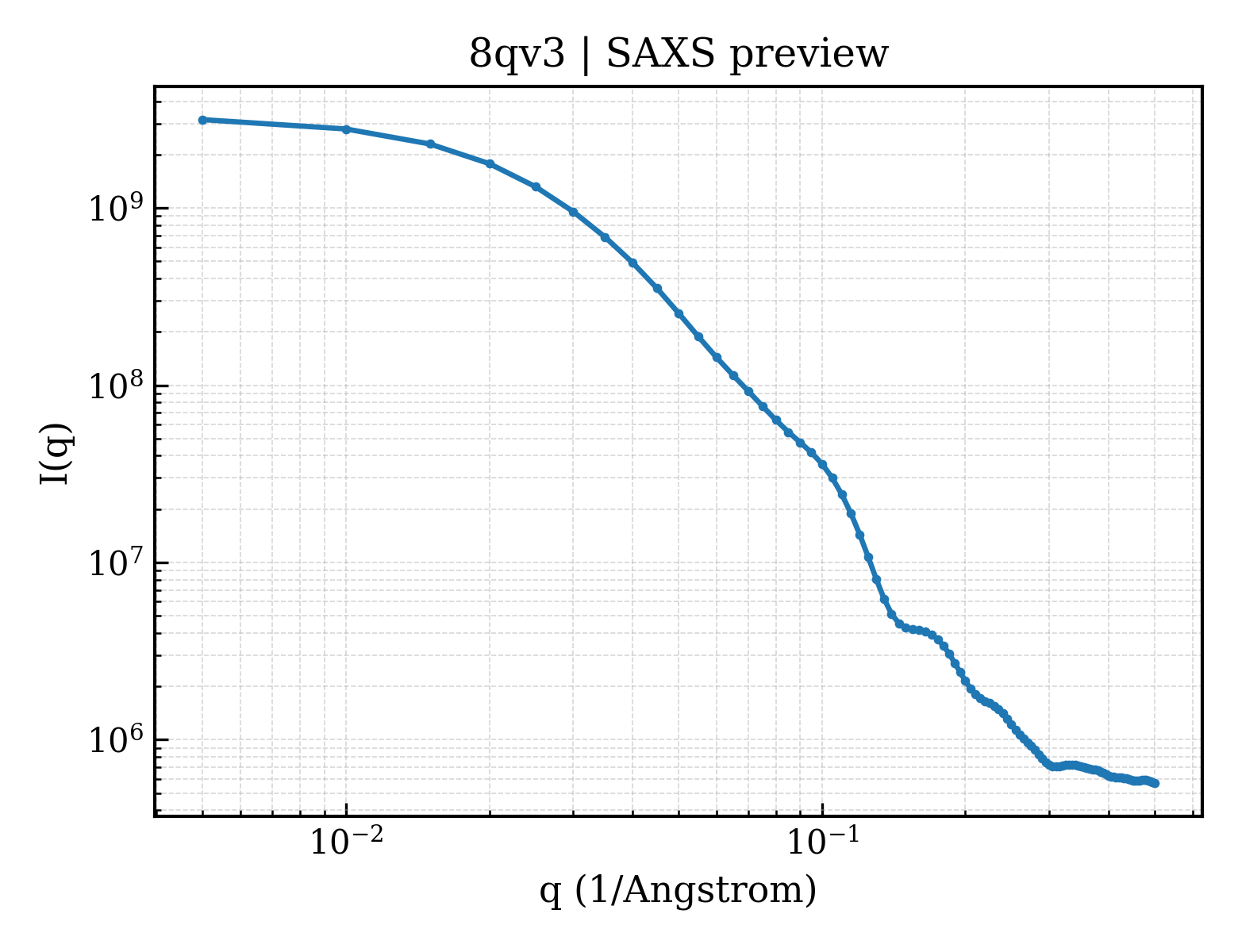

8qv3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

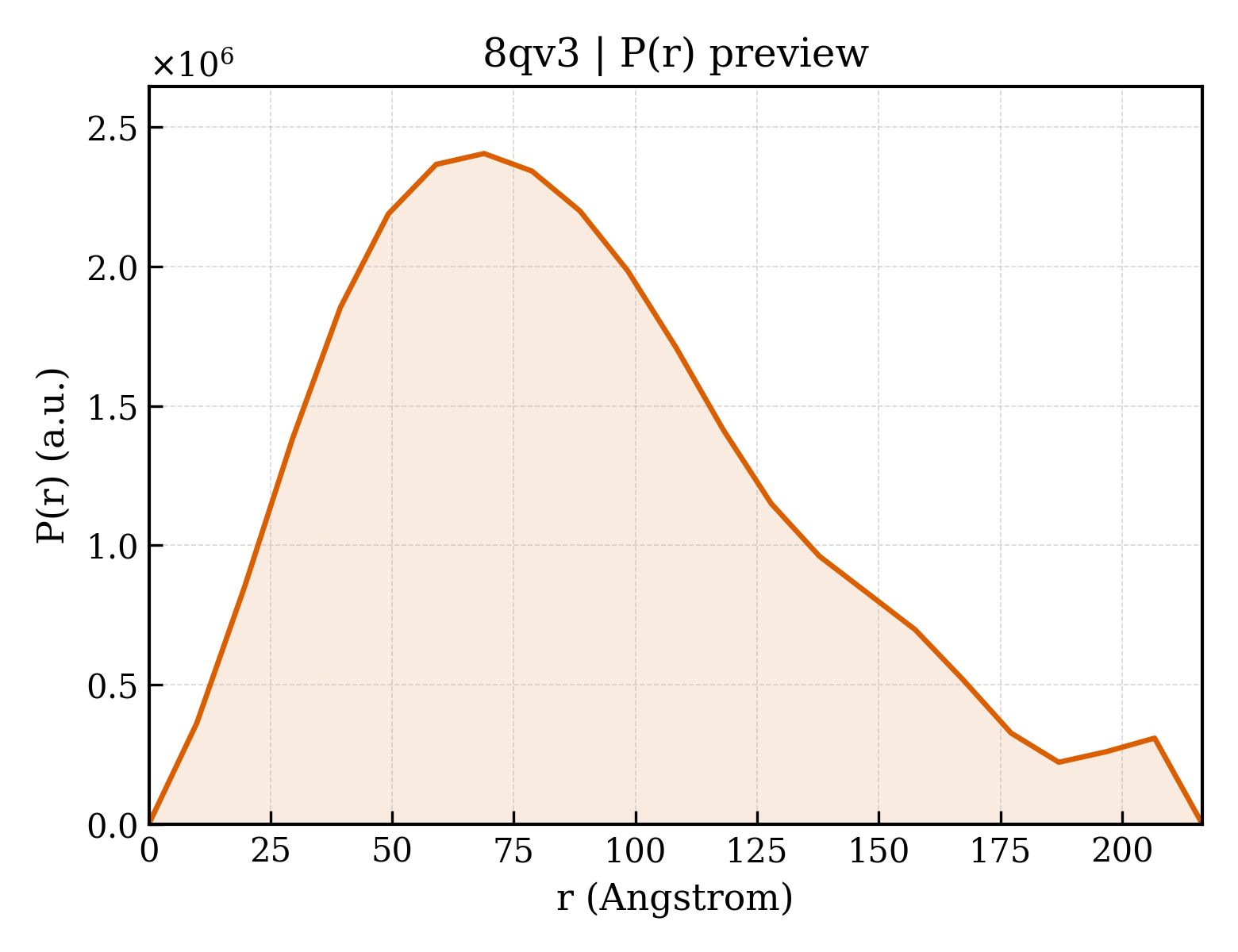

8qv3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	69.82 Å
Rg (electron density)	70.78 Å
Total Rg	70.61 Å
Atom count	33812
Residues	4267
Excluded volume	598850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8qv3__assembly_1__model_1`	12-meric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Tubulin gamma chain
Molecular weight formula_weight	52671.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	c,d
Atom count atom_count	33813

MGGEIITLQAGQCGNHVGKFLWSQLAKEHAIGTDGLSQLPDSSTERDDDTKPFFRENSRNKFTPRAIMMDSEPSVIADVENTFRGFFDPRNTWVASDGASAGNSWANGYDIGTRNQDDILNKIDKEIDSTDNFEGFQLLHSVAGGTGSGLGSNLLEALCDRYPKKILTTYSVFPARSSEVVVQSYNTILALRRLIEDSDATVVFDNASLLNISGKVFRNPNIDLQHTNQLISTIISSVTNSIRFPSYMYSSMSSIYSTLIPSPELHFLSPSFTPFTSDYIHDDIAHKGHSSYDVMLDLLDPSNSLVSTAMNNPTYFNVYNTIIGNVEPRQISRAMTKLQQRIKFPSWSSSAMHVNIGRRSPYLPLQPNENEVSGMMLSNMSTVVNVFENACNTFDKVFAKGAFLNNYNVGDLFQSMQNVQDEFAESREVVQSLMEDYVAAEQDSYLDDVLVDDENMVGELEEDLDADGDHKLV

Entity 2 Entity 2 polymer

Description description	Spindle pole body component
Molecular weight formula_weight	96940.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MEIKEVDDRAELLRYTNNIPLLGKLVNHQPLWSTNPKLKSFSLEKISAPDQRRVQEALVVKDLLNVLIGLEGTYIRYFNDYEPSDPETPIEFKIAKKMDPSFKTFSRRIVRYGKQYMILTRAYEKWSDTSFGMVLQRFAYEIRRFLEDVYLKTLVERLERDFNKVPNFSIRELEQIINETEVNKQMELLYNIYEEIFREIEERRTNQSSQEDFNNFMDSMKNESSLHLRLMVAFDTTVYPVPKGGAILKIFQQKILENLGDRSSVMFLKKLLNNISQDYCTMLYEWLTQGILNDPYQEFMTYDDLEGKTDNIFDTRDRAWDTQYFIRKDVLLRDCDSEEDKNLLFKMLRTGILLKVVRASLQIPTIPSNSSDITIQEINDFADLMEGSNLELYVDKCYSRANEIFLKLFFQGYDLINVLKHLQQIFLGYQSGHNVLKFLTKNMGELTKHYRNDNNANYDKLLQNFELERQSENPNNLMRQLLMIQFDTETLPQVLSHYLQIYPEVPENNSANDDSDPLMHANNFKNMNAILFDELSKERTGAYHGSNLELYTPKSAIYHLKFDINIPYPLNIIISRTCMIKYQIILRYQLVLQYHSRLLDETWMDLNKTPSWKYRGYSHTVKRRIVRATRVLHAKMNHFIKTIMEYFNQNVIDKEVYSLEKCYRNPTLAVAIQNELEGGLTNIMTNRCLSDLIPLQLQIFDIVYKFCKFIKSMRAKLCQLDPVLYEKHKSGMMKTLNEGYRTNNGGQEDVGYQEDAALELIQKLIEYISNASSIFRKCLINFTQELSTEKFDFYDSSSVDAAGIERVLYSIVPPRSASASSQR

Entity 3 Entity 3 polymer

Description description	Spindle pole body component
Molecular weight formula_weight	98336.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MELEPTLFGIIEALAPQLLSQSHLQTFVSDVVNLLRSSTKSATQLGPLIDFYKLQSLDSPETTIMWHKIEKFLDALFGIQNTDDMVKYLSVFQSLLPSNYRAKIVQKSSGLNMENLANHEHLLSPVRAPSIYTEASFENMDRFSERRSMVSSPNRYVPSSTYSSVTLRQLSNPYYVNTIPEEDILKYVSYTLLATTSALFPFDHEQIQIPSKIPNFESGLLHLIFEAGLLYQSLGYKVEKFRMLNISPMKKALIIEISEELQNYTAFVNNLVSSGTVVSLKSLYREIYENIIRLRIYCRFTEHLEELSGDTFLIELNIFKSHGDLTIRKIATNLFNSMISLYYEYLMNWLTKGLLRATYGEFFIAENTDTNGTDDDFIYHIPIEFNQERVPAFIPKELAYKIFMIGKSYIFLEKYCKEVQWTNEFSKKYHVLYQSNSYRGISTNFFEIINDQYSEIVNHTNQILNQKFHYRDVVFALKNILLMGKSDFMDALIEKANDILATPSDSLPNYKLTRVLQEAVQLSSLRHLMNSPRNSSVINGLDARVLDLGHGSVGWDVFTLDYILYPPLSLVLNVNRPFGRKEYLRIFNFLWRFKKNNYFYQKEMLKSNDIIRSFKKIRGYNPLIRDIINKLSRISILRTQFQQFNSKMESYYLNCIIEENFKEMTRKLQRTENKSQNQFDLIRLNNGTIELNGILTPKAEVLTKSSSSKPQKHAIEKTLNIDELESVHNTFLTNILSHKLFATNTSEISVGDYSGQPYPTSLVLLLNSVYEFVKVYCNLNDIGYEIFIKMNLNDHEASNGLLGKFNTNLKEIVSQYKNFKDRLYIFRADLKNDGDEELFLLSKSLR

Entity 4 Entity 4 polymer

Description description	Spindle pole body component 110
Molecular weight formula_weight	111987.1 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Sc,Sd

MDEASHLPNGSLKNMEFTPVGFIKSKRNTTQTQVVSPTKVPNANNGDENEGPVKKRQRRSIDDTIDSTRLFSEASQFDDSFPEIKANIPPSPRSGNVDKSRKRNLIDDLKKDVPMSQPLKEQEVREHQMKKERFDRALESKLLGKRHITYANSDISNKELYINEIKSLKHEIKELRKEKNDTLNNYDTLEEETDDLKNRLQALEKELDAKNKIVNSRKVDDHSGCIEEREQMERKLAELERKLKTVKDQVLELENNSDVQSLKLRSKEDELKNLMNELNELKSNAEEKDTQLEFKKNELRKRTNELNELKIKSDEMDLQLKQKQNESKRLKDELNELETKFSENGSQSSAKENELKMLKNKIAELEEEISTKNSQLIAKEGKLASLMAQLTQLESKLNQRDSQLGSREEELKKTNDKLQKDIRIAREETVSKDERIIDLQKKVKQLENDLFVIKKTHSESKTITDNELESKDKLIKILENDLKVAQEKYSKMEKELKEREFNYKISESKLEDEKTTLNEKISNLAAENSQLKNKIEDNSTATHHMKENYEKQLESLRKDIEEYKESAKDSEDKIEELKIRIAENSAKVSEKRSKDIKQKDEQISDLTQNLKLQEDEISSLKSIIDRYKKDFNQLKSEQSNIQHDLNLQILNLENKLIESEDELKSLRDSQKIEIENWKRKYNNLSLENDRLLTEKESASDKEREISILNRKLDEMDKEKWNLQESKEKYKRELQKVITANDRLRREKEELNENSNNIRIMEDKMTRIKKNYLSEITSLQEENRRLEERLILNERRKDNDSTMQLNDIISYYKLKYHSEVRHNNDLKVINDYLNKVLALGTRRLRLDTRKGEHSLNISLPDDDELDRDYYNSHVYTRYHDYEYPLRFNLNRRGPYFERRLSFKTVALLVLACVRMKRIAFYRRSDDNRLRILRDRIESSSGRISW

Entity 5 Entity 5 polymer

Description description	Tubulin alpha-1 chain
Molecular weight formula_weight	49853.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Ad,Ac

MREVISINVGQAGCQIGNACWELYSLEHGIKPDGHLEDGLSKPKGGEEGFSTFFHETGYGKFVPRAIYVDLEPNVIDEVRNGPYKDLFHPEQLISGKEDAANNYARGHYTVGREILGDVLDRIRKLADQCDGLQGFLFTHSLGGGTGSGLGSLLLEELSAEYGKKSKLEFAVYPAPQVSTSVVEPYNTVLTTHTTLEHADCTFMVDNEAIYDMCKRNLDIPRPSFANLNNLIAQVVSSVTASLRFDGSLNVDLNEFQTNLVPYPRIHFPLVSYSPVLSKSKAFHESNSVSEITNACFEPGNQMVKCDPRDGKYMATCLLYRGDVVTRDVQRAVEQVKNKKTVQLVDWCPTGFKIGICYEPPTATPNSQLATVDRAVCMLSNTTSIAEAWKRIDRKFDLMYAKRAFVHWYVGEGMEEGEFTEAREDLAALERDYIEVGADSYAEEEEF

Entity 6 Entity 6 polymer

Description description	Tubulin beta chain
Molecular weight formula_weight	50967.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Bd,Bc

MREIIHISTGQCGNQIGAAFWETICGEHGLDFNGTYHGHDDIQKERLNVYFNEASSGKWVPRSINVDLEPGTIDAVRNSAIGNLFRPDNYIFGQSSAGNVWAKGHYTEGAELVDSVMDVIRREAEGCDSLQGFQITHSLGGGTGSGMGTLLISKIREEFPDRMMATFSVLPSPKTSDTVVEPYNATLSVHQLVEHSDETFCIDNEALYDICQRTLKLNQPSYGDLNNLVSSVMSGVTTSLRYPGQLNSDLRKLAVNLVPFPRLHFFMVGYAPLTAIGSQSFRSLTVPELTQQMFDAKNMMAAADPRNGRYLTVAAFFRGKVSVKEVEDEMHKVQSKNSDYFVEWIPNNVQTAVCSVAPQGLDMAATFIANSTSIQELFKRVGDQFSAMFKRKAFLHWYTSEGMDELEFSEAESNMNDLVSEYQQYQEATVEDDEEVDENGDFGAPQNQDEPITENFE

Entity 7 Entity 7 polymer

Description description	Unknown protein
Molecular weight formula_weight	5720.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Uc

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 8 Entity 8 polymer

Description description	Unknown protein
Molecular weight formula_weight	5294.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Ud

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 9 Entity 9 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	8.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	31720

Structure of the y-Tubulin Small Complex (yTuSC) as part of the native y-Tubulin Ring Complex (yTuRC) capping microtubule minus ends at the spindle pole body
