8r69

Neck and tail of phage 812 virion (composite)

Method: ELECTRON MICROSCOPY D_max: 285.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

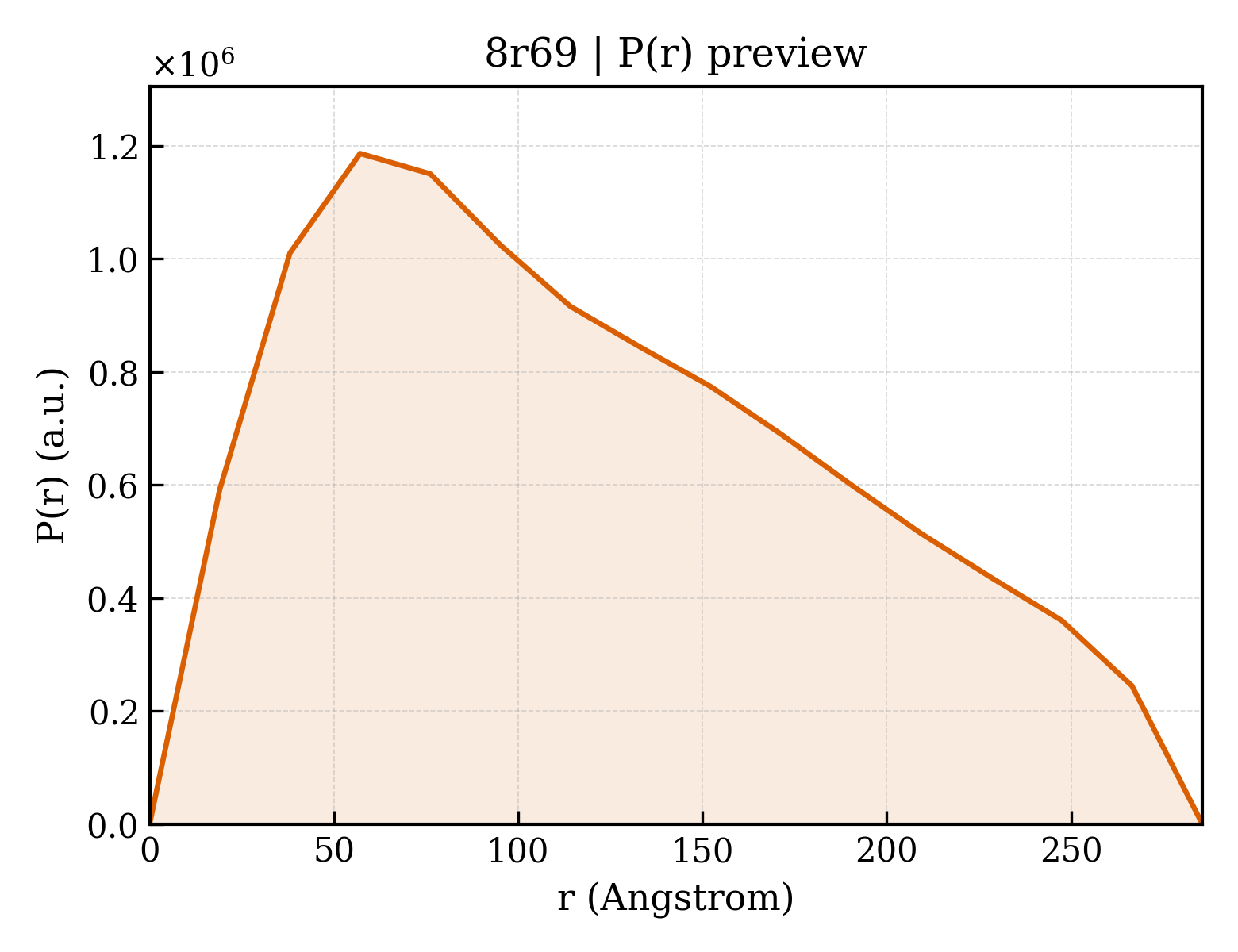

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8r69
沉积日期 deposition_date	2023-11-21
结构标题 title	Neck and tail of phage 812 virion (composite)
关键词 keywords	phage, neck, connector, tail, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	106.40 Å
零角强度 I(0) i0	2584920000.00
分子量 molecular_weight	432060.0 kDa
排除体积 excluded_volume	541540 Å³
包络体积 envelope_volume	1128800 Å³
水化壳体积 shell_volume	106130 Å³
包络直径 envelope_diameter	388.9 Å
壳层 Rg shell_rg	66.09 Å
包络 Rg envelope_rg	103.10 Å
形状 Rg shape_rg	106.40 Å
总 Rg total_rg	105.90 Å
总原子数 total_atoms	30444
残基数 n_residues	3805
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	285.6 Å
Rg (实空间) rg_real	96.62 Å
Rg 误差 (实空间) rg_real_error	1.76 Å
I(0) (实空间) i0_real	2.4730e+09
I(0) 误差 (实空间) i0_real_error	5.0880e+07
Rg (倒空间) rg_reciprocal	90.10 Å
I(0) (倒空间) i0_reciprocal	2478000000.0000
解质量估计 total_estimate	0.8631
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	57.1 Å
偏度 Skewness skewness	0.426
峰度 Kurtosis kurtosis	-0.814
角度范围 angular_range	— – 0.0750 Å⁻¹
当前正则化参数 α current_alpha	0.6713
最高正则化参数 α highest_alpha	65130000.0000
实空间数据点数 n_real_points	16
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.002; Oscil: 0.839; Stabil: 0.971; Sysdev: 1.000; Positv: 1.000; Valcen: 0.809; Smooth: 0.003

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Capsid protein
分子量 formula_weight	15943.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T,U
原子数 atom_count	30444

MASEAKQTVHTGNTVLLMIKGKPVGRAQSASGQREYGTTGVYEIGSIMPQEHVYLRYEGTITVERLRMKKENFADLGYASLGEEILKKDIIDILVVDNLTKQVIISYHGCSANNYNETWQTNEIVTEEIEFSYLTASDKART

Entity 2 polymer

描述 description	Major tail sheath protein
分子量 formula_weight	64559.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V,W

MAVEPFPRRPITRPHASIEVDTSGIGGSAGSSEKVFCLIGQAEGGEPNTVYELRNYSQAKRLFRSGELLDAIELAWGSNPNYTAGRILAMRIEDAKPASAEIGGLKITSKIYGNVANNIQVGLEKNTLSDSLRLRVIFQDDRFNEVYDNIGNIFTIKYKGEEANATFSVEHDEETQKASRLVLKVGDQEVKSYDLTGGAYDYTNAIITDINQLPDFEAKLSPFGDKNLESSKLDKIENANIKDKAVYVKAVFGDLEKQTAYNGIVSFEQLNAEGEVPSNVEVEAGEESATVTATSPIKTIEPFELTKLKGGTNGEPPATWADKLDKFAHEGGYYIVPLSSKQSVHAEVASFVKERSDAGEPMRAIVGGGFNESKEQLFGRQASLSNPRVSLVANSGTFVMDDGRKNHVPAYMVAVALGGLASGLEIGESITFKPLRVSSLDQIYESIDLDELNENGIISIEFVRNRTNTFFRIVDDVTTFNDKSDPVKAEMAVGEANDFLVSELKVQLEDQFIGTRTINTSASIIKDFIQSYLGRKKRDNEIQDFPAEDVQVIVEGNEARISMTVYPIRSFKKISVSLVYKQQTLQA

Entity 3 polymer

描述 description	Portal protein
分子量 formula_weight	64155.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

MADLFKQFRLGKDYGNNSTIAQVPIDEGLQANIKKIEQDNKEYQDLTKSLYGQQQAYAEPFIEMMDTNPEFRDKRSYMKNEHNLHDVLKKFGNNPILNAIILTRSNQVAMYCQPARYSEKGLGFEVRLRDLDAEPGRKEKEEMKRIEDFIVNTGKDKDVDRDSFQTFCKKIVRDTYIYDQVNFEKVFNKNNKTKLEKFIAVDPSTIFYATDKKGKIIKGGKRFVQVVDKRVVASFTSRELAMGIRNPRTELSSSGYGLSEVEIAMKEFIAYNNTESFNDRFFSHGGTTRGILQIRSDQQQSQHALENFKREWKSSLSGINGSWQIPVVMADDIKFVNMTPTANDMQFEKWLNYLINIISALYGIDPAEIGFPNRGGATGSKGGSTLNEADPGKKQQQSQNKGLQPLLRFIEDLVNRHIISEYGDKYTFQFVGGDTKSATDKLNILKLETQIFKTVNEAREEQGKKPIEGGDIILDASFLQGTAQLQQDKQYNDGKQKERLQMMMSLLEGDNDDSEEGQSTDSSNDDKEIGTDAQIKGDDNVYRTQTSNKGQGRKGEKSSDFKH

Entity 4 polymer

描述 description	Capsid protein
分子量 formula_weight	33757.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MEKPYMIGANSNPNVINKSTTYTTTTQADEQDKPKYTTRLEFDTIDMIRFINDRGIKVLWEEAYFCPCLNPDTGHPRVDCPRCHGKGIAYLPPKETIMAIQSQEKGTNQLDIGILDTGTAIGTTQLEKRISYRDRFTVPEVLMPQQMIYFVNKDRIKKGIPLYYDVKEITYIATQDGTVYEEDYEIKNNRLYLNEKYENHTVTLKILMTLRYVVSDILKESRYQYTKFNQPKSKFENLPQKLLLKREDVIVLQDPYKVNDGIEEDLEIQVDDPKASASNPSNLGGFFGGAFK

Entity 5 polymer

描述 description	Baseplate hub assembly protein
分子量 formula_weight	31799.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MAITSVDSYLLSEIKPRLNTVLENCYIIDEVLKDFDYQTRESFKEAFCGKNAQHEVTVGFNFPKFKNNYEAHYLIQLGQGQETKNSLGSIQSSYFEATGDTLVESSTAIREDDKLVFTVSKPIGELIKVEDIEFAKYDNLQVEGNKVSFKYQTNEDYENYNANIIFTEKKNDSKGLVKGFTVEEQVTVVGLSFNVDVARCLDAVLKMILISMRDSIEEQQTFQLQNLSFGDIAPIIEDGDSMIFGRPTIIKYTSSLDLDYTITQDINKLTFKERKDWK

Entity 6 polymer

描述 description	Putative non-cytoplasmic protein
分子量 formula_weight	10146.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,n

MSIEKKEEVIAHNEVVFRSLTQGLYVKEVDIYSDVVSYTKDVDEALAMPNTINFKNSRKYKKLIMNLDLEPLNKIQKVIYETHLEGL

Entity 7 polymer

描述 description	Non-cytoplasmic protein
分子量 formula_weight	17885.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S,s

MADEISLNPIQDAKPIDDIVDIMTYLKNGKVLRVKQDNQGDILVRMSPGKHKFTEVSRDLDKESFYYKRHWVLYNVSVNSLITFDVYLDEEYSETTKVKYPKDTIVEYTREDQEKDVAMIKEILTDNNGNYFYALIGETMLFDENKLNKVKD

Entity 8 polymer

描述 description	Putative neck protein
分子量 formula_weight	34191.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MVNSMFGGDLDPYEKSLNYEYPYHPSGNPKHIDVSEIDNLTLADYGWSPDAVKAYMFGIVVQNPDTGQPMGDEFYNHILERAVGKAERALDISILPDTQHEMRDYHETEFNSYMFVHAYRKPILQVENLQLQFNGRPIYKYPANWWKVEHLAGHVQLFPTALMQTGQSMSYDAVFNGYPQLAGVYPPSGATFAPQMIRLEYVSGMLPRKKAGRNKPWEMPPELEQLVIKYALKEIYQVWGNLIIGAGIANKTLEVDGITETIGTTQSAMYGGASAQILQINEDIKELLDGLRAYFGYNMIGL

Entity 9 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▶

7. 引用文献 (1)

▶

分辨率 resolution	4.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	21731

fit	/app/data/saxs_computation/r6/8r69/8r69.fit
pddf	/app/data/pr_computation/r6/8r69/8r69.pr.out
profile	/app/data/saxs_computation/r6/8r69/8r69.dat
