SAXSdb — 9eui

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9eui
沉积日期 deposition_date	2024-03-27
结构标题 title	Cryo-EM structure of Staphylococcus aureus bacteriophage phi812 baseplate in the post-contraction state - complete
关键词 keywords	bacteriophage, phage, contractile, phi812, baseplate, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	153.90 Å
零角强度 I(0) i0	25421200000.00
分子量 molecular_weight	1306300.0 kDa
排除体积 excluded_volume	1609500 Å³
包络体积 envelope_volume	4564300 Å³
水化壳体积 shell_volume	263770 Å³
包络直径 envelope_diameter	609.4 Å
壳层 Rg shell_rg	104.90 Å
包络 Rg envelope_rg	157.70 Å
形状 Rg shape_rg	154.10 Å
总 Rg total_rg	152.90 Å
总原子数 total_atoms	92215
残基数 n_residues	12485
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	420.5 Å
Rg (实空间) rg_real	142.70 Å
Rg 误差 (实空间) rg_real_error	2.70 Å
I(0) (实空间) i0_real	2.4220e+10
I(0) 误差 (实空间) i0_real_error	6.1860e+08
Rg (倒空间) rg_reciprocal	118.00 Å
I(0) (倒空间) i0_reciprocal	22430000000.0000
解质量估计 total_estimate	0.8993
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	126.1 Å
偏度 Skewness skewness	0.366
峰度 Kurtosis kurtosis	-0.740
角度范围 angular_range	— – 0.0500 Å⁻¹
当前正则化参数 α current_alpha	1.0410
最高正则化参数 α highest_alpha	599800000.0000
实空间数据点数 n_real_points	11
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.149; Oscil: 0.971; Stabil: 0.979; Sysdev: 1.000; Positv: 1.000; Valcen: 0.840; Smooth: 0.004

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Baseplate wedge subunit
分子量 formula_weight	26611.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	92215

MRFKKHVVQHEETMQAIAQRYYGDVSYWIDLVEHNNLKYPYLVETDEEKMKDPERLASTGDTLIIPIESDLTDVSAKEINSRDKDVLVELALGRDLNITADEKYFNEHGTSDNILAFSTNGNGDLDTVKGIDNMKQQLQARLLTPRGSLMLHPNYGSDLHNLFGLNIPEQATLIEMEVLRTLTSDNRVKSANLIDWKIQGNVYSGQFSVEIKSVEESINFVLGQDEEGIFALFE

Entity 2 polymer

描述 description	Baseplate component
分子量 formula_weight	39248.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C

MKTRKLTNILSKLIDKTMAGTSKITDFTPGSASRSLLEAVSLEIEQFYILTKENIDWGIQEGIIEAFDFQKRQSKRAYGDVTIQFYQPLDMRMYIPAGTTFTSTRQEYPQQFETLVDYYAEPDSTEIVVEVYCKETGVAGNVPEGTINTIASGSSLIRSVNNEYSFNTGTKEESQEDFKRRFHSFVESRGRATNKSVRYGALQIPDVEGVYVYEETGHITVFAHDRNGNLSDTLKEDIIDALQDYRPSGIMLDVTGVEKEEVNVSATVTISNKSRIGDTLQKHIESVIRSYLNNLKTSDDLIITDLIQAIMNIDDVLIYDVSFDNLDENIIVPPQGIIRAGEIKVELK

Entity 3 polymer

描述 description	TmpF
分子量 formula_weight	116389.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MANFLKNLHPLLRRDRNKKDNQDPNFALIDALNEEMNQVEKDAIESKLQSSLKTSTSEYLDKFGDWFGVYRKTDEKDDVYRARIIKYLLLKRGTNNAIIDAIKDYLGRDDIDVSVYEPFTNIFYTNKSHLNGEDHLMGYYYRFAVINVSIGDYFPVEIIDVINEFKPAGVTLYVTYDGASTIRGGAIIKWLDGLPKIETYQEFDRFTGYDDTFYGHINMNQSKDTDNSSSDIFKTNHSLINSLDVLTGSSSVGRQYINYGYVTSYVYNPGMTSSVNQISASTEGRGQEVPTDYYMYTSTKNNNTVELSMQTTSGVSYLYNNFNFRDYMSKYRPQVDLQSDEARRIVSDYIKELSIDYYLSAVIPPDESIEIKLQVYDFSINRWLTVSINNLSFYEKNIGSNIGYIKDYLNSELNMFTRLEINAGKRDSVDIKVNYLDLMFYYYERGIYTIKPYKALIENYLDISRETYVEAFKIASLSNGDIITKTGFQPIGYLKLVGNYENTIPSTINIVAKDTDNNPIESNELDVYNTVENRNLLQSYKGVNTIAREITSTKEFTVSGWAKEIYSTNYLSKVLKPGKVYTLSFDMEITGNDPTLKSYSDNHGIYLYSNTKGIVVNGVKSMERTIGNKVSVTQTFTAPTITDHRLLIYTGRYTSDGKASTPPVFFNTVKITELKLTEGSSKLEYSPAPEDKPNVIEKGIKFNNILTNIQTLSINSDTILKNVTLYYSYYGDSWVELKTLGNISTGETTETNNLIDLYGLQTVDYSNINPMSKVSLRSIWNVKLGELNNQEGSLSNMPNDYFNAVWQDIDKLSDIELGSMRMVKDTEGGVFDGATGEIIKATLFNVGAYTDLDMLAYTLTNYTEPLTLGSSRLISELKEELLTSESFNVDNRIKVIDSIYEELPNTSIIKNGFVEREVTGSKYLDYGLYEPIEDGTRYKLIVEGEFKDNIEFISLYNSNPNFNETFIYPSEIINGVAEKEFIAKPSTEDKPRLNTDVRIYIRPYDSTISKVRRVELRKV

Entity 4 polymer

描述 description	Major tail sheath protein
分子量 formula_weight	64559.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H,I,J

MAVEPFPRRPITRPHASIEVDTSGIGGSAGSSEKVFCLIGQAEGGEPNTVYELRNYSQAKRLFRSGELLDAIELAWGSNPNYTAGRILAMRIEDAKPASAEIGGLKITSKIYGNVANNIQVGLEKNTLSDSLRLRVIFQDDRFNEVYDNIGNIFTIKYKGEEANATFSVEHDEETQKASRLVLKVGDQEVKSYDLTGGAYDYTNAIITDINQLPDFEAKLSPFGDKNLESSKLDKIENANIKDKAVYVKAVFGDLEKQTAYNGIVSFEQLNAEGEVPSNVEVEAGEESATVTATSPIKTIEPFELTKLKGGTNGEPPATWADKLDKFAHEGGYYIVPLSSKQSVHAEVASFVKERSDAGEPMRAIVGGGFNESKEQLFGRQASLSNPRVSLVANSGTFVMDDGRKNHVPAYMVAVALGGLASGLEIGESITFKPLRVSSLDQIYESIDLDELNENGIISIEFVRNRTNTFFRIVDDVTTFNDKSDPVKAEMAVGEANDFLVSELKVQLEDQFIGTRTINTSASIIKDFIQSYLGRKKRDNEIQDFPAEDVQVIVEGNEARISMTVYPIRSFKKISVSLVYKQQTLQA

Entity 5 polymer

描述 description	Baseplate protein
分子量 formula_weight	21588.1 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,L,M,N,O,P

MAIATYNSHVELAKYLVSKADSVYLTIGKSTPWSNETNPPQPDENATVLQEVIGYKKATKVTLVRPSKSPEDDNKNLISYGNKSWVEVTPENAKAEGAKWVYLESSIVGDELPLGTYRQVGFVMDLVAKSGISKFNLVPSEVESTGTLLFFDNKQFQNRSEQTTAKERFIVEVDPNSSSVDKLAAALEHHHHHH

来源 Source

来源生物 organism	Staphylococcus phage 812
NCBI 分类编号 ncbi_taxonomy_id	307898
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 6 polymer

描述 description	DUF4815 domain-containing protein
分子量 formula_weight	129263.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q,R,S,T,U,V

MAINFKGSPYLDRFDPSKDRTKVLFNPDRPLQQAELNEMQSIDQYYLKNLGDAIFKDGDKQSGLGFTLSEDNVLTVNPGYVYINGKIRYYDNDDSVKITGVGKETIGIKLTERIVTPDEDASLLDQTSGVPSYFSKGADRLEEKMSLTVNDPTSATIYTFMDGDLYIQSTNAEMDKINKVLAERTYDESGSYKVNGFELFSEGNAEDDDHVSVVVDAGKAYVKGFKVDKPVSTRISVPKSYDLGTAENESTIFNKSNNSISLANSPVKEIRRVTGQVLIEKERVTRGAQGDGQDFLSNNTAFEIVKVWTETSPGVTTKEYKQGEDFRLTDGQTIDWSPQGQEPSGGTSYYVSYKYNKRMEAGKDYEVTTQGEGLSKKWYINFTPSNGAKPIDQTVVLVDYTYYLARKDSVFINKYGDIAILPGEPNIMRLVTPPLNTDPENLQLGTVTVLPDSDEAVCISFAITRLSMEDLQKVKTRVDNLEYNQAVNALDDGAMEGQNPLTLRSVFSEGFISLDKADITHPDFGIVFSFEDAEATLAYTEAVNQPKIIPGDTTAHIWGRLISAPFTEERTIYQGQASETLNVNPYNIPNKQGVLKLTPSEDNWIDTENVTITEQKTKKVTMKRFWRHNESYYGETEHYLYSNLQLDAGQKWKGETYAYDREHGRTGTLLESGGQRTLEEMIEFIRIRDVSFEVKGLNPNDNNLYLLFDGVRCAITPATGYRKGSEDGTIMTDAKGTAKGKFTIPAGIRCGNREVTLKNANSTSATTYTAQGRKKTAQDIIIRTRVTVNLVDPLAQSFQYDENRTISSLGLYFASKGDKQSNVVIQIRGMGDQGYPNKTIYAETVMNADDIKVSNNASAETRVYFDDPMMAEGGKEYAIVIITENSDYTMWVGTRTKPKIDKPNEVISGNPYLQGVLFSSSNASTWTPHQNSDLKFGIYTSKFNETATIEFEPIKDVSADRIVLMSTYLTPERTGCTWEMKLILDDMASSTTFDQLKWEPIGNYQDLDVLGLARQVKLRATFESNRYISPLMSSSDLTFTTFLTELTGSYVGRAIDMTEAPYNTVRFSYEAFLPKGTKVVPKYSADDGKTWKTFTKSPTTTRANNEFTRYVIDEKVKSSGTNTKLQVRLDLSTENSFLRPRVRRLMVTTRDE

Entity 7 polymer

描述 description	Receptor binding protein
分子量 formula_weight	50474.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W,X,Y

MALNFTTITENNVIRDLTTQVNNIGEELTKERNIFDITDDLVYNFNKSQKIKLTDDKGLTKSYGNITALRDIKEPGYYYIGARTLATLLDRPDMESLDVVLHVVPLDTSSKVVQHLYTLSTNNNQIKMLYRFVSGNSSSEWQFIQGLPSNKNAVISGTNILDIASPGVYFVMGMTGGMPSGVSSGFLDLSVDANDNRLARLTDAETGKEYTSIKKPTGTYTAWKKEFEPKDMEKYLLSSIRDDGSASFPLLVYTSDSKTFQQAIIDHIDRTGQTTFTFYVQGGVSGSPMSNSCRGLFMSDTPNTSSLHGVYNAIGTDGRNVTGSVVGSNWTSPKTSPSHKELWTGAQSFLSTGTTKNLSDDISNYSYVEVYTTHKTTEKTKGNDNTGTICHKFYLDGSGTYVCSGTFVSGDRTDTKPPITEFYRVGVSFKGSTWTLVDSAVQNSKTQYVTRIIGINMP

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	25203

fit	/app/data/saxs_computation/eu/9eui/9eui.fit
pddf	/app/data/pr_computation/eu/9eui/9eui.pr.out
profile	/app/data/saxs_computation/eu/9eui/9eui.dat

Cryo-EM structure of Staphylococcus aureus bacteriophage phi812 baseplate in the post-contraction state - complete

SAXS 散射曲线 SAXS Profile

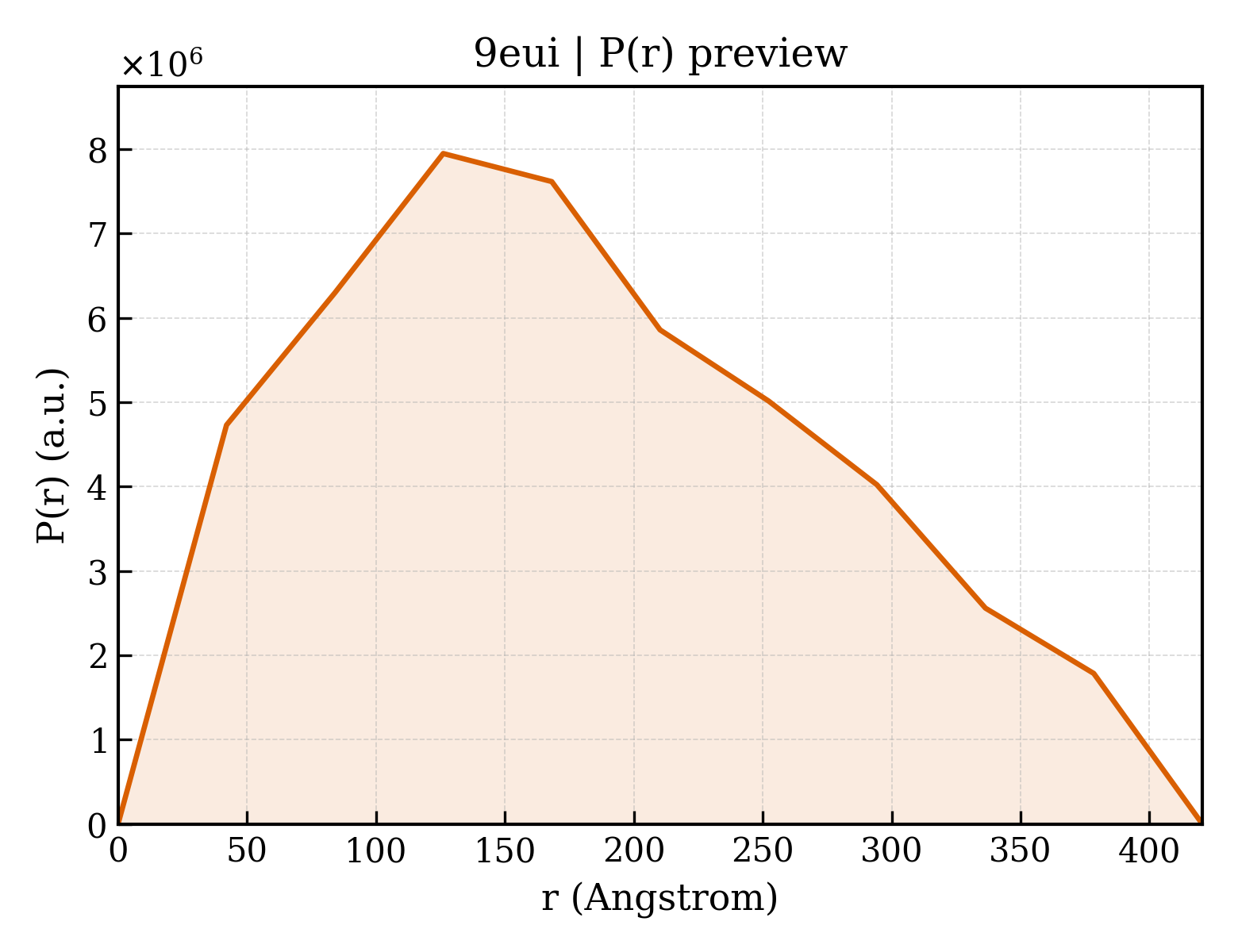

P(r) 距离分布 P(r) Distribution
