9euk

;Cryo-EM structure of Staphylococcus aureus bacteriophage phi812 baseplate in the post-contraction state - sheath initiator, wedge module, and inner tripod proteins ;

Method: ELECTRON MICROSCOPY D_max: 231.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

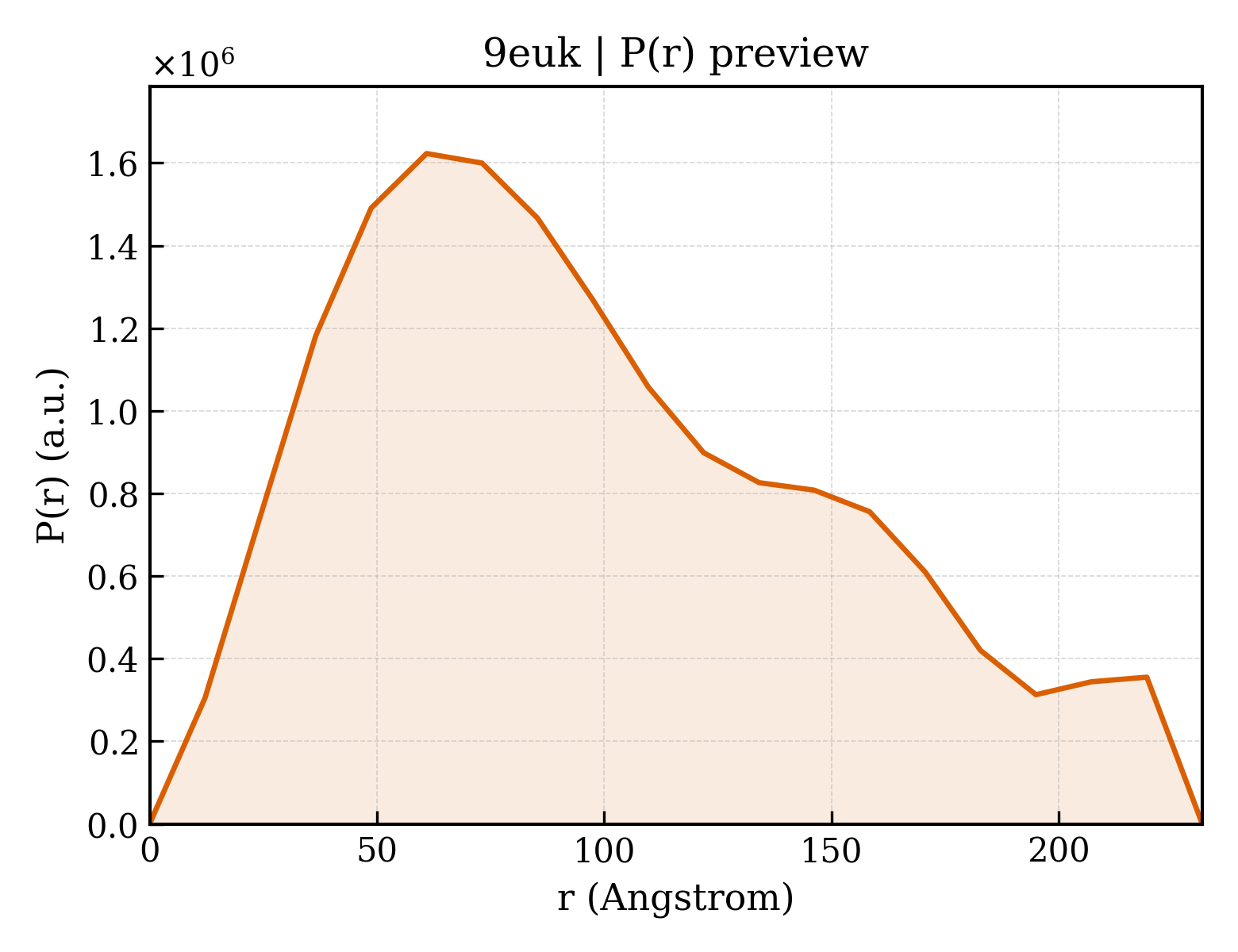

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9euk
沉积日期 deposition_date	2024-03-27
结构标题 title	;Cryo-EM structure of Staphylococcus aureus bacteriophage phi812 baseplate in the post-contraction state - sheath initiator, wedge module, and inner tripod proteins ;
关键词 keywords	bacteriophage, phage, contractile, phi812, baseplate, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	80.80 Å
回转半径 Rg (电子) rg_electron	82.12 Å
零角强度 I(0) i0	2518300000.00
分子量 molecular_weight	421790.0 kDa
排除体积 excluded_volume	526660 Å³
包络体积 envelope_volume	959700 Å³
水化壳体积 shell_volume	105520 Å³
包络直径 envelope_diameter	287.9 Å
壳层 Rg shell_rg	65.81 Å
包络 Rg envelope_rg	82.75 Å
形状 Rg shape_rg	82.11 Å
总 Rg total_rg	81.90 Å
总原子数 total_atoms	29739
残基数 n_residues	3756
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	231.6 Å
Rg (实空间) rg_real	78.03 Å
Rg 误差 (实空间) rg_real_error	1.37 Å
I(0) (实空间) i0_real	2.4620e+09
I(0) 误差 (实空间) i0_real_error	4.7780e+07
Rg (倒空间) rg_reciprocal	76.63 Å
I(0) (倒空间) i0_reciprocal	2490000000.0000
解质量估计 total_estimate	0.8563
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	60.9 Å
偏度 Skewness skewness	0.533
峰度 Kurtosis kurtosis	-0.547
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	0.1464
最高正则化参数 α highest_alpha	135100000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.816; Stabil: 0.974; Sysdev: 1.000; Positv: 1.000; Valcen: 0.960; Smooth: 0.271

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Baseplate wedge subunit
分子量 formula_weight	26611.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	29739

MRFKKHVVQHEETMQAIAQRYYGDVSYWIDLVEHNNLKYPYLVETDEEKMKDPERLASTGDTLIIPIESDLTDVSAKEINSRDKDVLVELALGRDLNITADEKYFNEHGTSDNILAFSTNGNGDLDTVKGIDNMKQQLQARLLTPRGSLMLHPNYGSDLHNLFGLNIPEQATLIEMEVLRTLTSDNRVKSANLIDWKIQGNVYSGQFSVEIKSVEESINFVLGQDEEGIFALFE

Entity 2 polymer

描述 description	Baseplate component
分子量 formula_weight	39248.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C

MKTRKLTNILSKLIDKTMAGTSKITDFTPGSASRSLLEAVSLEIEQFYILTKENIDWGIQEGIIEAFDFQKRQSKRAYGDVTIQFYQPLDMRMYIPAGTTFTSTRQEYPQQFETLVDYYAEPDSTEIVVEVYCKETGVAGNVPEGTINTIASGSSLIRSVNNEYSFNTGTKEESQEDFKRRFHSFVESRGRATNKSVRYGALQIPDVEGVYVYEETGHITVFAHDRNGNLSDTLKEDIIDALQDYRPSGIMLDVTGVEKEEVNVSATVTISNKSRIGDTLQKHIESVIRSYLNNLKTSDDLIITDLIQAIMNIDDVLIYDVSFDNLDENIIVPPQGIIRAGEIKVELK

Entity 3 polymer

描述 description	TmpF
分子量 formula_weight	116391.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MANFLKNLHPLLRRDRNKKDNQDPNFALIDALNEEMNQVEKDAIESKLQSSLKTSTSEYLDKFGDWFGVYRKTDEKDDVYRARIIKYLLLKRGTNNAIIDAIKDYLGRDDIDVSVYEPFTNIFYTNKSHLNGEDHLMGYYYRFAVINVSIGDYFPVEIIDVINEFKPAGVTLYVTYDGASTIRGGAIIKWDDGLPKIETYQEFDRFTGYDDTFYGHINMNQSKDTDNSSSDIFKTNHSLINSLDVLTGSSSVGRQYINYGYVTSYVYNPGMTSSVNQISASTEGRGQEVPTDYYMYTSTKNNNTVELSMQTTSGVSYLYNNFNFRDYMSKYRPQVDLQSDEARRIVSDYIKELSIDYYLSAVIPPDESIEIKLQVYDFSINRWLTVSINNLSFYEKNIGSNIGYIKDYLNSELNMFTRLEINAGKRDSVDIKVNYLDLMFYYYERGIYTIKPYKALIENYLDISRETYVEAFKIASLSNGDIITKTGFQPIGYLKLVGNYENTIPSTINIVAKDTDNNPIESNELDVYNTVENRNLLQSYKGVNTIAREITSTKEFTVSGWAKEIYSTNYLSKVLKPGKVYTLSFDMEITGNDPTLKSYSDNHGIYLYSNTKGIVVNGVKSMERTIGNKVSVTQTFTAPTITDHRLLIYTGRYTSDGKASTPPVFFNTVKITELKLTEGSSKLEYSPAPEDKPNVIEKGIKFNNILTNIQTLSINSDTILKNVTLYYSYYGDSWVELKTLGNISTGETTETNNLIDLYGLQTVDYSNINPMSKVSLRSIWNVKLGELNNQEGSLSNMPNDYFNAVWQDIDKLSDIELGSMRMVKDTEGGVFDGATGEIIKATLFNVGAYTDLDMLAYTLTNYTEPLTLGSSRLISELKEELLTSESFNVDNRIKVIDSIYEELPNTSIIKNGFVEREVTGSKYLDYGLYEPIEDGTRYKLIVEGEFKDNIEFISLYNSNPNFNETFIYPSEIINGVAEKEFIAKPSTEDKPRLNTDVRIYIRPYDSTISKVRRVELRKV

Entity 4 polymer

描述 description	DUF4815 domain-containing protein
分子量 formula_weight	129263.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G

MAINFKGSPYLDRFDPSKDRTKVLFNPDRPLQQAELNEMQSIDQYYLKNLGDAIFKDGDKQSGLGFTLSEDNVLTVNPGYVYINGKIRYYDNDDSVKITGVGKETIGIKLTERIVTPDEDASLLDQTSGVPSYFSKGADRLEEKMSLTVNDPTSATIYTFMDGDLYIQSTNAEMDKINKVLAERTYDESGSYKVNGFELFSEGNAEDDDHVSVVVDAGKAYVKGFKVDKPVSTRISVPKSYDLGTAENESTIFNKSNNSISLANSPVKEIRRVTGQVLIEKERVTRGAQGDGQDFLSNNTAFEIVKVWTETSPGVTTKEYKQGEDFRLTDGQTIDWSPQGQEPSGGTSYYVSYKYNKRMEAGKDYEVTTQGEGLSKKWYINFTPSNGAKPIDQTVVLVDYTYYLARKDSVFINKYGDIAILPGEPNIMRLVTPPLNTDPENLQLGTVTVLPDSDEAVCISFAITRLSMEDLQKVKTRVDNLEYNQAVNALDDGAMEGQNPLTLRSVFSEGFISLDKADITHPDFGIVFSFEDAEATLAYTEAVNQPKIIPGDTTAHIWGRLISAPFTEERTIYQGQASETLNVNPYNIPNKQGVLKLTPSEDNWIDTENVTITEQKTKKVTMKRFWRHNESYYGETEHYLYSNLQLDAGQKWKGETYAYDREHGRTGTLLESGGQRTLEEMIEFIRIRDVSFEVKGLNPNDNNLYLLFDGVRCAITPATGYRKGSEDGTIMTDAKGTAKGKFTIPAGIRCGNREVTLKNANSTSATTYTAQGRKKTAQDIIIRTRVTVNLVDPLAQSFQYDENRTISSLGLYFASKGDKQSNVVIQIRGMGDQGYPNKTIYAETVMNADDIKVSNNASAETRVYFDDPMMAEGGKEYAIVIITENSDYTMWVGTRTKPKIDKPNEVISGNPYLQGVLFSSSNASTWTPHQNSDLKFGIYTSKFNETATIEFEPIKDVSADRIVLMSTYLTPERTGCTWEMKLILDDMASSTTFDQLKWEPIGNYQDLDVLGLARQVKLRATFESNRYISPLMSSSDLTFTTFLTELTGSYVGRAIDMTEAPYNTVRFSYEAFLPKGTKVVPKYSADDGKTWKTFTKSPTTTRANNEFTRYVIDEKVKSSGTNTKLQVRLDLSTENSFLRPRVRRLMVTTRDE

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	25203

fit	/app/data/saxs_computation/eu/9euk/9euk.fit
pddf	/app/data/pr_computation/eu/9euk/9euk.pr.out
profile	/app/data/saxs_computation/eu/9euk/9euk.dat
