In-virion structure of Ebola virus nucleocapsid-like assemblies from recombinant virus-like particles (nucleoprotein, VP24,VP35,VP40)

Method: ELECTRON MICROSCOPY D_max: 157.2 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoprotein

Ebola virus - Mayinga, Zaire, 1976

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–RNA Heteromer Protein × 7 RNA 2 PDB declaration: nonameric（9） Consistent with all polymer counts	Chain A； UniProt 1–739 Chain B； UniProt 1–739 Chain E； UniProt 1–739	Not recorded	;RNA (5'-R(APAPAPAPAPA)-3') ; × 2 Membrane-associated protein VP24 × 2 （Q05322） Polymerase cofactor VP35 × 2 （Q05127）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.2 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 7.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8UST	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4QAZ The crystal structure of the C-terminal domain of Ebola (Zaire) nucleoprotein Deposited 2014-05-06	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 641–739（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；19.3% PEG3350, 0.3M Magnesium Formate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.98 Å R-free 0.229
4QB0 The crystal structure of the C-terminal domain of Ebola (Zaire) nucleoprotein Deposited 2014-05-06	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 641–739（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；19.3% PEG3350, 0.05M Magnesium Formate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.75 Å R-free 0.225
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 38–385（348 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 38–385（348 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 38–385（348 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 38–385（348 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4Z9P Crystal structure of Ebola virus nucleoprotein core domain at 1.8A resolution Deposited 2015-04-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–351（316 aa） Fragment：core domain (UNP RESIDUES 36-351)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7；289 K；200mM ammonium citrate tribasic pH 7.0, 20% (w/v) PEG 3350	Resolution 1.79 Å R-free 0.225
4ZTA Ebola virus nucleoprotein bound to VP35 chaperoning peptide I212121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 33–367（335 aa） Fragment：UNP Q05127 residues 15-59,UNP P18272 residues 33-367,UNP Q05127 residues 15-59,UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；277 K；2.2M Sodium formate, 100mM NaOAc pH 4.7	Resolution 2.40 Å R-free 0.233
4ZTG Ebola virus nucleoprotein bound to VP35 chaperoning peptide P22121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 33–367（335 aa） Fragment：UNP Q05127 residues 15-59, UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；12% PEG 6000, 100 mM MES pH 5.0	Resolution 2.80 Å R-free 0.293
4ZTI Ebola virus nucleoprotein bound to VP35 chaperoning peptide P212121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 33–367（335 aa） Fragment：UNP Q05127 residues 15-59,UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.4；277 K；2.0 M sodium formate, 100 mM sodium acetate pH 4.4	Resolution 2.40 Å R-free 0.247
4ZTI Ebola virus nucleoprotein bound to VP35 chaperoning peptide P212121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 33–367（335 aa） Fragment：UNP Q05127 residues 15-59,UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.4；277 K；2.0 M sodium formate, 100 mM sodium acetate pH 4.4	Resolution 2.40 Å R-free 0.247
5T3T Ebola virus VP30 CTD bound to nucleoprotein Deposited 2016-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 600–627（28 aa） Fragment：UNP P18272 residues 600-627,UNP Q05323 residues 139-288 Chain B 600–627（28 aa） Fragment：UNP P18272 residues 600-627,UNP Q05323 residues 139-288	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.9；298 K；0.3 uL of 20 mg/mL protein mixed with 0.3 uL of 2.2 M ammonium sulfate, 100 mM sodium acetate pH 4.9	Resolution 2.20 Å R-free 0.249
5T3T Ebola virus VP30 CTD bound to nucleoprotein Deposited 2016-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 600–627（28 aa） Fragment：UNP P18272 residues 600-627,UNP Q05323 residues 139-288 Chain D 600–627（28 aa） Fragment：UNP P18272 residues 600-627,UNP Q05323 residues 139-288	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.9；298 K；0.3 uL of 20 mg/mL protein mixed with 0.3 uL of 2.2 M ammonium sulfate, 100 mM sodium acetate pH 4.9	Resolution 2.20 Å R-free 0.249
5T3T Ebola virus VP30 CTD bound to nucleoprotein Deposited 2016-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 600–627（28 aa） Fragment：UNP P18272 residues 600-627,UNP Q05323 residues 139-288 Chain F 600–627（28 aa） Fragment：UNP P18272 residues 600-627,UNP Q05323 residues 139-288	Not recorded	SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.9；298 K；0.3 uL of 20 mg/mL protein mixed with 0.3 uL of 2.2 M ammonium sulfate, 100 mM sodium acetate pH 4.9	Resolution 2.20 Å R-free 0.249
5T3T Ebola virus VP30 CTD bound to nucleoprotein Deposited 2016-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 600–627（28 aa） Fragment：UNP P18272 residues 600-627,UNP Q05323 residues 139-288 Chain H 600–627（28 aa） Fragment：UNP P18272 residues 600-627,UNP Q05323 residues 139-288	Not recorded	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.9；298 K；0.3 uL of 20 mg/mL protein mixed with 0.3 uL of 2.2 M ammonium sulfate, 100 mM sodium acetate pH 4.9	Resolution 2.20 Å R-free 0.249
5T3T Ebola virus VP30 CTD bound to nucleoprotein Deposited 2016-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain I 600–627（28 aa） Fragment：UNP P18272 residues 600-627,UNP Q05323 residues 139-288 Chain J 600–627（28 aa） Fragment：UNP P18272 residues 600-627,UNP Q05323 residues 139-288	Not recorded	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.9；298 K；0.3 uL of 20 mg/mL protein mixed with 0.3 uL of 2.2 M ammonium sulfate, 100 mM sodium acetate pH 4.9	Resolution 2.20 Å R-free 0.249
6EHL Model of the Ebola virus nucleoprotein in recombinant nucleocapsid-like assemblies Deposited 2017-09-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–739（739 aa）	Mutation：Truncation mutant (residues 1-450)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.60 Å
6EHM Model of the Ebola virus nucleocapsid subunit from recombinant virus-like particles Deposited 2017-09-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–739（739 aa） Chain B 1–739（739 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.30 Å
6NUT Ebola virus nucleoprotein - RNA complex Deposited 2019-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 50 PDB declaration: 100-meric	Chain A 1–450（450 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
6NUT Ebola virus nucleoprotein - RNA complex Deposited 2019-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–450（450 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8USN Intracellular cryo-tomography structure of EBOV nucleocapsid at 8.9 Angstrom Deposited 2023-10-27	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 7 PDB declaration: nonameric	Chain A 1–739（739 aa） Chain B 1–739（739 aa） Chain E 1–739（739 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 8.90 Å
8Y9J Structure of the Ebola virus nucleocapsid subunit Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: pentameric	Chain A 1–739（739 aa） Chain B 1–739（739 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；The sample was applied to both sides of the grid. The grids were blotted for 14 seconds.	Resolution 4.60 Å

13 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NCAP_EBOZM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–739； UniProt 1–739 Author chain B； PDBConstruct 1–739； UniProt 1–739 Author chain E； PDBConstruct 1–739； UniProt 1–739

Membrane-associated protein VP24

Ebola virus - Mayinga, Zaire, 1976

UniProt Q05322

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–RNA Heteromer Protein × 7 RNA 2 PDB declaration: nonameric（9） Consistent with all polymer counts	Chain I； UniProt 1–251 Chain J； UniProt 1–251	Not recorded	Nucleoprotein × 3 （P18272） ;RNA (5'-R(APAPAPAPAPA)-3') ; × 2 Polymerase cofactor VP35 × 2 （Q05127）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.2 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 7.30 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8UST	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4M0Q Ebola virus VP24 structure Deposited 2013-08-01	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 11–237（227 aa） Fragment：UNP residues 11-231 Chain B 11–237（227 aa） Fragment：UNP residues 11-231	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；150 mM MES, pH 6.4, 20% Jeffamine M-600, pH 7.0, 50 mM cesium chloride, 6 mM barium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.92 Å R-free 0.232
4U2X Ebola virus VP24 in complex with Karyopherin alpha 5 C-terminus Deposited 2014-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–231（216 aa） Fragment：eVP24	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；3.5M ammonium chloride, 0.1 M Bis-Tris propane	Resolution 3.15 Å R-free 0.249
4U2X Ebola virus VP24 in complex with Karyopherin alpha 5 C-terminus Deposited 2014-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 16–231（216 aa） Fragment：eVP24	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；3.5M ammonium chloride, 0.1 M Bis-Tris propane	Resolution 3.15 Å R-free 0.249
4U2X Ebola virus VP24 in complex with Karyopherin alpha 5 C-terminus Deposited 2014-07-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 16–231（216 aa） Fragment：eVP24	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；3.5M ammonium chloride, 0.1 M Bis-Tris propane	Resolution 3.15 Å R-free 0.249
6EHM Model of the Ebola virus nucleocapsid subunit from recombinant virus-like particles Deposited 2017-09-13	Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–251（251 aa） Chain D 1–251（251 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.30 Å
8USN Intracellular cryo-tomography structure of EBOV nucleocapsid at 8.9 Angstrom Deposited 2023-10-27	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 7 PDB declaration: nonameric	Chain I 1–251（251 aa） Chain J 1–251（251 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 8.90 Å
8Y9J Structure of the Ebola virus nucleocapsid subunit Deposited 2024-02-06	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 4 PDB declaration: pentameric	Chain C 1–251（251 aa） Chain D 1–251（251 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；The sample was applied to both sides of the grid. The grids were blotted for 14 seconds.	Resolution 4.60 Å

5 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VP24_EBOZM
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain I； PDBConstruct 1–251； UniProt 1–251 Author chain J； PDBConstruct 1–251； UniProt 1–251

Polymerase cofactor VP35

Ebola virus - Mayinga, Zaire, 1976

UniProt Q05127

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–RNA Heteromer Protein × 7 RNA 2 PDB declaration: nonameric（9） Consistent with all polymer counts	Chain F； UniProt 1–340 Chain K； UniProt 1–340	Not recorded	Nucleoprotein × 3 （P18272） ;RNA (5'-R(APAPAPAPAPA)-3') ; × 2 Membrane-associated protein VP24 × 2 （Q05322）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.2 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 7.30 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8UST	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3FKE Structure of the Ebola VP35 Interferon Inhibitory Domain Deposited 2008-12-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：UNP residues 215-340, interferon inhibitory domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；298 K；Well solution: 200 mM Sodium Citrate (pH 5.8),11% (W/V) PEG 4000; protein solution: 20 mM Tris-Cl (pH 7.0),50 mM NaCl, 5mM beta-mercaptoethanol, Vapor Diffusion, Hanging Drop, Temperature 298K, VAPOR DIFFUSION, HANGING DROP	Resolution 1.40 Å R-free 0.236
3FKE Structure of the Ebola VP35 Interferon Inhibitory Domain Deposited 2008-12-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：UNP residues 215-340, interferon inhibitory domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；298 K；Well solution: 200 mM Sodium Citrate (pH 5.8),11% (W/V) PEG 4000; protein solution: 20 mM Tris-Cl (pH 7.0),50 mM NaCl, 5mM beta-mercaptoethanol, Vapor Diffusion, Hanging Drop, Temperature 298K, VAPOR DIFFUSION, HANGING DROP	Resolution 1.40 Å R-free 0.236
3L25 Crystal structure of Zaire Ebola VP35 interferon inhibitory domain bound to 8 bp dsRNA Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain A 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain Chain B 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain Chain D 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain Chain E 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain	Not recorded	MG MAGNESIUM ION × 1 CL CHLORIDE ION × 4 NA SODIUM ION × 8 GOL GLYCEROL × 1 FMT FORMIC ACID × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；3M SODIUM FORMATE, 0.1M SODIUM CITRATE, 5% GLYCEROL, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.207
3L26 Crystal structure of Zaire Ebola VP35 interferon inhibitory domain bound to 8 bp dsRNA Deposited 2009-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain A 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain Chain B 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain	Not recorded	MG MAGNESIUM ION × 10 CL CHLORIDE ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；293 K；2.9M SODIUM FORMATE, 0.1M SODIUM CITRATE, pH 4.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.254
3L27 Crystal structure of Zaire Ebola VP35 interferon inhibitory domain R312A mutant Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 215–340（126 aa） Fragment：INTERFERON INHIBITORY DOMAIN Chain B 215–340（126 aa） Fragment：INTERFERON INHIBITORY DOMAIN Chain C 215–340（126 aa） Fragment：INTERFERON INHIBITORY DOMAIN Chain D 215–340（126 aa） Fragment：INTERFERON INHIBITORY DOMAIN	Mutation：R312A Mutation：R312A Mutation：R312A Mutation：R312A	CL CHLORIDE ION × 6 PO4 PHOSPHATE ION × 9 GOL GLYCEROL × 10 NA SODIUM ION × 1 K POTASSIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.15；293 K；1.85 M SODIUM PHOSPHATE, 0.15 M POTASSIUM PHOSPHATE, pH 4.15, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.229
3L28 Crystal structure of Zaire Ebola VP35 interferon inhibitory domain K339A mutant Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN Chain B 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN Chain C 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN Chain D 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN Chain E 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN Chain F 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN	Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 10 CL CHLORIDE ION × 12 NA SODIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 2.8；293 K；0.1M SODIUM CITRATE, 0.3M LITHIUM SULFATE, 13% PEG8000, pH 2.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.269
3L29 Crystal Structure of Zaire Ebola VP35 interferon inhibitory domain K319A/R322A mutant Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain	Mutation：K319A, R322A	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.75；293 K；0.1M BIS-TRIS, 0.2M AMMONIUM SULFATE, 28% PEG3350, pH 6.75, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.70 Å R-free 0.232
3L29 Crystal Structure of Zaire Ebola VP35 interferon inhibitory domain K319A/R322A mutant Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain	Mutation：K319A, R322A	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.75；293 K；0.1M BIS-TRIS, 0.2M AMMONIUM SULFATE, 28% PEG3350, pH 6.75, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.70 Å R-free 0.232
4IBB Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DK {4-[(5R)-3-hydroxy-2-oxo-4-(thiophen-2-ylcarbonyl)-5-(2,4,5-trimethylphenyl)-2,5-dihydro-1H-pyrrol-1-yl]phenyl}acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM magnesium acetate, pH7.5, 15% PEG3350, 10% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.75 Å R-free 0.226
4IBB Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DK {4-[(5R)-3-hydroxy-2-oxo-4-(thiophen-2-ylcarbonyl)-5-(2,4,5-trimethylphenyl)-2,5-dihydro-1H-pyrrol-1-yl]phenyl}acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM magnesium acetate, pH7.5, 15% PEG3350, 10% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.75 Å R-free 0.226
4IBC Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	12G {4-[(2R)-3-(2-chlorobenzoyl)-2-(2-chlorophenyl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]phenyl}acetic acid × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM magnesium acetate, pH7.5, 15% PEG3350, 10% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.75 Å R-free 0.250
4IBC Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	12G {4-[(2R)-3-(2-chlorobenzoyl)-2-(2-chlorophenyl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]phenyl}acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM magnesium acetate, pH7.5, 15% PEG3350, 10% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.75 Å R-free 0.250
4IBD Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DL 5-[(2R)-3-benzoyl-2-(4-bromothiophen-2-yl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]-2-methylbenzoic acid × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.84 Å R-free 0.233
4IBD Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DL 5-[(2R)-3-benzoyl-2-(4-bromothiophen-2-yl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]-2-methylbenzoic acid × 1 GOL GLYCEROL × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.84 Å R-free 0.233
4IBE Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	11Y 5-[(2R)-3-benzoyl-2-(4-bromothiophen-2-yl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]-2-chlorobenzoic acid × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.233
4IBE Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	11Y 5-[(2R)-3-benzoyl-2-(4-bromothiophen-2-yl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]-2-chlorobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.233
4IBF Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D5 (4-{(2R)-2-(4-bromothiophen-2-yl)-3-[(5-chlorothiophen-2-yl)carbonyl]-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl}phenyl)acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.29 Å R-free 0.260
4IBF Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D5 (4-{(2R)-2-(4-bromothiophen-2-yl)-3-[(5-chlorothiophen-2-yl)carbonyl]-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl}phenyl)acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.29 Å R-free 0.260
4IBG Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340 Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D6 {4-[(2S)-2-(7-chloro-1,3-benzodioxol-5-yl)-4-hydroxy-3-(3-methylbenzoyl)-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]phenyl}acetic acid × 2 SO4 SULFATE ION × 4 GOL GLYCEROL × 3 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.41 Å R-free 0.200
4IBI Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D8 3-{(2S)-2-(7-chloro-1,3-benzodioxol-5-yl)-4-hydroxy-5-oxo-3-[3-(trifluoromethyl)benzoyl]-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMS, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.47 Å R-free 0.237
4IBI Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D8 3-{(2S)-2-(7-chloro-1,3-benzodioxol-5-yl)-4-hydroxy-5-oxo-3-[3-(trifluoromethyl)benzoyl]-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMS, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.47 Å R-free 0.237
4IBJ Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D9 3-{(5S)-3-hydroxy-2-oxo-4-[3-(trifluoromethyl)benzoyl]-5-[3-(trifluoromethyl)phenyl]-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.54 Å R-free 0.229
4IBJ Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D9 3-{(5S)-3-hydroxy-2-oxo-4-[3-(trifluoromethyl)benzoyl]-5-[3-(trifluoromethyl)phenyl]-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.54 Å R-free 0.229
4IBK Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DE 3-{(2S)-2-(7-chloro-1,3-benzodioxol-5-yl)-3-[(5-chlorothiophen-2-yl)carbonyl]-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1 GOL GLYCEROL × 1 DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.85 Å R-free 0.241
4IBK Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DE 3-{(2S)-2-(7-chloro-1,3-benzodioxol-5-yl)-3-[(5-chlorothiophen-2-yl)carbonyl]-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.85 Å R-free 0.241
4IJE Crystal structure of the Zaire ebolavirus VP35 interferon inhibitory domain R312A/K319A/R322A mutant Deposited 2012-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 218–340（123 aa） Fragment：interferon inhibitory domain (UNP residues 218-340)	Mutation：R312A, K319A, R322A	NA SODIUM ION × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298.15 K；2.2 M sodium potassium phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.15K	Resolution 1.90 Å R-free 0.228
4IJE Crystal structure of the Zaire ebolavirus VP35 interferon inhibitory domain R312A/K319A/R322A mutant Deposited 2012-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 218–340（123 aa） Fragment：interferon inhibitory domain (UNP residues 218-340)	Mutation：R312A, K319A, R322A	NA SODIUM ION × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298.15 K；2.2 M sodium potassium phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.15K	Resolution 1.90 Å R-free 0.228
4IJE Crystal structure of the Zaire ebolavirus VP35 interferon inhibitory domain R312A/K319A/R322A mutant Deposited 2012-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 218–340（123 aa） Fragment：interferon inhibitory domain (UNP residues 218-340)	Mutation：R312A, K319A, R322A	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298.15 K；2.2 M sodium potassium phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.15K	Resolution 1.90 Å R-free 0.228
4IJE Crystal structure of the Zaire ebolavirus VP35 interferon inhibitory domain R312A/K319A/R322A mutant Deposited 2012-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 218–340（123 aa） Fragment：interferon inhibitory domain (UNP residues 218-340)	Mutation：R312A, K319A, R322A	NA SODIUM ION × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298.15 K；2.2 M sodium potassium phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.15K	Resolution 1.90 Å R-free 0.228
4IJF Crystal structure of the Zaire ebolavirus VP35 interferon inhibitory domain K222A/R225A/K248A/K251A mutant Deposited 2012-12-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 218–340（123 aa） Fragment：interferon inhibitory domain (UNP residues 218-340)	Mutation：K222A, R225A, K248A, K251A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298.15 K；0.2 M magnesium chloride, 0.1 M HEPES, pH 7.5, 30% PEG400, VAPOR DIFFUSION, HANGING DROP, temperature 298.15K	Resolution 2.51 Å R-free 0.254
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 20–47（28 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 20–47（28 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 20–47（28 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 20–47（28 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4ZTA Ebola virus nucleoprotein bound to VP35 chaperoning peptide I212121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 15–59（45 aa） Fragment：UNP Q05127 residues 15-59,UNP P18272 residues 33-367,UNP Q05127 residues 15-59,UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；277 K；2.2M Sodium formate, 100mM NaOAc pH 4.7	Resolution 2.40 Å R-free 0.233
4ZTG Ebola virus nucleoprotein bound to VP35 chaperoning peptide P22121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 15–59（45 aa） Fragment：UNP Q05127 residues 15-59, UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；12% PEG 6000, 100 mM MES pH 5.0	Resolution 2.80 Å R-free 0.293
4ZTI Ebola virus nucleoprotein bound to VP35 chaperoning peptide P212121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 15–59（45 aa） Fragment：UNP Q05127 residues 15-59,UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.4；277 K；2.0 M sodium formate, 100 mM sodium acetate pH 4.4	Resolution 2.40 Å R-free 0.247
4ZTI Ebola virus nucleoprotein bound to VP35 chaperoning peptide P212121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 15–59（45 aa） Fragment：UNP Q05127 residues 15-59,UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.4；277 K；2.0 M sodium formate, 100 mM sodium acetate pH 4.4	Resolution 2.40 Å R-free 0.247
6GBO Crystal Structure of the oligomerization domain of Vp35 from Ebola virus Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 82–145（64 aa） Fragment：oligomerization domain Chain B 82–145（64 aa） Fragment：oligomerization domain Chain C 82–145（64 aa） Fragment：oligomerization domain Chain D 82–145（64 aa） Fragment：oligomerization domain Chain E 82–145（64 aa） Fragment：oligomerization domain Chain F 82–145（64 aa） Fragment：oligomerization domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.5 M Na-acetate	Resolution 2.10 Å R-free 0.242
6GBO Crystal Structure of the oligomerization domain of Vp35 from Ebola virus Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 82–145（64 aa） Fragment：oligomerization domain Chain H 82–145（64 aa） Fragment：oligomerization domain Chain I 82–145（64 aa） Fragment：oligomerization domain Chain J 82–145（64 aa） Fragment：oligomerization domain Chain K 82–145（64 aa） Fragment：oligomerization domain Chain L 82–145（64 aa） Fragment：oligomerization domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.5 M Na-acetate	Resolution 2.10 Å R-free 0.242
6GBP Crystal Structure of the oligomerization domain of VP35 from Ebola virus, mercury derivative Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 82–145（64 aa） Fragment：oligomerization domain Chain B 82–145（64 aa） Fragment：oligomerization domain Chain C 82–145（64 aa） Fragment：oligomerization domain	Not recorded	HG MERCURY (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.6 M Na-acetate	Resolution 3.49 Å R-free 0.281
6GBP Crystal Structure of the oligomerization domain of VP35 from Ebola virus, mercury derivative Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 82–145（64 aa） Fragment：oligomerization domain Chain E 82–145（64 aa） Fragment：oligomerization domain Chain F 82–145（64 aa） Fragment：oligomerization domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.6 M Na-acetate	Resolution 3.49 Å R-free 0.281
6GBP Crystal Structure of the oligomerization domain of VP35 from Ebola virus, mercury derivative Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain G 82–145（64 aa） Fragment：oligomerization domain Chain H 82–145（64 aa） Fragment：oligomerization domain Chain I 82–145（64 aa） Fragment：oligomerization domain	Not recorded	HG MERCURY (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.6 M Na-acetate	Resolution 3.49 Å R-free 0.281
6GBP Crystal Structure of the oligomerization domain of VP35 from Ebola virus, mercury derivative Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain J 82–145（64 aa） Fragment：oligomerization domain Chain K 82–145（64 aa） Fragment：oligomerization domain Chain L 82–145（64 aa） Fragment：oligomerization domain	Not recorded	HG MERCURY (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.6 M Na-acetate	Resolution 3.49 Å R-free 0.281
8USN Intracellular cryo-tomography structure of EBOV nucleocapsid at 8.9 Angstrom Deposited 2023-10-27	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 7 PDB declaration: nonameric	Chain F 1–340（340 aa） Chain K 1–340（340 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 8.90 Å
9IP3 Cryo-EM structure of the RNA-dependent RNA polymerase complex in a compact conformation from Ebola virus Deposited 2024-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 80–340（261 aa） Chain C 80–340（261 aa） Chain D 80–340（261 aa） Chain E 80–340（261 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；25 mM HEPES, 300 mM NaCl, 1 mM TCEP, 6 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å

25 other PDB entries and 46 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VP35_EBOZM
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain F； PDBConstruct 1–340； UniProt 1–340 Author chain K； PDBConstruct 1–340； UniProt 1–340

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

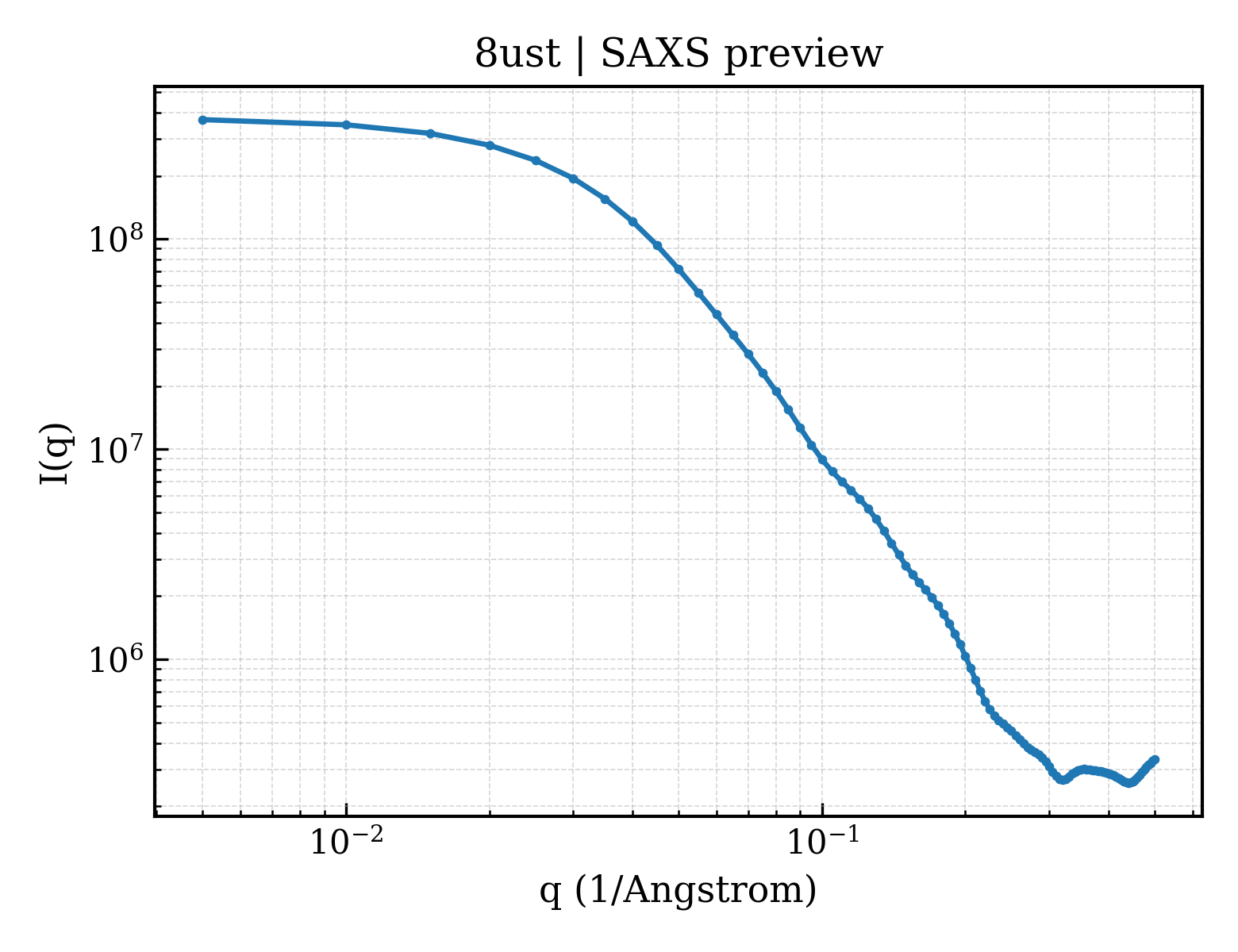

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ust
Deposition date deposition_date	2023-10-29
Structure title title	In-virion structure of Ebola virus nucleocapsid-like assemblies from recombinant virus-like particles (nucleoprotein, VP24,VP35,VP40)
Keywords keywords	VIRAL PROTEIN, nucleoprotein, nucleocapsid, Ebola virus, EBOV, filovirus, subtomogram averaging, in situ, VIRAL PROTEIN-RNA complex; VIRAL PROTEIN/RNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	47.34 Å
Radius of gyration Rg (electron density) rg_electron	47.71 Å
Forward intensity I(0) i0	377070000.00
Molecular weight molecular_weight	97713.0 kDa
Excluded volume excluded_volume	95977 Å³
Envelope volume envelope_volume	270280 Å³
Hydration-shell volume shell_volume	51497 Å³
Envelope diameter envelope_diameter	161.1 Å
Shell Rg shell_rg	46.53 Å
Envelope Rg envelope_rg	46.17 Å
Shape Rg shape_rg	47.73 Å
Total Rg total_rg	47.62 Å
Total atoms total_atoms	6954
Residues n_residues	1686
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

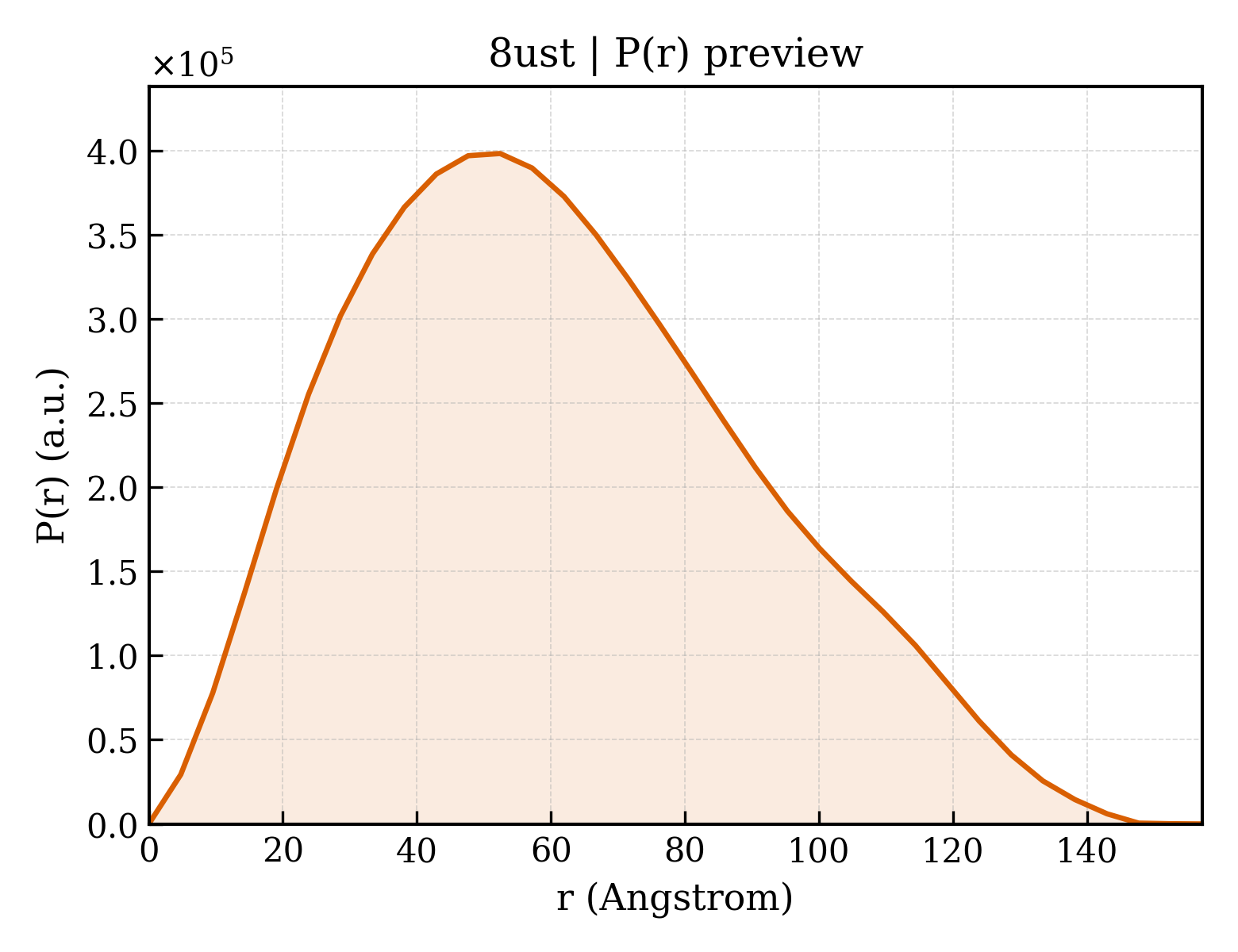

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	157.2 Å
Rg (real space) rg_real	47.57 Å
Rg uncertainty (real space) rg_real_error	1.41 Å
I(0) (real space) i0_real	3.7710e+08
I(0) uncertainty (real space) i0_real_error	6.6950e+06
Rg (reciprocal space) rg_reciprocal	47.35 Å
I(0) (reciprocal space) i0_reciprocal	377000000.0000
Solution quality estimate total_estimate	0.8587
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	52.4 Å
Skewness Skewness skewness	0.381
Kurtosis Kurtosis kurtosis	-0.497
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	30030000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.912; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.448

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Nucleoprotein
Molecular weight formula_weight	83387.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,E
Atom count atom_count	6954

MDSRPQKIWMAPSLTESDMDYHKILTAGLSVQQGIVRQRVIPVYQVNNLEEICQLIIQAFEAGVDFQESADSFLLMLCLHHAYQGDYKLFLESGAVKYLEGHGFRFEVKKRDGVKRLEELLPAVSSGKNIKRTLAAMPEEETTEANAGQFLSFASLFLPKLVVGEKACLEKVQRQIQVHAEQGLIQYPTAWQSVGHMMVIFRLMRTNFLIKFLLIHQGMHMVAGHDANDAVISNSVAQARFSGLLIVKTVLDHILQKTERGVRLHPLARTAKVKNEVNSFKAALSSLAKHGEYAPFARLLNLSGVNNLEHGLFPQLSAIALGVATAHGSTLAGVNVGEQYQQLREAATEAEKQLQQYAESRELDHLGLDDQEKKILMNFHQKKNEISFQQTNAMVTLRKERLAKLTEAITAASLPKTSGHYDDDDDIPFPGPINDDDNPGHQDDDPTDSQDTTIPDVVVDPDDGSYGEYQSYSENGMNAPDDLVLFDLDEDDEDTKPVPNRSTKGGQQKNSQKGQHIEGRQTQSRPIQNVPGPHRTIHHASAPLTDNDRRNEPSGSTSPRMLTPINEEADPLDDADDETSSLPPLESDDEEQDRDGTSNRTPTVAPPAPVYRDHSEKKELPQDEQQDQDHTQEARNQDSDNTQSEHSFEEMYRHILRSQGPFDAVLYYHMMKDEPVVFSTSDGKEYTYPDSLEEEYPPWLTEKEAMNEENRFVTLDGQQFYWPVMNHKNKFMAILQHHQ

来源 Source

来源生物 organism	Ebola virus - Mayinga, Zaire, 1976
NCBI Class编号 ncbi_taxonomy_id	128952
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	;RNA (5'-R(APAPAPAPAPA)-3') ;
Molecular weight formula_weight	1930.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	C,D

AAAAAA

来源 Source

来源生物 organism	Zaire
NCBI Class编号 ncbi_taxonomy_id	128952
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Membrane-associated protein VP24
Molecular weight formula_weight	28250.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J

MAKATGRYNLISPKKDLEKGVVLSDLCNFLVSQTIQGWKVYWAGIEFDVTHKGMALLHRLKTNDFAPAWSMTRNLFPHLFQNPNSTIESPLWALRVILAAGIQDQLIDQSLIEPLAGALGLISDWLLTTNTNHFNMRTQRVKEQLSLKMLSLIRSNILKFINKLDALHVVNYNGLLSSIEIGTQNHTIIITRTNMGFLVELQEPDKSAMNRMKPGPAKFSLLHESTLKAFTQGSSTRMQSLILEFNSSLAI

来源 Source

来源生物 organism	Ebola virus - Mayinga, Zaire, 1976
NCBI Class编号 ncbi_taxonomy_id	128952
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Polymerase cofactor VP35
Molecular weight formula_weight	37403.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,F

MTTRTKGRGHTAATTQNDRMPGPELSGWISEQLMTGRIPVSDIFCDIENNPGLCYASQMQQTKPNPKTRNSQTQTDPICNHSFEEVVQTLASLATVVQQQTIASESLEQRITSLENGLKPVYDMAKTISSLNRVCAEMVAKYDLLVMTTGRATATAAATEAYWAEHGQPPPGPSLYEESAIRGKIESRDETVPQSVREAFNNLNSTTSLTEENFGKPDISAKDLRNIMYDHLPGFGTAFHQLVQVICKLGKDSNSLDIIHAEFQASLAEGDSPQCALIQITKRVPIFQDAAPPVIHIRSRGDIPRACQKSLRPVPPSPKIDRGWVCVFQLQDGKTLGLKI

来源 Source

来源生物 organism	Ebola virus - Mayinga, Zaire, 1976
NCBI Class编号 ncbi_taxonomy_id	128952
宿主生物 host_organism	Homo sapiens

▶

8. Citations (1)

▶

Resolution resolution	7.30 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	35366

fit	/app/data/saxs_computation/us/8ust/8ust.fit
pddf	/app/data/pr_computation/us/8ust/8ust.pr.out
profile	/app/data/saxs_computation/us/8ust/8ust.dat

In-virion structure of Ebola virus nucleocapsid-like assemblies from recombinant virus-like particles (nucleoprotein, VP24,VP35,VP40)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoprotein

State in the Current Structure

Other States of the Same Protein in the Database

Membrane-associated protein VP24

State in the Current Structure

Other States of the Same Protein in the Database

Polymerase cofactor VP35

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
