6gbp

Crystal Structure of the oligomerization domain of VP35 from Ebola virus, mercury derivative

Method: X-RAY DIFFRACTION D_max: 110.1 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polymerase cofactor VP35

Zaire ebolavirus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 82–145 Chain B； UniProt 82–145 Chain C； UniProt 82–145	Fragment：oligomerization domain	HG MERCURY (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.6 M Na-acetate	Resolution 3.49 Å R-free 0.281
2	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain D； UniProt 82–145 Chain E； UniProt 82–145 Chain F； UniProt 82–145	Fragment：oligomerization domain	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.6 M Na-acetate	Resolution 3.49 Å R-free 0.281
3	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain G； UniProt 82–145 Chain H； UniProt 82–145 Chain I； UniProt 82–145	Fragment：oligomerization domain	HG MERCURY (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.6 M Na-acetate	Resolution 3.49 Å R-free 0.281
4	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain J； UniProt 82–145 Chain K； UniProt 82–145 Chain L； UniProt 82–145	Fragment：oligomerization domain	HG MERCURY (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.6 M Na-acetate	Resolution 3.49 Å R-free 0.281

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6GBP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3FKE Structure of the Ebola VP35 Interferon Inhibitory Domain Deposited 2008-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：UNP residues 215-340, interferon inhibitory domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；298 K；Well solution: 200 mM Sodium Citrate (pH 5.8),11% (W/V) PEG 4000; protein solution: 20 mM Tris-Cl (pH 7.0),50 mM NaCl, 5mM beta-mercaptoethanol, Vapor Diffusion, Hanging Drop, Temperature 298K, VAPOR DIFFUSION, HANGING DROP	Resolution 1.40 Å R-free 0.236
3FKE Structure of the Ebola VP35 Interferon Inhibitory Domain Deposited 2008-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：UNP residues 215-340, interferon inhibitory domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；298 K；Well solution: 200 mM Sodium Citrate (pH 5.8),11% (W/V) PEG 4000; protein solution: 20 mM Tris-Cl (pH 7.0),50 mM NaCl, 5mM beta-mercaptoethanol, Vapor Diffusion, Hanging Drop, Temperature 298K, VAPOR DIFFUSION, HANGING DROP	Resolution 1.40 Å R-free 0.236
3L25 Crystal structure of Zaire Ebola VP35 interferon inhibitory domain bound to 8 bp dsRNA Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain A 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain Chain B 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain Chain D 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain Chain E 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain	Not recorded	MG MAGNESIUM ION × 1 CL CHLORIDE ION × 4 NA SODIUM ION × 8 GOL GLYCEROL × 1 FMT FORMIC ACID × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；3M SODIUM FORMATE, 0.1M SODIUM CITRATE, 5% GLYCEROL, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.207
3L26 Crystal structure of Zaire Ebola VP35 interferon inhibitory domain bound to 8 bp dsRNA Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain A 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain Chain B 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain	Not recorded	MG MAGNESIUM ION × 10 CL CHLORIDE ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；293 K；2.9M SODIUM FORMATE, 0.1M SODIUM CITRATE, pH 4.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.254
3L27 Crystal structure of Zaire Ebola VP35 interferon inhibitory domain R312A mutant Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 215–340（126 aa） Fragment：INTERFERON INHIBITORY DOMAIN Chain B 215–340（126 aa） Fragment：INTERFERON INHIBITORY DOMAIN Chain C 215–340（126 aa） Fragment：INTERFERON INHIBITORY DOMAIN Chain D 215–340（126 aa） Fragment：INTERFERON INHIBITORY DOMAIN	Mutation：R312A Mutation：R312A Mutation：R312A Mutation：R312A	CL CHLORIDE ION × 6 PO4 PHOSPHATE ION × 9 GOL GLYCEROL × 10 NA SODIUM ION × 1 K POTASSIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.15；293 K；1.85 M SODIUM PHOSPHATE, 0.15 M POTASSIUM PHOSPHATE, pH 4.15, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.229
3L28 Crystal structure of Zaire Ebola VP35 interferon inhibitory domain K339A mutant Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN Chain B 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN Chain C 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN Chain D 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN Chain E 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN Chain F 215–340（126 aa） Fragment：VP35 INTERFERON INHIBITORY DOMAIN	Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：K339A Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 10 CL CHLORIDE ION × 12 NA SODIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 2.8；293 K；0.1M SODIUM CITRATE, 0.3M LITHIUM SULFATE, 13% PEG8000, pH 2.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.269
3L29 Crystal Structure of Zaire Ebola VP35 interferon inhibitory domain K319A/R322A mutant Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain	Mutation：K319A, R322A	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.75；293 K；0.1M BIS-TRIS, 0.2M AMMONIUM SULFATE, 28% PEG3350, pH 6.75, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.70 Å R-free 0.232
3L29 Crystal Structure of Zaire Ebola VP35 interferon inhibitory domain K319A/R322A mutant Deposited 2009-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：Zaire Ebola VP35 interferon inhibitory domain	Mutation：K319A, R322A	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.75；293 K；0.1M BIS-TRIS, 0.2M AMMONIUM SULFATE, 28% PEG3350, pH 6.75, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.70 Å R-free 0.232
4IBB Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DK {4-[(5R)-3-hydroxy-2-oxo-4-(thiophen-2-ylcarbonyl)-5-(2,4,5-trimethylphenyl)-2,5-dihydro-1H-pyrrol-1-yl]phenyl}acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM magnesium acetate, pH7.5, 15% PEG3350, 10% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.75 Å R-free 0.226
4IBB Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DK {4-[(5R)-3-hydroxy-2-oxo-4-(thiophen-2-ylcarbonyl)-5-(2,4,5-trimethylphenyl)-2,5-dihydro-1H-pyrrol-1-yl]phenyl}acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM magnesium acetate, pH7.5, 15% PEG3350, 10% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.75 Å R-free 0.226
4IBC Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	12G {4-[(2R)-3-(2-chlorobenzoyl)-2-(2-chlorophenyl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]phenyl}acetic acid × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM magnesium acetate, pH7.5, 15% PEG3350, 10% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.75 Å R-free 0.250
4IBC Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	12G {4-[(2R)-3-(2-chlorobenzoyl)-2-(2-chlorophenyl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]phenyl}acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM magnesium acetate, pH7.5, 15% PEG3350, 10% DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.75 Å R-free 0.250
4IBD Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DL 5-[(2R)-3-benzoyl-2-(4-bromothiophen-2-yl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]-2-methylbenzoic acid × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.84 Å R-free 0.233
4IBD Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DL 5-[(2R)-3-benzoyl-2-(4-bromothiophen-2-yl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]-2-methylbenzoic acid × 1 GOL GLYCEROL × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.84 Å R-free 0.233
4IBE Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	11Y 5-[(2R)-3-benzoyl-2-(4-bromothiophen-2-yl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]-2-chlorobenzoic acid × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.233
4IBE Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	11Y 5-[(2R)-3-benzoyl-2-(4-bromothiophen-2-yl)-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]-2-chlorobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.233
4IBF Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D5 (4-{(2R)-2-(4-bromothiophen-2-yl)-3-[(5-chlorothiophen-2-yl)carbonyl]-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl}phenyl)acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.29 Å R-free 0.260
4IBF Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D5 (4-{(2R)-2-(4-bromothiophen-2-yl)-3-[(5-chlorothiophen-2-yl)carbonyl]-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl}phenyl)acetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.29 Å R-free 0.260
4IBG Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340 Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D6 {4-[(2S)-2-(7-chloro-1,3-benzodioxol-5-yl)-4-hydroxy-3-(3-methylbenzoyl)-5-oxo-2,5-dihydro-1H-pyrrol-1-yl]phenyl}acetic acid × 2 SO4 SULFATE ION × 4 GOL GLYCEROL × 3 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.41 Å R-free 0.200
4IBI Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D8 3-{(2S)-2-(7-chloro-1,3-benzodioxol-5-yl)-4-hydroxy-5-oxo-3-[3-(trifluoromethyl)benzoyl]-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMS, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.47 Å R-free 0.237
4IBI Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D8 3-{(2S)-2-(7-chloro-1,3-benzodioxol-5-yl)-4-hydroxy-5-oxo-3-[3-(trifluoromethyl)benzoyl]-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMS, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.47 Å R-free 0.237
4IBJ Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D9 3-{(5S)-3-hydroxy-2-oxo-4-[3-(trifluoromethyl)benzoyl]-5-[3-(trifluoromethyl)phenyl]-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.54 Å R-free 0.229
4IBJ Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1D9 3-{(5S)-3-hydroxy-2-oxo-4-[3-(trifluoromethyl)benzoyl]-5-[3-(trifluoromethyl)phenyl]-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.54 Å R-free 0.229
4IBK Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DE 3-{(2S)-2-(7-chloro-1,3-benzodioxol-5-yl)-3-[(5-chlorothiophen-2-yl)carbonyl]-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1 GOL GLYCEROL × 1 DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.85 Å R-free 0.241
4IBK Ebola virus VP35 bound to small molecule Deposited 2012-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 215–340（126 aa） Fragment：unp residues 215-340	Not recorded	1DE 3-{(2S)-2-(7-chloro-1,3-benzodioxol-5-yl)-3-[(5-chlorothiophen-2-yl)carbonyl]-4-hydroxy-5-oxo-2,5-dihydro-1H-pyrrol-1-yl}benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；100 mM sodium citrate, pH5.5, 15% PEG3350, 10%DMSO, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.85 Å R-free 0.241
4IJE Crystal structure of the Zaire ebolavirus VP35 interferon inhibitory domain R312A/K319A/R322A mutant Deposited 2012-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 218–340（123 aa） Fragment：interferon inhibitory domain (UNP residues 218-340)	Mutation：R312A, K319A, R322A	NA SODIUM ION × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298.15 K；2.2 M sodium potassium phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.15K	Resolution 1.90 Å R-free 0.228
4IJE Crystal structure of the Zaire ebolavirus VP35 interferon inhibitory domain R312A/K319A/R322A mutant Deposited 2012-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 218–340（123 aa） Fragment：interferon inhibitory domain (UNP residues 218-340)	Mutation：R312A, K319A, R322A	NA SODIUM ION × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298.15 K；2.2 M sodium potassium phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.15K	Resolution 1.90 Å R-free 0.228
4IJE Crystal structure of the Zaire ebolavirus VP35 interferon inhibitory domain R312A/K319A/R322A mutant Deposited 2012-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 218–340（123 aa） Fragment：interferon inhibitory domain (UNP residues 218-340)	Mutation：R312A, K319A, R322A	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298.15 K；2.2 M sodium potassium phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.15K	Resolution 1.90 Å R-free 0.228
4IJE Crystal structure of the Zaire ebolavirus VP35 interferon inhibitory domain R312A/K319A/R322A mutant Deposited 2012-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 218–340（123 aa） Fragment：interferon inhibitory domain (UNP residues 218-340)	Mutation：R312A, K319A, R322A	NA SODIUM ION × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298.15 K；2.2 M sodium potassium phosphate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.15K	Resolution 1.90 Å R-free 0.228
4IJF Crystal structure of the Zaire ebolavirus VP35 interferon inhibitory domain K222A/R225A/K248A/K251A mutant Deposited 2012-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 218–340（123 aa） Fragment：interferon inhibitory domain (UNP residues 218-340)	Mutation：K222A, R225A, K248A, K251A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298.15 K；0.2 M magnesium chloride, 0.1 M HEPES, pH 7.5, 30% PEG400, VAPOR DIFFUSION, HANGING DROP, temperature 298.15K	Resolution 2.51 Å R-free 0.254
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 20–47（28 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 20–47（28 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 20–47（28 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4YPI Structure of Ebola virus nucleoprotein N-terminal fragment bound to a peptide derived from Ebola VP35 Deposited 2015-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 20–47（28 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；streak seeding in well solution containing 100 mM Tris pH 7.2, 50 mM Hepes pH 7, and 23% PEG400	Resolution 3.71 Å R-free 0.285
4ZTA Ebola virus nucleoprotein bound to VP35 chaperoning peptide I212121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 15–59（45 aa） Fragment：UNP Q05127 residues 15-59,UNP P18272 residues 33-367,UNP Q05127 residues 15-59,UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；277 K；2.2M Sodium formate, 100mM NaOAc pH 4.7	Resolution 2.40 Å R-free 0.233
4ZTG Ebola virus nucleoprotein bound to VP35 chaperoning peptide P22121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 15–59（45 aa） Fragment：UNP Q05127 residues 15-59, UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；12% PEG 6000, 100 mM MES pH 5.0	Resolution 2.80 Å R-free 0.293
4ZTI Ebola virus nucleoprotein bound to VP35 chaperoning peptide P212121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 15–59（45 aa） Fragment：UNP Q05127 residues 15-59,UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.4；277 K；2.0 M sodium formate, 100 mM sodium acetate pH 4.4	Resolution 2.40 Å R-free 0.247
4ZTI Ebola virus nucleoprotein bound to VP35 chaperoning peptide P212121 Deposited 2015-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 15–59（45 aa） Fragment：UNP Q05127 residues 15-59,UNP P18272 residues 33-367	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.4；277 K；2.0 M sodium formate, 100 mM sodium acetate pH 4.4	Resolution 2.40 Å R-free 0.247
6GBO Crystal Structure of the oligomerization domain of Vp35 from Ebola virus Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 82–145（64 aa） Fragment：oligomerization domain Chain B 82–145（64 aa） Fragment：oligomerization domain Chain C 82–145（64 aa） Fragment：oligomerization domain Chain D 82–145（64 aa） Fragment：oligomerization domain Chain E 82–145（64 aa） Fragment：oligomerization domain Chain F 82–145（64 aa） Fragment：oligomerization domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.5 M Na-acetate	Resolution 2.10 Å R-free 0.242
6GBO Crystal Structure of the oligomerization domain of Vp35 from Ebola virus Deposited 2018-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 82–145（64 aa） Fragment：oligomerization domain Chain H 82–145（64 aa） Fragment：oligomerization domain Chain I 82–145（64 aa） Fragment：oligomerization domain Chain J 82–145（64 aa） Fragment：oligomerization domain Chain K 82–145（64 aa） Fragment：oligomerization domain Chain L 82–145（64 aa） Fragment：oligomerization domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；296 K；50 mM HEPES-NaOH pH 7.5, 2.5 M Na-acetate	Resolution 2.10 Å R-free 0.242
8USN Intracellular cryo-tomography structure of EBOV nucleocapsid at 8.9 Angstrom Deposited 2023-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 7 PDB declaration: nonameric	Chain F 1–340（340 aa） Chain K 1–340（340 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 8.90 Å
8UST In-virion structure of Ebola virus nucleocapsid-like assemblies from recombinant virus-like particles (nucleoprotein, VP24,VP35,VP40) Deposited 2023-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 7 PDB declaration: nonameric	Chain F 1–340（340 aa） Chain K 1–340（340 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.30 Å
9IP3 Cryo-EM structure of the RNA-dependent RNA polymerase complex in a compact conformation from Ebola virus Deposited 2024-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 80–340（261 aa） Chain C 80–340（261 aa） Chain D 80–340（261 aa） Chain E 80–340（261 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；25 mM HEPES, 300 mM NaCl, 1 mM TCEP, 6 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å

25 other PDB entries and 43 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VP35_EBOZM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–65； UniProt 82–145 Author chain B； PDBConstruct 2–65； UniProt 82–145 Author chain C； PDBConstruct 2–65； UniProt 82–145 Author chain D； PDBConstruct 2–65； UniProt 82–145 Author chain E； PDBConstruct 2–65； UniProt 82–145 Author chain F； PDBConstruct 2–65； UniProt 82–145 Author chain G； PDBConstruct 2–65； UniProt 82–145 Author chain H； PDBConstruct 2–65； UniProt 82–145 Author chain I； PDBConstruct 2–65； UniProt 82–145 Author chain J； PDBConstruct 2–65； UniProt 82–145 Author chain K； PDBConstruct 2–65； UniProt 82–145 Author chain L； PDBConstruct 2–65； UniProt 82–145

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

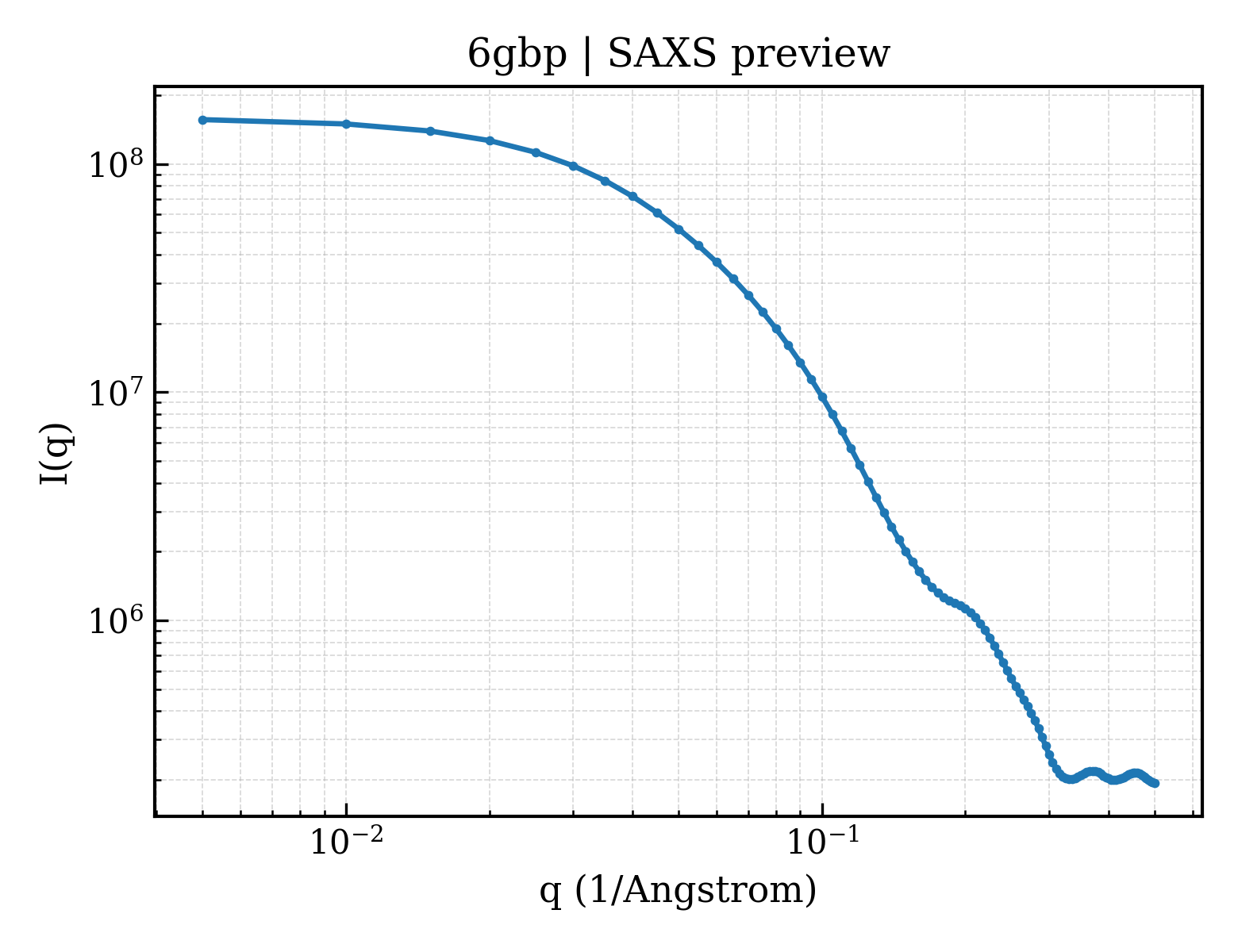

SAXS scattering curve SAXS Profile

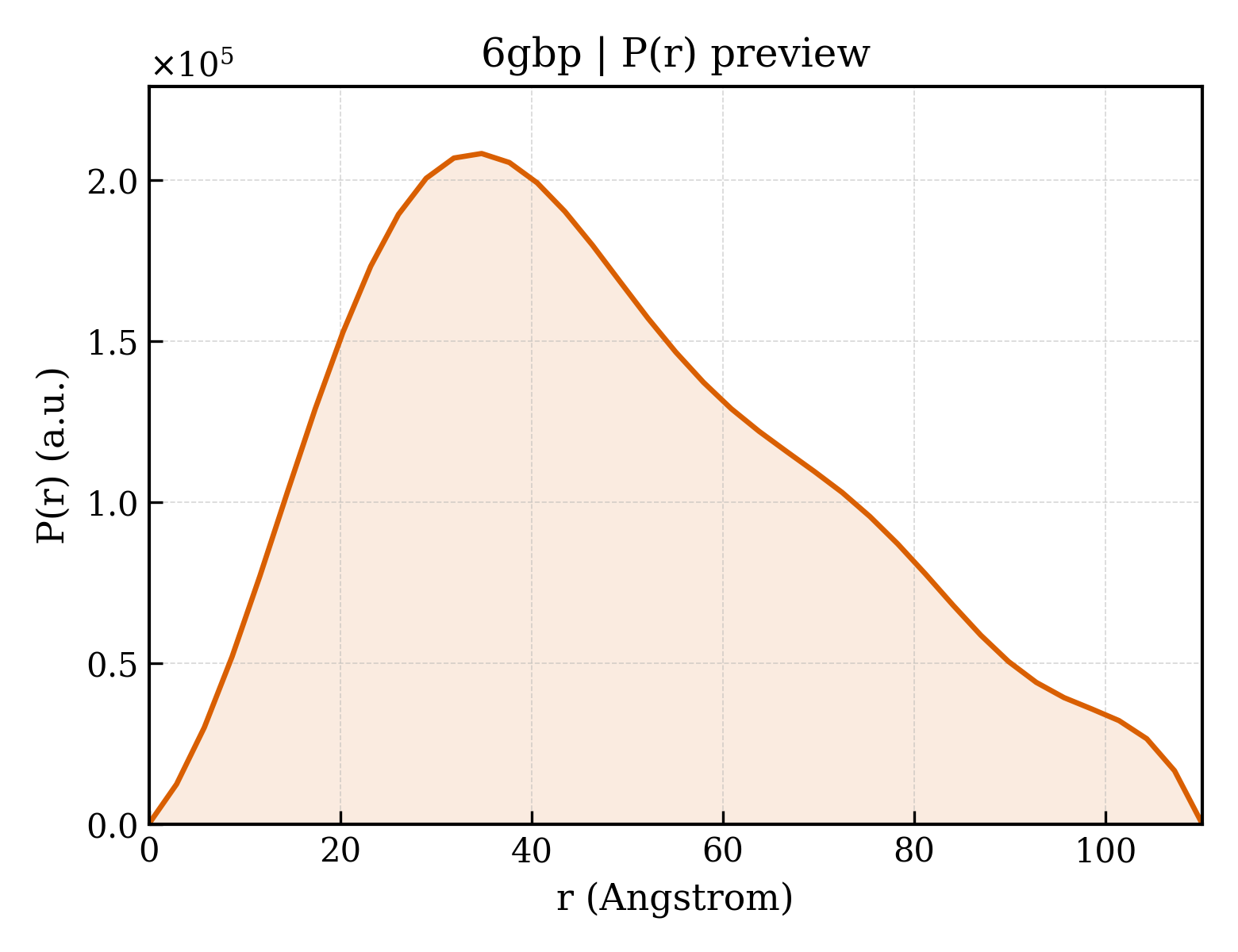

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6gbp
Deposition date deposition_date	2018-04-16
Structure title title	Crystal Structure of the oligomerization domain of VP35 from Ebola virus, mercury derivative
Keywords keywords	coiled-coil, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.12 Å
Radius of gyration Rg (electron density) rg_electron	43.29 Å
Forward intensity I(0) i0	158500000.00
Molecular weight molecular_weight	96332.0 kDa
Excluded volume excluded_volume	117670 Å³
Envelope volume envelope_volume	165020 Å³
Hydration-shell volume shell_volume	37453 Å³
Envelope diameter envelope_diameter	183.4 Å
Shell Rg shell_rg	39.67 Å
Envelope Rg envelope_rg	44.85 Å
Shape Rg shape_rg	43.57 Å
Total Rg total_rg	42.19 Å
Total atoms total_atoms	6605
Residues n_residues	849
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	110.1 Å
Rg (real space) rg_real	37.27 Å
Rg uncertainty (real space) rg_real_error	0.37 Å
I(0) (real space) i0_real	1.5040e+08
I(0) uncertainty (real space) i0_real_error	2.3310e+06
Rg (reciprocal space) rg_reciprocal	41.13 Å
I(0) (reciprocal space) i0_reciprocal	158400000.0000
Solution quality estimate total_estimate	0.6740
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	34.8 Å
Skewness Skewness skewness	0.456
Kurtosis Kurtosis kurtosis	-0.525
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.8259
Highest regularization parameter α highest_alpha	9281000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.004; Oscil: 0.956; Stabil: 0.986; Sysdev: 0.000; Positv: 1.000; Valcen: 0.945; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Unit-cell length a length_a	61.421 Å
Unit-cell length b length_b	103.923 Å
Unit-cell length c length_c	186.287 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.490 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2237
R_work r_work	0.2208
R_free r_free	0.2811

Description description	Polymerase cofactor VP35
Molecular weight formula_weight	8269.4 kDa
Source method src_method	man
Copy count entity_count	12

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	6605

Crystal Structure of the oligomerization domain of VP35 from Ebola virus, mercury derivative

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polymerase cofactor VP35

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 non-polymer

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Zaire ebolavirus
NCBI Class编号 ncbi_taxonomy_id	186538
宿主生物 host_organism	Escherichia coli BL21(DE3)

Description description	MERCURY (II) ION
Molecular weight formula_weight	200.6 kDa
Source method src_method	syn
Copy count entity_count	11

fit	/app/data/saxs_computation/gb/6gbp/6gbp.fit
pddf	/app/data/pr_computation/gb/6gbp/6gbp.pr.out
profile	/app/data/saxs_computation/gb/6gbp/6gbp.dat
