SAXSdb — 8w9p

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8w9p
沉积日期 deposition_date	2023-09-05
结构标题 title	Structure of full Banna virus
关键词 keywords	reovirus, complex, capsid protein, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	72.75 Å
回转半径 Rg (电子) rg_electron	72.52 Å
零角强度 I(0) i0	16101400000.00
分子量 molecular_weight	1083500.0 kDa
排除体积 excluded_volume	1357900 Å³
包络体积 envelope_volume	1982800 Å³
水化壳体积 shell_volume	219450 Å³
包络直径 envelope_diameter	317.4 Å
壳层 Rg shell_rg	78.02 Å
包络 Rg envelope_rg	73.03 Å
形状 Rg shape_rg	72.52 Å
总 Rg total_rg	72.56 Å
总原子数 total_atoms	76359
残基数 n_residues	9797
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	264.7 Å
Rg (实空间) rg_real	75.69 Å
Rg 误差 (实空间) rg_real_error	1.50 Å
I(0) (实空间) i0_real	1.6120e+10
I(0) 误差 (实空间) i0_real_error	3.2670e+08
Rg (倒空间) rg_reciprocal	72.98 Å
I(0) (倒空间) i0_reciprocal	16110000000.0000
解质量估计 total_estimate	0.8977
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	88.2 Å
偏度 Skewness skewness	0.539
峰度 Kurtosis kurtosis	0.389
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.9504
最高正则化参数 α highest_alpha	2836000000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.739; Stabil: 0.875; Sysdev: 1.000; Positv: 1.000; Valcen: 0.965; Smooth: 0.884

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	VP2
分子量 formula_weight	108031.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	76359

MPRKKDQVTKNDDGNQTSDVQTQDFKTAVQPDTNTAQLIKTYSNPKQRGDKGEIIYDGGLSSKLADVVDKTTEPHNADGAVKDGRIAPVKLDLEKQKLDKLKLFETSPFDPLTIKNNQDVVDKLYATQSSSIQEVVPTKTFATELQFGVTSEDMAKIYGAVAAVSKNVNSSVTYEVKRGTHELIKVPTIPHNLVLIQSDNGKHALIKEDLGQWPVETGISLVNQAGVFAVQLANKLGIDKPFVLDAGSNYFTDTSFIDTRKYCTDGLSPREIQKALNRQRAYYDRPELTISENKTLLSQSIIYPDADGNDVSIIFSGAMSHAIFTYAQSQWNKNIIKLDDYIREITLTVPKQYRPRRFKEIEHTHGYVYRELNQGSLLPLVDANLKESSSYYFKKLMSSISNVPVDARTLQSATAALAADTGQAVNRAQHVSMLTNRLTTANAPTVRAITVLTCMFKQFRIGMTYALDPNIMDVAAATCMLLFRPAQSISDEQYRYCLQTMAVFLTNTTYDIVNNDTIDVLKMKLRNQGWPFVERYNAVEIDMSVEPLRSPGQVGRYYNPFNIDPLTKKHVEDRLEEFINQVQVGRFRNASGNAVGTTLAAFLRACRDKTSANWRGYSVLVSRYRSLIPNELFESLRNISGEYNINPQDEHSFFFALAQINADDEFIGAIDKESAEYLDEYATLARDISNSLTLVKAAFGPLERTSGSIINHANNLNKVINHVFADKPLISETMLKILTIDGTTGKDGYRNWLDKLVGHNYPVYVEPVVNIMNFISARFVADSSYFGYTNEIMIMPNHINVPVDDRFGFRDSPFCTSLPRTIMGNDVRRISYNVFSMMEDIDDVISEGFILYDAYFNFSYDIMTTDGVTRLKEDILIVTDTGNDIKPIHFYIYFENRNDKKLRYESKMNVSYRLYIKTPACLLPLSDYMRAQHDYVSPSSSRVYIKDPAVVYTRS

Entity 2 polymer

描述 description	VP8
分子量 formula_weight	32786.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	13

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D,E,F,G,H,I,J,K,L,M,N,O

MANRATSAFLDNPHPVGVNYVDEGSRQFVAVAELLASKLIDSSRESDESNSDVPFVQAYSKFADDNPRHLRVKTGGKMANALTNVIRSYYSINAPAIVPQVEIDRLASKATVSGDMYNSYAIFNSVPIVEVLSPARTTVSIVGSDRADVTMLNTGAGAANITFNFGQIAETVILKGSVPFQLARLNQPMPAARFTYKLRPLDGPFIVVLPVGNPLVISATAATRIQVPLAFNKALVESGFQTAMNDGLFDIQNVNYYSSFDEFIISQYHAQDGINRVSTCVILGLALQAYDQMRRALPVRR

Entity 3 polymer

描述 description	VP10
分子量 formula_weight	28655.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P,Q

MDVLSKGSLKELLAHLEKTPLEEAISYRIGTVPYQNVLISRNEYYNQLYPDTTSLIDGVSREGQRNVNGLIMSIISYVVSGSGHYIPNIGFMLLRRSILDILTKHDTGLVTNNLNYGIIARNLTVSKMNCEQRKRMLICFKLLAYKDGNQNDYEIYLNQNIPLKQIAPNFIPGDMRTVIHNQDQLAIVGIPAYRLTQSTELSIRDDNAKSYKLGYVDWYNSNSFLRERSEFNLIRLKDRDTKYGKLNGW

Entity 4 polymer

描述 description	VP4
分子量 formula_weight	69767.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R,S,T,U,V,W

MAWVTQAYSSGLSQNSIISLTGNDRTVADGTFNSMIMPRAVIANEREHFMKTRIDKIEHDLNRSAKQEMMDRQSLAEDYNALNLAVGQEIKLDIATQHQLNRLGSAMYKADHERETELTDLINRIRENEVTVNGILENQKAITAAERADLLLEVVASTAKSVSAAGRAAADGSGVVPVFGPSVANGIKVGIDIADSVAEAAIAVKESGIITQLNDVYHAFQSVHVAPNDVIKPAAVVAGTSTELIGNLQAIYSRLRSHSDIGFKKATVGDVIPNSYMIKPVNSTEYASWQLYVIHPVQGSLGLVVQLMGDALTYNVFAQYGNTSASEFGKTVLTGGATNTALEGTKVKFQTKVTAQQALALTMALKDAASMLSQGELIGYFEQYINLALEPDNLSLQDNMHKYHHLLTSQNSPIDWNYHDEEMHKWLDSRKTTNYDAMQKKDGTVIADIHIPKVFNDLRNTTLHCKLEGKQTIAGYTVYEYLIGPWAHYGDIDYSVVVDTLNEETKWYCEVIGIDGHLLIEKSVQHKPEKILELTVNDSGVTSFNGRNHDRLKLKVYVKDSLSVKVFRNWIGINAPRVKTKMFNDHIGVKYDYSHFDKNISPAHLTLTDLGWHTWDQYNAGNWTNIKP

Entity 5 polymer

描述 description	VP9
分子量 formula_weight	30581.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r,s,t,u,v,w

MLSETELRALKKLSTTTSRVVGDSTLALPSNVKLSKGEVEKIAVTKKEMFDELAQCNLPTIELITREHTFNGDVIRFAAWLFLMNGQKLMIANNVAVRMGMQYATNLAGNNVKITYVTSNNVVKLGHIAAGVLANPYSNKGSGLFITYEYNLISNLIETGKVCVLFITSLSTTASSTNSFAYSTCSVPIENWDFNMIKLTAETSCASLTAMTNLVNSLVPGERTRPVGLYVDIPGVTVTTSASSGSLPLTTIPAVTPLIFSAYTKQVEEVGVINTLYALSYLP

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	5.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	34342

fit	/app/data/saxs_computation/w9/8w9p/8w9p.fit
pddf	/app/data/pr_computation/w9/8w9p/8w9p.pr.out
profile	/app/data/saxs_computation/w9/8w9p/8w9p.dat

Structure of full Banna virus

SAXS 散射曲线 SAXS Profile

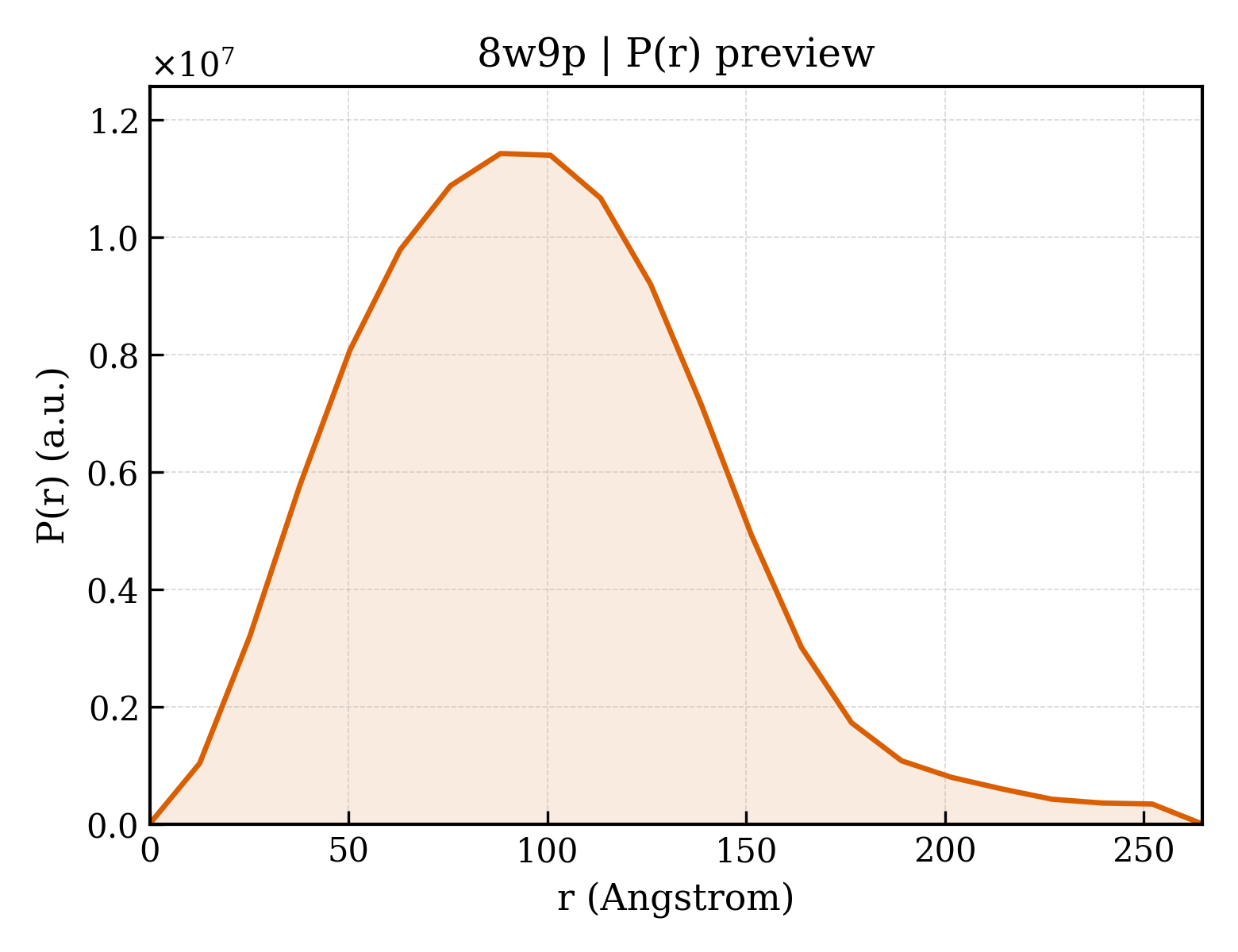

P(r) 距离分布 P(r) Distribution
