SAXSdb — 8w9q

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8w9q
沉积日期 deposition_date	2023-09-05
结构标题 title	Structure of partial Banna virus
关键词 keywords	reovirus, intermediate state, capsid protein, complex, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	67.47 Å
回转半径 Rg (电子) rg_electron	67.47 Å
零角强度 I(0) i0	10519500000.00
分子量 molecular_weight	875360.0 kDa
排除体积 excluded_volume	1097800 Å³
包络体积 envelope_volume	1604100 Å³
水化壳体积 shell_volume	190660 Å³
包络直径 envelope_diameter	322.1 Å
壳层 Rg shell_rg	72.74 Å
包络 Rg envelope_rg	69.47 Å
形状 Rg shape_rg	67.47 Å
总 Rg total_rg	67.53 Å
总原子数 total_atoms	61697
残基数 n_residues	7919
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	220.9 Å
Rg (实空间) rg_real	66.23 Å
Rg 误差 (实空间) rg_real_error	1.23 Å
I(0) (实空间) i0_real	1.0450e+10
I(0) 误差 (实空间) i0_real_error	2.1050e+08
Rg (倒空间) rg_reciprocal	67.17 Å
I(0) (倒空间) i0_reciprocal	10510000000.0000
解质量估计 total_estimate	0.8716
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	76.8 Å
偏度 Skewness skewness	0.264
峰度 Kurtosis kurtosis	-0.312
角度范围 angular_range	— – 0.1150 Å⁻¹
当前正则化参数 α current_alpha	0.1052
最高正则化参数 α highest_alpha	1618000000.0000
实空间数据点数 n_real_points	24
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.856; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.768

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	VP2
分子量 formula_weight	108031.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	61697

MPRKKDQVTKNDDGNQTSDVQTQDFKTAVQPDTNTAQLIKTYSNPKQRGDKGEIIYDGGLSSKLADVVDKTTEPHNADGAVKDGRIAPVKLDLEKQKLDKLKLFETSPFDPLTIKNNQDVVDKLYATQSSSIQEVVPTKTFATELQFGVTSEDMAKIYGAVAAVSKNVNSSVTYEVKRGTHELIKVPTIPHNLVLIQSDNGKHALIKEDLGQWPVETGISLVNQAGVFAVQLANKLGIDKPFVLDAGSNYFTDTSFIDTRKYCTDGLSPREIQKALNRQRAYYDRPELTISENKTLLSQSIIYPDADGNDVSIIFSGAMSHAIFTYAQSQWNKNIIKLDDYIREITLTVPKQYRPRRFKEIEHTHGYVYRELNQGSLLPLVDANLKESSSYYFKKLMSSISNVPVDARTLQSATAALAADTGQAVNRAQHVSMLTNRLTTANAPTVRAITVLTCMFKQFRIGMTYALDPNIMDVAAATCMLLFRPAQSISDEQYRYCLQTMAVFLTNTTYDIVNNDTIDVLKMKLRNQGWPFVERYNAVEIDMSVEPLRSPGQVGRYYNPFNIDPLTKKHVEDRLEEFINQVQVGRFRNASGNAVGTTLAAFLRACRDKTSANWRGYSVLVSRYRSLIPNELFESLRNISGEYNINPQDEHSFFFALAQINADDEFIGAIDKESAEYLDEYATLARDISNSLTLVKAAFGPLERTSGSIINHANNLNKVINHVFADKPLISETMLKILTIDGTTGKDGYRNWLDKLVGHNYPVYVEPVVNIMNFISARFVADSSYFGYTNEIMIMPNHINVPVDDRFGFRDSPFCTSLPRTIMGNDVRRISYNVFSMMEDIDDVISEGFILYDAYFNFSYDIMTTDGVTRLKEDILIVTDTGNDIKPIHFYIYFENRNDKKLRYESKMNVSYRLYIKTPACLLPLSDYMRAQHDYVSPSSSRVYIKDPAVVYTRS

Entity 2 polymer

描述 description	VP8
分子量 formula_weight	32885.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	13

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D,E,F,G,H,I,J,K,L,M,N,O

MANRATSAFLDNPHPVGVNYVDEGSRQFVAVAELLASKLIDSSRESDESNSDVPFVQAYSKFADDNPRHLRVKTGGKMANALTNVIRSYYSINAPAIVPQVEIDRLASKATVSGDMYNSYAIFNSVPIVEVLSPARTTVSIVGSDRADVTMLNTGAGAANITFNFGQIAETVILKGSVPFQLARLNQPMPAARFTYKLRPLDGPFIVVLPVGNPLVISATAATRIQVPLAFNKALVESGFQTAMNDGLFDIQNVNYYSSFDEFIISQYHAQDGINRVSTCVILGLALQAYDQMRRALPVRRV

Entity 3 polymer

描述 description	VP10
分子量 formula_weight	28655.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P,Q

MDVLSKGSLKELLAHLEKTPLEEAISYRIGTVPYQNVLISRNEYYNQLYPDTTSLIDGVSREGQRNVNGLIMSIISYVVSGSGHYIPNIGFMLLRRSILDILTKHDTGLVTNNLNYGIIARNLTVSKMNCEQRKRMLICFKLLAYKDGNQNDYEIYLNQNIPLKQIAPNFIPGDMRTVIHNQDQLAIVGIPAYRLTQSTELSIRDDNAKSYKLGYVDWYNSNSFLRERSEFNLIRLKDRDTKYGKLNGW

Entity 4 polymer

描述 description	VP4
分子量 formula_weight	69767.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R,S,T

MAWVTQAYSSGLSQNSIISLTGNDRTVADGTFNSMIMPRAVIANEREHFMKTRIDKIEHDLNRSAKQEMMDRQSLAEDYNALNLAVGQEIKLDIATQHQLNRLGSAMYKADHERETELTDLINRIRENEVTVNGILENQKAITAAERADLLLEVVASTAKSVSAAGRAAADGSGVVPVFGPSVANGIKVGIDIADSVAEAAIAVKESGIITQLNDVYHAFQSVHVAPNDVIKPAAVVAGTSTELIGNLQAIYSRLRSHSDIGFKKATVGDVIPNSYMIKPVNSTEYASWQLYVIHPVQGSLGLVVQLMGDALTYNVFAQYGNTSASEFGKTVLTGGATNTALEGTKVKFQTKVTAQQALALTMALKDAASMLSQGELIGYFEQYINLALEPDNLSLQDNMHKYHHLLTSQNSPIDWNYHDEEMHKWLDSRKTTNYDAMQKKDGTVIADIHIPKVFNDLRNTTLHCKLEGKQTIAGYTVYEYLIGPWAHYGDIDYSVVVDTLNEETKWYCEVIGIDGHLLIEKSVQHKPEKILELTVNDSGVTSFNGRNHDRLKLKVYVKDSLSVKVFRNWIGINAPRVKTKMFNDHIGVKYDYSHFDKNISPAHLTLTDLGWHTWDQYNAGNWTNIKP

Entity 5 polymer

描述 description	VP9
分子量 formula_weight	30581.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r,s,t

MLSETELRALKKLSTTTSRVVGDSTLALPSNVKLSKGEVEKIAVTKKEMFDELAQCNLPTIELITREHTFNGDVIRFAAWLFLMNGQKLMIANNVAVRMGMQYATNLAGNNVKITYVTSNNVVKLGHIAAGVLANPYSNKGSGLFITYEYNLISNLIETGKVCVLFITSLSTTASSTNSFAYSTCSVPIENWDFNMIKLTAETSCASLTAMTNLVNSLVPGERTRPVGLYVDIPGVTVTTSASSGSLPLTTIPAVTPLIFSAYTKQVEEVGVINTLYALSYLP

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	5.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	13225

fit	/app/data/saxs_computation/w9/8w9q/8w9q.fit
pddf	/app/data/pr_computation/w9/8w9q/8w9q.pr.out
profile	/app/data/saxs_computation/w9/8w9q/8w9q.dat

Structure of partial Banna virus

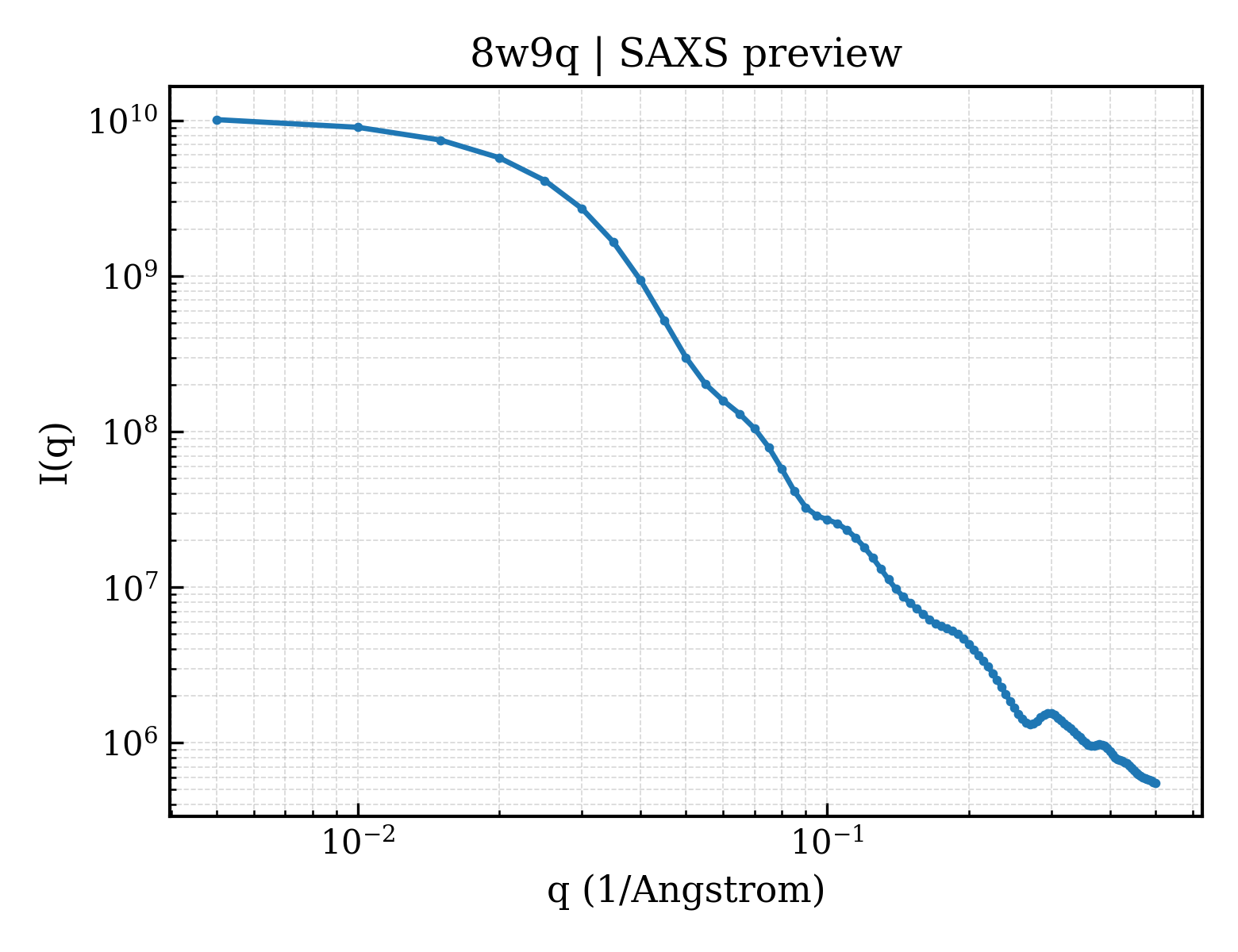

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
