8wtv

Cryo-EM structure of noradrenaline transporter in complex with noradrenaline

Method: ELECTRON MICROSCOPY Dmax: 88.0 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sodium-dependent noradrenaline transporter

Homo sapiens

UniProt P23975

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 52–617 Not recorded NA SODIUM ION × 2 CL CHLORIDE ION × 1 E5E Noradrenaline × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8WTV Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
8HFE Cryo-EM structure of human norepinephrine transporter NET in an inward-open state at resolution of 2.5 angstrom Deposited 2022-11-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8HFF Cryo-EM structure of human norepinephrine transporter NET in the presence of norepinephrine in an inward-open state at resolution of 2.9 angstrom. Deposited 2022-11-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded LNR L-NOREPINEPHRINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
8HFG Cryo-EM structure of human norepinephrine transporter NET in the presence of dopamine in an inward-open state at resolution of 3.0 angstrom. Deposited 2022-11-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded LDP L-DOPAMINE × 2 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8HFI Cryo-EM structure of human norepinephrine transporter NET in the presence of the antidepressant desipramine in an inward-open state at resolution of 2.5 angstrom. Deposited 2022-11-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded DSM 3-(10,11-DIHYDRO-5H-DIBENZO[B,F]AZEPIN-5-YL)-N-METHYLPROPAN-1-AMINE × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8HFL Cryo-EM structure of human norepinephrine transporter NET in the presence of the antidepressant bupropion in an inward-open state at resolution of 3.0 angstrom. Deposited 2022-11-11 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded 1XR Bupropion × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8I3V Cryo-EM structure of human norepinephrine transporter NET in the presence of the antidepressant escitalopram in an inward-open state at resolution of 2.85 angstrom. Deposited 2023-01-18 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded 68P (1S)-1-[3-(dimethylamino)propyl]-1-(4-fluorophenyl)-1,3-dihydro-2-benzofuran-5-carbonitrile × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.85 Å
8WGR Cryo-EM structure of inward-open state human norepinephrine transporter NET bound with antidepressant desipramine in KCl condition. Deposited 2023-09-22 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded DSM 3-(10,11-DIHYDRO-5H-DIBENZO[B,F]AZEPIN-5-YL)-N-METHYLPROPAN-1-AMINE × 2 CL CHLORIDE ION × 1 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
8WGX Cryo-EM structure of inward-open state human norepinephrine transporter NET bound with norepinephrine in nanodisc. Deposited 2023-09-22 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded LNR L-NOREPINEPHRINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
8WTU Cryo-EM structure of noradrenaline transporter in apo state Deposited 2023-10-19 Different ligand/ion Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 52–617（566 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
8WTW Cryo-EM structure of noradrenaline transporter in complex with a x-MrlA analogue Deposited 2023-10-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 52–617（566 aa）
Not recorded CL CHLORIDE ION × 1 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8WTX Cryo-EM structure of noradrenaline transporter in complex with bupropion Deposited 2023-10-19 Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 52–617（566 aa）
Not recorded Y60 (2~{R})-2-(~{tert}-butylamino)-1-(3-chlorophenyl)propan-1-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8WTY Cryo-EM structure of noradrenaline transporter in complex with ziprasidone Deposited 2023-10-19 Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 52–617（566 aa）
Not recorded XEF Ziprasidone × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XB2 Structure of radafaxine-bound state of the human Norepinephrine Transporter Deposited 2023-12-05 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 54–617（564 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 YNT Radafaxine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.04 Å
8XB3 Structural mechanism of substrate binding and inhibition of the human Norepinephrine Transporter Deposited 2023-12-05 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 54–617（564 aa）
Not recorded YMN Iobenguane × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8XB4 Structure of apo state of the human Norepinephrine Transporter Deposited 2023-12-05 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 54–617（564 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.92 Å
8Y8Z Structure of NET-Maprotiline in outward-open state Deposited 2024-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain E 1–617（617 aa）
Not recorded A1LX3 ~{N}-methyl-3-(1-tetracyclo[6.6.2.0^{2,7}.0^{9,14}]hexadeca-2(7),3,5,9,11,13-hexaenyl)propan-1-amine × 2 NA SODIUM ION × 2 CL CHLORIDE ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
8Y90 Structure of NET-Nefopam in outward-open state Deposited 2024-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain E 1–617（617 aa）
Not recorded A1LX6 (1S)-5-methyl-1-phenyl-1,3,4,6-tetrahydro-2,5-benzoxazocine × 1 NA SODIUM ION × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.15 Å
8Y91 Structure of NET-nomifensine in outward-open state Deposited 2024-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain D 1–617（617 aa）
Not recorded NA SODIUM ION × 2 CL CHLORIDE ION × 2 A1LX5 (4S)-2-methyl-4-phenyl-3,4-dihydro-1H-isoquinolin-8-amine × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.13 Å
8Y92 structure of NET-Atomoxetine in outward-open state Deposited 2024-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded A1LX4 (3R)-N-methyl-3-(2-methylphenoxy)-3-phenyl-propan-1-amine × 2 CL CHLORIDE ION × 2 NA SODIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
8Y93 Structure of NET-Amitriptyline in outward-open state Deposited 2024-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain E 1–617（617 aa）
Not recorded TP0 Amitriptyline × 1 NA SODIUM ION × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8Y94 Structure of Apo human norepinephrine transporter NET Deposited 2024-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain C 1–617（617 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
8Y95 Structure of NET-NE in Occluded state Deposited 2024-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain D 1–617（617 aa）
Not recorded E5E Noradrenaline × 2 CL CHLORIDE ION × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
8YR2 Structure of NET-Nisoxetine in outward-open state Deposited 2024-03-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded 41U nisoxetine × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 NA SODIUM ION × 4 CL CHLORIDE ION × 2 CLR CHOLESTEROL × 20 A1LX7 [(2R)-2-octanoyloxy-3-[oxidanyl-[(2R,3R,5S,6R)-2,3,4,5,6-pentakis(oxidanyl)cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
8Z1L Cryo-EM structure of human norepinephrine transporter NET in the presence of the antidepressant atomoxetine in an outward-open state at resolution of 3.4 angstrom. Deposited 2024-04-11 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded CL CHLORIDE ION × 1 A1LX4 (3R)-N-methyl-3-(2-methylphenoxy)-3-phenyl-propan-1-amine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ZOY Cryo-EM structure of human norepinephrine transporter NET bound with norepinephrine in an inward open state at a resolution of 2.5 angstrom Deposited 2024-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 47–617（571 aa）
Not recorded LNR L-NOREPINEPHRINE × 1 CL CHLORIDE ION × 1 PTY PHOSPHATIDYLETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8ZP1 Cryo-EM structure of human norepinephrine transporter NET bound with reboxetine in an outward-open state at a resolution of 2.5 angstrom Deposited 2024-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 47–617（571 aa）
Not recorded CL CHLORIDE ION × 1 A1D9Y (2~{S})-2-[(~{S})-(2-ethoxyphenoxy)-phenyl-methyl]morpholine × 1 NA SODIUM ION × 2 PTY PHOSPHATIDYLETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8ZP2 Cryo-EM structure of human norepinephrine transporter NET bound with atomoxetine in an outward-open state at a resolution of 2.4 angstrom Deposited 2024-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 47–617（571 aa）
Not recorded A1LX4 (3R)-N-methyl-3-(2-methylphenoxy)-3-phenyl-propan-1-amine × 1 NA SODIUM ION × 2 CL CHLORIDE ION × 1 PTY PHOSPHATIDYLETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8ZPB Cryo-EM structure of human norepinephrine transporter NET bound with norepinephrine in an occluded state at a resolution of 2.6 angstrom Deposited 2024-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 47–617（571 aa）
Not recorded LNR L-NOREPINEPHRINE × 1 NA SODIUM ION × 2 CL CHLORIDE ION × 1 PTY PHOSPHATIDYLETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9JEL The complex structure of Y510-9709 and NET determined with Cryo-EM Deposited 2024-09-03 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded A1EBN 3-(4-chlorophenyl)-5,6-dihydro-[1,3]thiazolo[2,3-b][1,3]thiazol-4-ium × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
Resolution 2.98 Å
9JF3 The complex structure of 0086-0043 and NET determined with Cryo-EM. Deposited 2024-09-03 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded A1EBO 2-isoquinolin-2-ium-2-yl-1-phenyl-ethanone × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
Resolution 2.87 Å
9K6X Structural and functional basis of antinociceptive action of conotoxin AoIA at the noradrenaline transporter Deposited 2024-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded A1EET [(2~{R})-3-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-2-oxidanyl-propyl] (9~{Z},12~{Z})-octadeca-9,12-dienoate × 2 NA SODIUM ION × 4 CL CHLORIDE ION × 2 CLR CHOLESTEROL × 14 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.77 Å
9KDA Cryo-EM structure of lipid-mediated dimer of human norepinephrine transporter NET in the presence of the antidepressant vilazodone in an inward-open state at resolution of 2.44 angstrom. Deposited 2024-11-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded YG7 5-{4-[4-(5-cyano-1H-indol-3-yl)butyl]piperazin-1-yl}-1-benzofuran-2-carboxamide × 2 CLR CHOLESTEROL × 16 A1EFM [(2~{R})-1-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-3-nonanoyloxy-propan-2-yl] decanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.44 Å
9KDH Cryo-EM structure of LIPID-mediated dimer of human norepinephrine transporter NET in the presence of Vanoxerine in an inward-open state at resolution of 2.52 angstrom Deposited 2024-11-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded CLR CHOLESTEROL × 14 A1D5S Vanoxerine × 2 A1EFM [(2~{R})-1-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-3-nonanoyloxy-propan-2-yl] decanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
9KDM Cryo-EM structure of LIPID-mediated human norepinephrine transporter NET in the presence of Levomilnacipran in an inward-open state at resolution of 2.46 angstrom. Deposited 2024-11-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded F0F (1R,2S)-2-(aminomethyl)-N,N-diethyl-1-phenyl-cyclopropane-1-carboxamide × 2 CLR CHOLESTEROL × 16 A1EFM [(2~{R})-1-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-3-nonanoyloxy-propan-2-yl] decanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.46 Å
9KE3 Cryo-EM structure of lipid-mediated dimer of human norepinephrine transporter NET in the presence of the F3288-0031 in an inward-open state at resolution of 3.1 angstrom Deposited 2024-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded A1EFR (2~{S})-1-[2-methoxy-4-[(~{E})-prop-1-enyl]phenoxy]-3-[4-(phenylmethyl)piperazin-1-yl]propan-2-ol × 2 CLR CHOLESTEROL × 14 A1EFM [(2~{R})-1-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-3-nonanoyloxy-propan-2-yl] decanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.13 Å

35 other PDB entries and 35 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SC6A2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–566； UniProt 52–617

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

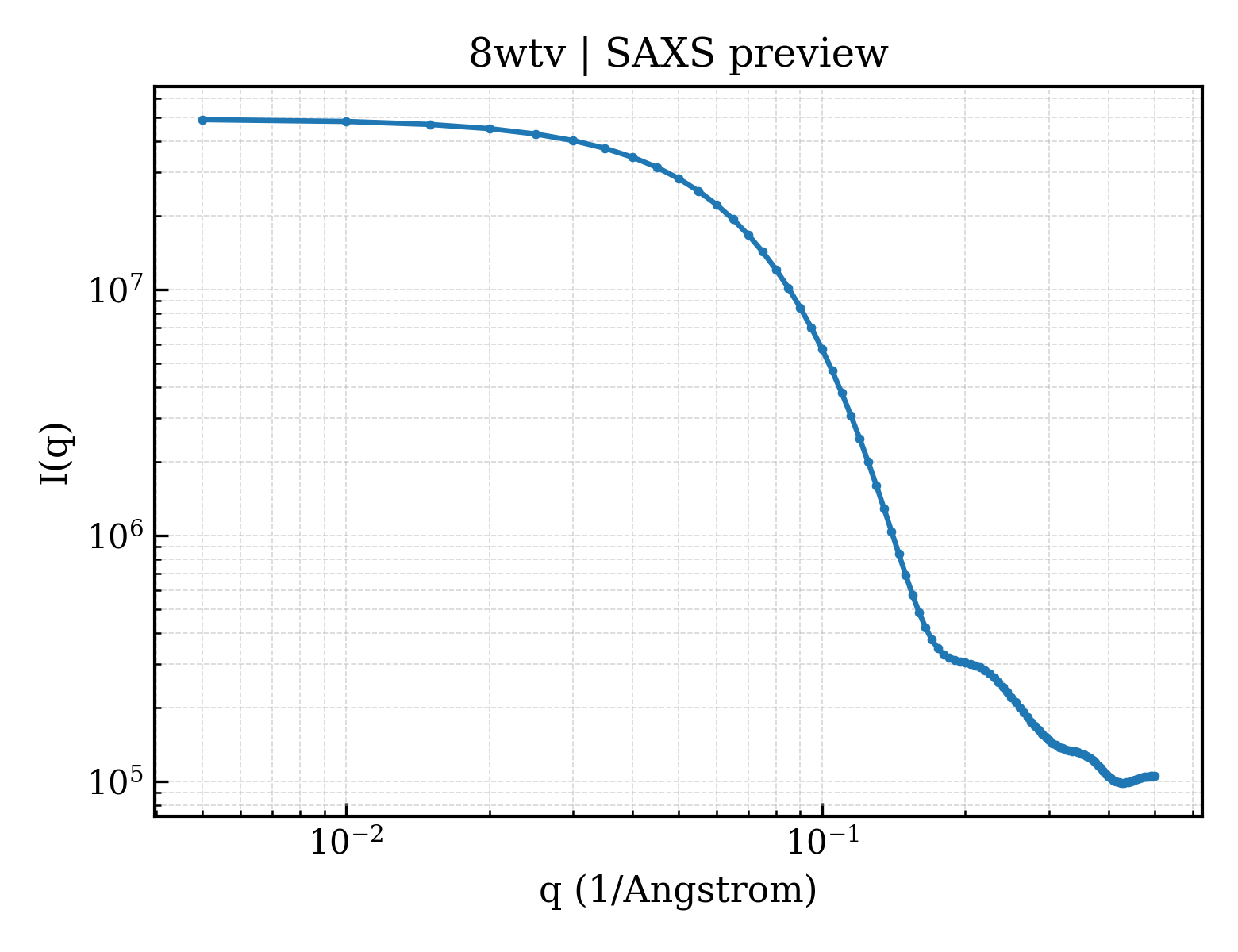

SAXS scattering curve SAXS Profile

SAXS profile for 8wtv

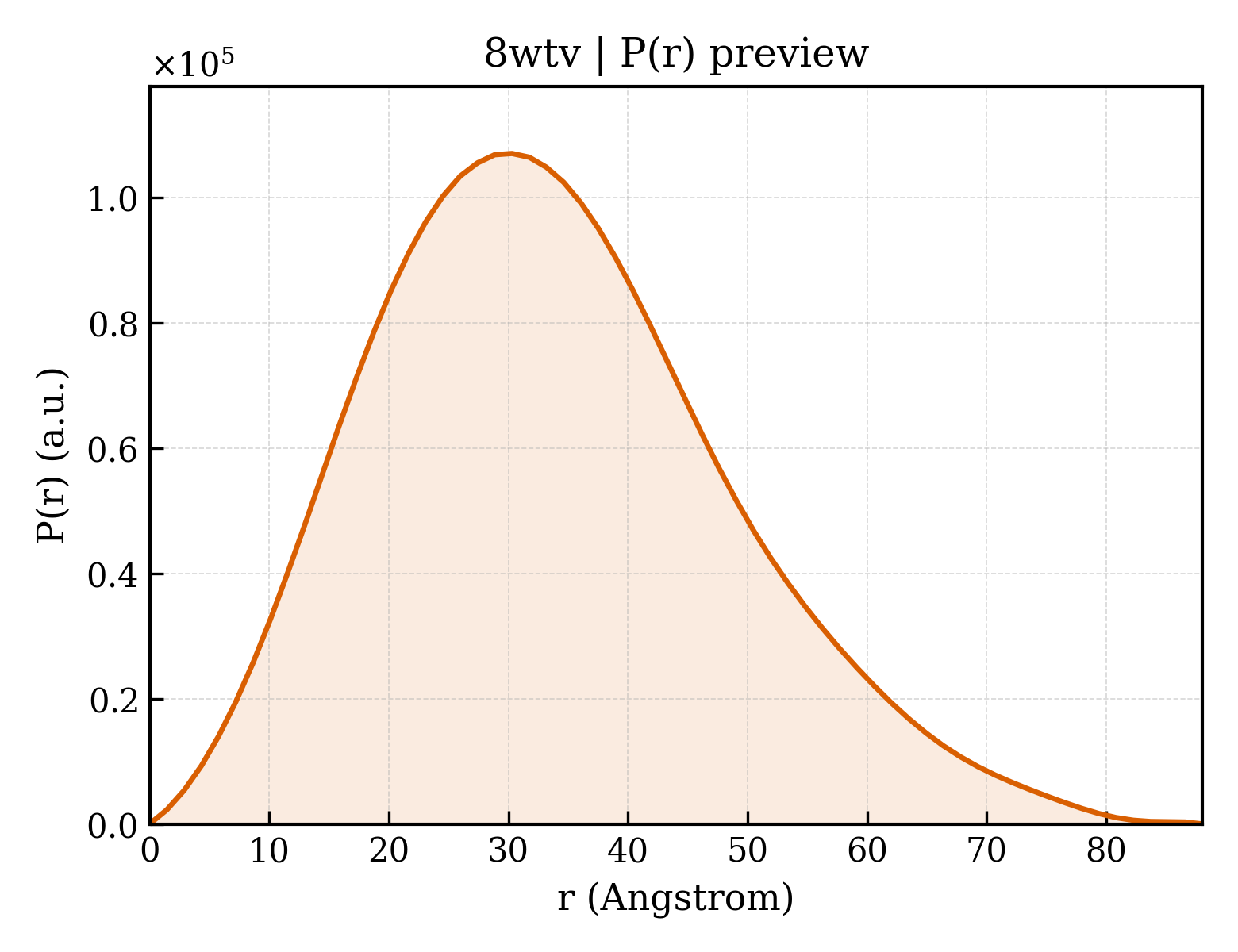

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8wtv
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8wtv
Deposition date deposition_date2023-10-19
Structure title titleCryo-EM structure of noradrenaline transporter in complex with noradrenaline
Keywords keywordsprotein structure, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier25.90 Å
Radius of gyration Rg (electron density) rg_electron24.68 Å
Forward intensity I(0) i049369600.00
Molecular weight molecular_weight60952.0 kDa
Excluded volume excluded_volume78757 ų
Envelope volume envelope_volume93060 ų
Hydration-shell volume shell_volume31321 ų
Envelope diameter envelope_diameter90.4 Å
Shell Rg shell_rg32.17 Å
Envelope Rg envelope_rg24.81 Å
Shape Rg shape_rg24.69 Å
Total Rg total_rg25.52 Å
Total atoms total_atoms4322
Residues n_residues536
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax88.0 Å
Rg (real space) rg_real25.92 Å
Rg uncertainty (real space) rg_real_error0.57 Å
I(0) (real space) i0_real4.9370e+07
I(0) uncertainty (real space) i0_real_error7.1160e+05
Rg (reciprocal space) rg_reciprocal25.91 Å
I(0) (reciprocal space) i0_reciprocal49370000.0000
Solution quality estimate total_estimate0.8700
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary30.3 Å
Skewness Skewness skewness0.438
Kurtosis Kurtosis kurtosis-0.110
Angular range angular_range— – 0.3050 Å−1
Current regularization parameter α current_alpha0.0002
Highest regularization parameter α highest_alpha9158000.0000
Real-space data points n_real_points62
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.781; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.976
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

▶

8. Citations (1)

▶

9. Files and Curves (10)
