8y8z

Structure of NET-Maprotiline in outward-open state

Method: ELECTRON MICROSCOPY Dmax: 108.4 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sodium-dependent noradrenaline transporter

Homo sapiens

UniProt P23975

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 1–617 Chain E； UniProt 1–617 Not recorded A1LX3 ~{N}-methyl-3-(1-tetracyclo[6.6.2.0^{2,7}.0^{9,14}]hexadeca-2(7),3,5,9,11,13-hexaenyl)propan-1-amine × 2 NA SODIUM ION × 2 CL CHLORIDE ION × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.29 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8Y8Z Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
8HFE Cryo-EM structure of human norepinephrine transporter NET in an inward-open state at resolution of 2.5 angstrom Deposited 2022-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8HFF Cryo-EM structure of human norepinephrine transporter NET in the presence of norepinephrine in an inward-open state at resolution of 2.9 angstrom. Deposited 2022-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded LNR L-NOREPINEPHRINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
8HFG Cryo-EM structure of human norepinephrine transporter NET in the presence of dopamine in an inward-open state at resolution of 3.0 angstrom. Deposited 2022-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded LDP L-DOPAMINE × 2 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8HFI Cryo-EM structure of human norepinephrine transporter NET in the presence of the antidepressant desipramine in an inward-open state at resolution of 2.5 angstrom. Deposited 2022-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded DSM 3-(10,11-DIHYDRO-5H-DIBENZO[B,F]AZEPIN-5-YL)-N-METHYLPROPAN-1-AMINE × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8HFL Cryo-EM structure of human norepinephrine transporter NET in the presence of the antidepressant bupropion in an inward-open state at resolution of 3.0 angstrom. Deposited 2022-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded 1XR Bupropion × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8I3V Cryo-EM structure of human norepinephrine transporter NET in the presence of the antidepressant escitalopram in an inward-open state at resolution of 2.85 angstrom. Deposited 2023-01-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded 68P (1S)-1-[3-(dimethylamino)propyl]-1-(4-fluorophenyl)-1,3-dihydro-2-benzofuran-5-carbonitrile × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.85 Å
8WGR Cryo-EM structure of inward-open state human norepinephrine transporter NET bound with antidepressant desipramine in KCl condition. Deposited 2023-09-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded DSM 3-(10,11-DIHYDRO-5H-DIBENZO[B,F]AZEPIN-5-YL)-N-METHYLPROPAN-1-AMINE × 2 CL CHLORIDE ION × 1 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
8WGX Cryo-EM structure of inward-open state human norepinephrine transporter NET bound with norepinephrine in nanodisc. Deposited 2023-09-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded LNR L-NOREPINEPHRINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
8WTU Cryo-EM structure of noradrenaline transporter in apo state Deposited 2023-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 52–617（566 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
8WTV Cryo-EM structure of noradrenaline transporter in complex with noradrenaline Deposited 2023-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 52–617（566 aa）
Not recorded NA SODIUM ION × 2 CL CHLORIDE ION × 1 E5E Noradrenaline × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
8WTW Cryo-EM structure of noradrenaline transporter in complex with a x-MrlA analogue Deposited 2023-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 52–617（566 aa）
Not recorded CL CHLORIDE ION × 1 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8WTX Cryo-EM structure of noradrenaline transporter in complex with bupropion Deposited 2023-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 52–617（566 aa）
Not recorded Y60 (2~{R})-2-(~{tert}-butylamino)-1-(3-chlorophenyl)propan-1-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8WTY Cryo-EM structure of noradrenaline transporter in complex with ziprasidone Deposited 2023-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 52–617（566 aa）
Not recorded XEF Ziprasidone × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XB2 Structure of radafaxine-bound state of the human Norepinephrine Transporter Deposited 2023-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 54–617（564 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 YNT Radafaxine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.04 Å
8XB3 Structural mechanism of substrate binding and inhibition of the human Norepinephrine Transporter Deposited 2023-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 54–617（564 aa）
Not recorded YMN Iobenguane × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8XB4 Structure of apo state of the human Norepinephrine Transporter Deposited 2023-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 54–617（564 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.92 Å
8Y90 Structure of NET-Nefopam in outward-open state Deposited 2024-02-06 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain E 1–617（617 aa）
Not recorded A1LX6 (1S)-5-methyl-1-phenyl-1,3,4,6-tetrahydro-2,5-benzoxazocine × 1 NA SODIUM ION × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.15 Å
8Y91 Structure of NET-nomifensine in outward-open state Deposited 2024-02-06 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain D 1–617（617 aa）
Not recorded NA SODIUM ION × 2 CL CHLORIDE ION × 2 A1LX5 (4S)-2-methyl-4-phenyl-3,4-dihydro-1H-isoquinolin-8-amine × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.13 Å
8Y92 structure of NET-Atomoxetine in outward-open state Deposited 2024-02-06 Different ligand/ion Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded A1LX4 (3R)-N-methyl-3-(2-methylphenoxy)-3-phenyl-propan-1-amine × 2 CL CHLORIDE ION × 2 NA SODIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
8Y93 Structure of NET-Amitriptyline in outward-open state Deposited 2024-02-06 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain E 1–617（617 aa）
Not recorded TP0 Amitriptyline × 1 NA SODIUM ION × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8Y94 Structure of Apo human norepinephrine transporter NET Deposited 2024-02-06 Different ligand/ion Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain C 1–617（617 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
8Y95 Structure of NET-NE in Occluded state Deposited 2024-02-06 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain D 1–617（617 aa）
Not recorded E5E Noradrenaline × 2 CL CHLORIDE ION × 2 NA SODIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
8YR2 Structure of NET-Nisoxetine in outward-open state Deposited 2024-03-20 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded 41U nisoxetine × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 NA SODIUM ION × 4 CL CHLORIDE ION × 2 CLR CHOLESTEROL × 20 A1LX7 [(2R)-2-octanoyloxy-3-[oxidanyl-[(2R,3R,5S,6R)-2,3,4,5,6-pentakis(oxidanyl)cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
8Z1L Cryo-EM structure of human norepinephrine transporter NET in the presence of the antidepressant atomoxetine in an outward-open state at resolution of 3.4 angstrom. Deposited 2024-04-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded CL CHLORIDE ION × 1 A1LX4 (3R)-N-methyl-3-(2-methylphenoxy)-3-phenyl-propan-1-amine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ZOY Cryo-EM structure of human norepinephrine transporter NET bound with norepinephrine in an inward open state at a resolution of 2.5 angstrom Deposited 2024-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 47–617（571 aa）
Not recorded LNR L-NOREPINEPHRINE × 1 CL CHLORIDE ION × 1 PTY PHOSPHATIDYLETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8ZP1 Cryo-EM structure of human norepinephrine transporter NET bound with reboxetine in an outward-open state at a resolution of 2.5 angstrom Deposited 2024-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 47–617（571 aa）
Not recorded CL CHLORIDE ION × 1 A1D9Y (2~{S})-2-[(~{S})-(2-ethoxyphenoxy)-phenyl-methyl]morpholine × 1 NA SODIUM ION × 2 PTY PHOSPHATIDYLETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8ZP2 Cryo-EM structure of human norepinephrine transporter NET bound with atomoxetine in an outward-open state at a resolution of 2.4 angstrom Deposited 2024-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 47–617（571 aa）
Not recorded A1LX4 (3R)-N-methyl-3-(2-methylphenoxy)-3-phenyl-propan-1-amine × 1 NA SODIUM ION × 2 CL CHLORIDE ION × 1 PTY PHOSPHATIDYLETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8ZPB Cryo-EM structure of human norepinephrine transporter NET bound with norepinephrine in an occluded state at a resolution of 2.6 angstrom Deposited 2024-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 47–617（571 aa）
Not recorded LNR L-NOREPINEPHRINE × 1 NA SODIUM ION × 2 CL CHLORIDE ION × 1 PTY PHOSPHATIDYLETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9JEL The complex structure of Y510-9709 and NET determined with Cryo-EM Deposited 2024-09-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded A1EBN 3-(4-chlorophenyl)-5,6-dihydro-[1,3]thiazolo[2,3-b][1,3]thiazol-4-ium × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
Resolution 2.98 Å
9JF3 The complex structure of 0086-0043 and NET determined with Cryo-EM. Deposited 2024-09-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–617（617 aa）
Not recorded A1EBO 2-isoquinolin-2-ium-2-yl-1-phenyl-ethanone × 1 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
Resolution 2.87 Å
9K6X Structural and functional basis of antinociceptive action of conotoxin AoIA at the noradrenaline transporter Deposited 2024-10-22 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded A1EET [(2~{R})-3-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-2-oxidanyl-propyl] (9~{Z},12~{Z})-octadeca-9,12-dienoate × 2 NA SODIUM ION × 4 CL CHLORIDE ION × 2 CLR CHOLESTEROL × 14 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.77 Å
9KDA Cryo-EM structure of lipid-mediated dimer of human norepinephrine transporter NET in the presence of the antidepressant vilazodone in an inward-open state at resolution of 2.44 angstrom. Deposited 2024-11-03 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded YG7 5-{4-[4-(5-cyano-1H-indol-3-yl)butyl]piperazin-1-yl}-1-benzofuran-2-carboxamide × 2 CLR CHOLESTEROL × 16 A1EFM [(2~{R})-1-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-3-nonanoyloxy-propan-2-yl] decanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.44 Å
9KDH Cryo-EM structure of LIPID-mediated dimer of human norepinephrine transporter NET in the presence of Vanoxerine in an inward-open state at resolution of 2.52 angstrom Deposited 2024-11-03 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded CLR CHOLESTEROL × 14 A1D5S Vanoxerine × 2 A1EFM [(2~{R})-1-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-3-nonanoyloxy-propan-2-yl] decanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
9KDM Cryo-EM structure of LIPID-mediated human norepinephrine transporter NET in the presence of Levomilnacipran in an inward-open state at resolution of 2.46 angstrom. Deposited 2024-11-03 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded F0F (1R,2S)-2-(aminomethyl)-N,N-diethyl-1-phenyl-cyclopropane-1-carboxamide × 2 CLR CHOLESTEROL × 16 A1EFM [(2~{R})-1-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-3-nonanoyloxy-propan-2-yl] decanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.46 Å
9KE3 Cryo-EM structure of lipid-mediated dimer of human norepinephrine transporter NET in the presence of the F3288-0031 in an inward-open state at resolution of 3.1 angstrom Deposited 2024-11-04 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–617（617 aa）
Chain B 1–617（617 aa）
Not recorded A1EFR (2~{S})-1-[2-methoxy-4-[(~{E})-prop-1-enyl]phenoxy]-3-[4-(phenylmethyl)piperazin-1-yl]propan-2-ol × 2 CLR CHOLESTEROL × 14 A1EFM [(2~{R})-1-[[(2~{S})-2,3-bis(oxidanyl)propoxy]-oxidanyl-phosphoryl]oxy-3-nonanoyloxy-propan-2-yl] decanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.13 Å

35 other PDB entries and 35 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SC6A2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–617； UniProt 1–617 Author chain E； PDBConstruct 1–617； UniProt 1–617

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8y8z

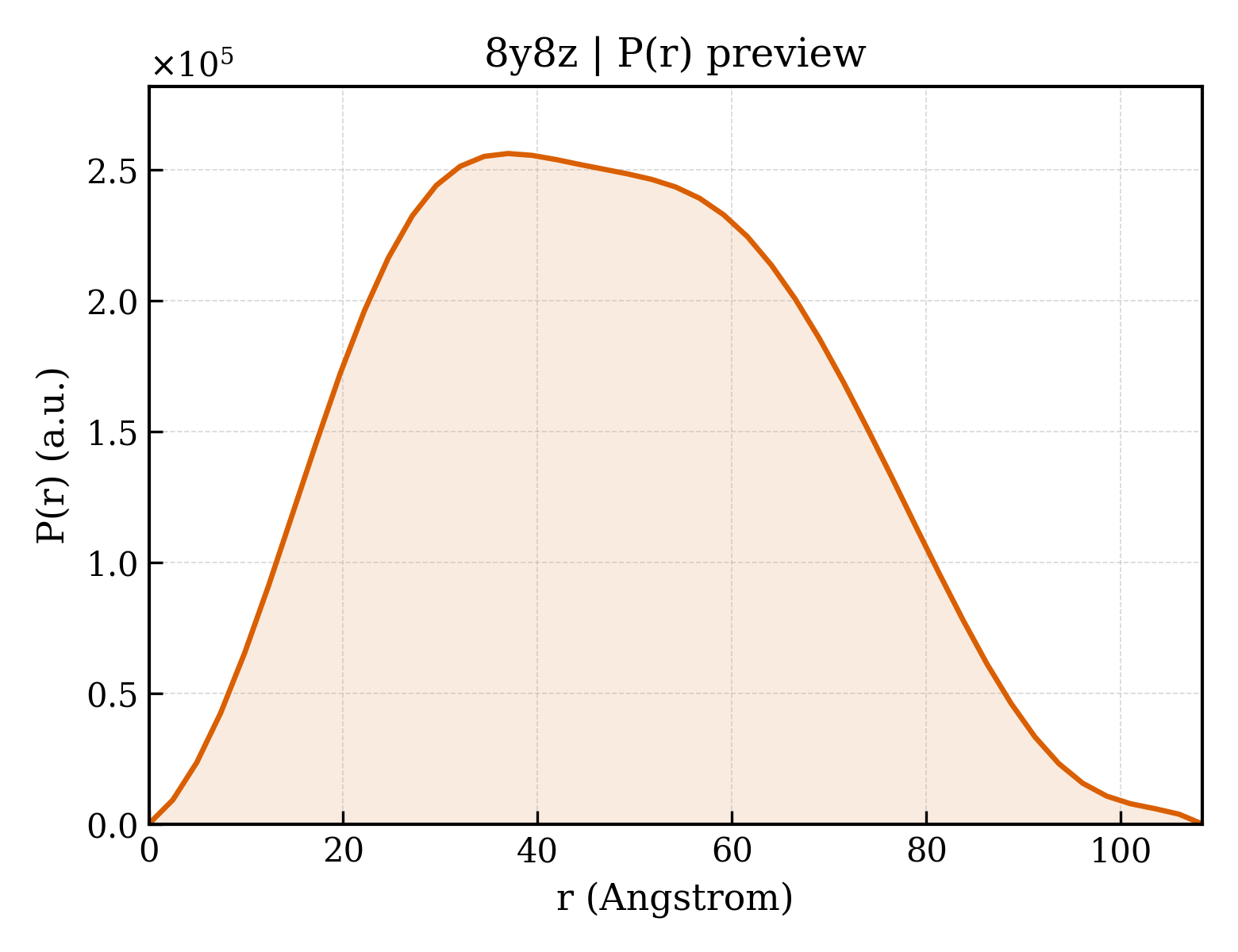

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8y8z
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8y8z
Deposition date deposition_date2024-02-06
Structure title titleStructure of NET-Maprotiline in outward-open state
Keywords keywordstransporter, TRANSPORT PROTEIN-INHIBITOR COMPLEX; TRANSPORT PROTEIN/INHIBITOR
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier36.03 Å
Radius of gyration Rg (electron density) rg_electron35.01 Å
Forward intensity I(0) i0199913000.00
Molecular weight molecular_weight127950.0 kDa
Excluded volume excluded_volume165420 ų
Envelope volume envelope_volume205730 ų
Hydration-shell volume shell_volume48530 ų
Envelope diameter envelope_diameter112.1 Å
Shell Rg shell_rg42.20 Å
Envelope Rg envelope_rg34.53 Å
Shape Rg shape_rg35.00 Å
Total Rg total_rg35.59 Å
Total atoms total_atoms9078
Residues n_residues1130
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax108.4 Å
Rg (real space) rg_real36.38 Å
Rg uncertainty (real space) rg_real_error0.26 Å
I(0) (real space) i0_real1.9560e+08
I(0) uncertainty (real space) i0_real_error2.7100e+06
Rg (reciprocal space) rg_reciprocal35.99 Å
I(0) (reciprocal space) i0_reciprocal199900000.0000
Solution quality estimate total_estimate0.7072
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary37.0 Å
Skewness Skewness skewness0.175
Kurtosis Kurtosis kurtosis-0.686
Angular range angular_range— – 0.2200 Å−1
Current regularization parameter α current_alpha3.6770
Highest regularization parameter α highest_alpha35250000.0000
Real-space data points n_real_points45
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.989; Stabil: 0.914; Sysdev: 0.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.516
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

▶

8. Citations (1)

▶

9. Files and Curves (10)
